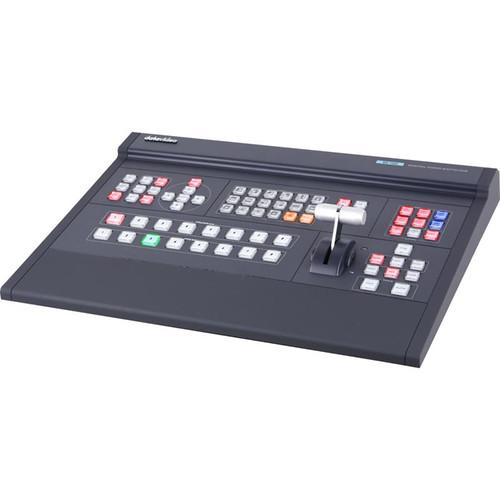

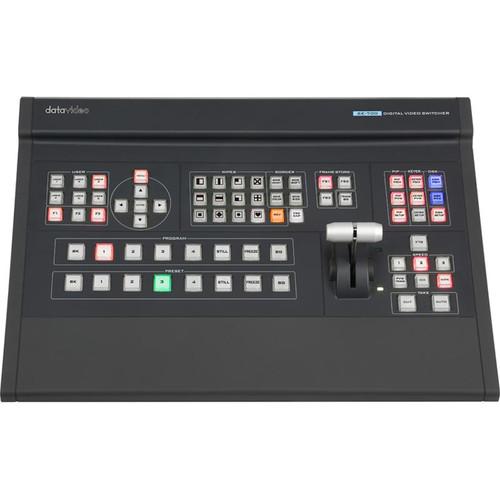

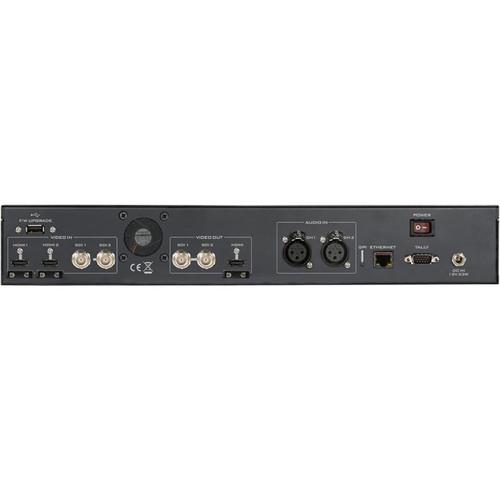

Product description The Datavideo EPB-1100 Educator's Production Bundle provides schools with the tools to teach live video production. It's put together for institutions that already have their own cameras. The bundle includes a switcher, teacher's guide, character generator, streaming server, lights, mics, and all other equipment necessary to go through a complete live production workflow. Students will learn how to plan, produce, switch, record, stream, apply on-screen-graphics, and much more, all in an easy-to-learn curriculum. There are recommended lesson plans and step-by-step how-to demos, all based on input from professional videographers, show hosts, and producers. The EPB-1100 Educator's Production Bundle provides practical lessons for real-world application. - SE-650 HD 4-Channel Digital Video Switcher Combining a four-channel HD video switcher and a 6-channel audio mixer, the Datavideo SE-650 is an all-in-one solution for live video production. Video and embedded audio can be imported using two HD-SDI and two HDMI inputs; audio can also be brought in through analog inputs. Multiple video outputs enable you to send video to multiple locations. The output section is configurable, so you can choose which output is your multiview, and which are your program outputs. Having multiple program outputs means that you can have one output recorded separately, and one output sent to a streaming server for live broadcast online.Use the control surface to switch angles in real time, apply effects, transitions, and fades to facilitate professional production value. Additional connections for expanding your I/O options include 1/4" microphone inputs and analog RCA audio, Ethernet, tally, and USB for firmware updates.
- Any Input can be used as a frame (stills) store
- Assignable outputs: Program (with DSK), Clean Program (without DSK), Clean Preview (without DSK), Multiview
- Flexible mix effects processor with one upstream keyer, supporting chroma key, and linear/luma key
- One upstream PiP, supporting chroma key and luma key
- Wipe generator: 32 wipe patterns including shapes with border and softness control
- Full mix effects preview function
- XPT (Cross Point Assignment)
UPC: 672255007181 - Video Production Teacher's Guide The Video Production Teacher's Guide from Datavideo is an integral part of the Education Production Bundle (bundle available separately). This book is a comprehensive guide that helps educators teach a video production class. It includes both lessons and activities to guide students in making professional video productions in the classroom for morning news announcements, school sporting event coverage, pep rally filming and broadcasting, live internet streaming shows, and more.This valuable resource will help you to learn how to operate your equipment and includes a series of video production activities. Each activity will provide a new learning experience; building on the workflow of the prior activity with a new element added to enhance the production value of the newscast. You will start with a simple production of switching between two cameras, and progress to a full news show, complete with CG graphics, video clips, green screen, recording, and live streaming. UPC: 672255005859

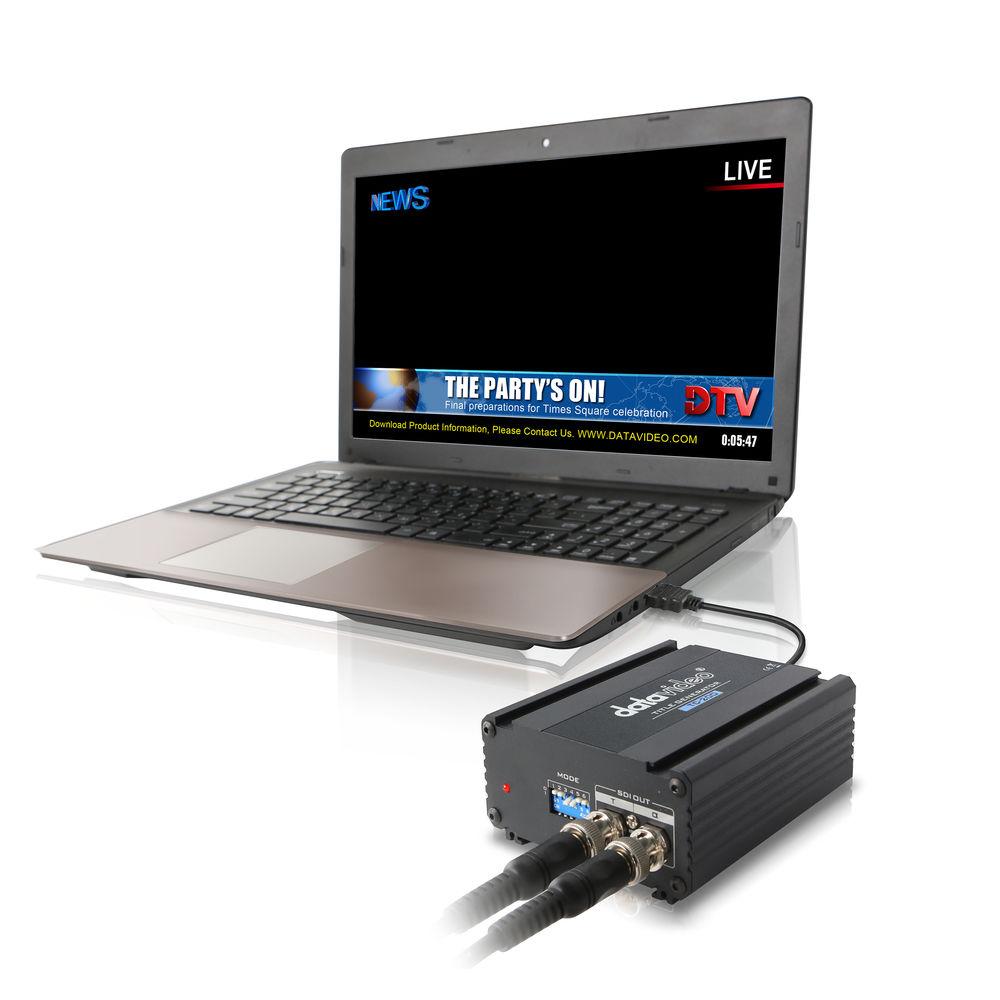

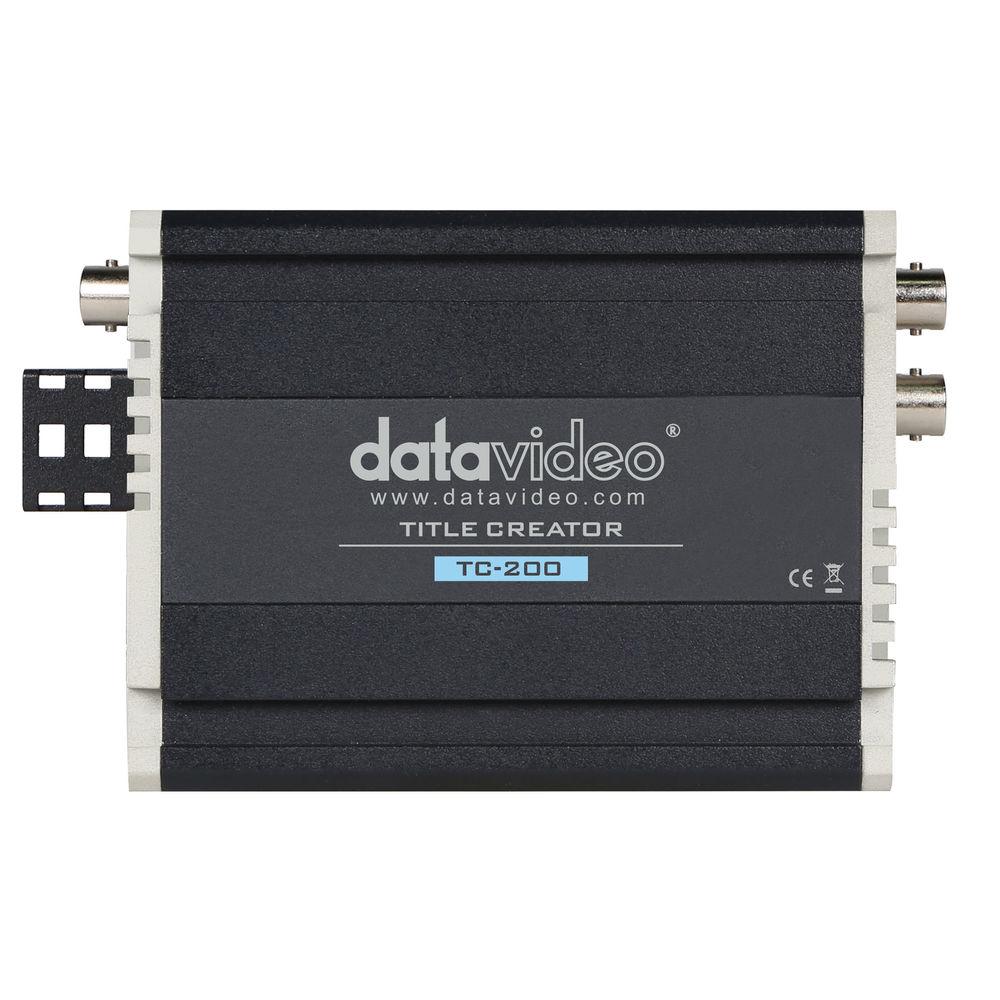

- TC-200 & CG-200 HD/SD Character Generator Kit The Datavideo TC-200 & CG-200 HD/SD Character Generator Kit combines the TC-200 Overlay Box with the CG-200 CG software into an on-screen graphics and titling solution that requires minimal PC processing power. Using a standard laptop, you can create and deliver striking on-screen graphics and titles in real-time, ideal for mobile broadcasting and live video presentations. All your laptop requires, beyond common standard specs, is an HDMI input.

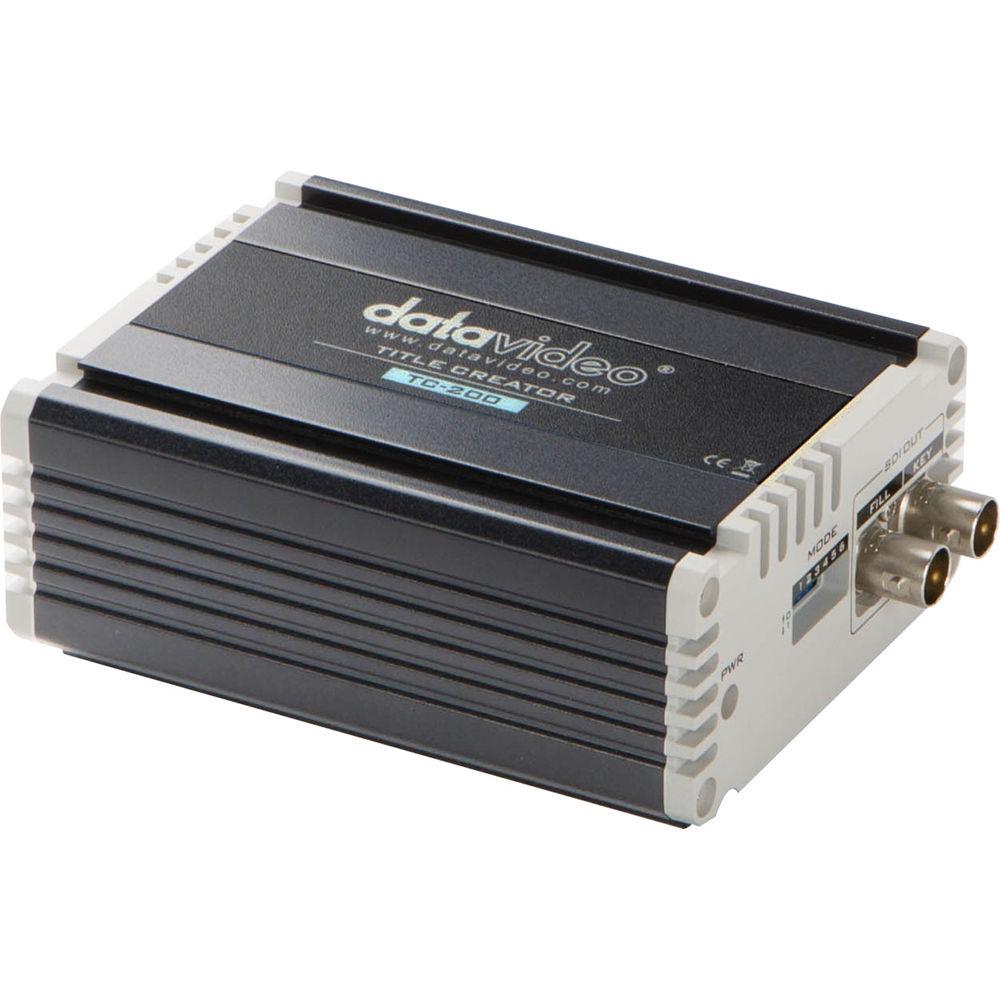

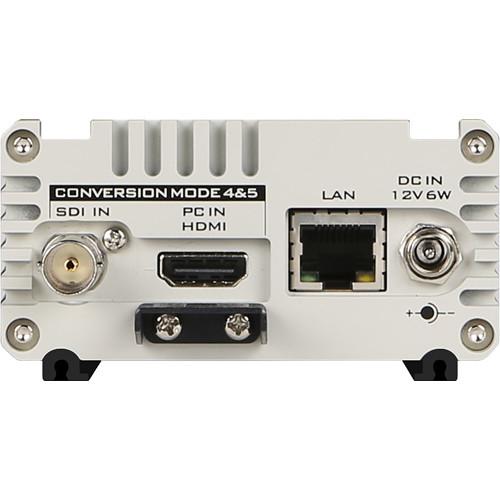

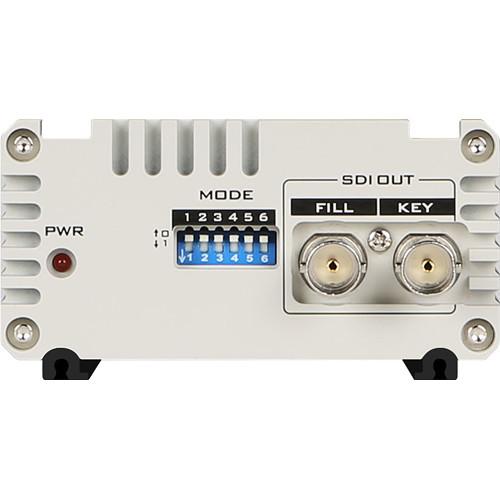

The TC-200 offers an SDI input supporting Overlay mode and two SDI outputs supporting DSK (down-stream keyer) Fill and Key signals, allowing you to forego the use of an SDI adapter installed into your computer, and in turn allowing you to use a laptop on-the-go. This kit supports vision mixers with and without a DSK. In cases without a DSK, the TC-200 Overlay Box's Title Overlay mode substitutes for the lack of it.
The TC-200 works on 7-15V of operating voltage. It supports 7.2V and 14.4V DV batteries using an optional Datavideo MB-4 Battery Adapter (required). - Key Features
-
- Live Title Generator
- No additional PCI card required
- Supports SDI overlay function or DSK function via HDMI
- Support HD/SD SDI input and output in Overlay mode
- Supports 1080i60/59.94/50, 720p60/59.94/50, 576i50, and 480i59.94
- Title editing on laptop
- Compatible with Windows 7/8 and supports all Windows fonts
- Multi-language support
- Supports animations including JPG, TAG, GIF, BMP, PNG
- Supports scrolling
- Title editing patterns include Slide and Reveal
- Easy logo setups
- User definable clock display
- TC-200 Overlay Box features a 7-15V working voltage and can be used with 7.2V and 14.4V batteries (an optional Datavideo MB-4 battery adapter is required)
- DSK Mode
- The TC-200 and CG-200 can be used with a vision mixer equipped with a DSK (down-stream keyer). In such a setup, they can be set up as the key source or fill source. Any vision mixer with a DSK is supported, such as the Datavideo SE-2800 and SE-3000.
- Overlay Mode
- When no DSK is being used, the Title Overlay mode substitutes for the lack of it. Using the TC-200 Overlay Box, the HDMI output from a laptop is embedded with the SDI output from a camcorder, VTR, or vision mixer.
- Text & Animation Tool
- This tool allows you to edit color, size, transparency, board, location, and alignment.
- Scrolling Function
- Puts all the contents you need in text frame. Scrolling speeds can be preset.
- UNICODE
- The CG-200 software adapts UNICODE and supports all fonts in Windows.
- Overlay Function
- The TC-200 combines CG from the laptop's HDMI port with the SDI video signal and overlays graphics in real-time.
- Text File Loading
- The CG-200 software is capable of directly importing text files.
UPC: 672255004357 - NVS-25 H.264 Video Streaming Server Stream HD or SD video to the web with Datavideo's NVS-25 H.264 Video Streaming Server. The NVS-25 encodes incoming video to H.264 in real time and can send it to stream on the web while simultaneously recording to a USB drive. Having the recording is good for content creators who want their video to be available on-demand after the live stream is over. For ease of use the NVS-25 uses a simple web-based user interface (UI) that can be accessed from a standard web browser. The UI can configure the settings and also upgrade firmware from the web. The rear panel has the input section and the network output. The NVS-25 can accept video from SDI, HDMI, or Composite sources. Audio can be routed into the stream from embedded audio in SDI or HDMI feeds, or from dedicated XLR and RCA audio inputs. Scaling and deinterlacing can be accomplished on any video input. Processing is done pre-encoding for better quality video. The front panel contains the status LEDs, the power switch, and a USB port. The USB port can output encoded video to a hard drive or flash drive.
Features - H.264
- High-quality HD / SD H.264 network streaming; H.264 / AVC video CODEC, up to High Profile Level 4.0
- Embedded or External Audio
- Audio inputs: select embedded or external audio source
- GOP Structure Support
- Supports 3 types of GOP structure: IBBP, IPPP and IBP
- Deinterlacing Support
- Supports de-interlace video streaming for progressive output
- Easy-to-Use Web User Interface
- Web UI for system configuration and FW upgrade
- Front Panel Button Control
- Front panel control for recording and streaming
- Video Scaler
- Flexible video scaler presets for streaming out
- USB Storage Support
- Attach USB storage device (Up to 1TB storage device)
UPC: 672255006795 - TP150 Teleprompter Kit for iPad & Android Tablets The Datavideo TP150 Teleprompter Kit includes a mount that holds the tablet securely below the camera head.It is quick and easy to assemble without the need for any special tools. The frame attaches to any standard tripod quick release plate. The teleprompter can be operated using the included controller that works in Bluetooth or wired modes. In addition, it is suitable for small studios, business presentations and conferences, or live events.
Using the optional wireless or wired WR-500 controller, you can control the speed of your prompting, jump between break marks, and switch scripts.The DV prompter app allows easy and quick overview of all your scripts. Users can send a document to the software via email or by copying and pasting the text. With the script editing and timing tool, texts can be amended or added to accommodate any last minute changes. The app gives the user control over the background color and the font type, size, and color. Thanks to the intuitive interface, it allows you to make quick changes in the middle of a live production. In addition, the app is available as free download in the Apple App Store and Google Play Store. - For iPad & Android Tablets
- Can be used with PTZ cameras
- Can be operated entirely by the presenter
- Suitable for small studios, business presentations and conferences or live events
- Remote included (works by Bluetooth or wired connection)
UPC: 672255007068 - DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter The DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter from Datavideo converts between SD, HD, and 3G formats. It supports 10-bit video processing and accepts VGA, HDMI, and SD/HD-3G-SDI video input signals and automatically converts them to the selected output format. The DAC-70 supports resolutions up to 1080p60 and up to 8 channels of embedded SDI or HDMI audio. An analog L/R audio input is also provided. Thanks to a built-in mini-USB port, the converter is firmware upgradeable for support of future video formats. A 12V / 1A power supply and cord comes included.
-
- Low SDI jitter with long cable lengths
- Compatible with optional RMK-2, for holding multiple converters and distribution amplifiers in a 2RU space
- Compatible with the MB-4 battery adapter
- Compatible with MB-5 strap adapter
UPC: 672255004326 - TB-5 Tally Box for SE-500 The TB-5 Tally Box for SE-500 from Datavideo is a preview accessory designed for use with SE-500 switchers. This unit includes 4 LED tally lights that will attach to any camera. Add a tally light to your setup to alert studio members to the status of cameras and bring more professionalism to your production work.
- LED Alert
- This unit will display 4 LED lights to alert team members to the status of the camera.
- Professional Results
- Add a tally light to your setup to alert studio members to the status of cameras and bring more professionalism to your production work.
- TLT-CA50 Tally Light Extension Cable The Datavideo TLT-CA50 is a 50' extension cable for tally light systems. This cable allows the camera to be 50' further away from the live switcher and still have tally functionality. UPC: 672255002308
- RKM-2000 Holder for SE-2000 The Datavideo RKM-2000 Holder for SE-2000 serves as a convenient platform for placing the monitor and it can also house a 1RU x 19" device like the HDR-50 recorder. The ITC-100 intercom can be mounted in the RKM2000 holder. Designed for small, live production venues, the SE-2000 switcher kit can be conveniently mounted into the holder without the need for an additional platform or stand. With the RKM-2000 holder, operating the SE-2000 is fast because every control is easily accessible on the work surface.
- Accepts a 1RU x 19" device
- Provides a convenient platform for the monitor
- Can house HDR-50 of the SE-2000 HDR kit
- Can house ITC-100 intercom of the SE-2000 ITC video switcher kit
UPC: 672255002636 In the Box Bundle Items SE-650 HD 4-Channel Digital Video Switcher - Limited 1-Year Warranty, Extendable to 2-Year If Registered within 30 Days
Video Production Teacher's Guide TC-200 & CG-200 HD/SD Character Generator Kit - Installation Disc for CG-200
- 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase
NVS-25 H.264 Video Streaming Server TP150 Teleprompter Kit for iPad & Android Tablets DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter xsqattvqau - 12V / 1A Power Supply and Cord
TB-5 Tally Box for SE-500 - 15-pin D-Sub Tally Control Cable
- 4 x 3.5mm Jack Plug to 3.5mm Jack Plug Cables - 3.9' (1.2 m)
- 12V 500mA AC/DC Power Supply
- 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase
- 1-Year Standard Warranty without Product Registration
4 x TLT-CA50 Tally Light Extension Cable RKM-2000 Holder for SE-2000
Also Includes - Laptop
- Tablet
- 24" LED Smart TV
- 4-Piece Lighting Kit
- Chroma Key Background and Stand
- Closed-Back Over-Ear Headphones
- Microphone Kit
- Set of Video Cables
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo EPB-1100 Educator's Production Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SE-650 HD 4-Channel Digital Video Switcher
Inputs | 2 x BNC HD-SDI 2 x HDMI Type A 1 x RCA stereo analog audio 2 x 1/4" TRS microphone | Outputs | 1 x BNC HD-SDI 2 x HDMI Type A 1 x RCA stereo analog audio | Other Ports | 1 x 15-pin tally 1 x USB (firmware upgrades) 1 x RJ-45 Ethernet | Power Supply | 12 VDC | Dimensions | 15.7 x 2.8 x 10.4" / 40 x 7.2 x 26.4 cm | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 7.0" | - Video Production Teacher's Guide
| Box Dimensions (LxWxH) | 11.0 x 8.5 x 0.2" | - TC-200 & CG-200 HD/SD Character Generator Kit

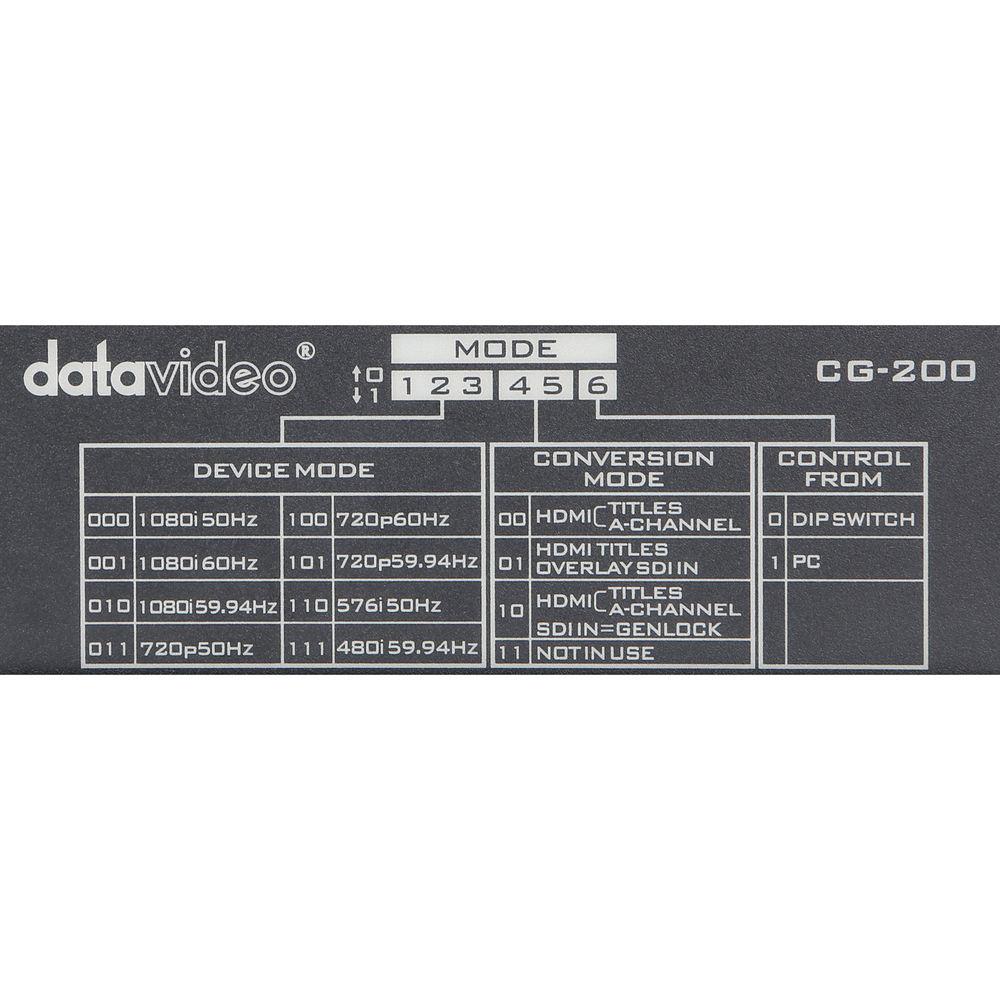

Text Sources | Frame text, clock, text file, CSV file | File Format | JPG, PNG, BMP, TGA, GIF, GIF | Animation Formats | GIF | Input / Output | 1x HDMI input 1x HD-SDI input 2x HD-SDI outputs 1x LAN port | Input Formats | 1920 x 1080i / 60 Hz 1920 x 1080i / 59.94 Hz 1920 x 1080i / 50 Hz 1280 x 720p / 60 Hz 1280 x 720p / 59.94 Hz 1280 x 720p / 50 Hz 720 x 576i / 50 Hz 720 x 480i / 59.94 Hz | Input Modes | CG Overlay: HDMI input is CG; SDI input is Live Video
Genlock Mode: HDMI input is CG; SDI input is Reference Signal
Reference with Internal Signal:
HDMI input is CG; SDI input isn't in use | Conversion Modes | HDMI signal is split into titles and alpha channel HDMI signal is split into titles and alpha channel with Genlock HDMI titles overlay over the input SDI signal | Control | Dip switch; PC | Voltage Range | 7-15 VDC (most of battery is 7.2V, 12V & 14.4V so will need to cover it) | Firmware Upgrade | Ethernet | System Requirements | Windows 7, 8 operating system; 3 GHz processor; 2 GB RAM | | Box Dimensions (LxWxH) | 8.25 x 6.0 x 3.05" | - NVS-25 H.264 Video Streaming Server
Video Inputs | 1 x HD/SD-SDI via BNC Connector 1 x CVBS (composite video) via BNC Connector 1 x HDMI | Video Encoding | H.264 AVC video codec, up to high-profile level 4.0, configurable bit-rate up to 6 Mbps | Supported Video Resolutions | 1820 x 1080p 50/59.94/60 (recorded at 25/30p) 1920 x 1080i 50/59.94/60 1280 x 720p 50/59.94/60 720 x 576i 50 720 x 480i 59.94 | Audio Input | 2 x Channels SDI embedded audio 2 x Channels analog audio via 2 x XLR or 2 x RCA Connectors 2 x Channels HDMI embedded audio | Audio Encoding | AAC-LC audio codec Sample rate: 16-bit/48 kHz Bit rate: up to 384 kbps | Output | 1 x RJ-45 (10/100M Ethernet) 1 x USB 2.0 type A for file output to USB storage | Storage | USB 2.0 mass storage File system: FAT32/MP4 | Network | DHCP Client Streaming protocols: HLS/RTSP/RTMP (1 protocol at a time), supports up to 3 clients | Control | Web UI for system configuration and control | System Monitoring | LEDs for power, input status, REC status, and streaming status | Power Input | 100 to 240 VAC | Environmental | Operating temperature: 32 to 122°F / 0 to 50°C Storage temperature: 14 to 140°F / -10 to 60°C | | Box Dimensions (LxWxH) | 11.6 x 9.7 x 4.05" | - TP150 Teleprompter Kit for iPad & Android Tablets
Dimensions | 15 x 13 x 10" (381 x 330.2 x 254 mm) | Weight | 6 lb (2.72 kg) | | Box Dimensions (LxWxH) | 12.8 x 8.9 x 4.3" | - DAC-70 SD/HD/3G-SDI Up/Down/Cross Converter
Supported Input Formats | 3G-SDI: 1080p 50/59.94/60 HD-SDI: 1080p 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 SD-SDI: 525i 625i HDMI: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 576p 480p 800×600@60Hz 1024×768@60Hz 1280×1024@60Hz 1366×768@60Hz 1400×1050@60Hz 1600×1200@60Hz VGA: 800×600@60Hz 1024×768@60Hz 1280×1024@60Hz 1366×768@60Hz 1400×1050@60Hz 1600×1200@60Hz | Supported Output Formats | SDI/HDMI: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i (50/59.94/60) 720p (50/59.94/60) 525i 625i | Color Spaces Supported | YUV / RGB | Audio Support | SDI input: embedded audio up to 8-channel, 48 KHz, PCM audio HDMI input: embedded audio up ot 8-channel, 44.1/48/96 KHz, PCM audio SDI/HDI output: embedded audio up to 8-channel, 48 KHz, PCM audio | Inputs | 1 x VGA 1 x HDMI 1 x SD/HD/3G-SDI 1 x Analog audio left/right pair | Outputs | 2 x SD/HD/3G-SDI 1 x HDMI 1 x SD/HD/3G-SDI loop-through | | Box Dimensions (LxWxH) | 8.3 x 6.0 x 2.2" | - TB-5 Tally Box for SE-500
Material | Plastic, metal | Finish | Blue | Dimensions | Not specified by manufacturer | Weight | Not specified by manufacturer | | Box Dimensions (LxWxH) | 8.4 x 5.9 x 3.0" | - TLT-CA50 Tally Light Extension Cable
| Box Dimensions (LxWxH) | 9.0 x 7.0 x 3.0" | - RKM-2000 Holder for SE-2000
| Box Dimensions (LxWxH) | 20.9 x 12.8 x 5.4" |
