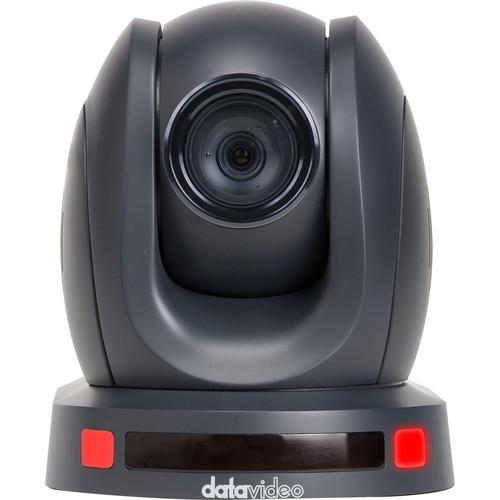

User Manual for Datavideo HDBaseT PTZ Camera with 20x Optical Zoom Click to enlarge the picture
Contents of the user manual for the Datavideo HDBaseT PTZ Camera with 20x
- Product category: PTZ Cameras Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo PTZ Cameras
|
User manual for the Datavideo HDBaseT PTZ Camera with 20x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description This datavideo HDBaseT PTZ Camera with 20x Optical Zoom can be controlled and powered over a single Cat 6 Ethernet cable up to 300' away from the network port, minimizing your cabling and expanding your mounting positions. The camera supports frame rates and resolutions as high as 1080p60 as well as 1080i60 and 720p60, and it features a 1/2.8" CMOS sensor with 2.07 MP resolution. The built-in zoom lens features an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom.
With 255 programmable preset positions, you can set the camera to rapidly move to between positions using the IP, RS-232, or IR control. The camera compresses using either or both the H.264 and H.265, as its on-board encoder is capable of encoding two streams at the same time. You can stream live using RTSP or RTMP protocols. The camera supports external audio via a 3.5mm stereo port, and you can mount the camera via the 1/4"-20 threaded mounting hole. -
- 20x Optical Zoom, 10x Digital Zoom
- Advanced noise reduction
- Audio input interface
- H.264/H.265 video compression for streaming
- Multiple Network Protocols: RTSP, RTMP protocols and support, easy to link to a streaming media server
- Compatible with HS-1500T and HS-1600T HDBaseT Portable Video Studios, and it's remote-controllable by RMC-300 and RMC-180 PTZ Camera Controllers
-
- Gamma Control: Off/Normal
- Iris Control: Auto/Manual
- Digital Noise Reduction
- On-Screen Display (OSD): English, Simplified Chinese
- White Balance: Auto / Manual / One Push / 3000K / 4000K /5000K / 6500K
- AGC/Gain Control: Auto/Manual
- Mirror/Flip Image: yes
- Focus Mode: Auto/Manual
- Panning/Tilting Range: Pan 340°, Tilt +90° to -30°
- Panning/Tilting Speed: Pan 0.1~60°/sec, Tilt 0.1~30°/sec
- Preset: 255 Positions
- Maximum Aperture: F1.6 to F3.5
- Image Compensation: backlight compensation
UPC: 672255008232 In the Box Datavideo HDBaseT PTZ Camera with 20x Optical Zoom Limited 1-Year Warranty, Extendable to 2 Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HDBaseT PTZ Camera with 20x Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo PTC-140T Specs | | | Image Sensor | 1-Chip 1/2.8" CMOS Sensor | | Sensor Resolution | 1920 x 1080 (2.07 MP) | | Signal-to-Noise Ratio | 55 dB | | Minimum Illumination | 0.5 lux | | White Balance Range | 3000 to 6500K | | | | Max Digital Zoom | 10x | | Flip / Mirror Support | Image Flip, Mirror (Vertical) | | | | Optical Zoom Ratio | 20x | | Focal Length | 5.2 to 98mm | | Field of View | Horizontal: 54.7 to 3.3
