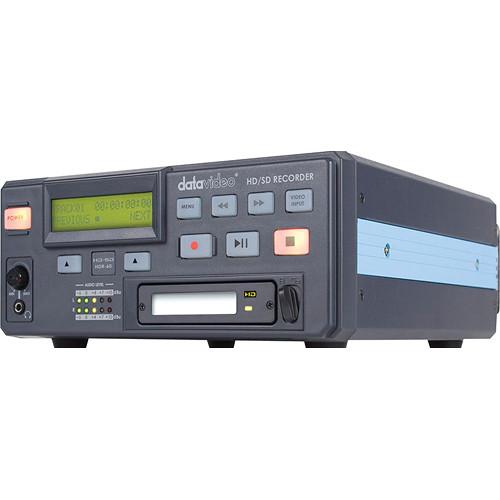

Product description Th DataVideo HDR-60 HDD Recorder for SD/HD-SDI with Removable Drive Bay is a portable field recorder that is also at home in a studio environment. It records NTSC, PAL, and HD video signals and features an SD/HD-SDI input and two mini-XLR recording to 2.5" form factor HDD or SSDs in a removable drive caddy. The HDR-60 features selectable color sampling ratio and data rate settings. This compact unit features a small footprint and is made from painted aluminum for strength. The front panel buttons provide you local tape deck like control of the unit, with built-in led audio level meters. The HDR-60 features two mini-XLR inputs and outputs for balanced audio.The HDR-60 also includes a 320GB HDD and two drive enclosures.
The drive enclosures support available drives (both HDD and SSD) up to 500GB and once removed from the HDR-60 the enclosures can be connected directly to a computer via the built-in USB 2.0 or eSATA interface for off loading or editing directly from the drive. The HDR-60 The unit writes to the NTFS file format system, which makes the drive readable by both Mac and Windows systems and avoids the 4GB file size limitation of FAT32 systems. For remote control, the HDR-60 features a 9-pin connector that allows control by RS-232 or RS-422. The unit is powered by 12 volts DC, and the connector features a locking collar so the power isn't unplugged accidentally. HDR-60 Video Support - NTSC and PAL video and HD video including 1080p, 1080i, and 720p.
- Reference in/out Black Burst and Tri-level sync.
- Timecode input/outputs, and gen-lock input and pass-through.

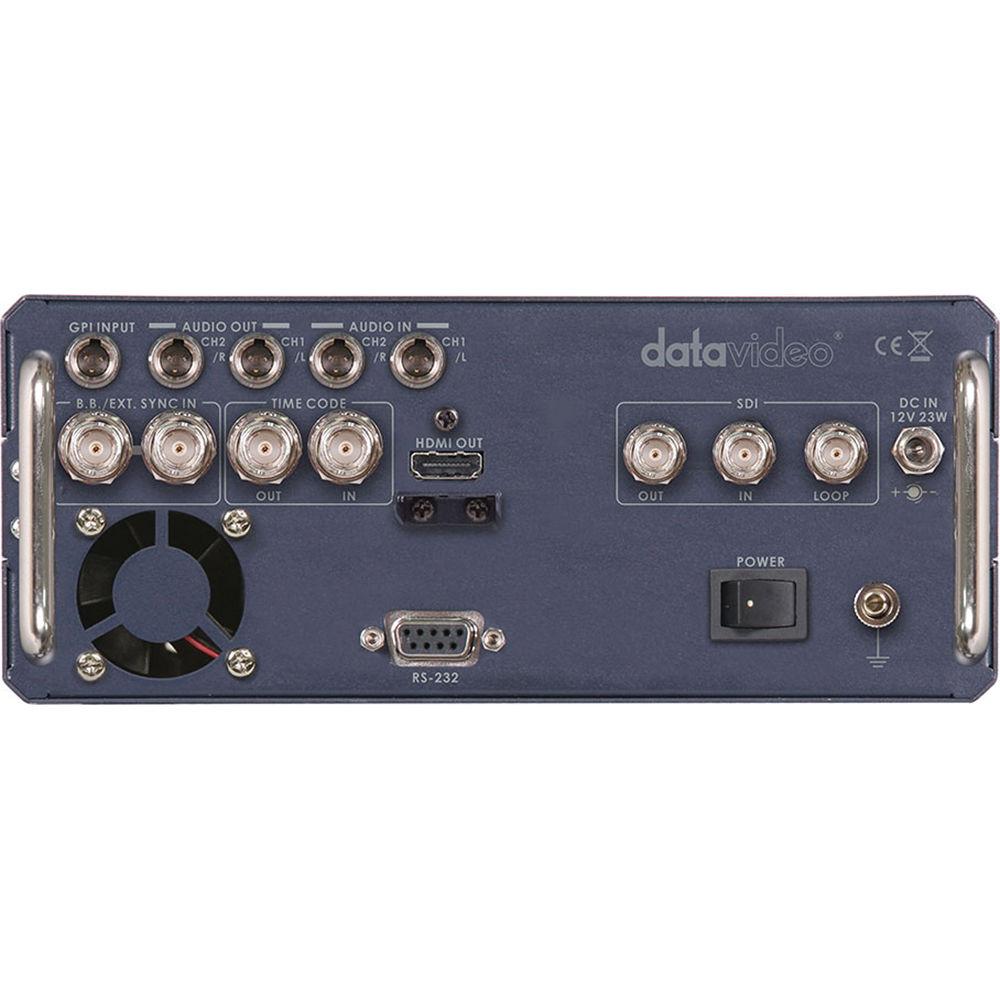

- SD/HD-SDI input, with SD/HD-SDI outputs with 8-channels of embedded audio.
- The HDMI output uses a full sized connector and features 4 channels of embedded audio. There is also a nifty cable tie platform under the HDMI connector that you can use to secure the HDMI connector to the unit with available cable ties.

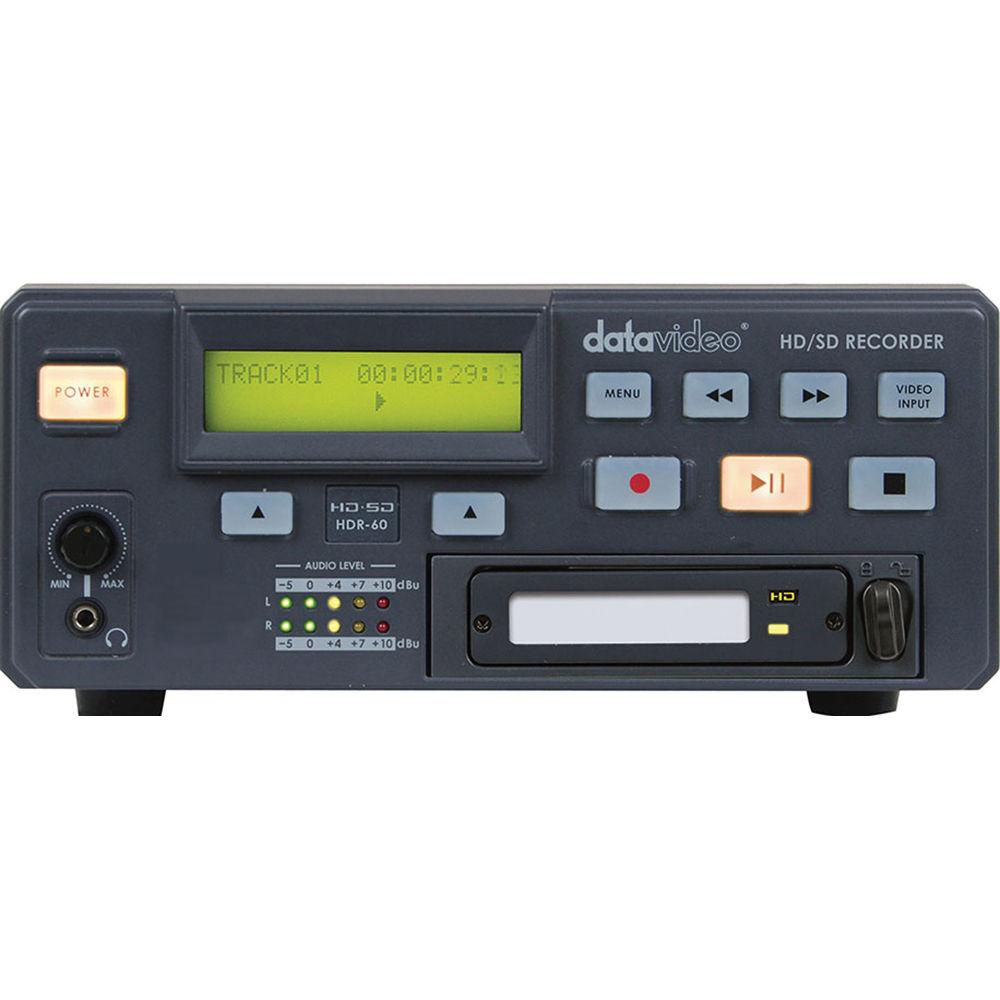

- The front panel features local control buttons and a built-in headphone jack with volume knob.
Features - Two drive enclosures and one 320GB HDD are included with the unit. With the included drive you can begin to use your unit immediately, and once you acquire a second HDD you can swap the enclosures as needed.
- Time lapse recording function.
- Power on Record and Play functions.
- Media files are made on the fly, with no rendering required.
- In the event of accidental power loss you only lose the last two seconds of your recording.
UPC: 672255004104 In the Box Datavideo HDR-60 HDD Recorder for SD/HD-SDI with Removable Drive Bay 320 GB HDD 2 x HDD25 2.5" Hard Disk Drive Enclosure yveesfaubvxwcq Power Adapter & Cable Limited 1-Year Warranty, Extendable to 2-Years with Product Registration within 30 Days of Purchase
Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first) Quick-Start Guide PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HDR-60 HDD Recorder for SD HD-SDI with Removable Drive Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo HDR-60 Specs | | | Material of Construction | Painted aluminum | | Interface (Inputs/Outputs) | USB 2.0
eSata | | Internal Interface | SATA | | Drive Compatibility | HDD: Western digital, Fujitsu, Hitachi
Compatible with SSD | | Power | 5VDC | | Dimensions | 6 x 5 x 1" (15.2 x 12.7 x 2.5 cm) | | Weight | 1 lb (0.5 kg) | | | | Signal System | HD
NTSC
PAL | | Supported Video Formats | 1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
NTSC
PAL | | Recording Formats | HD
Long GOP 4:2:2 or 4:2:0
i-frame: 8-bit 4:2:2
SD
Long GOP 4:2:2 or 4:2:0
i-frame: 8-bit 4:2:2
Audio
PCM, 24-bit, 8 channels, 48kHz | | Data Rates | HD
10 to 25Mb/s, 4:2:0
35 to 100Mb/s, 4:2:2
SD
8Mb/s, 4:2:0
15 to 50Mb/s, 4:2:2 | | Inputs | Video:
1 x SD/HD-SDI
Audio:
2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels)
GPI 1 x mini-XLR
Timecode
1 x BNC
Black Burst/Sync
1 x BNC | | Outputs | Video:
1 x SD/HD-SDI 1 x SD/HD-SDI (loop through)
1 x HDMI
Audio:
2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels)
Timecode
1 x BNC
Black Burst/Sync
1 x BNC | | Control Interface | RS 422, RS 232
9-pin DIN | | Recording Time | 250GB Hard Drive
5 Mb/s: 111 hours
10 Mb/s: 55 hours
15 Mb/s: 37 hours
20 Mb/s: 27 hours
40 Mb/s: 15 hours
60 Mb/s: 9 hours
320GB Hard Drive
5 Mb/s: 142 hours
10 Mb/s: 70 hours
15 Mb/s: 47 hours
20 Mb/s: 35 hours
40 Mb/s: 19 hours
60 Mb/s: 12 hours
500GB Hard Drive
5 Mb/s: 220 hours
10 Mb/s: 111 hours
15 Mb/s: 74 hours
20 Mb/s: 55 hours
40 Mb/s: 27 hours
60 Mb/s: 18 hours | | File Format | MXF/OP1A | | File System Format | NTFS | | Recording Limit | 99 bins
99 clips per bin | | Material of Construction | Painted aluminum | | Rack Height | 2RU | | Power Requirements | 12VDC | | Power Consumption | 16W | | Dimension L x W x H | 10.9 x 8.28 x 3.8" (27.7 x 29 x 4.9 cm) | | Weight | 7 lbs. (3.17 kg) | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 14.5 x 12.1 x 8.5" |
