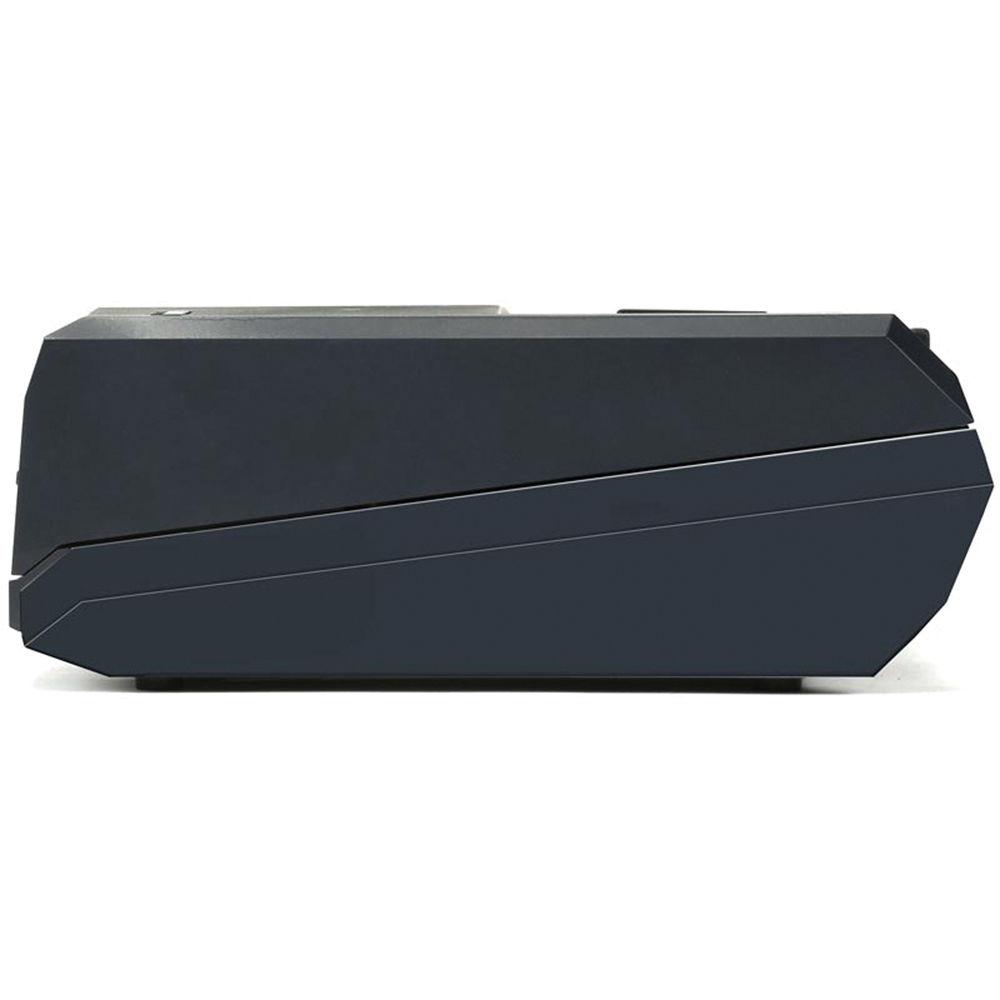

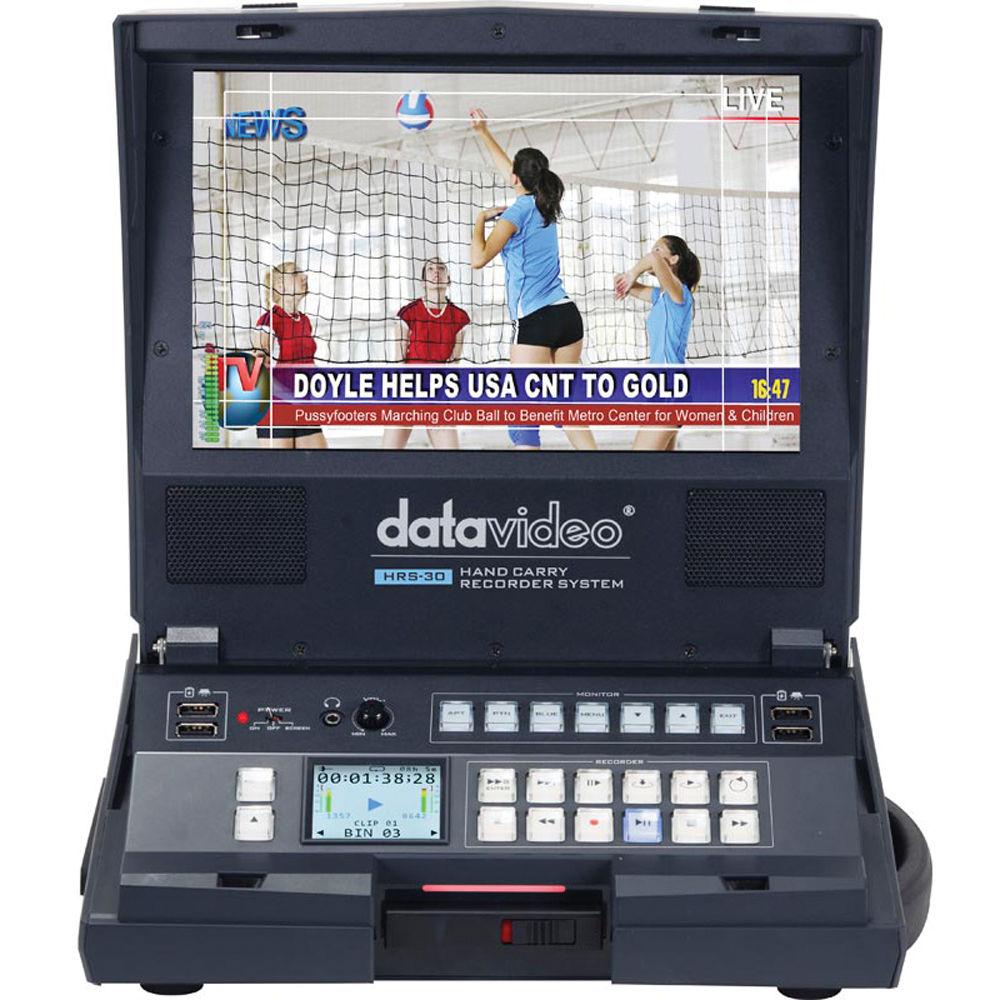

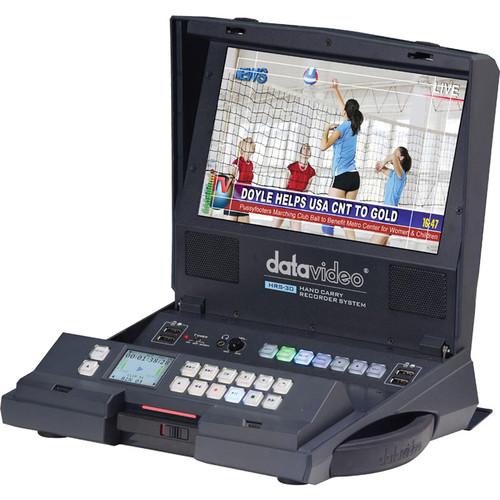

Product description Building an SD/HD-SDI recorder with a physical control panel, and a monitor into a portable hand carried clamshell design; the Datavideo HRS-30 Portable Hand Carried SD/HD-SDI Recorder with Built-in 10.1" Monitor is suitable for use on locations for off camera recording of SD/HD-SDI signals. The integrated physical keyboard provides push-button navigation and playback of your video clips with familiar VTR style control. It features a small LCD screen for clip information, so your footage can play back on the 10.1" monitor screen.

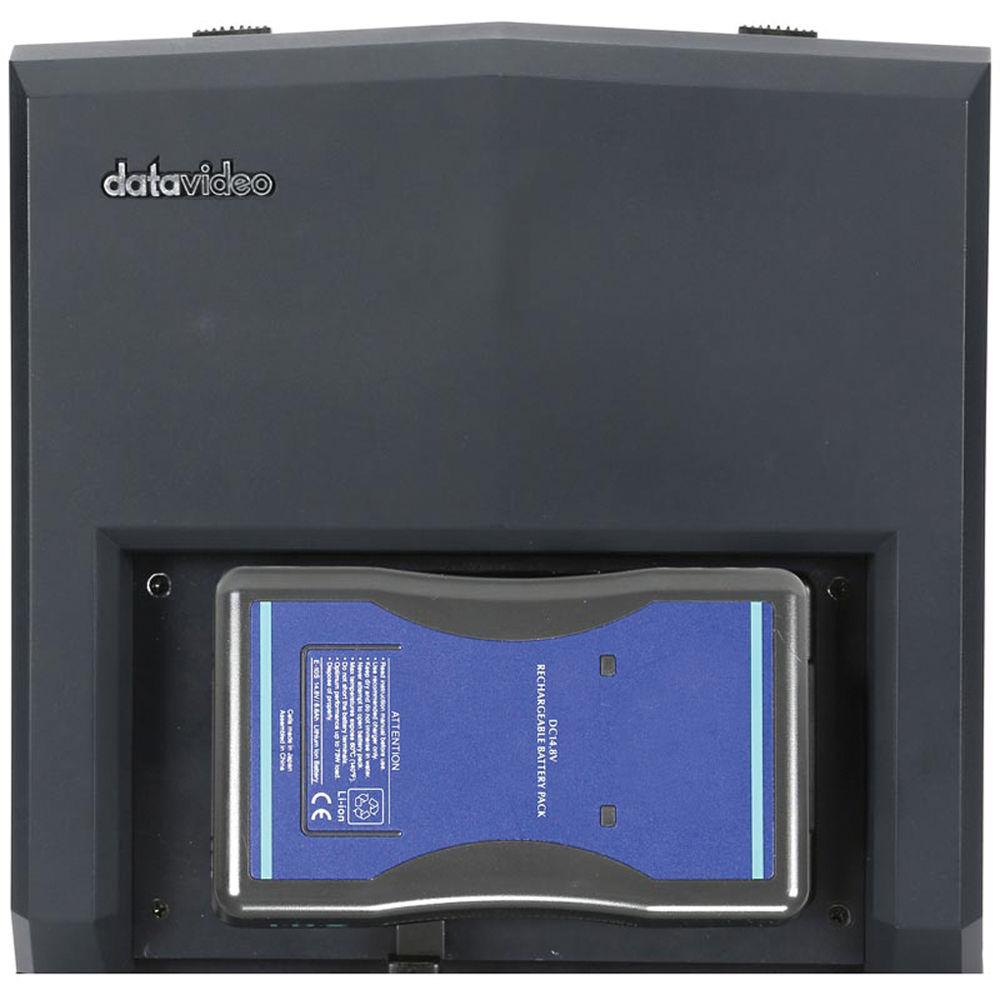

The 10.1" TFT LCD is built-into the cover of the HRS-30, so there is no need to cable the monitor, just open the cover and power up. The unit accepts SD/HD-SDI signals through its input, and provides a loop through SDI output, an HDMI and SDI output for playback from the unit. Recording the video image using MPEG 2 codec with 4:2:2 color sampling provides a good balance of quality versus file size, and you can choose to record your footage as either MXF or MOV files. The unit records to optional 2.5" SATA drives that you mount in the included removable drive rack. Power for the HRS-30 is either through use of an optional V-Mount battery attached to the built-in V-Mount in the unit's cover, or by using the included power supply, which features a locking power connector. - Monitor
-
- Internal color bar
- Blue only
- Audio indicator
- Safe area
- Time code display
- Color temperature adjustment
- NTSC/PAL auto switching
- USB Ports
- The HRS-30 incorporates 4 type A USB ports that can power an optional LED light, and each port provides 500 mA at 5 volts, which is extremely useful for charging cell phones.
- Keyboard
- Physical keyboard buttons allow you to navigate the menu, adjust settings, and control playback.
UPC: 672255006726 In the Box Datavideo HRS-30 Portable Hand Carried SD/HD-SDI Recorder with Built-In 10.1" Monitor Removable Drive Rack AC Adapter Limited 1-Year Warranty Extendable to 2 Years with Product Registration within 30-Days Quick start Guide PDF 3.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HRS-30 Portable Hand Carried SD HD-SDI Recorder with Built-In 10.1" Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo HRS-30 Specs | | | Panel | 10.1" TFT LCD | | Active Area (WxH) | 8.5 x 5.3" / 216.96 x 135.60 mm | | Resolution | 1280 x 800 | | Pixel Dot Pitch | 0.0565 x 0.1695 mm (W x H) | | | | Video Resolution Supported | 1080p: 23.98/24
1080i: 50/59.94/60
720p: 50/59.94/60p
476i
576i | | Recording Formats | MXF/OP1A
MOV | | Video Recording | MPEG 2 Long GOP HD
- 10 Mbps 4:2:0 1440x1080/1280x720
- 25 Mbps 4:2:0 1440x1080/1280x720
- 35 Mbps 4:2:2 1920x1080/1280x720
- 50 Mbps 4:2:2 1920x1080/1280x720
- 65 Mbps 4:2:2 1920x1080/1280x720
- 120 Mbps 4:2:2 1920x1080/1280x720
MPEG2 I-Frame Only HD
- 100 Mbps 4:2:2 1920x1080/1280x720
- 125 Mbps 4:2:2 1920x1080/1280x720
MPEG 2 Long GOP SD
- 8 Mbps 4:2:0 720x480/720x576
- 15 Mbps 4:2:2 720x480/720x576
- 30 Mbps 4:2:2 720x480/720x576
- 50 Mbps 4:2:2 720x480/720x576
MPEG 2 I-Frame Only SD
- 25 Mbps 4:2:2 720x480/720x576
- 50 Mbps 4:2:2 720x480/720x576
| | Audio Recording Format | Uncompressed PCM | | External Sync | Black Burst
Tri-level

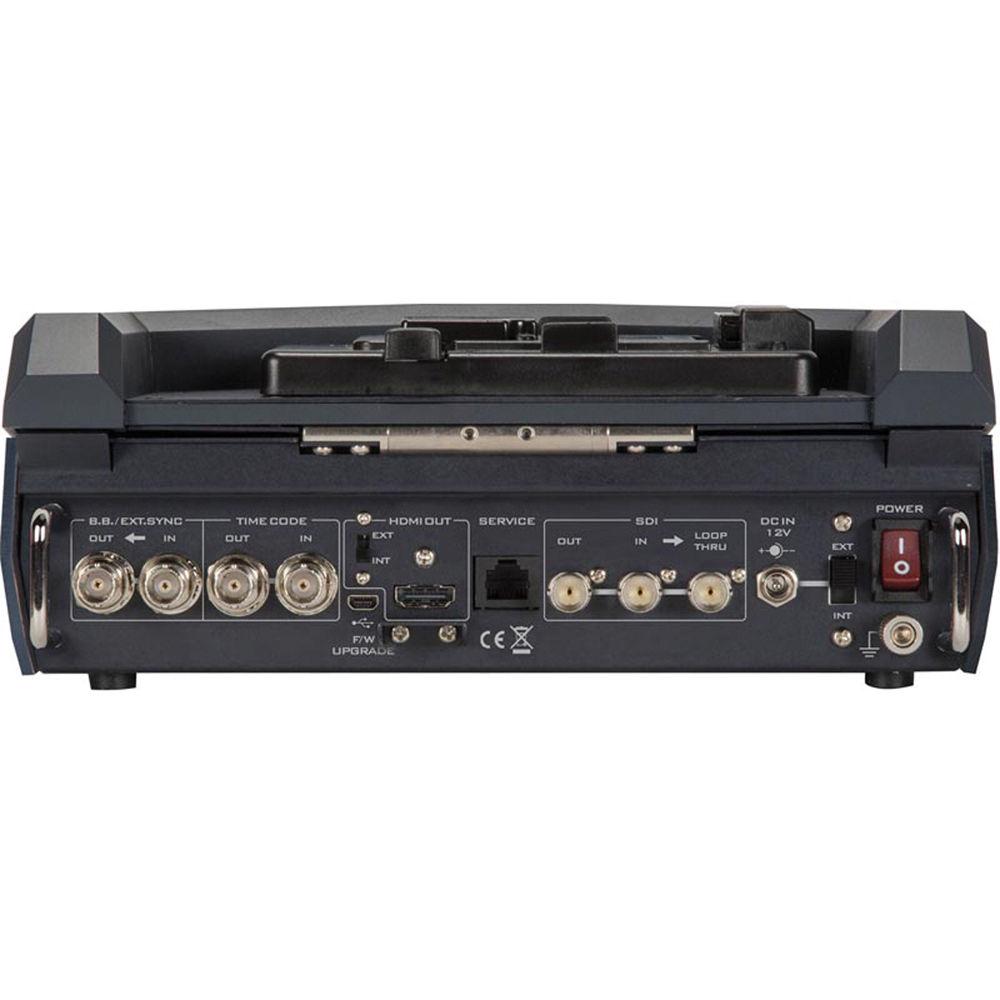

Loop through | | | | Inputs/Outputs | Input
SDI: 1 x BNC
Output
SDI: 2 x BNC (one loop through)
HDMI: 1 x type A
Audio Output
Headphone: 1 x 3.5 mm stereo jack
Speakers: 2 x 3 W
Embedded Audio
SDI: 8 channels
HDMI: 8 channels
Timecode
Input: 1 x BNC
Output: 1 x BNC
Sync Reference
Input: 1 x BNC
Output: 1 x BNC
Firmware Upgrade
1 x mini-USB
Service
1 x RJ-45 | | Power | Input
1 x 12 VDC coaxial locking plug (2.1 x 5.5 13.8 mm)
1 x V-mount
Output
4 x USB type A
Requirements
12 VDC: Via coaxial connector
14.4 VDC: Via V-mount | | | | Package Weight | 12.25 lb | | Box Dimensions (LxWxH) | 14.6 x 14.0 x 9.4" |
