User Manual for Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio Click to enlarge the picture
Contents of the user manual for the Datavideo HS-1300 6-Channel HD Portable Video
- Product category: Production Switchers Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Switchers
 |
User manual for the Datavideo HS-1300 6-Channel HD Portable Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

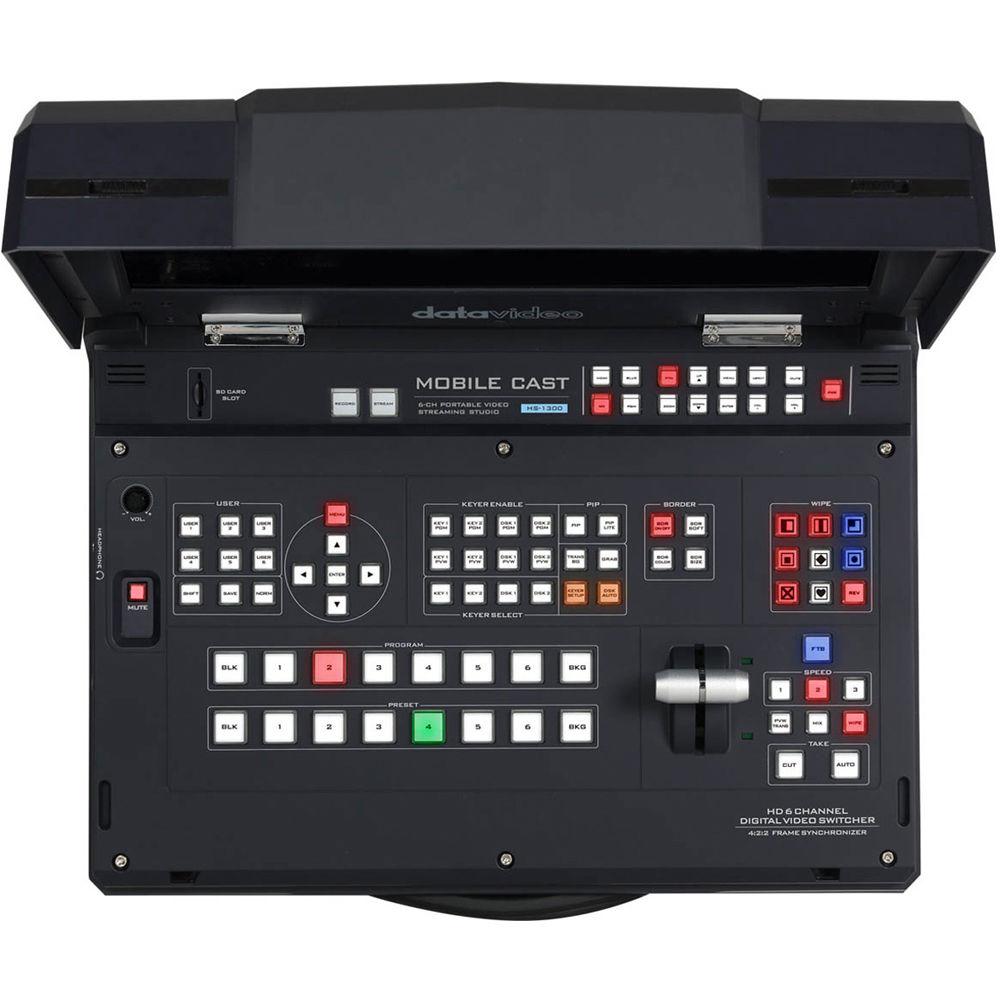

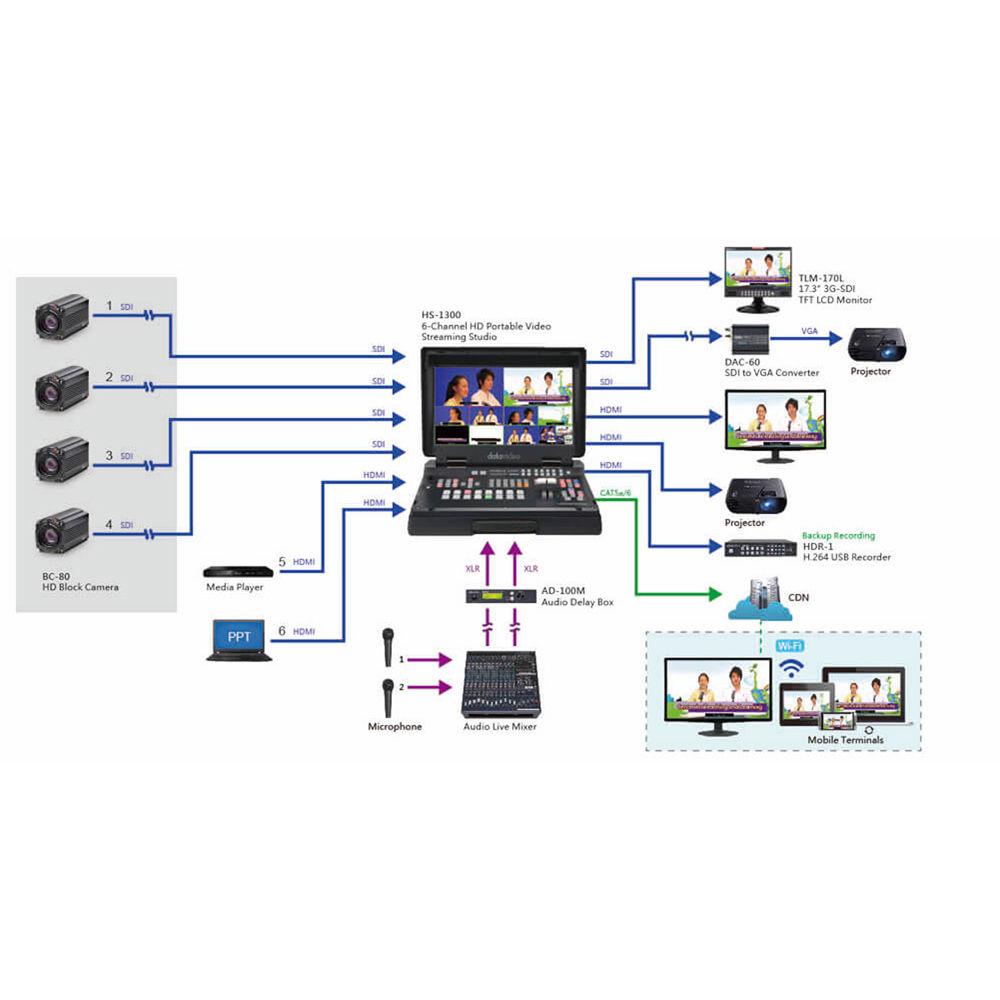

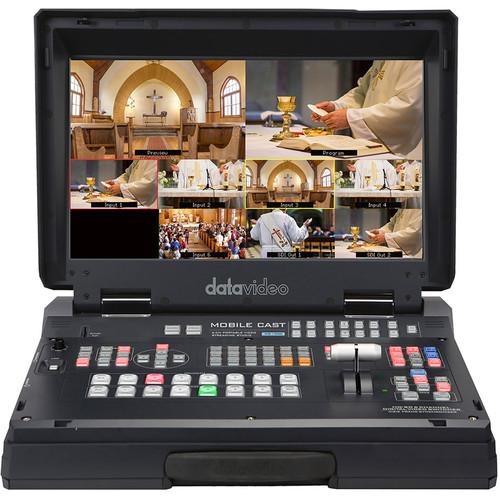

Product description The Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio can switch up to six live 1080i or 720p HD video inputs while recording and streaming the program feed. Effectively, this makes the HS-1300 a portable TV studio that you can take anywhere and set up with minimal effort or extra equipment. Four SDI and two HDMI inputs can be connected to cameras or other consumer or professional video sources. Audio can be brought in from a separately available mixing board via a pair of XLR inputs. Recording and streaming uses the ubiquitous H.264 format, at up to 10 Mb/s. A single mix-effect bus features two upstream keyers, two downstream keyers with linear and luma key modes, wipe, cut, and mix transitions, plus one picture-in-picture, and all with full preview. Concert productions, events, houses of worship, and educational institutions with live sports programming are some of the few use cases where the HS-1300 could be useful. When it's time to wrap production, close the 17.3" screen, unplug the video sources, and carry the switcher using the built-in handle, like a suitcase. - Supports 6 video inputs (4 SDI, 2 HDMI) and 3 video outputs (2 SDI, 3 HDMI)
- Encodes to different bit rates for recording and streaming
- H.264 AVC encoding up to 10 Mb/s
- Frame store from any input
- 17.3" LCD screen with 1600 x 900 resolution
- Easy-to-navigate on-screen menu system
- Headphone jack for audio monitoring in program display mode
UPC: 672255007471 In the Box Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio Power Supply with Power Cord Limited 1-Year Warranty User Manual PDF 5.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HS-1300 6-Channel HD Portable Video Streaming Studio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

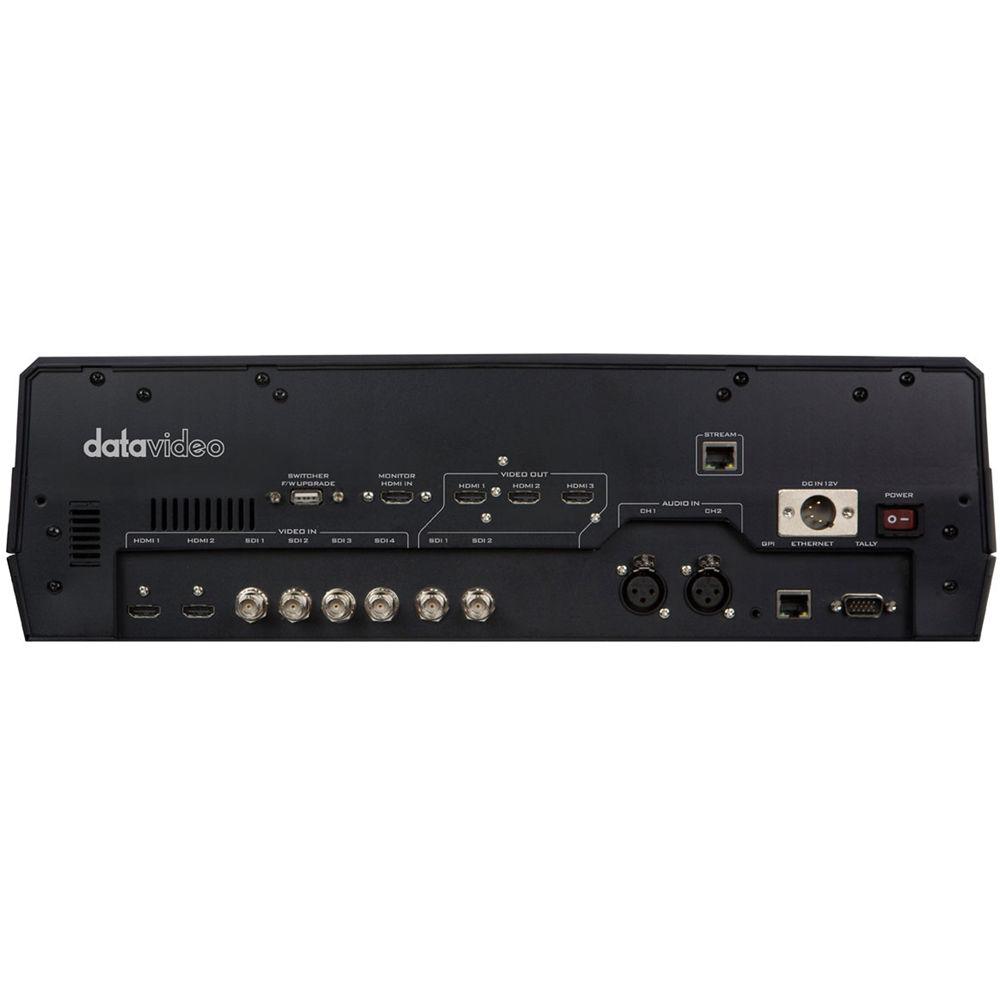

Technical parametersDatavideo HS-1300 Specs | Video Format Support | 1080i 60/59.94/50
720p 60/59.94/50 | | Video Inputs | HD-SDI: 4 x BNC
HDMI: 2 x HDMI type A | | Video Outputs | SDI: 2 x BNC
HDMI: 3 x HDMI type A | | Audio Inputs | 2 x XLR | | Audio Outputs | 1 x Stereo headphone | | Monitor | Size: 17.3" / 43.9 cm
Resolution: 1600 x 900 | | Video Encoding | Video Codec: H.264 AVC main/high profile
Bit Rate: Up to 10 Mb/s
Audio Codec: AAC-LC
Bit Rate: 32-384 kb/s
Sample Rate: 16-bit, 48 kHz | | Streaming Protocol | TS over TCP/UDP (unicast and multicast)
RTSP over HTTP/TCP/UDP (RTSP elementary streaming)
RTMP (publish) | | Recording Media | SD card | | Recording Format | MP4 | | Dimensions | 17.9 x 14 x 5.3" / 45.5 x 35.5 x 13.4 cm | | Weight | 16.3 lb / 7.4 kg | | | | Package Weight | 21.45 lb | | Box Dimensions (LxWxH) | 23.0 x 22.5 x 9.5" |
