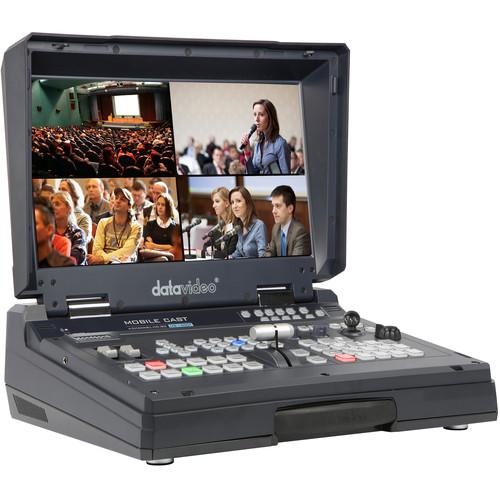

User Manual for Datavideo HS-1500T 4-Channel HDBaseT Portable Switcher Click to enlarge the picture
Contents of the user manual for the Datavideo HS-1500T 4-Channel HDBaseT Portable Switcher
- Product category: Production Switchers Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Switchers
 |
User manual for the Datavideo HS-1500T 4-Channel HDBaseT Portable Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

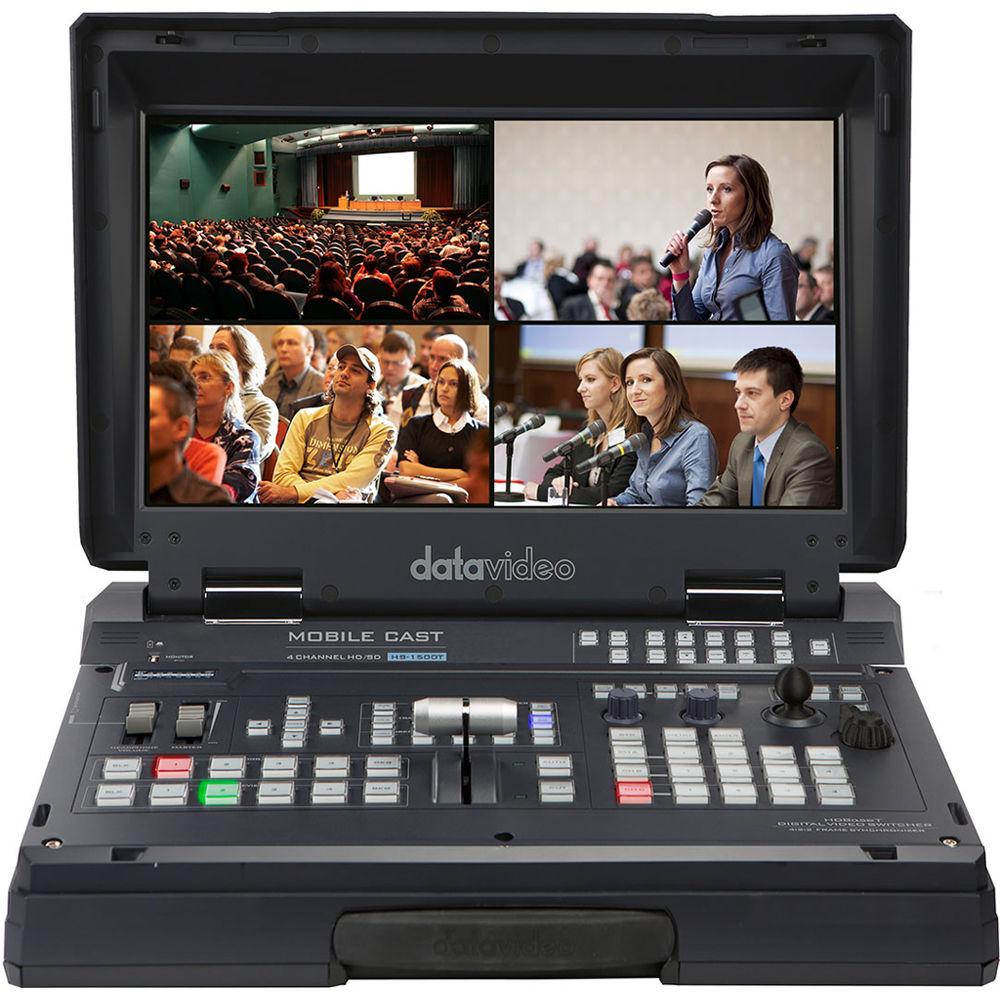

Product description The HS-1500T 4-Channel HDBaseT Portable Switcher from Datavideo is a four-channel broadcast quality mobile video studio. Designed to mix a variety of video and audio sources for live events and TV programs, it supports up to 1080p Full HD video signals and features HDBaseT compatibility. The HS-1500T will receive signals from, and provide PoE (power over Ethernet) for, up to three Datavideo PTC-150TL PTZ cameras (available separately).This switcher incorporates three HDBaseT LAN ports, one HDMI input, one stereo RCA audio input, and two balanced XLR audio inputs. View your images on-set with the foldout 17.3" HD LCD monitor with 1920 x 1080 resolution. It displays all the input sources, as well as preview and program. Switching functions include a T-bar fader, PiP effects, a wipe generator, and tally. Use the HS-1500TL's integrated joystick to pan, tilt, and zoom your PTC-150T cameras.The compact HS-1500T mobile switcher is suitable for location broadcasts, theaters, conferences, houses of worship, and education applications. Its HDBaseT compatibility simplifies setup with the ability to power, receive video signals, and control cameras using a single Cat 6 cable. Features -
- Three HDBaseT LAN ports, one HDMI input
- HDBaseT to power, receive video signals, and control cameras using a single Cat 6 cable
- Two balanced XLR analog audio inputs, one stereo RCA input
- Integrated joystick for panning, tilting, and zooming your PTC-150TL cameras
- PiP, wipe generator, and tally functions
- Foldout 17.3" LCD monitor with 1920 x 1080 resolution
- Compact, portable form factor
UPC: 672255007297 In the Box Datavideo HS-1500T 4-Channel HDBaseT Portable Switcher 48V Power Supply Power Cord 3 x Ethernet Cable Limited 1-Year Warranty; Extendable to 3-Year with Product Registration within 30 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HS-1500T 4-Channel HDBaseT Portable Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

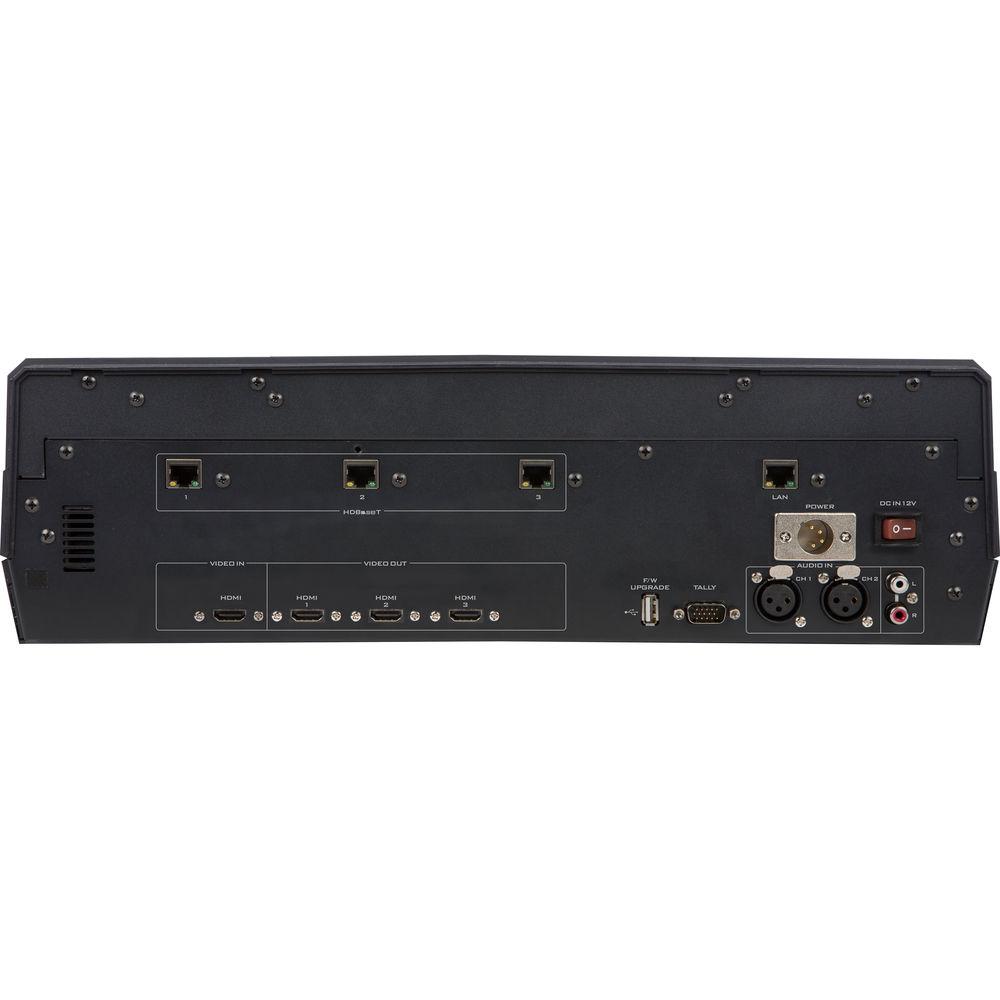

Technical parametersDatavideo HS-1500T Specs | | | Video Inputs | HDBaseT: 3 x RJ45 (8P8C)
HDMI: 1 x HDMI type A | | Video Outputs | Program: 3 x HDMI type A | | Others | USB: 1 x USB Type-A (for updates)
Tally: 1 x 15-pin VGA
Power Input: 1 x 48 VDC | | Audio Input | 2 x XLR (analog, balanced)
1 x RCA (L/R, stereo) | | Audio Output | Embedded: 2-channel support
Headphone: 1 x 1/4" stereo | | Audio Formats Supported | PCM
LPCM 2-channel
6-channel
8-channel | | | | LCD Display | 17.3" / 439.4 mm | | Resolution | 1920 x 1080 | | Brightness | 300 cd/m
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
