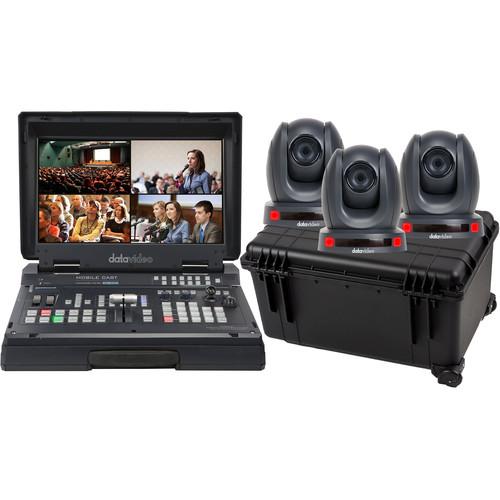

Product description This Datavideo HS-1500T Mobile Studio Kit with 3 x PTC-140T and Hard Rolling Case provides you with a mobile switcher that supports three HDBaseT inputs and a single HDMI input, as well as three PTZ cameras and a hard case with wheels. The HS-1500T switcher features a built-in 17" monitor which can be used for multiview, a T-bar, joystick, and control panel buttons, and it supports tally function. It is the heart of the kit that enables you to set up a mini studio virtually anywhere you have power. The three PTZ cameras can each be individually controlled via Ethernet, IR, or RS-232 protocols.
Each camera in this versatile system supports 255 preset positions, enabling you to quickly adjust the camera's position within a 340° pan and 120° tilt range. The included trunk-style hard case protects your equipment during transport and storage, and the built-in gasket helps keep dust out. Built-in wheels and a retractable handle provide both comfort and ease while moving your gear. - HS-1500T 4-Channel HDBaseT Portable Switcher The HS-1500T 4-Channel HDBaseT Portable Switcher from Datavideo is a four-channel broadcast quality mobile video studio. Designed to mix a variety of video and audio sources for live events and TV programs, it supports up to 1080p Full HD video signals and features HDBaseT compatibility. The HS-1500T will receive signals from, and provide PoE (power over Ethernet) for, up to three Datavideo PTC-150TL PTZ cameras (available separately).This switcher incorporates three HDBaseT LAN ports, one HDMI input, one stereo RCA audio input, and two balanced XLR audio inputs. View your images on-set with the foldout 17.3" HD LCD monitor with 1920 x 1080 resolution. It displays all the input sources, as well as preview and program. Switching functions include a T-bar fader, PiP effects, a wipe generator, and tally. Use the HS-1500TL's integrated joystick to pan, tilt, and zoom your PTC-150T cameras.The compact HS-1500T mobile switcher is suitable for location broadcasts, theaters, conferences, houses of worship, and education applications. Its HDBaseT compatibility simplifies setup with the ability to power, receive video signals, and control cameras using a single Cat 6 cable.
Features -
- Three HDBaseT LAN ports, one HDMI input
- HDBaseT to power, receive video signals, and control cameras using a single Cat 6 cable
- Two balanced XLR analog audio inputs, one stereo RCA input
- Integrated joystick for panning, tilting, and zooming your PTC-150TL cameras
- PiP, wipe generator, and tally functions
- Foldout 17.3" LCD monitor with 1920 x 1080 resolution
- Compact, portable form factor
UPC: 672255007297 - HDBaseT PTZ Camera with 20x Optical Zoom This datavideo HDBaseT PTZ Camera with 20x Optical Zoom can be controlled and powered over a single Cat 6 Ethernet cable up to 300' away from the network port, minimizing your cabling and expanding your mounting positions. The camera supports frame rates and resolutions as high as 1080p60 as well as 1080i60 and 720p60, and it features a 1/2.8" CMOS sensor with 2.07 MP resolution. The built-in zoom lens features an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom.
With 255 programmable preset positions, you can set the camera to rapidly move to between positions using the IP, RS-232, or IR control. The camera compresses using either or both the H.264 and H.265, as its on-board encoder is capable of encoding two streams at the same time. You can stream live using RTSP or RTMP protocols. The camera supports external audio via a 3.5mm stereo port, and you can mount the camera via the 1/4"-20 threaded mounting hole. -
- 20x Optical Zoom, 10x Digital Zoom
- Advanced noise reduction
- Audio input interface
- H.264/H.265 video compression for streaming
- Multiple Network Protocols: RTSP, RTMP protocols and support, easy to link to a streaming media server
- Compatible with HS-1500T and HS-1600T HDBaseT Portable Video Studios, and it's remote-controllable by RMC-300 and RMC-180 PTZ Camera Controllers
-
- Gamma Control: Off/Normal
- Iris Control: Auto/Manual
- Digital Noise Reduction
- On-Screen Display (OSD): English, Simplified Chinese
- White Balance: Auto / Manual / One Push / 3000K / 4000K /5000K / 6500K
- AGC/Gain Control: Auto/Manual
- Mirror/Flip Image: yes
- Focus Mode: Auto/Manual
- Panning/Tilting Range: Pan 340°, Tilt +90° to -30°
- Panning/Tilting Speed: Pan 0.1~60°/sec, Tilt 0.1~30°/sec
- Preset: 255 Positions
- Maximum Aperture: F1.6 to F3.5
- Image Compensation: backlight compensation
UPC: 672255008232 - Wheeled Trolley-Style Water-Resistant Case (XXL) The XXL Wheeled Trolley-Style Water-Resistant Case from Datavideo is a heavy-duty trunk-style equipment case. Use it to transport and store video, audio, or photo equipment and accessories. This trunk-shaped, hard-shell case is water-, dust-, and crush-resistant. Integrated padlock inserts and rubber seals provide additional security.This case's interior includes one foam piece in the lid and three foam fittings in the main compartment. Wheel the case along using the retractable handle or grasp it using the large, hinged top handle.
Features - Trunk-style wheeled case with a foam interior, a retractable handle, and a hinged top handle
- Water-, dust-, and crush-resistant hard case with rubber seals and padlock inserts
UPC: 672255006061 In the Box Bundle Items HS-1500T 4-Channel HDBaseT Portable Switcher zyeywzzzfarzcuybxbzcctwwvzfvaswefvu - Limited 1-Year Warranty; Extendable to 3-Year with Product Registration within 30 Days
3 x HDBaseT PTZ Camera with 20x Optical Zoom - Limited 1-Year Warranty, Extendable to 2 Years with Product Registration
Wheeled Trolley-Style Water-Resistant Case (XXL) - Limited 1-Year Warranty (2-Year Extension with Registration)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HS-1500T Mobile Studio Kit with 3 x PTC-140T and Hard Rolling Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HS-1500T 4-Channel HDBaseT Portable Switcher
| | | Video Inputs | HDBaseT: 3 x RJ45 (8P8C)
HDMI: 1 x HDMI type A | | Video Outputs | Program: 3 x HDMI type A | | Others | USB: 1 x USB Type-A (for updates)
Tally: 1 x 15-pin VGA
Power Input: 1 x 48 VDC | | Audio Input | 2 x XLR (analog, balanced)
1 x RCA (L/R, stereo) | | Audio Output | Embedded: 2-channel support
Headphone: 1 x 1/4" stereo | | Audio Formats Supported | PCM
LPCM 2-channel
6-channel
8-channel | | | | LCD Display | 17.3" / 439.4 mm | | Resolution | 1920 x 1080 | | Brightness | 300 cd/m
