User Manual for Datavideo HS-2200 Hand Carried Mobile Studio with HD-SDI & HDMI Inputs Click to enlarge the picture
Contents of the user manual for the Datavideo HS-2200 Hand Carried Mobile Studio
- Product category: Production Switchers Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Switchers
|
User manual for the Datavideo HS-2200 Hand Carried Mobile Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

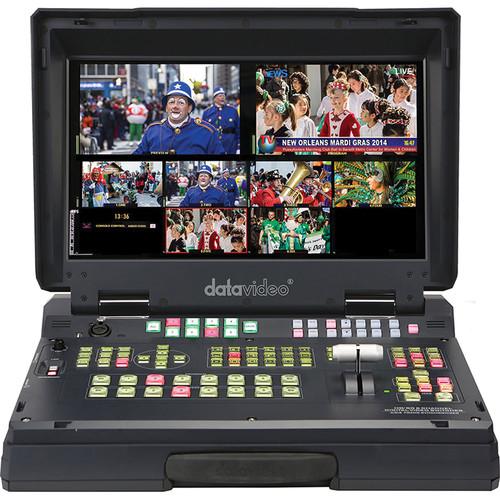

Product description The Datavideo HS-2200 Hand Carried Mobile Studio with HD-SDI & HDMI Inputs is a 6-input switcher housed in a convenient, portable, and durable hard plastic case with built-in 17.3" monitor. It accepts resolutions up to 1080i60 from a combination of six HD-SDI and two HDMI inputs. The HDMI inputs work with DVI computer signals, while the SDI inputs are useful for long capable runs and connecting professional video equipment.
The HS-2200 has six assignable HD-SDI outputs which can be set to Program, Program with Logo, Program with Logo and Titles, or Preview. Dual Picture-in-Picture support lets you display up to two other video sources in smaller screens over the main program output. Enjoy multi-view on the integrated 17.3" monitor, or using the HDMI outputs for multi-view display on external monitors. In terms of audio, there are four XLR mono inputs (two stereo pairs) and two XLR mono outputs (one stereo pair). The switcher also supports audio embedding to the HD-SDI outputs.
A built-in TC-200 Character Generator lets one of the HDMI inputs be used to accept video from a computer with Datavideo's CG-200 software installed for title creation. You can also bring in graphics from presentation software, such as PowerPoint, and take advantage of the switcher's Luma key feature. Additional professional features include 16 wipe transitions with border options, on-screen clock and countdown display, tally support, and RS-232 or RS-422 control.
The HS-2200 features a built-in 8-channel intercom system and comes included with four belt packs, headsets, and tally lights for communicating with the camera crew. Also included is a gooseneck microphone, USB light, and 12VDC power adapter and cord. -
- 6-Input multi-definition switcher
- Control panel with separate, rackmountable processing unit
- 4x HD-SDI and 2x HD-SDI or HDMI inputs
- Re-configurable inputs
- 6x Assignable HD-SDI outputs
- 2x HDMI outputs for dual multi-view screens
- 16 Wipe effects with border options
- On-screen clock
- Countdown counter
- Dual Picture-in-Picture
- Built-in TC-200 Title Creator (Use with a laptop and CG-200 software to create titles)
- Cross point assignment
- PC remote control
- Tally output (compatible with ITC-100 with optional cable)
- 12VDC operation voltage
UPC: 672255006634 In the Box Datavideo HS-2200 Hand Carried Mobile Studio with HD-SDI & HDMI Inputs Gooseneck Microphone USB Light 4 x Belt Packs 4 x Headsets 4 x Tally Lights 4 x 20m (65') Cable 12VDC Power Adapter and Cord Limited 1-Year Warranty (2 Years with Product Registration) Quick start Guide PDF 5.4mbxxfzqzaxwcfrsbfdxwqxtdzsefacz Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HS-2200 Hand Carried Mobile Studio with HD-SDI & HDMI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo HS-2200 Specs | Channels | 6 | | Video Inputs | 4 x HD-SDI
2 x HD-SDI or HDMI (selectable) | | Video Outputs | 6 x HD-SDI (assignable)
2 x HDMI (Multi-View PVW) | | Supported Input Resolutions | 1080i 50/59.94/60
720p 50/59.94/60 | | Audio Inputs | 4 x XLR (2 stereo pair) | | Audio Outputs | 2 x XLR (1 stereo pair) | | Embedded Audio | Supported | | Tally Output | 1 x DB25 | | Control | RS-232, RS-422 | | Power | 12 VDC, 5 A, 48 W
| | Power Adapter | 100 to 240 VAC | | Dimensions (W x H x D) | 17.9 x 3.5 x 13.9" (45.5 x 8.8 x 35.3 cm) | | Weight | 19 lb (8.6 kg) | | | | Package Weight | 20.15 lb | | Box Dimensions (LxWxH) | 26.0 x 26.0 x 14.5" |
