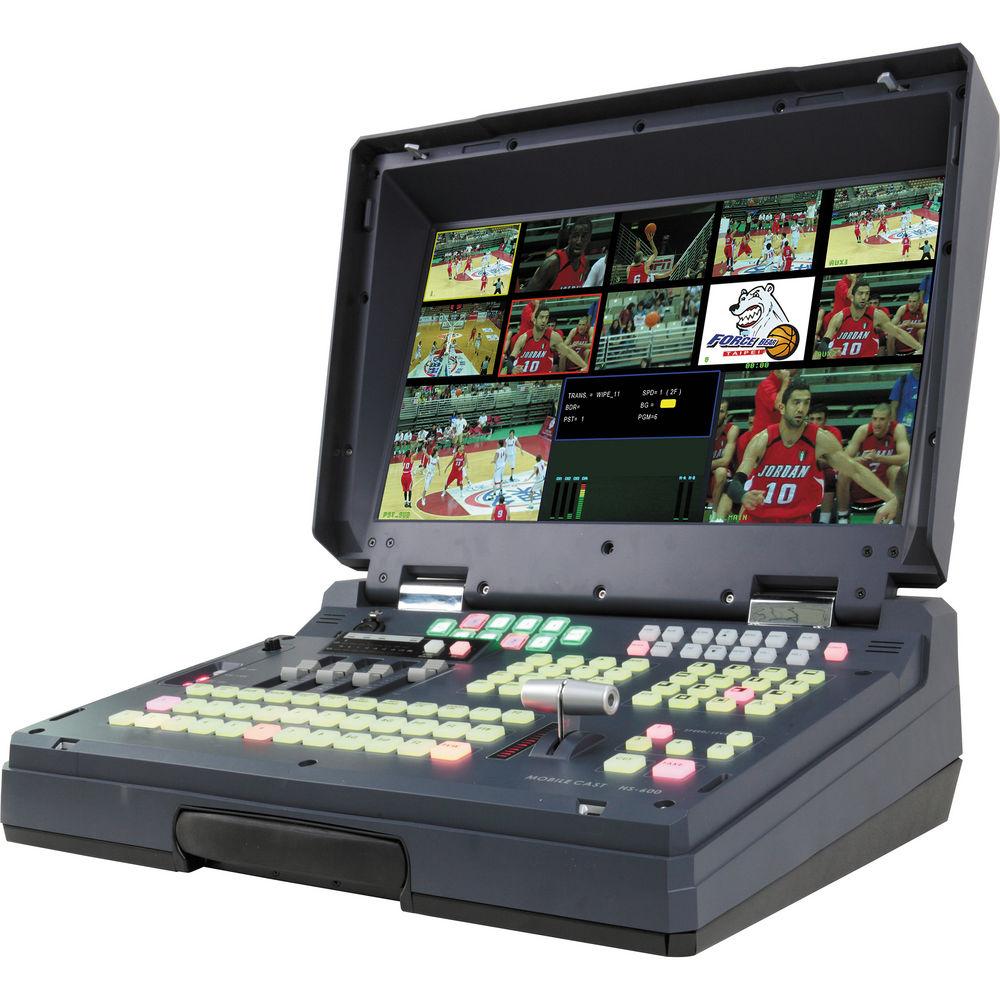

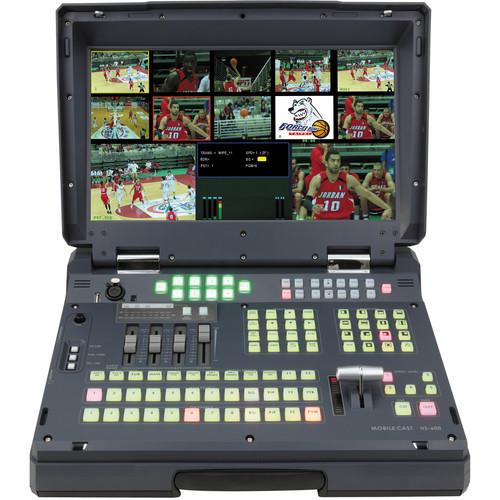

Product description The Datavideo HS-600 Mobile Video Studio is a lightweight, standard definition mobile switcher package featuring an eight-input switcher with multiview, an eight-channel intercom/tally system, an audio mixer, and a 17" high-quality LCD monitor. The intercom/tally system includes four beltpacks, four headsets, and four microphones. An external power supply is included, and 12 VDC power is also supported.
The HS-600 is a one-box solution designed for "live-in-seconds" field production. It enables you to switch seamlessly between video and audio sources, blending content on-the-fly even without external genlock, thanks to a built-in time base corrector. - Key Features
- Audio delay
Integrated intercom and tally system, including four beltpacks, four headsets, and four mics
Built-in audio mixer
Dual Picture-in-Picture functionality In the Box Datavideo HS-600 Mobile Video Studio ITC-100 8-User Wired Intercom System with 8 Beltpacks & 8 Headsets 17" (43 cm) Monitor Power Adapter Power Cord Limited 1-Year Warranty, Additional 1-Year Extension with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo HS-600 Mobile Video Studio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

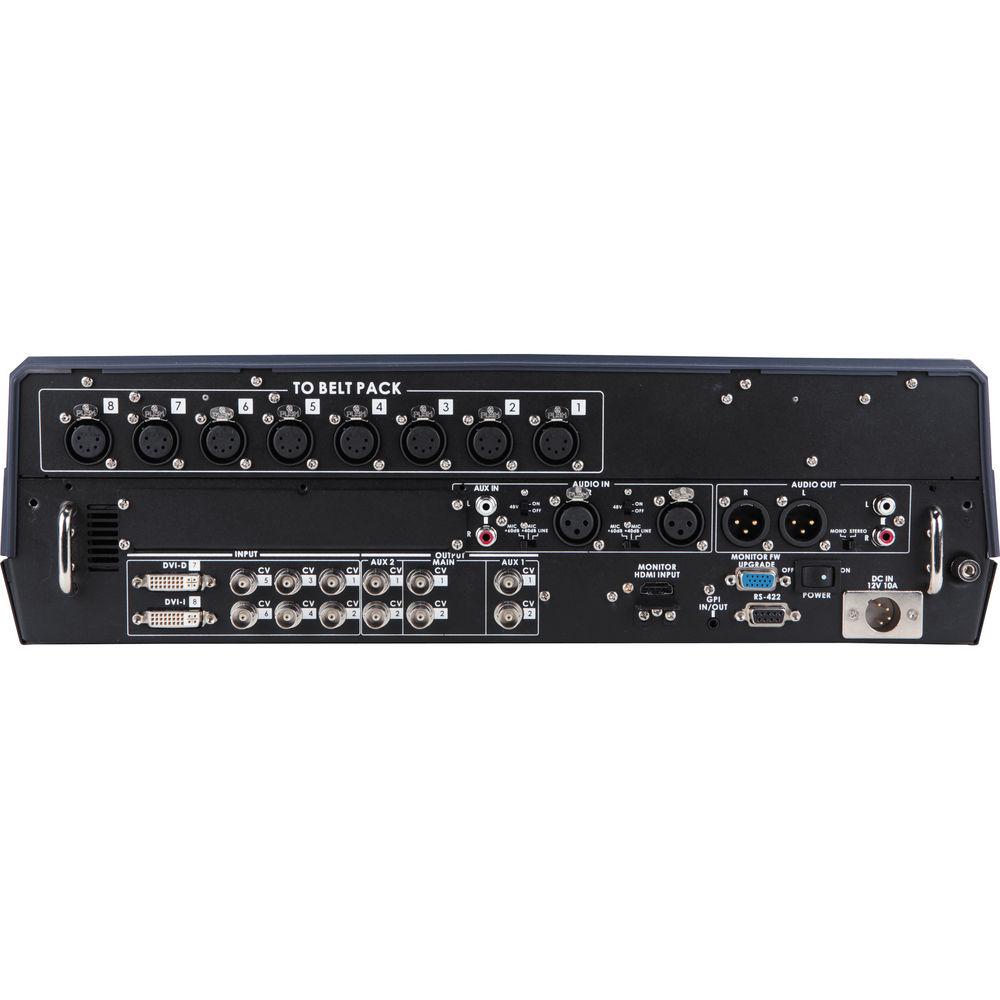

Technical parametersDatavideo HS-600 Specs | | | Video Input | 6 x Composite
1 x DVI-D
1 x DVI-I
1 x HDMI (to preview monitor / non-switchable)
1024 x 768 max resolution for DVI | | Video Output | Main Out: 2 x composite (Recorder, Program Out, Streaming)
Aux Out 1: 2 x composite
Aux Out 2: 2 x composite | | Audio | Bandwidth: 20 Hz - 18 kHz
S/N ratio: >70 dB (Line-in)
THD: <0.1% | | Audio Input | 2 x XLR
2 x RCA | | Audio Output | 2 x XLR
2 x RCA | | Control | 1 x RS-422 9-pin D-sub | | Tally | 8 x XLR (to belt packs) | | Video Format | NTSC | | IRE | 0/7.5 IRE options | | Power | Input: 100 - 240 V Switching adapter
Output: 12 VDC / 5 A (60 W) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 10 to 90% (Non-condensing) | | Dimensions | 18.0 x 5.5 x 14.2" (46 x 14 x 36 cm) (Excluding protrusion) | | Weight | 19 lb (8.6 kg) | | | | Tally | 2 x 15-pin D-sub | | Mic / Headset | 1 x 3.5 mm Stereo headphone/mic combo jack
Headset impedance: 8 to 600 ohms, 100 mW (minimum) | | Mic | 1 x XLR/TRS Combo mic input
Socket switchable condenser / dynamic input
Microphone level: -67 dB | | Light Socket | 1 x 3-pin XLR
Light power consumption: 12 V, 100 mW (maximum) | | Frequency Response | 550 Hz to 3.6 kHz, < ±3 dB | | Total Harmonic Distortion (THD) | < 3% | | Signal to Noise Ratio | > 50 dB | | Audio Level | -15 dB | | Impedance | 51 kOhms | | Built-in Speaker | 3 W, 32 ohms | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Power | 12 VDC, 1.0 A, 110/220 VAC | | Rack Unit Space | 1 RU | | Dimensions | 5.0 x 19.0 x 1.5" (12.7 x 48.3 x 3.8 cm) | | Weight | 4 lb (1.8 kg) | | | | Input | 1 x 5-pin XLR | | Mic / Headset | 1 x 3.5 mm Stereo jack for headphone/mic
1 x 2.5 mm Stereo jack for Motorola mobile phone-type headset/mic
Headset impedance: 8 to 600 ohms, 100 mW (minimum)
Microphone level: -67 dB | | Tally Output | 1 x 3.5 mm jack | | Tally LED Indicator | Bi-color LED | | Operating Range | 656 ft (200 m) Between base station & beltpack | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Dimensions | 4.5 x 3.8 x 1.4" (11.4 x 9.7 x 3.5 cm) | | | | Package Weight | 45.5 lb | | Box Dimensions (LxWxH) | 28.0 x 28.0 x 18.0" |
