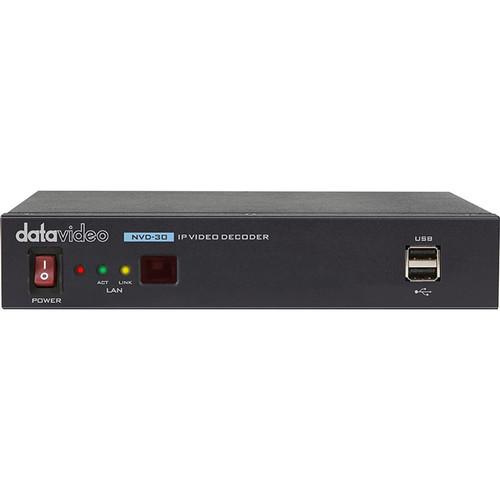

User Manual for Datavideo IP Video Decoder with HDMI Output Click to enlarge the picture
Contents of the user manual for the Datavideo IP Video Decoder with HDMI
- Product category: Signal Converters Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Signal Converters
|
User manual for the Datavideo IP Video Decoder with HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description The Datavideo IP Video Decoder with HDMI Output supports common protocols such as RTP/RTSP, RTMP, and UDP (see below) and outputs up to 1080p60 resolution signals. You can decode directly from popular CDNs, such as YouTube Live and UStream, without any 3rd-party advertising. This decoder is directly compatible with the Datavideo NVS-25/NVS-30 IP encoders for point-to-point interfacing over Ethernet, Wi-Fi, or the Internet. The decoder can also be connected to the Datavideo DVS-200 Cloud Streaming Server in order to operate as an IPTV set top box for automatically downloading a channel list of live and pre-recorded streams. The decoder features HDMI and composite BNC video outputs as well as RCA stereo and embedded audio output. - Stream Input
-
- RTSP over UDP (Unicast / Multicast)
- RTSP over TCP
- RTSP over HTTP
- MPEG-TS over UDP
- RTMP over TCP
- UDP raw (Unicast/Multicast)
- HLS over HTTP
- MPEG-TS over TCP Pull
- Video sharing websites
- Key Features
-
- Operates on standard 10/100M Ethernet networks
- Low latency
- Direct decoding from most major CDNs without any 3rd-party advertising
- Channel list download from DVS-200 Cloud Streaming Server
- Built-in video scaler
- Supports simultaneous embedded and analog audio output
- Rack-mountable using optional RMK-1 1 RU Rackmount Kit
- Control
-
- Web browser UI for configuration and control
- TCP/IP commands
- Power
-
- Input: 100-240 VAC switching adapter
- Output: 12 VDC / 0.5A
UPC: 672255007235 In the Box Datavideo IP Video Decoder with HDMI Output 12 VDC AD Switch Remote Control Limited 1-Year Warranty (Extendable to 3 Years with Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo IP Video Decoder with HDMI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo NVD-30 Specs | | | Embedded Audio Input | HDMI | | | | Video Output Connectors | 1 x HDMI
1 x BNC (Composite) | | Output Video Format | HDMI
1080p: 24/25/29.97/30/59.94/60 fps
1080i: 50/59.94/60 fps
720p: 50/59.94/60 fps
NTSC: 60 fps
PAL: 50 fps | | Audio Output Connectors | 1 x 2RCA Stereo | | Embedded Audio Output | HDMI | | | | Other I/O | 1 x RJ45 LAN
1 x 3.5 mm GPI
1 x USB (Unspecified Type) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | | | Package Weight | 2.94 lb | | Box Dimensions (LxWxH) | 11.5 x 9.9 x 4.0" |
