Datavideo ITC-100 8-User Wired Intercom System

Search your instruction manual in PDF to download

User Manual for Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets

Click to enlarge the picture
Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets Contents of the user manual for the Datavideo ITC-100 8-User Wired Intercom System
  • Product category: Wired Intercoms Datavideo
  • Brand: Datavideo
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Datavideo Wired Intercoms

Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets
User manual for the Datavideo ITC-100 8-User Wired Intercom System contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Datavideo product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!



Product description

  • Product Demo 1
  • Product Demo 2
  • How the ITC-100 Helps You Communicate - Easier.

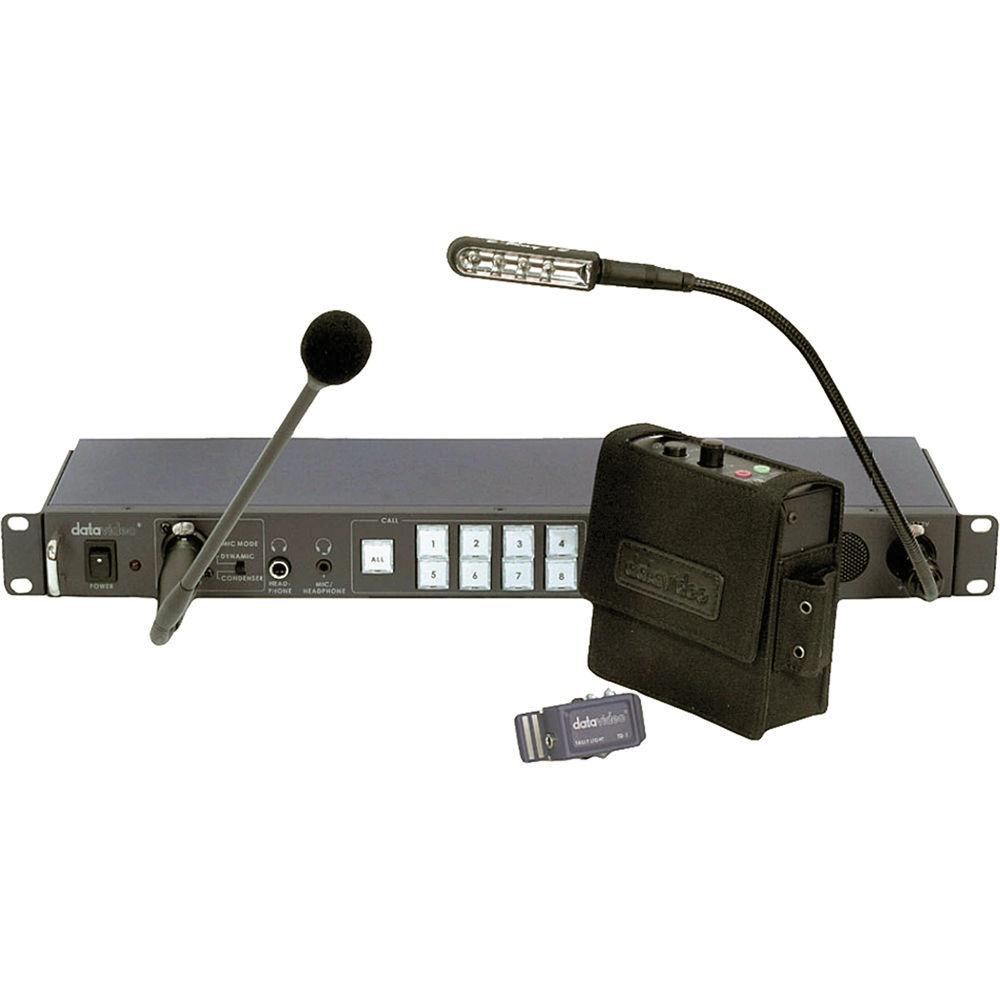

One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.

Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.
  • Supports up to 8 wired users
  • Uses your choice of headsets, from low-cost cell phone sets to high-quality professional units
  • Uses cables up to 984 ft to connect beltpacks

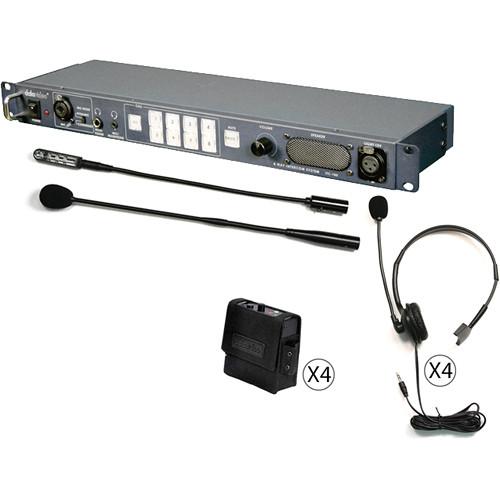

UPC: 672255001684 In the Box Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets
  • ITC-100 Base Station
  • 4 x ITC-100SL Beltpacks

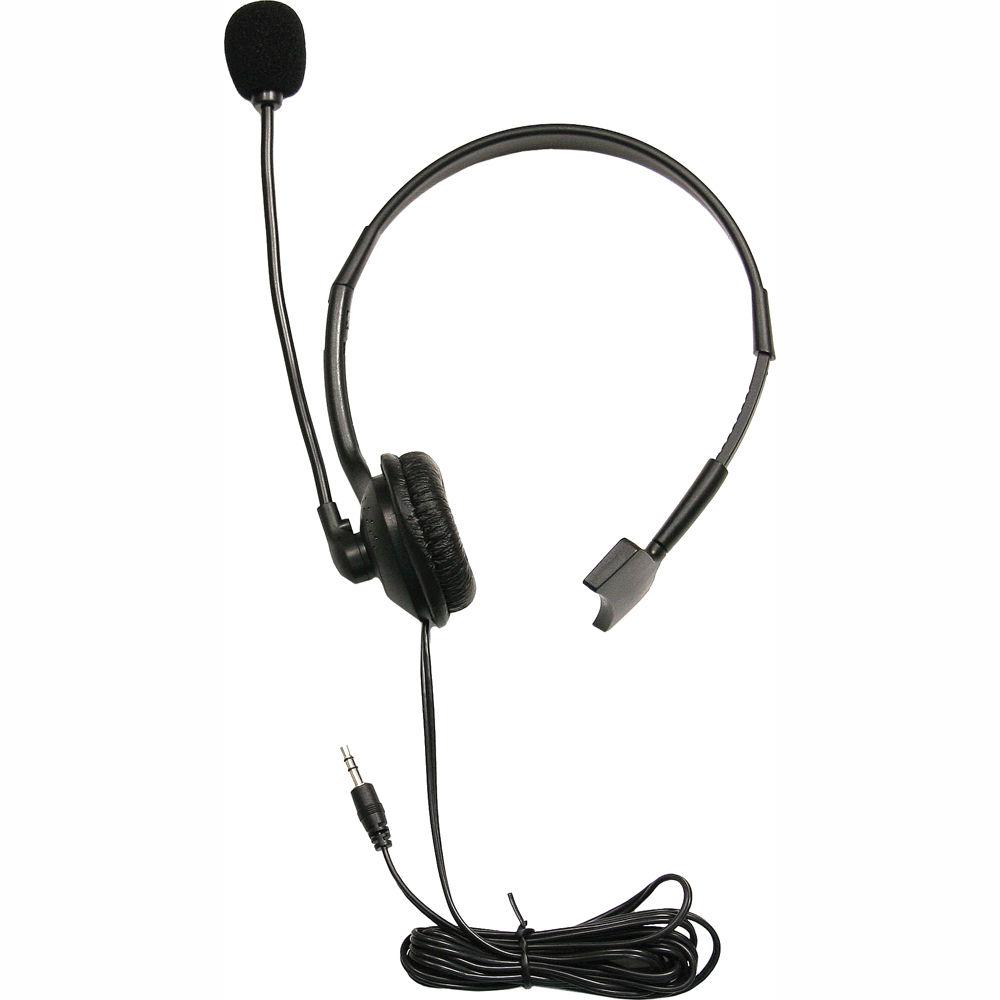

  • 4 x MC-1 Headsets
  • 4 x 5-Pin XLR to XLR Cables (65'/20m)
  • 4 x TD-3 Camera Tally Lights
  • 4 x 3.5 mm Jack to 3.5 mm Jack Cables

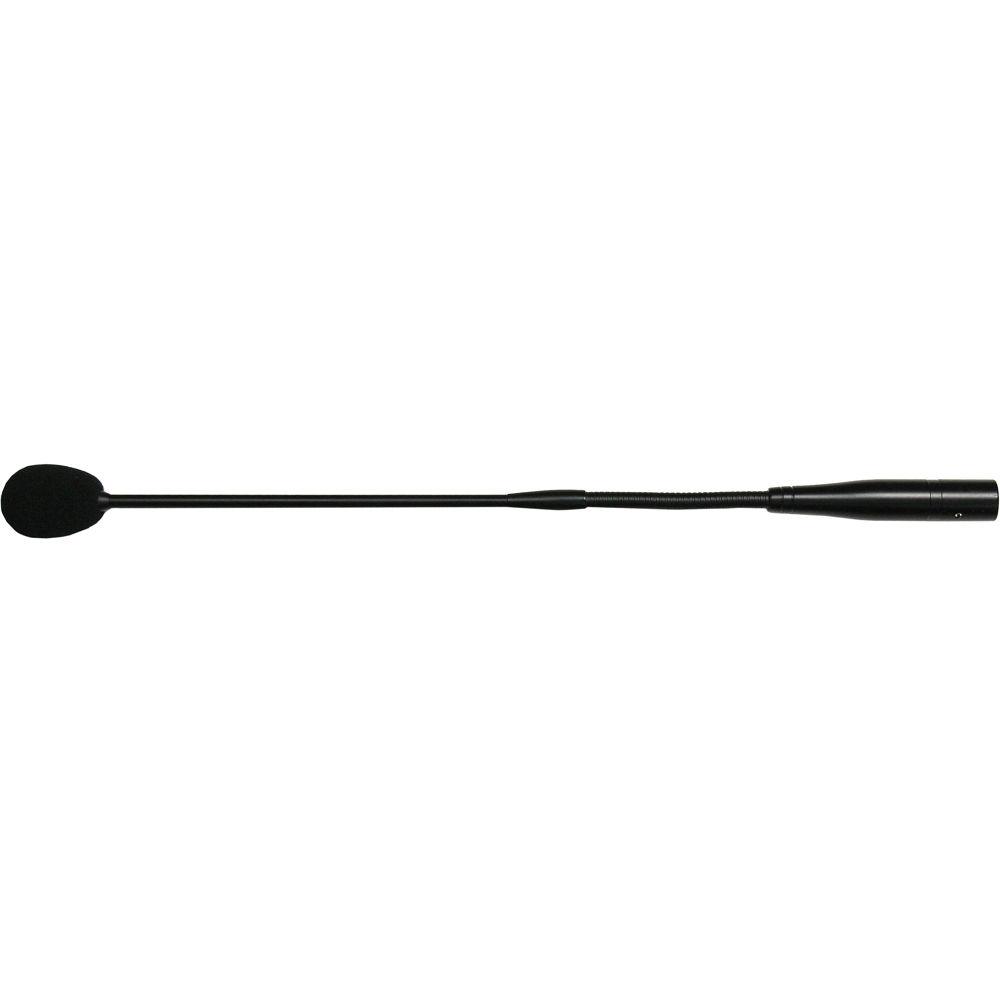

  • XLR Gooseneck Microphone

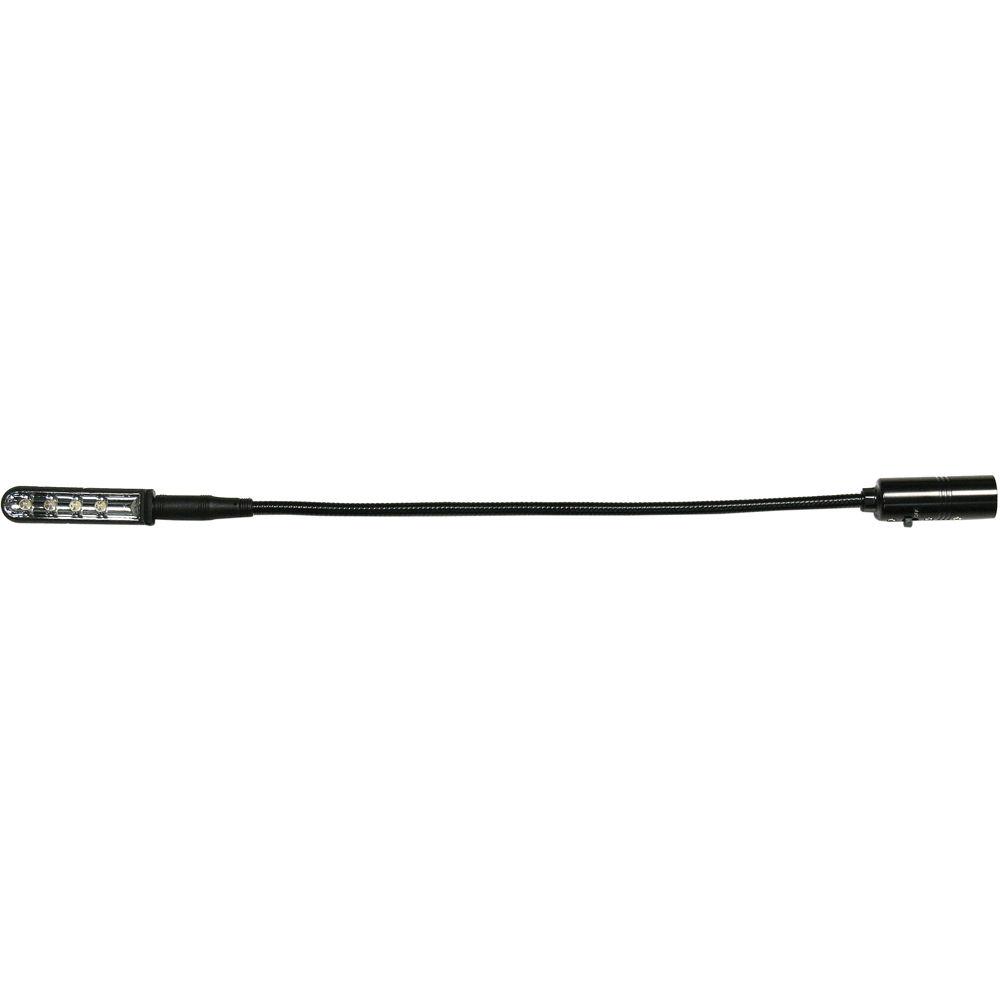

  • XLR Gooseneck Light

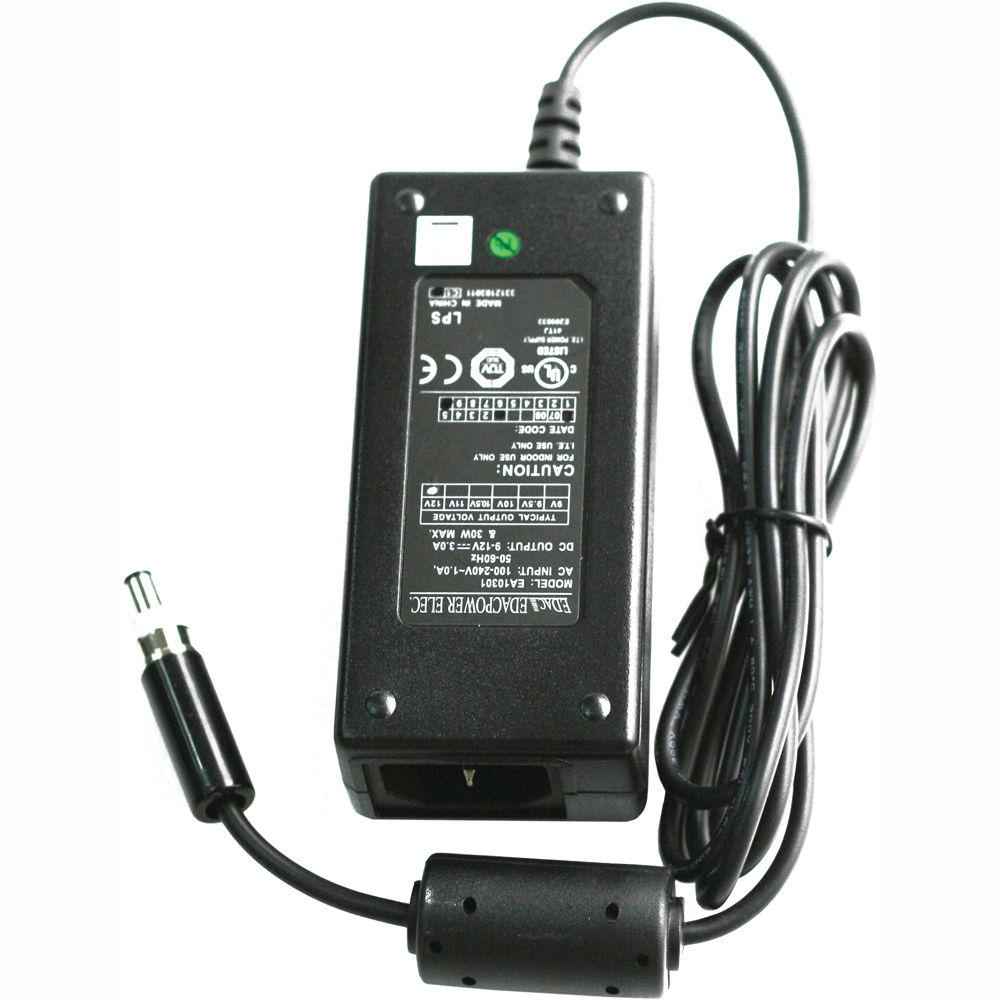

  • Power Supply Unit
  • Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Datavideo ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Datavideo ITC-100 Specs

    Frequency Response 550 Hz - 3.6 kHz <±3 dB
    Total Harmonic Distortion (THD) <3%
    Signal to Noise Ratio >50 dB
    Operating Range Up to 660' (200 m) Between Base Station and Slave

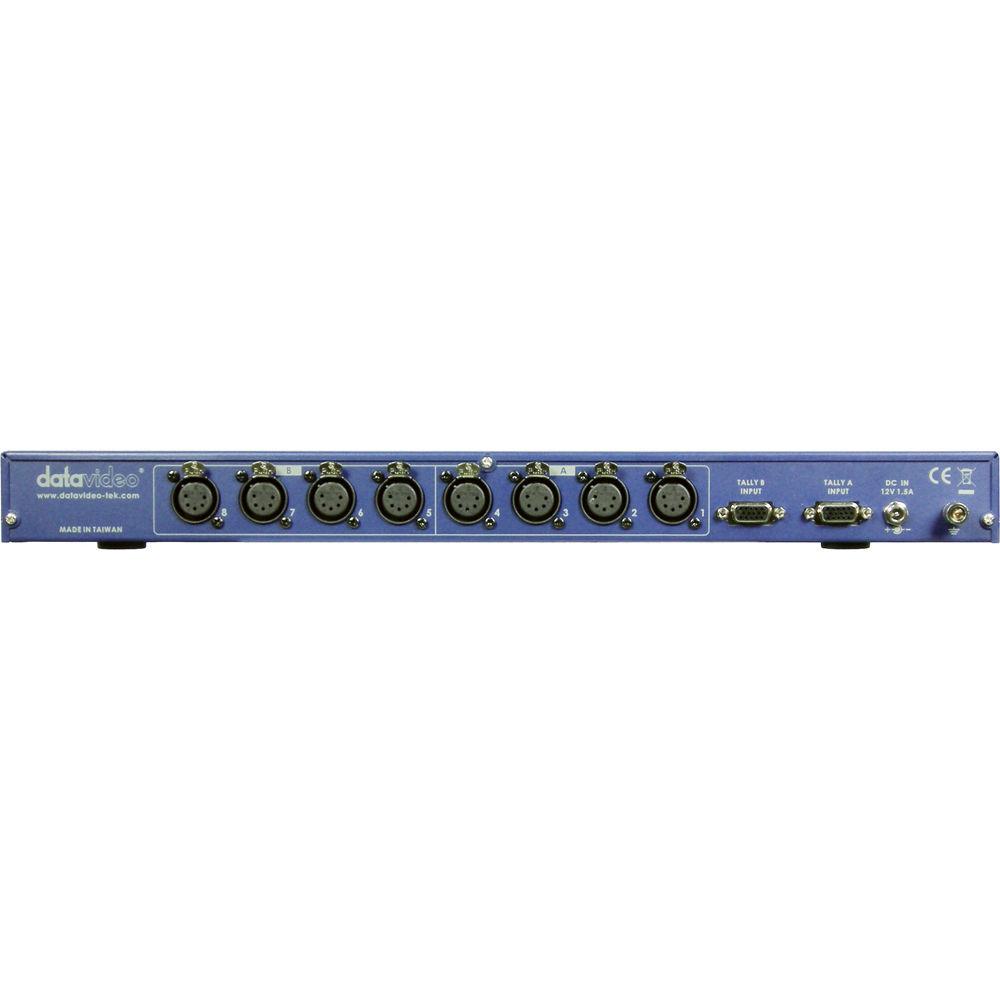

    Connectors 1 x 12 V 1.5A Power Input
    2 x 15-Pin Sub-D Tally Connectors
    1 x 3.5mm Stereo Headphone/Mic Combo Jack
    1 x 1/4" Stereo Headphone Jack
    1 x 3-Pin XLR Light Socket
    1 x XLR/TRS Combo Mic Input
    Speaker 2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms)
    Operating Temperature 41 to 104° (5 to 40°C)
    Dimensions 1 RU
    Weight 4.2 lbs (1.9 kg)
    Package Weight 23.0 lb
    Box Dimensions (LxWxH) 20.5 x 15.0 x 8.5"
