User Manual for Datavideo ITC-100 8-User Wired Intercom System with 8 Beltpacks & 8 Headsets Click to enlarge the picture
Contents of the user manual for the Datavideo ITC-100 8-User Wired Intercom System
- Product category: Wired Intercoms Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Wired Intercoms
 |
User manual for the Datavideo ITC-100 8-User Wired Intercom System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

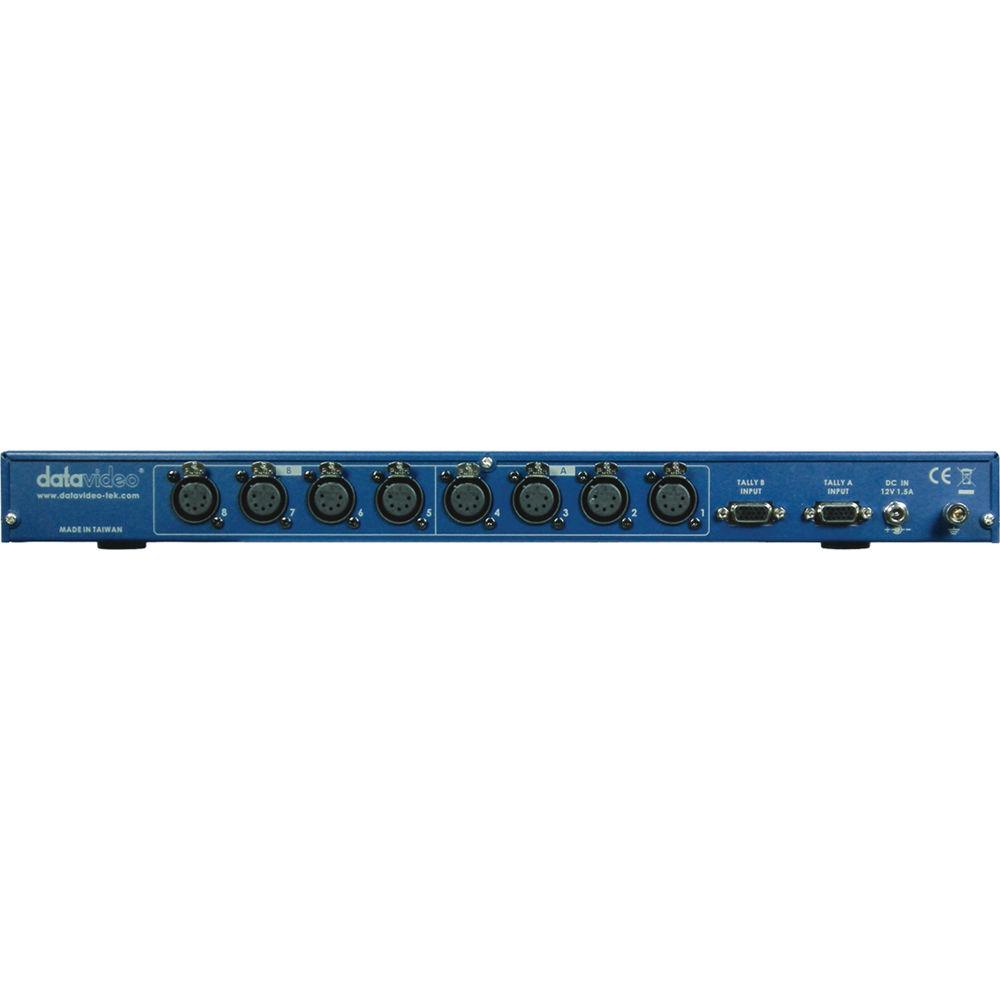

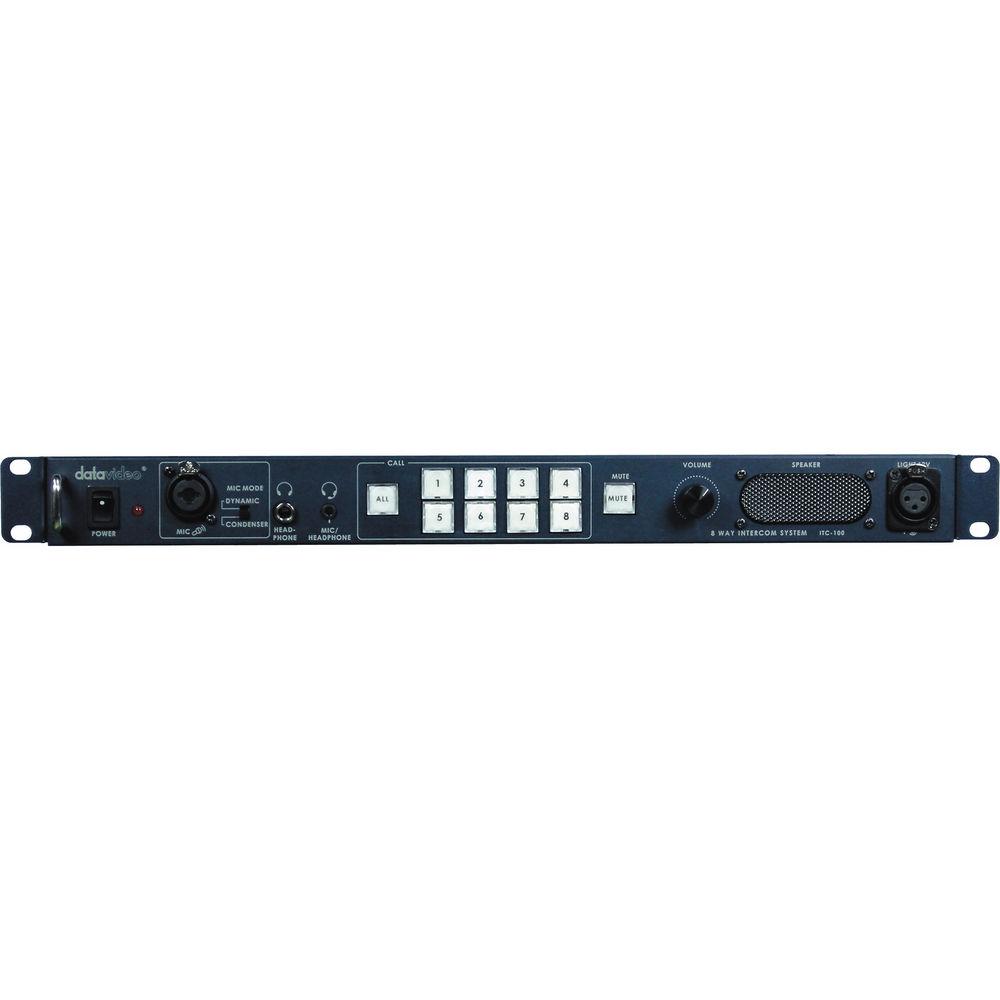

Product description The ITC-100 8-User Wired Intercom System with 8 Beltbacks & 8 Headsets from Datavideo is a practical eight remote-user and base station intercom system with tally lights. Up to 8 users can be connected to the ITC-100 via wired beltpacks. Eight beltpacks, eight headsets, eight 65' XLR cables, and eight tally lights are all included. Beltpacks are connected to the base station by 5-pin 65' (20m) 5-pin XLR cables, which may be extended up to 650' (200m). The base station features call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.
For use with Datavideo SE-500, HS-500, SE-600, SE-2000, SE-2800, and SE-3000, optional adapter cables are necessary. -
- 8-Channels
- Operator package for up to 8 users; includes beltpack, headset, 65' XLR cable, and tally lights
- Built-in speaker
- 21V light socket
- Gooseneck microphone and LED light
- Locking power connectors

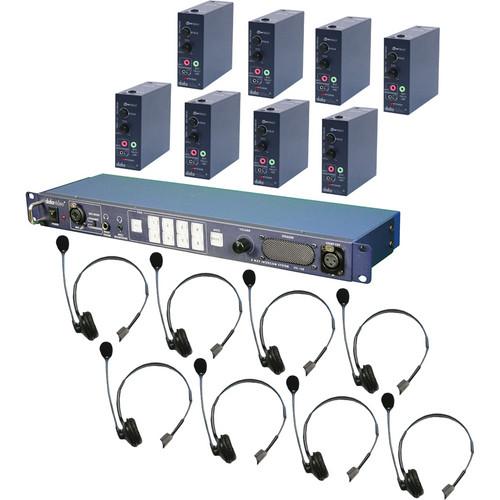

UPC: 672255003176 In the Box Datavideo ITC-100 8-User Wired Intercom System with 8 Beltpacks & 8 Headsets ITC-100 Base Station 8 x ITC-100SL Additional Beltpack for ITC-100 Intercom System fwwewvqwewyqsyuquc 8 x ITC-100SL Carrying Case 8 x Headsets 8 x Tally Lights XLR Gooseneck Microphone XLR Gooseneck LED Light 8 x 65' Cables 12V 1.5A Power Supply AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo ITC-100 8-User Wired Intercom System with 8 Beltpacks & 8 Headsets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo ITC-100 Specs | | | Tally | 2 x 15-Pin Sub D Tally Connectors | | Mic / Headset | 1 x 3.5mm Stereo Headphone/Mic Combo Jack
Headset impedance: 8 to 600 ohms, 100 mW (minimum) | | Light Socket | 1 x 3-Pin XLR
Light power consumption: 12 V, 100 mW (maximum) | | Microphone | 1 x XLR/TRS Combo Mic Input
Socket switchable condenser / dynamic input
Microphone level: -67 dB | | Frequency Response | 550 Hz to 3.6 kHz, < ±3dB | | Total Harmonic Distortion (THD) | < 3% | | Signal to Noise Ratio | > 50 dB | | Audio Level | -15 dB | | Impedance | 51 Kohm | | Built-in Speaker | 3 W, 32 Ohm | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Power | 12 VDC, 1.0 A, 110/220 VAC | | Rack Unit Space | 1RU | | Dimensions (L x W x H) | 5.0 x 19.0 x 1.5" (12.7 x 48.3 x 3.8 cm) | | Weight | 4 lb (1.81 kg) | | | | Input | 1 x XLR, 5-pin | | Mic / Headset | 1 x 3.5mm headphone/microphone stereo jack
Headset impedance: 8 to 600 ohms, 100 mW (minimum)
Microphone level: -67 dB
1 x 2.5mm stereo jack for Motorola mobile phone type headset/microphone | | TALLY Output | 1 x 3.5mm jack | | Tally LED Indicator | Bi-color LED | | Operating Range | 200 m, between Base Station and Beltpack | | Operating Temperature | 41 to 113°F (5 to 45°C) | | Dimensions | 4.5 x 3.75 x 1.4" (11.4 x 9.7 x 3.5 cm) | | | | Package Weight | 43.5 lb | | Box Dimensions (LxWxH) | 20.9 x 17.6 x 15.9" |
