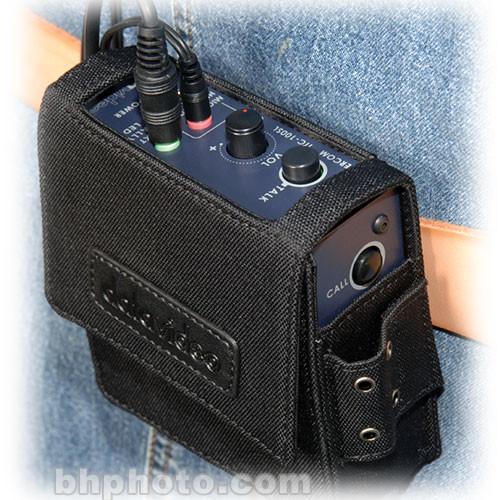

User Manual for Datavideo ITC-100SL Additional Beltpack for ITC-100 Intercom System Click to enlarge the picture
Contents of the user manual for the Datavideo ITC-100SL Additional Beltpack for ITC-100
- Product category: Transmitters & Receivers Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Transmitters & Receivers
|
User manual for the Datavideo ITC-100SL Additional Beltpack for ITC-100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description - How the ITC-100 Helps You Communicate - Easier.
The ITC-100SL Additional Beltpack from Datavideo is the same beltpack as the 4 that come included with the Datavideo ITC-100 intercom system. It can be used as a replacement or to expand the system. The ITC-100 intercom system supports up to 8 of these beltpacks in total.
The beltpack features a 5-pin XLR input for talkback, power, and tally, and 3.5mm and 2.5mm headphone jacks for standard or Motorola type headphones. It has call and talk buttons, volume control, and a bi-color tally light. You can use it over a 650 ft communication distance. UPC: 672255002001 In the Box Datavideo ITC-100SL Additional Beltpack for ITC-100 Intercom System TD-2 / TD-3 Tally Light MC-1 Headset / Microphone ITC-100SL Slave Unit 65 ft XLR to XLR Intercom Cable GPI Cable 14" Black Touch Fastener Standard Touch Fastener 3.5mm Earphone (M) to Two Earphones (F) Carrying Case Limited 1-Year Warranty Limited 2-Year Warranty with Product Registration within 30 Days of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo ITC-100SL Additional Beltpack for ITC-100 Intercom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo ITC-100SL Specs | Input Connections | 1 x 5-pin XLR | | Mic / Headset | 1 x 3.5 mm stereo jack for combination headphone/microphone
1 x 2.5 mm stereo jack for combination headphone/microphone
Headset Impedance: 8-600 Ohms, 100 mW (min)
Microphone Level: -67 dB | | Frequency Response | 550-3.6 kHz, < +/-3 dB | | THD | < 3% | | S/N Ratio | 50 dB | | Tally Output | 3.5 mm jack for connecting to TD-2 or TD-3 Tally Indicator | | Tally LED Indicator | Bi-Color:
Red: "Live" Green: "Cued" | | Power LED | Confirms power status | | Communication Distance | 650 ft (200 m) | | Operating Temperature | 41 to 111°F (5 to 45°C) | | Dimensions | 4.5 x 3.75 x 1.4" (114 x 95 x 35 mm) | | Weight | 12.3 oz (350 g) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 7.5 x 7.2 x 7.1" |
