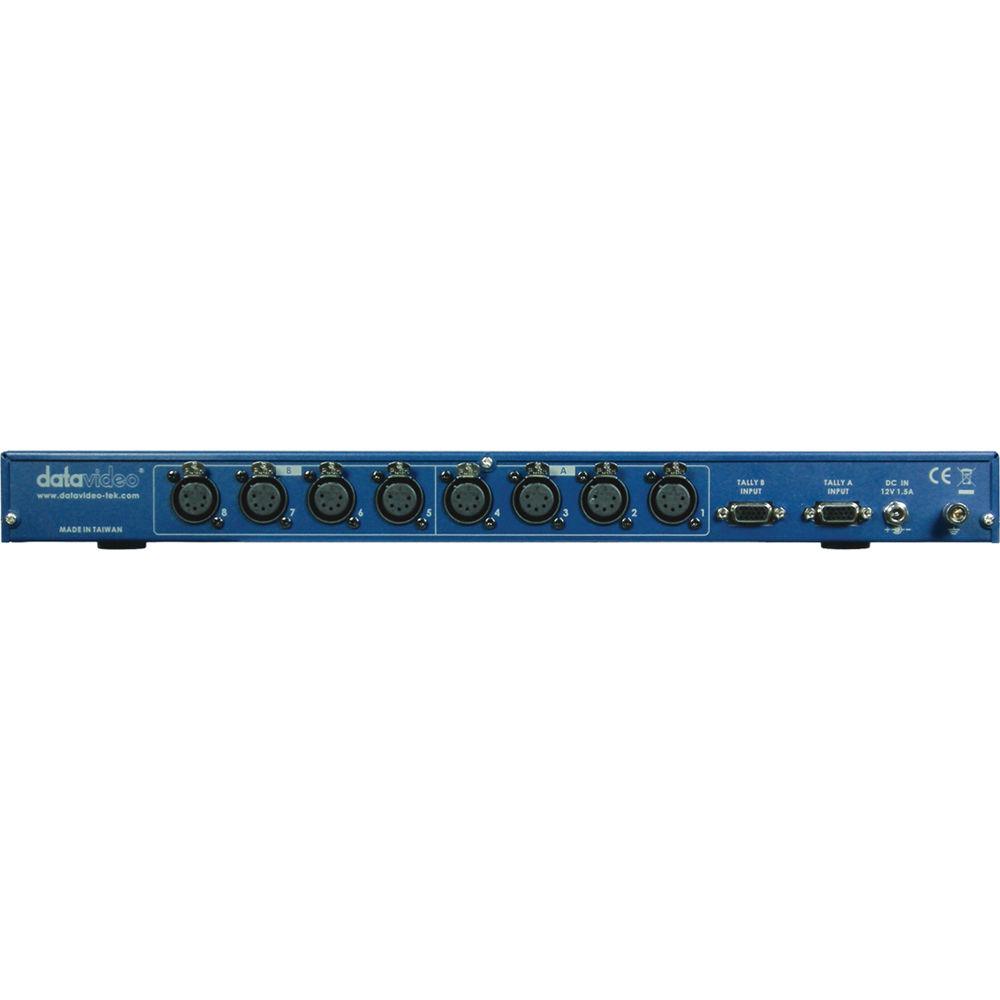

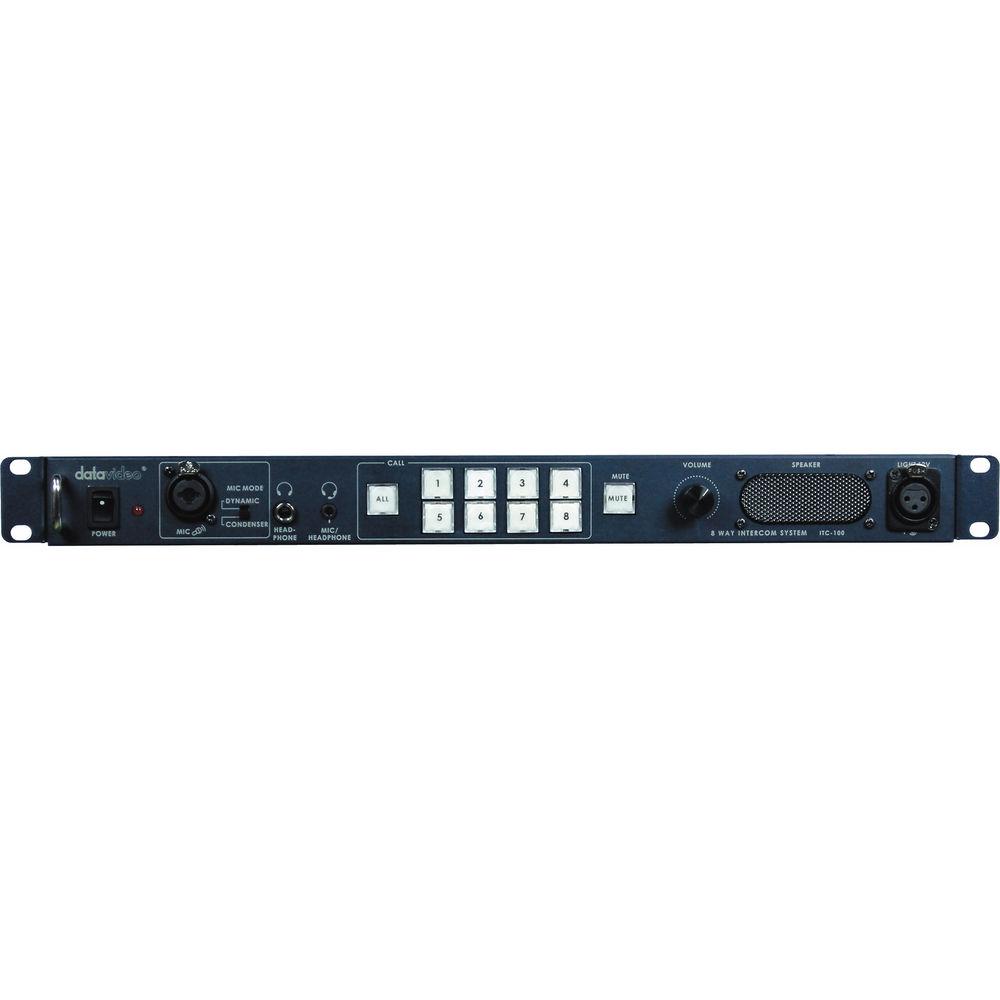

User Manual for Datavideo ITC100HP1K - ITC-100 Wired Intercom System with Four HP-1 Headsets Kit Click to enlarge the picture
Contents of the user manual for the Datavideo ITC100HP1K - ITC-100 Wired Intercom
- Product category: Wired Intercoms Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Wired Intercoms
 |
User manual for the Datavideo ITC100HP1K - ITC-100 Wired Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

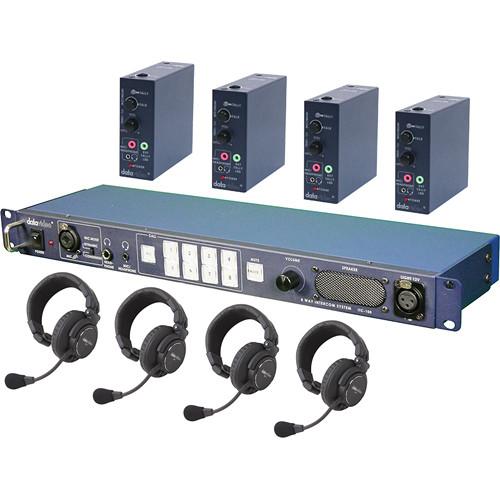

Product description The Datavideo ITC100HP1K wired intercom kit includes an ITC-100 base station, four MC-1 headsets, four ITC-100SL belt packs, four CB-3 cables (65'/20m), four TD-3 camera tally lights, and four HP-1 single-ear headsets. The ITC-100 system features 8-way talkback and tally indicators that provide clear communication between the director and the camera crew, in production studio and live venue applications. The director can choose to talk to an individual channel or to all channels simultaneously. The HP-1 is a circumaural, closed headset designed to prevent sound leakage, in and out. Its single-ear design is well-suited for situations when the user needs to listen to the intercom as well as to conversations in the room. Featuring a noise-canceling microphone and a soft ear pad, the HP-1 offers an ideal alternative to the MC-1 headset, for working in noisy environments with a comfortable fit during extended use. - ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.
Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks. - Supports up to 8 wired users
- Uses your choice of headsets, from low-cost cell phone sets to high-quality professional units
- Uses cables up to 984 ft to connect beltpacks
UPC: 672255001684 - HP1 Single-Ear Headset for ITC Intercom Systems The Datavideo HP1 Single-Ear Headset is compatible with Datavideo ITC Intercom Systems. It features a closed-back design to reduce outside noise, a soft circumaural earpad and a noise-cancelling microphone. The headphone speaker resists clipping during loud monitoring. UPC: 672255003862
In the Box Bundle Items ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets dzdascye - 4 x 5-Pin XLR to XLR Cables (65'/20m)
- 4 x TD-3 Camera Tally Lights
- 4 x 3.5 mm Jack to 3.5 mm Jack Cables
- Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)
4 x HP1 Single-Ear Headset for ITC Intercom Systems Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo ITC100HP1K - ITC-100 Wired Intercom System with Four HP-1 Headsets Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets
| Frequency Response | 550 Hz - 3.6 kHz <±3 dB | | Total Harmonic Distortion (THD) | <3% | | Signal to Noise Ratio | >50 dB | | Operating Range | Up to 660' (200 m) Between Base Station and Slave | | Connectors | 1 x 12 V 1.5A Power Input
2 x 15-Pin Sub-D Tally Connectors
1 x 3.5mm Stereo Headphone/Mic Combo Jack
1 x 1/4" Stereo Headphone Jack
1 x 3-Pin XLR Light Socket
1 x XLR/TRS Combo Mic Input | | Speaker | 2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms) | | Operating Temperature | 41 to 104° (5 to 40°C) | | Dimensions | 1 RU | | Weight | 4.2 lbs (1.9 kg) | | | | Box Dimensions (LxWxH) | 20.5 x 15.0 x 8.5" | - HP1 Single-Ear Headset for ITC Intercom Systems
| | | Connector Type | 1 x 1/8" audio/microphone connector | | | | Transducer Type | Single-ear, dynamic | | Form Factor | Closed-back | | Frequency Response | 10 Hz to 22 kHz | | Nominal Impedance | 24Ω | | Nominal Output Level | 98 dB @ 1 kHz | | THD | < 0.2% @ 1 kHz, 100 mW | | Power Rating | Nominal Power @ 1 kHz: 100 mW | | | | Transducer Type | Condenser | | Frequency Response | 20 Hz to 16 kHz | | Polar Pattern | Omni-Directional | | Nominal Impedance | 2.2kΩ | | Sensitivity | -64 dB | | | | Box Dimensions (LxWxH) | 12.2 x 8.3 x 4.5" |
