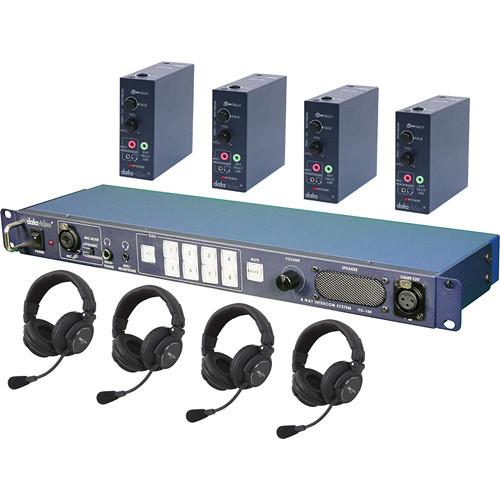

Product description The Datavideo ITC100HP2K wired intercom kit includes an ITC-100 base station, four MC-1 headsets, four ITC-100SL belt packs, four CB-3 cables (65'/20m), four TD-3 camera tally lights, and four HP-2A dual-ear headsets. The ITC-100 system features 8-way talkback and tally indicators that provide clear communication between the director and the camera crew, in production studio and live venue applications. The director can choose to talk to an individual channel or to all channels simultaneously. The HP-2A is a circumaural, closed headset designed to prevent sound leakage, in and out. Featuring a noise-canceling microphone and soft ear pads, the HP-2A offers an ideal alternative to the MC-1 headset, for working in noisy environments with a comfortable fit during extended use. - ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.

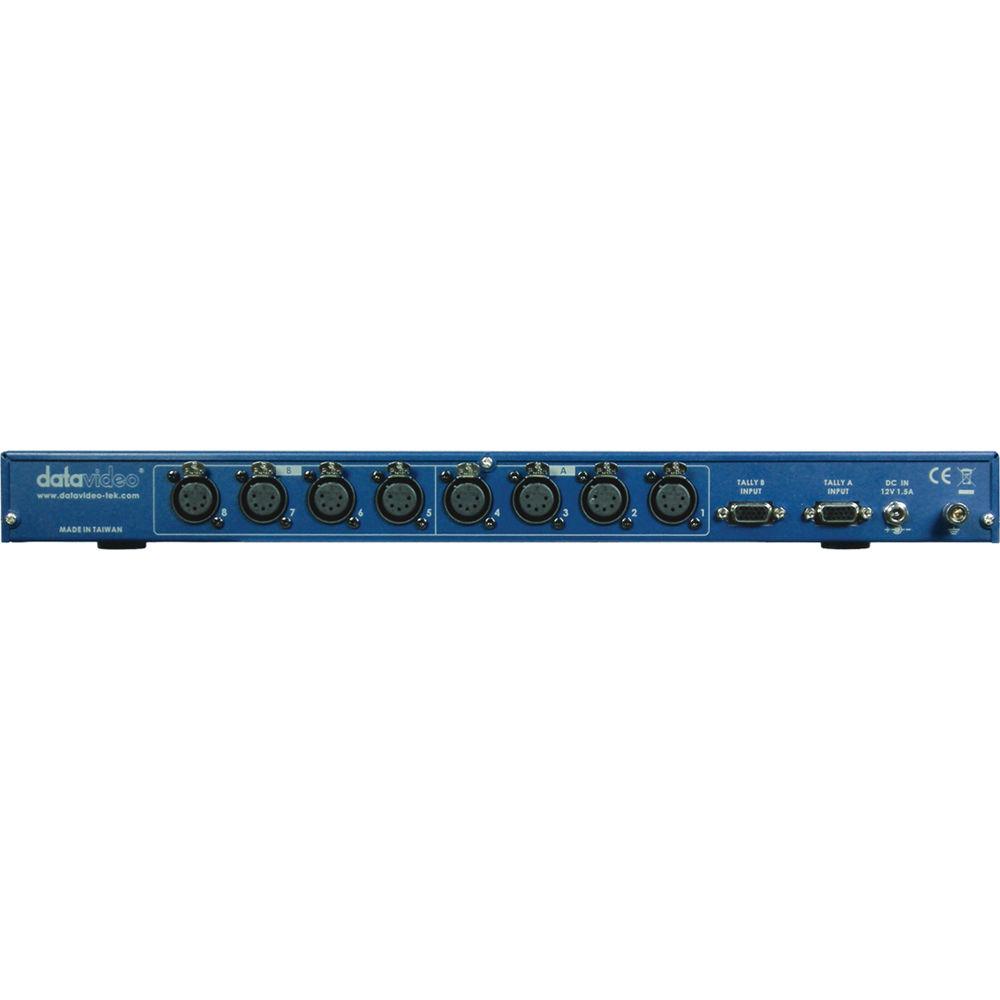

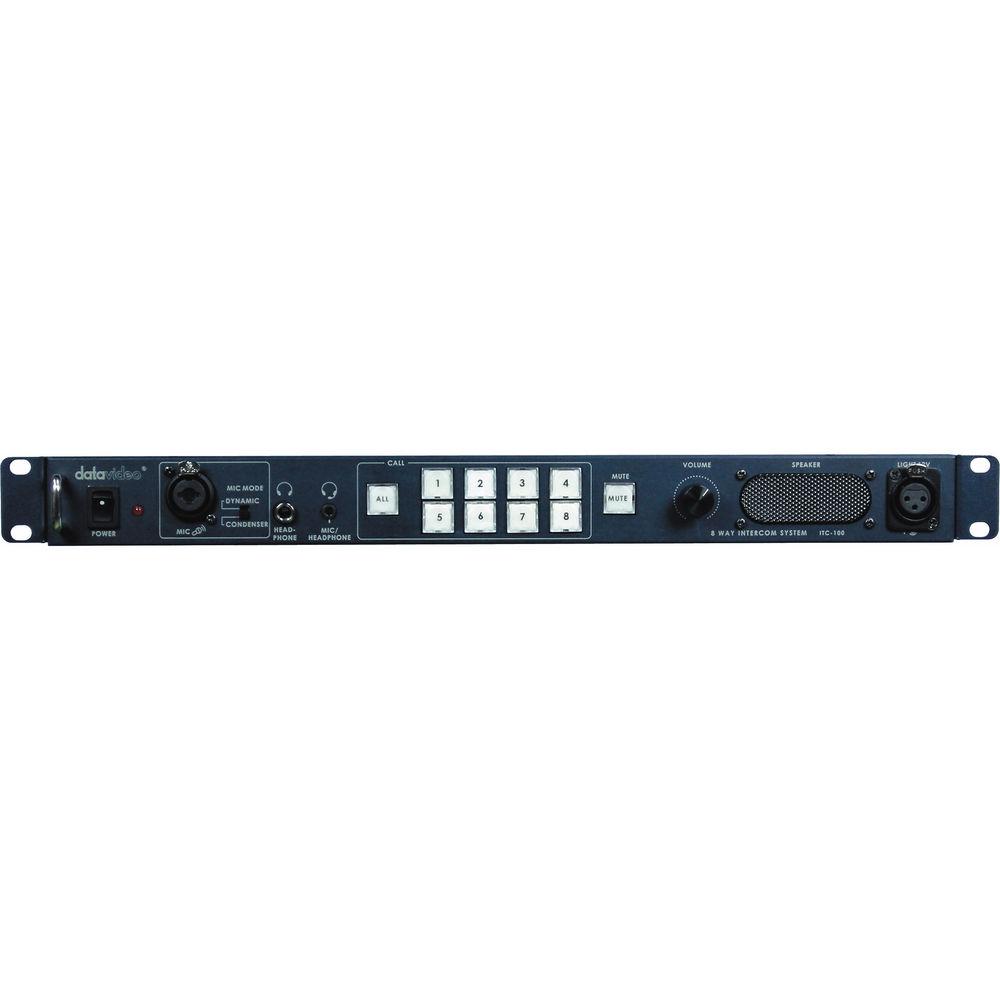

Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks. - Supports up to 8 wired users
- Uses your choice of headsets, from low-cost cell phone sets to high-quality professional units
- Uses cables up to 984 ft to connect beltpacks
UPC: 672255001684 - Datavideo HP-2A Dual-Ear Headset for ITC Intercom Systems The Datavideo HP-2A Dual-Ear Headset is compatible with Datavideo ITC Intercom Systems. It features a closed-back design to reduce outside noise, soft circumaural earpads and a noise-cancelling microphone. The headphone drivers resist clipping during loud monitoring. UPC: 672255003893
In the Box Bundle Items ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets fwwewvqwewyqsyuquc - 4 x 5-Pin XLR to XLR Cables (65'/20m)
- 4 x TD-3 Camera Tally Lights
- 4 x 3.5 mm Jack to 3.5 mm Jack Cables
- Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)
4 x Datavideo HP-2A Dual-Ear Headset for ITC Intercom Systems - Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo ITC100HP2K - ITC-100 Wired Intercom System with Four HP-2A Headsets Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets
| Frequency Response | 550 Hz - 3.6 kHz <±3 dB | | Total Harmonic Distortion (THD) | <3% | | Signal to Noise Ratio | >50 dB | | Operating Range | Up to 660' (200 m) Between Base Station and Slave | | Connectors | 1 x 12 V 1.5A Power Input
2 x 15-Pin Sub-D Tally Connectors
1 x 3.5mm Stereo Headphone/Mic Combo Jack
1 x 1/4" Stereo Headphone Jack
1 x 3-Pin XLR Light Socket
1 x XLR/TRS Combo Mic Input | | Speaker | 2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms) | | Operating Temperature | 41 to 104° (5 to 40°C) | | Dimensions | 1 RU | | Weight | 4.2 lbs (1.9 kg) | | | | Box Dimensions (LxWxH) | 20.5 x 15.0 x 8.5" | - Datavideo HP-2A Dual-Ear Headset for ITC Intercom Systems
| | | Connector Type | 1 x 1/8" audio/microphone connector | | | | Transducer Type | Dual-ear, dynamic | | Form Factor | Closed-back | | Frequency Response | 10 Hz to 22 kHz | | Nominal Impedance | 24 Ohms | | Nominal Output Level | 98 dB @ 1 kHz | | THD | < 0.2% @ 1 kHz, 100 mW | | Power Rating | Nominal Power @ 1 kHz: 100 mW | | | | Transducer Type | Condenser | | Frequency Response | 20 Hz to 16 kHz | | Polar Pattern | Omnidirectional | | Nominal Impedance | 2.2 kOhms | | Sensitivity | -64 dB | | | | Box Dimensions (LxWxH) | 10.2 x 8.3 x 4.4" |
