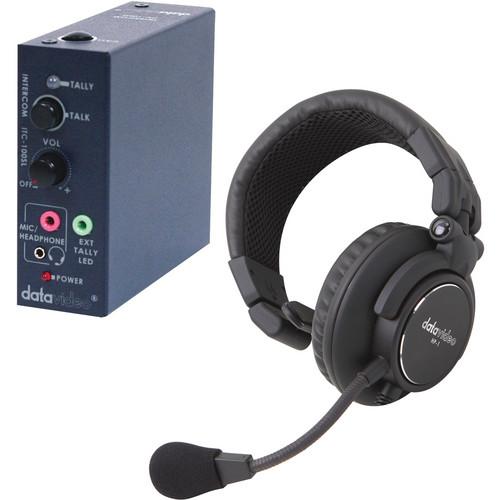

Datavideo ITCSL-HP1K Intercom Accessory Set for

User Manual for Datavideo ITCSL-HP1K Intercom Accessory Set for Intercom Systems

• Product category: Headsets Datavideo
• Brand: Datavideo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Datavideo Headsets

Product description

• HP1 Single-Ear Headset for ITC Intercom Systems The Datavideo HP1 Single-Ear Headset is compatible with Datavideo ITC Intercom Systems. It features a closed-back design to reduce outside noise, a soft circumaural earpad and a noise-cancelling microphone. The headphone speaker resists clipping during loud monitoring. UPC: 672255003862
• ITC-100SL Additional Beltpack for ITC-100 Intercom System The ITC-100SL Additional Beltpack from Datavideo is the same beltpack as the 4 that come included with the Datavideo ITC-100 intercom system. It can be used as a replacement or to expand the system. The ITC-100 intercom system supports up to 8 of these beltpacks in total.

  The beltpack features a 5-pin XLR input for talkback, power, and tally, and 3.5mm and 2.5mm headphone jacks for standard or Motorola type headphones. It has call and talk buttons, volume control, and a bi-color tally light. You can use it over a 650 ft communication distance. UPC: 672255002001
• TD-LT Tally Light The Datavideo TD-LT Tally Light is a one piece tally light accessory for live switchers. This tally light works with a Datavideo live switcher system allowing the user and talent to recognize which camera is "hot" during a production. When the camera is selected on the switcher the light illuminates for usage indication.
• CB-3 - 65' (20m) Extension Cable for ITC-100 The CB-3 from DataVideo is a 65 foot (20m) extension cable for use with the ITC-100 intercom system. The straight cable terminates in 5-pin XLR connectors for connection between the base station and a beltpack. UPC: 672255002346

• Limited 1-Year Warranty

• TD-2 / TD-3 Tally Light

• MC-1 Headset / Microphone

• ITC-100SL Slave Unit

• 65 ft XLR to XLR Intercom Cable

• GPI Cable

• 14" Black Touch Fastener

• Standard Touch Fastener

• 3.5mm Earphone (M) to Two Earphones (F)

• Carrying Case

• Limited 1-Year Warranty

• Limited 2-Year Warranty with Product Registration within 30 Days of Purchase

• 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase

• 1-Year Standard Warranty without Product Registration

• 1 Year Limited Warranty

Also Includes

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP1 Single-Ear Headset for ITC Intercom Systems

  Connector Type	1 x 1/8" audio/microphone connector

  Transducer Type	Single-ear, dynamic
  Form Factor	Closed-back
  Frequency Response	10 Hz to 22 kHz
  Nominal Impedance	24Ω
  Nominal Output Level	98 dB @ 1 kHz
  THD	< 0.2% @ 1 kHz, 100 mW
  Power Rating	Nominal Power @ 1 kHz: 100 mW

  Transducer Type	Condenser
  Frequency Response	20 Hz to 16 kHz
  Polar Pattern	Omni-Directional
  Nominal Impedance	2.2kΩ
  Sensitivity	-64 dB

  Box Dimensions (LxWxH)	12.2 x 8.3 x 4.5"

• ITC-100SL Additional Beltpack for ITC-100 Intercom System

  Input Connections	1 x 5-pin XLR
  Mic / Headset	1 x 3.5 mm stereo jack for combination headphone/microphone 1 x 2.5 mm stereo jack for combination headphone/microphone Headset Impedance: 8-600 Ohms, 100 mW (min) Microphone Level: -67 dB
  Frequency Response	550-3.6 kHz, < +/-3 dB
  THD	< 3%
  S/N Ratio	50 dB
  Tally Output	3.5 mm jack for connecting to TD-2 or TD-3 Tally Indicator
  Tally LED Indicator	Bi-Color: Red: "Live" Green: "Cued"
  Power LED	Confirms power status
  Communication Distance	650 ft (200 m)
  Operating Temperature	41 to 111°F (5 to 45°C)
  Dimensions	4.5 x 3.75 x 1.4" (114 x 95 x 35 mm)
  Weight	12.3 oz (350 g)

  Box Dimensions (LxWxH)	7.5 x 7.2 x 7.1"

• TD-LT Tally Light

  Box Dimensions (LxWxH)	4.2 x 3.8 x 2.0"

• CB-3 - 65' (20m) Extension Cable for ITC-100

  Box Dimensions (LxWxH)	7.1 x 6.6 x 2.6"
