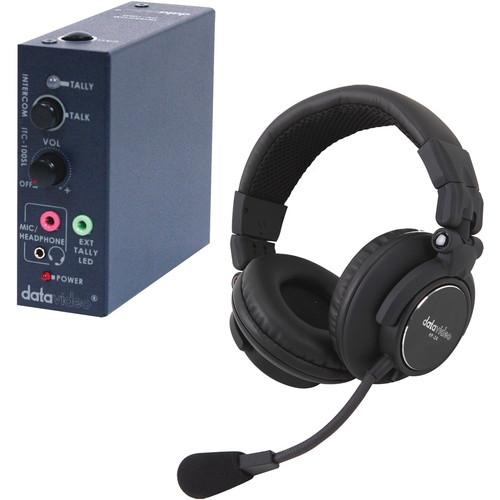

Product description The Datavideo ITCSL-HP2K Intercom Accessory Set is suitable for use with Datavideo Intercom Systems. It comes with the HP-2A Double-Ear Headset, ITC-100SL Beltpack, a 65.6’ XLR to XLR Intercom cable, and TD-LT tally light (no base station).The Double-Ear HP-2A Headset and ITC-100SL Beltpack are compatible with the Datavideo ITC-100 Intercom System.The TD-LT Tally Light can be used with the TB-5 Tally Box. - Datavideo HP-2A Dual-Ear Headset for ITC Intercom Systems The Datavideo HP-2A Dual-Ear Headset is compatible with Datavideo ITC Intercom Systems. It features a closed-back design to reduce outside noise, soft circumaural earpads and a noise-cancelling microphone. The headphone drivers resist clipping during loud monitoring. UPC: 672255003893
- ITC-100SL Additional Beltpack for ITC-100 Intercom System The ITC-100SL Additional Beltpack from Datavideo is the same beltpack as the 4 that come included with the Datavideo ITC-100 intercom system. It can be used as a replacement or to expand the system. The ITC-100 intercom system supports up to 8 of these beltpacks in total.
The beltpack features a 5-pin XLR input for talkback, power, and tally, and 3.5mm and 2.5mm headphone jacks for standard or Motorola type headphones. It has call and talk buttons, volume control, and a bi-color tally light. You can use it over a 650 ft communication distance. UPC: 672255002001 - TD-LT Tally Light The Datavideo TD-LT Tally Light is a one piece tally light accessory for live switchers. This tally light works with a Datavideo live switcher system allowing the user and talent to recognize which camera is "hot" during a production. When the camera is selected on the switcher the light illuminates for usage indication.
- CB-3 - 65' (20m) Extension Cable for ITC-100 The CB-3 from DataVideo is a 65 foot (20m) extension cable for use with the ITC-100 intercom system. The straight cable terminates in 5-pin XLR connectors for connection between the base station and a beltpack. UPC: 672255002346
In the Box Bundle Items Datavideo HP-2A Dual-Ear Headset for ITC Intercom Systems fwwewvqwewyqsyuquc - Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)
ITC-100SL Additional Beltpack for ITC-100 Intercom System - MC-1 Headset / Microphone
- 65 ft XLR to XLR Intercom Cable
- 3.5mm Earphone (M) to Two Earphones (F)
- Limited 2-Year Warranty with Product Registration within 30 Days of Purchase
TD-LT Tally Light - 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase
- 1-Year Standard Warranty without Product Registration
CB-3 - 65' (20m) Extension Cable for ITC-100 fwwewvqwewyqsyuquc
Also Includes Note: Warranty can be extended by 1 year by registering the product with Datavideo within 30 days of purchase. Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo ITCSL-HP2K Intercom Accessory Set for Intercom Systems in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Datavideo HP-2A Dual-Ear Headset for ITC Intercom Systems
| | | Connector Type | 1 x 1/8" audio/microphone connector | | | | Transducer Type | Dual-ear, dynamic | | Form Factor | Closed-back | | Frequency Response | 10 Hz to 22 kHz | | Nominal Impedance | 24 Ohms | | Nominal Output Level | 98 dB @ 1 kHz | | THD | < 0.2% @ 1 kHz, 100 mW | | Power Rating | Nominal Power @ 1 kHz: 100 mW | | | | Transducer Type | Condenser | | Frequency Response | 20 Hz to 16 kHz | | Polar Pattern | Omnidirectional | | Nominal Impedance | 2.2 kOhms | | Sensitivity | -64 dB | | | | Box Dimensions (LxWxH) | 10.2 x 8.3 x 4.4" | - ITC-100SL Additional Beltpack for ITC-100 Intercom System
| Input Connections | 1 x 5-pin XLR | | Mic / Headset | 1 x 3.5 mm stereo jack for combination headphone/microphone
1 x 2.5 mm stereo jack for combination headphone/microphone
Headset Impedance: 8-600 Ohms, 100 mW (min)
Microphone Level: -67 dB | | Frequency Response | 550-3.6 kHz, < +/-3 dB | | THD | < 3% | | S/N Ratio | 50 dB | | Tally Output | 3.5 mm jack for connecting to TD-2 or TD-3 Tally Indicator | | Tally LED Indicator | Bi-Color:
Red: "Live" Green: "Cued" | | Power LED | Confirms power status | | Communication Distance | 650 ft (200 m) | | Operating Temperature | 41 to 111°F (5 to 45°C) | | Dimensions | 4.5 x 3.75 x 1.4" (114 x 95 x 35 mm) | | Weight | 12.3 oz (350 g) | | | | Box Dimensions (LxWxH) | 7.5 x 7.2 x 7.1" | - TD-LT Tally Light
| | | Box Dimensions (LxWxH) | 4.2 x 3.8 x 2.0" | - CB-3 - 65' (20m) Extension Cable for ITC-100
| | | Box Dimensions (LxWxH) | 7.1 x 6.6 x 2.6" |
