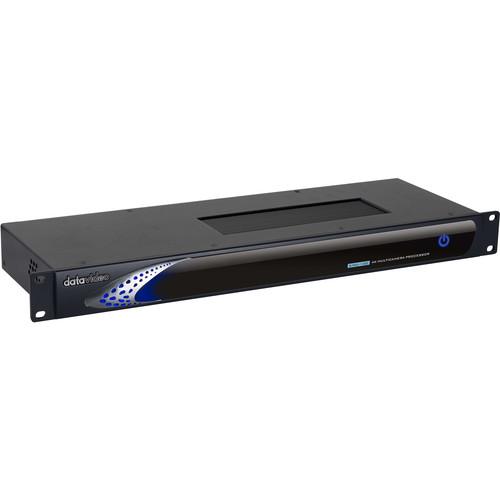

Product description The Datavideo KMU-100 UHD 4K Multicamera Unit is a 4K production solution that delivers multiple virtual Full HD 1080p60 scaled camera angles. The output of a single UHD 4K camera is connected to the KMU-100, which can display up to four 16:9 user-defined cropped windows that are then sent out as four separate HD signals through HD-SDI. These user-defined windows can be scaled to zoom in on a subject that you would like to highlight on the 4K signal.
An additional 4K camera can be connected to allow up to eight defined outputs from the two 4K signals. As an option, the Datavideo RMC-185, RMC-185+, or RMC-180 camera controller can be added to easily pan, tilt, and zoom to create the user-defined windows on the 4K signal. You can set these shots up in advance and save them as presets, or use in real time. The unit is suitable for use in live events, places of worship, and broadcast applications. UPC: 672255007228 In the Box Datavideo KMU-100 UHD 4K Multicamera Unit AD Switch DC 12V with AC Cord 4 x Screw Limited 1-Year Warranty, with 2-Year Extension If Registered Within 30 Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo KMU-100 UHD 4K Multicamera Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo KMU-100 Specs | Video In | 2 x 12G/HD-SDI
6 x 3G/HD-SDI
2 x HDMI 2.0 (with Support for UHD 4K60) | | Video Out | 2 x 12G/HD-SDI (Supports Single-Link 4:2:2)
6 x 3G-SDI (Supports Single-Link, Dual-Link, and Quad-Link 4:2:2)
2 x HDMI 1.4 (Multiview Monitoring) | | Supported Resolutions | 3840 x 2160p: 23.98/24/25/29.97/30/50/59.94/60
1080p: 23.98/24/25/29.97/30
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60 | | Audio | SDI Input (16 Channels)
SDI Output (16 Channels) | | Sync Input | Sync Input (Genlock): Blackburst or Tri-Sync | | Computer Interface | 1 x Ethernet RJ45 (Control, Configuration, and Updates)
1 x RS-232/RS-422 | | Controller | RMC-185/RMC-185+
RMC-180 | | Power Supply | 12 VDC, 5 A | | Dimensions (W x D x H) | 19.1 x 8.7 x 1.9" / 48.4 x 22.2 x 4.9 cm | | | | Package Weight | 11.05 lb | | Box Dimensions (LxWxH) | 22.3 x 13.1 x 7.0" |
