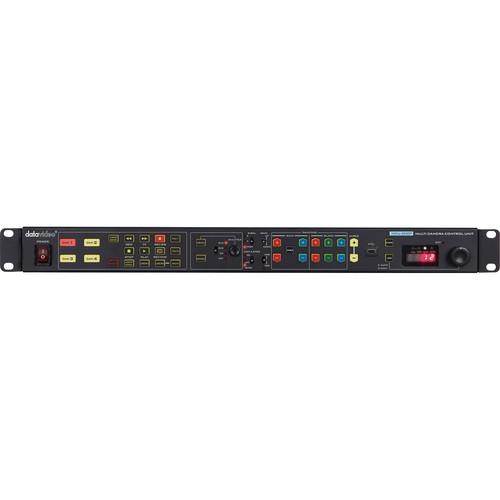

User Manual for Datavideo MCU-200P Rackmount Multi-Camera Controller for Panasonic Camcorders Click to enlarge the picture
Contents of the user manual for the Datavideo MCU-200P Rackmount Multi-Camera Controller for
- Product category: RCPs & MCPs Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo RCPs & MCPs
|
User manual for the Datavideo MCU-200P Rackmount Multi-Camera Controller for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description Control up to four Panasonic camcorders with the Datavideo MCU-200P Rackmount Multi-Camera Controller. Built for studio use, having a multi-camera controller gives you the ability to set up your cameras without having to leave the control room. Using RS-422 protocol, the MCU-200P connects to your cameras with standard Cat-5e/6 cable, supporting cable runs of up to 3280 feet. - Control Features
-
- Control of Record and Playback functions
- Control of Camera User Memory functions
- Control of OSD Menu Navigation
- Control of Shutter speed and degree functions
- Control of Iris adjustment
- Control of AWB and ABB functions
- Control of White Balance A, B, and Preset functions
- Control of Camera Knee and Bar functions
- Control of Camera Gain adjustment
- RGB / R & B gain and Master Pedestal Controls
- Rotary Encoder for Iris Control
- Individual camera's iris can be controlled regardless of knob position. This prevents cameras from losing their iris setting after switching.
- Save/Recall Memory
- The MCU-200P can store 3 setup configurations. It can also recall memories saved within each connected camera.
UPC: 672255006566 In the Box Datavideo MCU-200P Rackmount Multi-Camera Controller for Panasonic Camcorders 4 x AD-1 Adapter for MCU-100/200 Controller yyccsycyrqtczxtv Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo MCU-200P Rackmount Multi-Camera Controller for Panasonic Camcorders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo MCU-200P Specs | Connections | CAM/BS: From Panasonic camera to AD-1 Adapter
RJ-45: From AD-1 Adapter to control unit
CVBS: From AD-1 Adapter to preview screen | | Compatible Camcorders | Panasonic AG-HPX255
Panasonic AG-HPX370
Panasonic AG-HPX500
Panasonic AG-HPX600 | | Dimensions | Rack Height: 1 RU | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 24.2 x 8.1 x 5.6" |
