User Manual for Datavideo MCU-200S Rackmount Camera Controller for Sony Cameras Click to enlarge the picture
Contents of the user manual for the Datavideo MCU-200S Rackmount Camera Controller for
- Product category: RCPs & MCPs Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo RCPs & MCPs
|
User manual for the Datavideo MCU-200S Rackmount Camera Controller for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

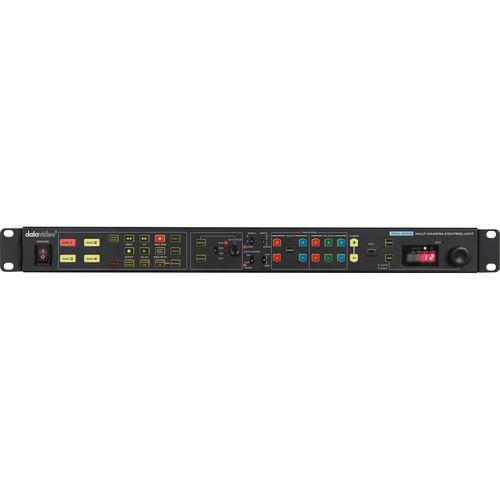

Product description The Datavideo MCU-200S is a rackmount camera controller that allows you to control up to 4 Sony video cameras from up to 3280 ft using the included AD-1 adapters. The interface between the controller and AD-1 adapters is a RS-422 differential line and you can also use CAT5e/6 cables for the same distance.
This controller lets you adjust your cameras all by yourself without having to leave your multi-view monitor. It also allows you to store and recall memory settings within 3 memory banks.
The iris knob on this controller is not a position knob but instead a rotary knob that increases or decreases the current setting. So you can have camera 1 selected, which is at iris position 1, then switch to camera 2. Camera 2 will be at whatever setting it is at currently, and the knob will be used to increase or decrease the setting. Then, you can switch to the next camera and do the same. In this way, you can tune each camera to have its own individual iris settings. - Compatible Cameras
-
- Sony EX3
- Sony PMW F5
- Sony PMW 300K1
- Sony PMW 350K
- Control Functions
-
- Record and Playback
- Camera User Memory
- OSD Menu Navigation
- Shutter speed and degree
- Iris adjustment
- AWB and ABB
- White Balance A, B, and Preset
- Camera Knee and Bar
- Camera Gain adjustment
- RGB / R & B gain and Master Pedestal Controls
UPC: 672255006696 In the Box Datavideo MCU-200S Rackmount Camera Controller for Sony Cameras 4 x AD-1 Adapter for MCU-100/200 Controller duyczuxaczaftzvtcqys 12V Power Adapter Quick Start Guide Limited 1-Year Warranty Limited 2-Year Warranty with Product Registration within 30 Days of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo MCU-200S Rackmount Camera Controller for Sony Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo MCU-200S Specs | Maximum Distance | 3280 ft (1000 m) | | Connections | CAM/BS (from Panasonic Camera to AD-1 Adapter)
RJ-45 (from AD-1 Adapter to MCU-200S)
CVBS (from AD-1 Adapter to Preview Screen) | | Dimensions | 1 RU | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 23.8 x 8.2 x 5.5" |
