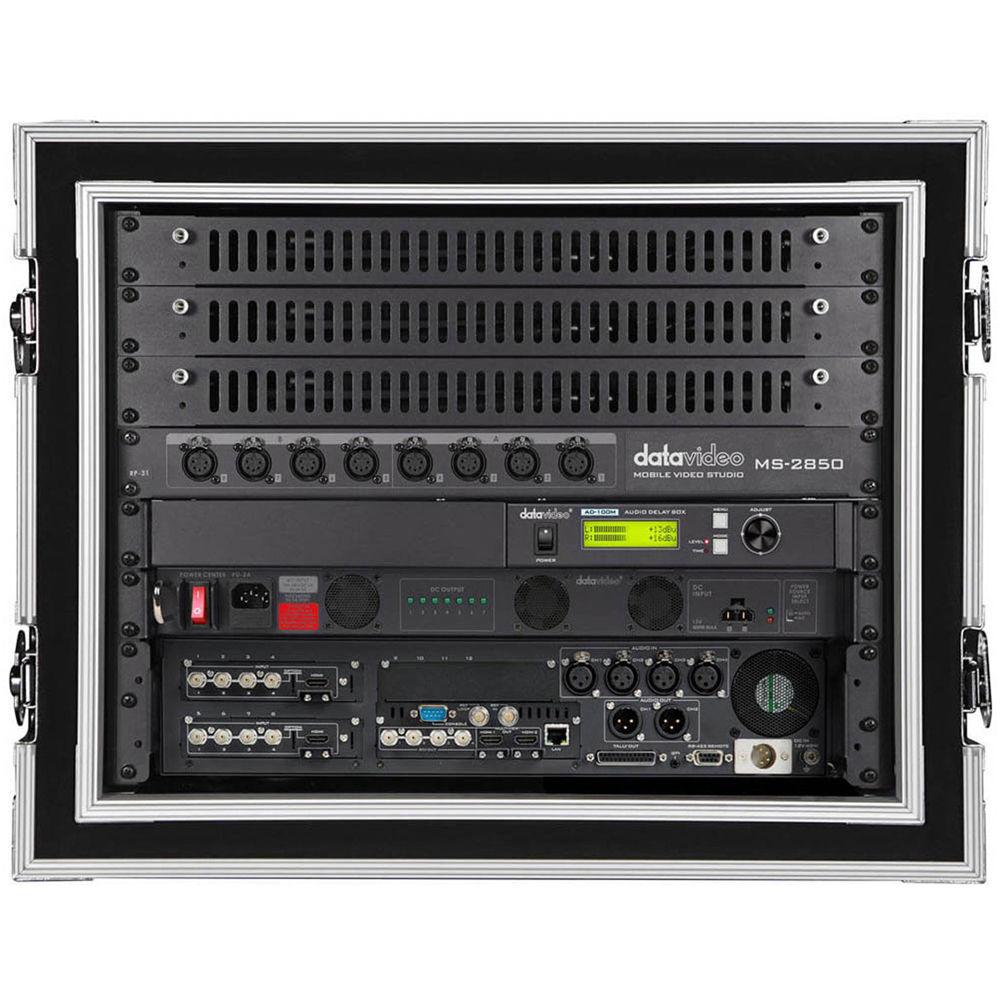

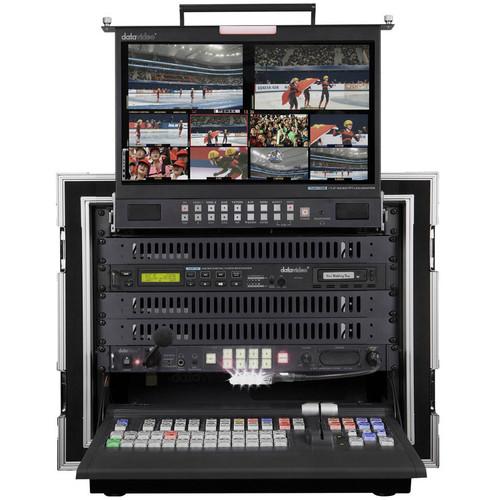

Datavideo MS-2850A Mobile Studio

User Manual for Datavideo MS-2850A Mobile Studio

• Product category: Production Switchers Datavideo
• Brand: Datavideo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Datavideo Production Switchers

Product description

• SE-2850 HD/SD 8-Channel Video Switcher The SE-2850 HD/SD 8-Channel Video Switcher from Datavideo is a mixed format switcher with 8 HD/SD-SDI inputs and four assignable SDI and two assignable HDMI outputs for routing any combination of HD and SD video.This switcher supports SDI/HDMI YUV 10-bit 4:2:2, and HDMI/RGB 4:4:4 color sampling for smoother color gradations. Housed in a 2 RU frame, the SE-2850 is ideal for use in both large broadcast systems or portable mini-racks for live productions. Routing is controlled via Ethernet using the included Windows software or via RS-422 control.For advanced audio control, the SE-2850 can be connected to an external mixer (not included). Additional switcher features include dual PiP, two downstream keyers, cross-point video and audio, two independent logo functions, and a built-in title overlay system. The SE-2850 includes four XLR audio inputs with each audio channel featuring de-embedding and audio delay.

  Features

  • Supports eight HD or SD inputs with six video and audio cross-point options on four SDI outputs
  • Dual user-positioned PiP, dual logo support, and dual downstream keyers (DSK) with Luma and alpha channel options
  • Four XLR audio inputs with two output modes; audio delay for each de-embedded audio source
  • Integrated title overlay system works with entry-level Datavideo CG systems
  • Additional features including frame store for each channel, 17 wipe choices, and master and countdown clocks
  UPC: 672255007051

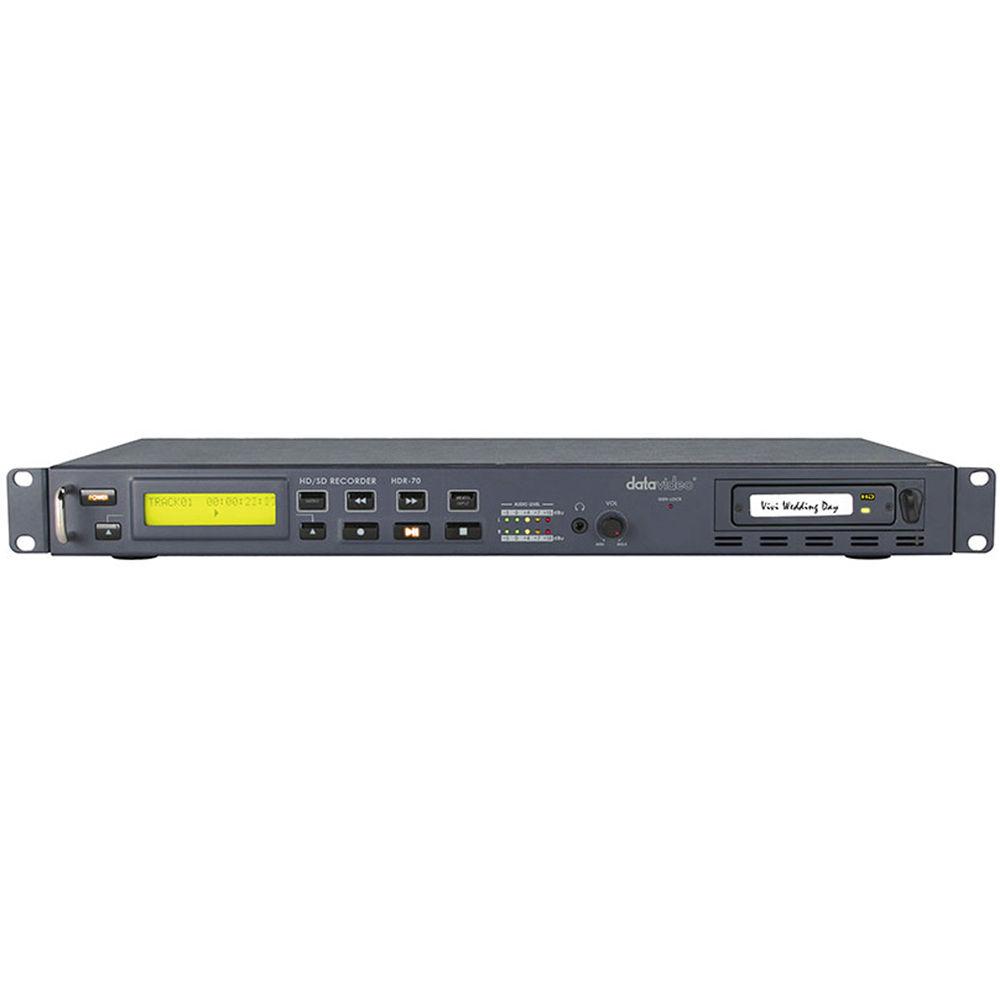

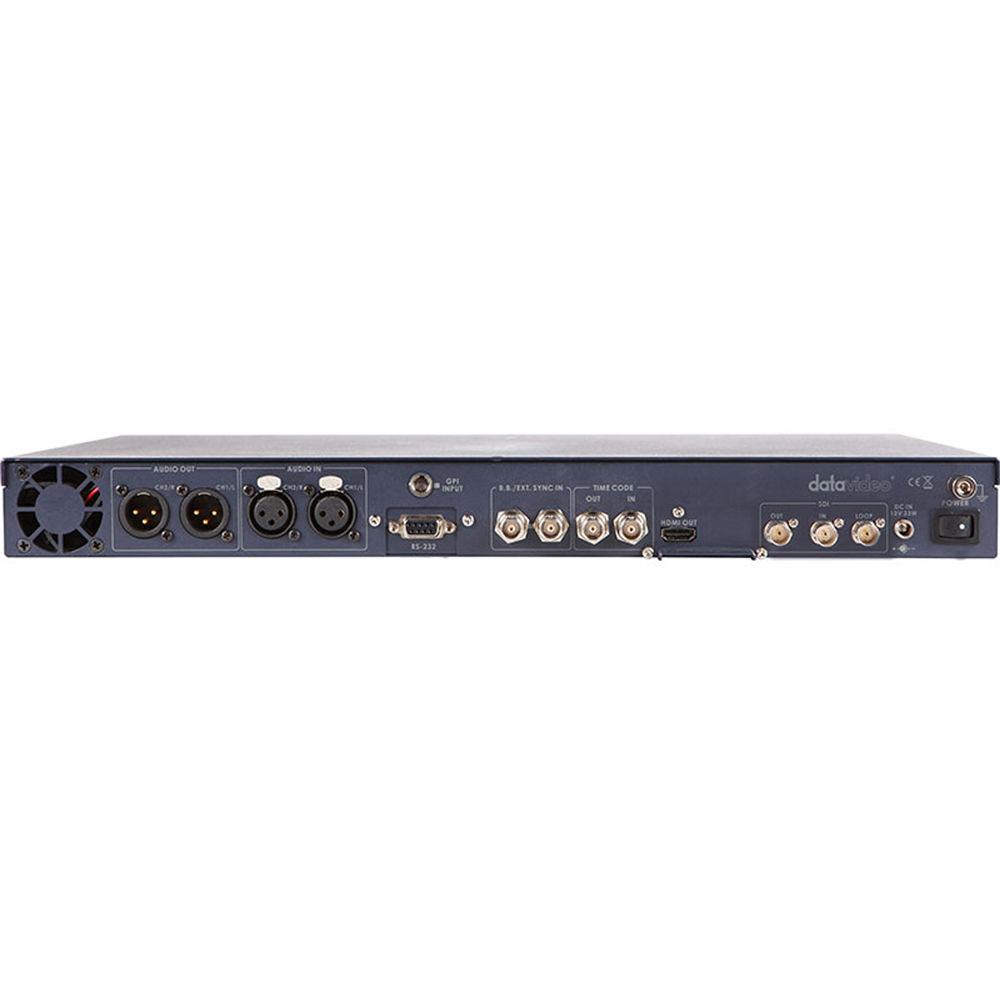

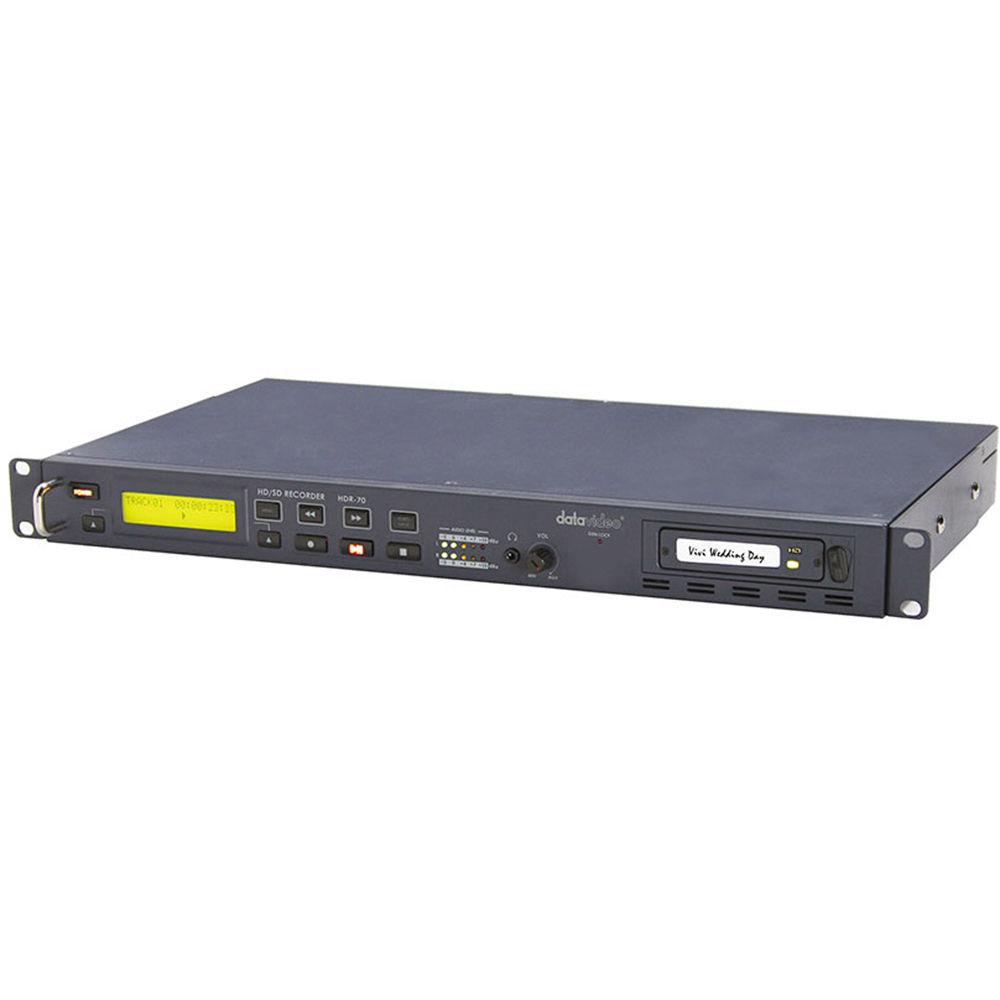

• HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay The DataVideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay is a rack mountable video recorder for studio control rooms or video production trucks. It records NTSC, PAL, and HD video signals and features an SD/HD-SDI input and two mini-XLR recording to 2.5" form factor HDD or SSDs in a removable drive caddy. The HDR-70 features selectable color sampling ratio and data rate settings. This compact unit features a small footprint and is made from painted aluminum for strength. The front panel buttons provide you local tape deck like control of the unit, with built-in led audio level meters. The HDR-70 features two XLR inputs and outputs for balanced audio.

  The included drive caddy supports available drives (both HDD and SSD) up to 500GB, and once removed from the HDR-70 the enclosures can be connected directly to a computer via the built-in USB 2.0 or eSata interface for off loading or editing directly from the drive. The unit writes to the NTFS file format system, which makes the drive readable by both Mac and Windows systems and avoids the 4GB file size limitation of FAT32 systems. For remote control, the HDR-70 features a 9-pin connector that allows control by RS-232 or RS-422. The unit is powered by 12 volts DC, and the cable connector features a locking collar so the power cable can't be accidentally unplugged.

  HDR-70 Video Support

  • NTSC and PAL video and HD video including 1080p, 1080i and 720p
  • Reference In/Out Black Burst and Tri-level sync
  • Timecode input/outputs, and gen-lock input and pass-through
  • SD/HD-SDI input, with SD/HD-SDI outputs with 8-channels of embedded audio
  • The HDMI output uses a full sized connector and features 4 channels of embedded audio. There is also a nifty cable tie platform under the HDMI connector that you can use to secure the HDMI connector to the unit with available cable ties.
  • The front panel features local control buttons and a built-in headphone jack with volume knob

  Features

  • LCD menu screen
  • Lockable drive bay.
  • Timelapse recording feature
  • Power on record/play
  • Media files are made on the fly with no rendering required.
  • In the event of power loss during recording, only the last two seconds of your recording are lost
  • Removable rack mount ears (ships unattached)
  • Removable rubber feet (ships attached)
  UPC: 672255004111

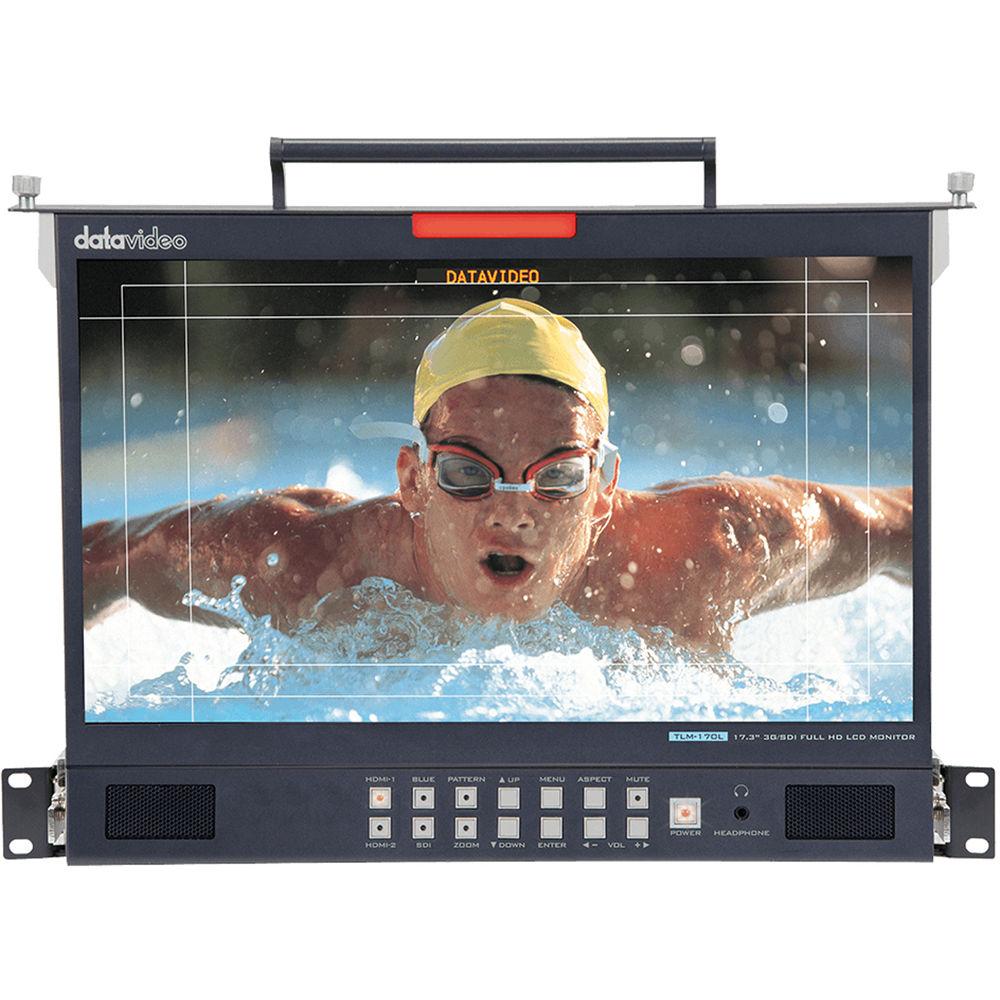

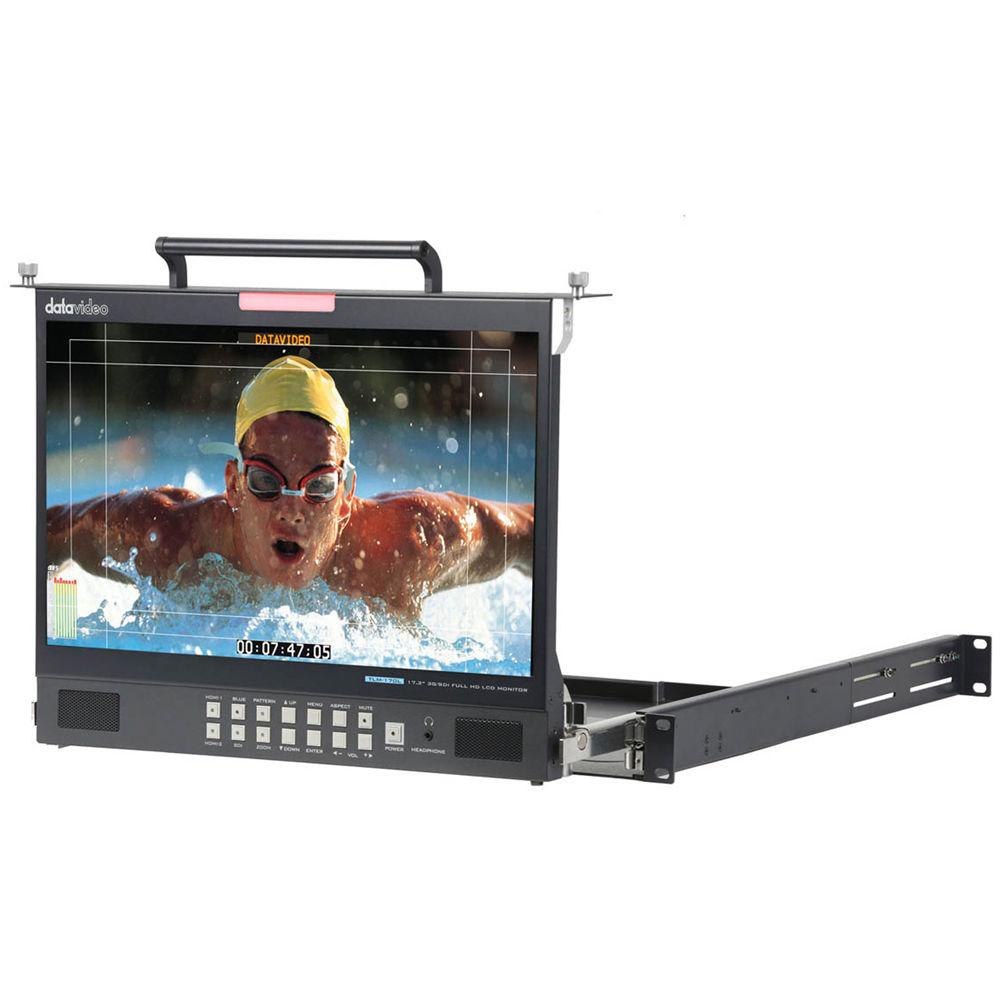

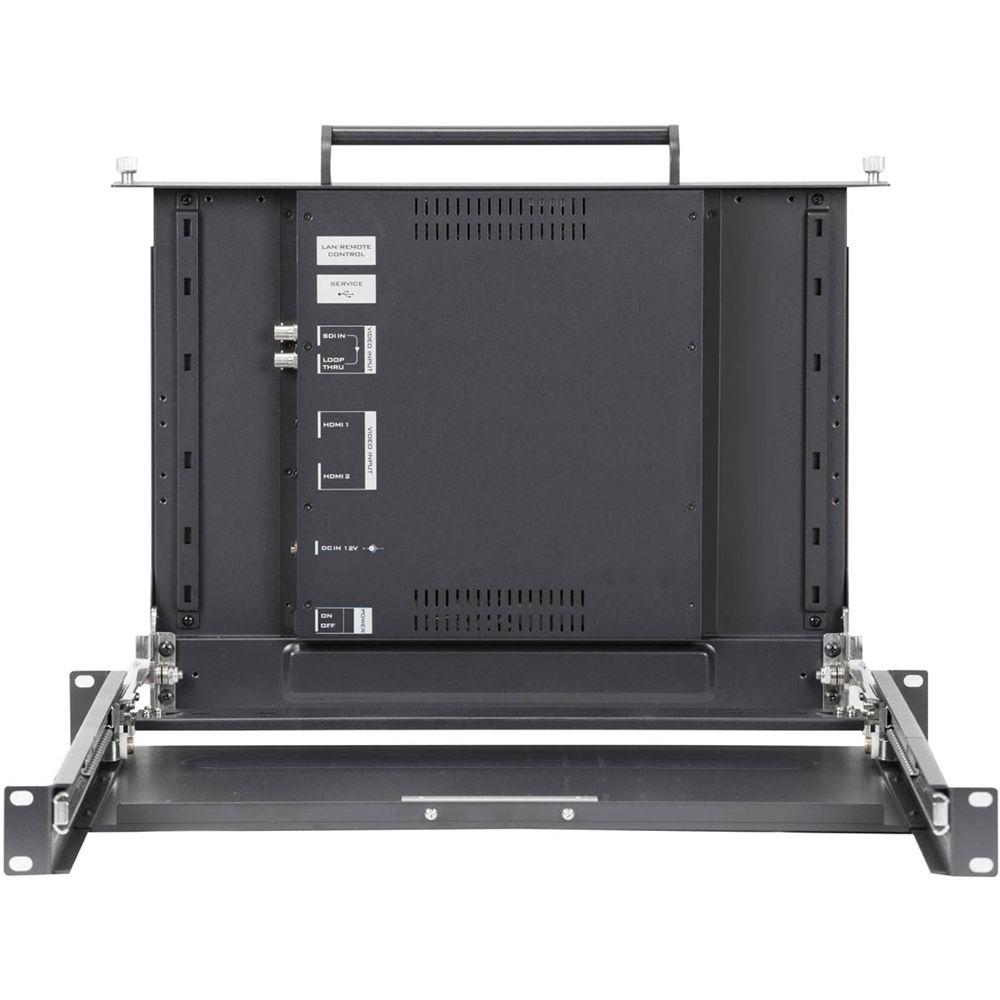

• 17.3" 3G-SDI Full HD Rackmount LCD Monitor The 17.3" 3G-SDI Full HD Rackmount LCD Monitor from Datavideo is suitable for applications in a live production gallery, 19" rack monitoring, OB Van, or a video editing suite. It comes with a 3G-SDI video input with loop-through output and two HDMI inputs. The monitor supports embedded audio on SDI and HDMI (version 1.3). The monitor offers viewing angles of 70°/70°/60°/60° (left, right, top, and bottom) and brightness rating of 300 cd/m². This unit has a native resolution of 1920 x 1080. The contrast ratio of 400:1 showcases the monitor's ability to handle light and dark images on-screen.
  • Full HD (1920 x 1080p) LCD panel with Underscan and Overscan menu options
  • Designed to rackmount
  • 3G-SDI video input with loop-through output and two HDMI inputs
  • Supports embedded audio on SDI and HDMI (Ver. 1.3)
  • Front panel has a 3.5mm stereo headphone jack socket for discrete audio monitoring
  • Front panel buttons allow quick and easy selection of source input as well as aspect ratio, blue only mode, pattern (Color Bars), menu, and audio controls
  • Color temperature menu option has 3 modes (6500K, 9300K, 7500K, and user defined)
  • OSD audio level peak meter for SDI and HDMI based digital audio inputs
  • Individual adjustment of brightness, contrast, color saturation, and LED backlight level for each monitor
  • On-screen overlays for frame marker 80%, 90%, 4:3 marker, Central Mark, and Cinema Zone Marker
  • Bi-color tally light and 3.5mm jack tally input socket
  • USB 2.0 port for easy update of firmware with a USB 2.0 pen drive
  UPC: 672255007143

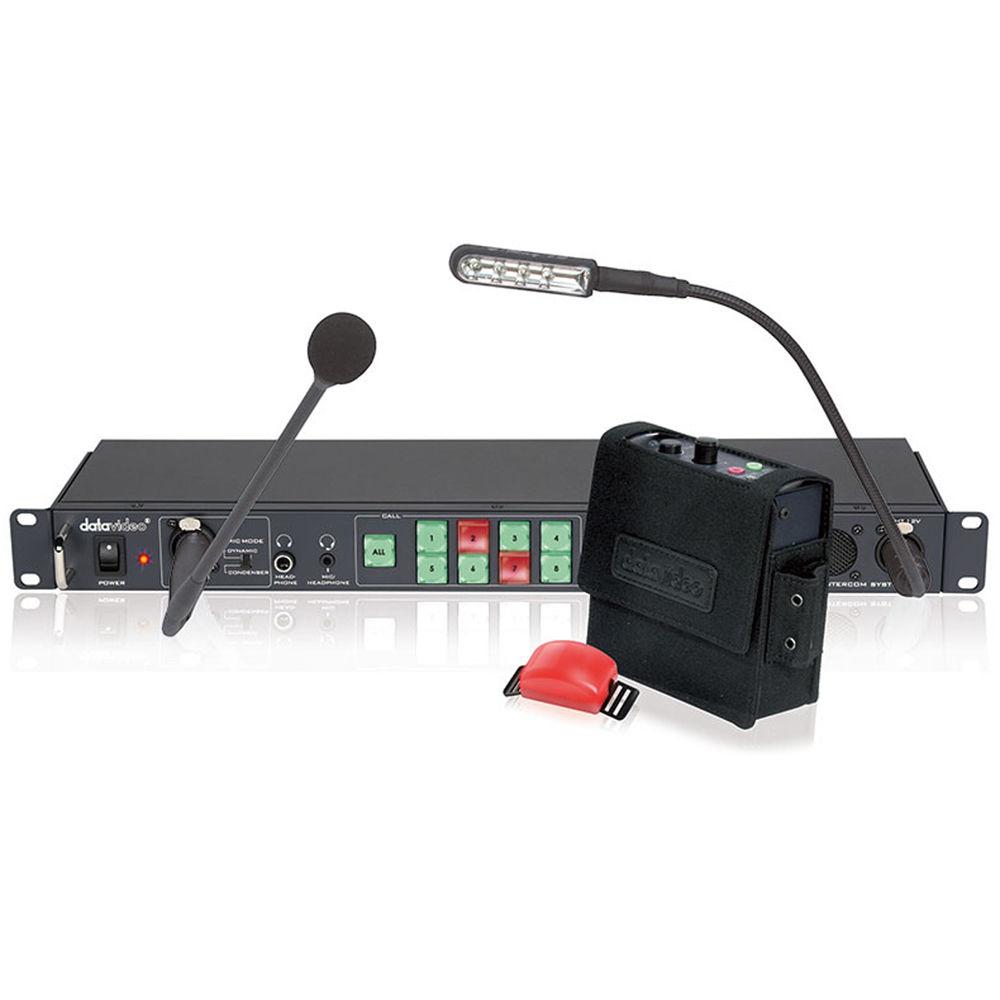

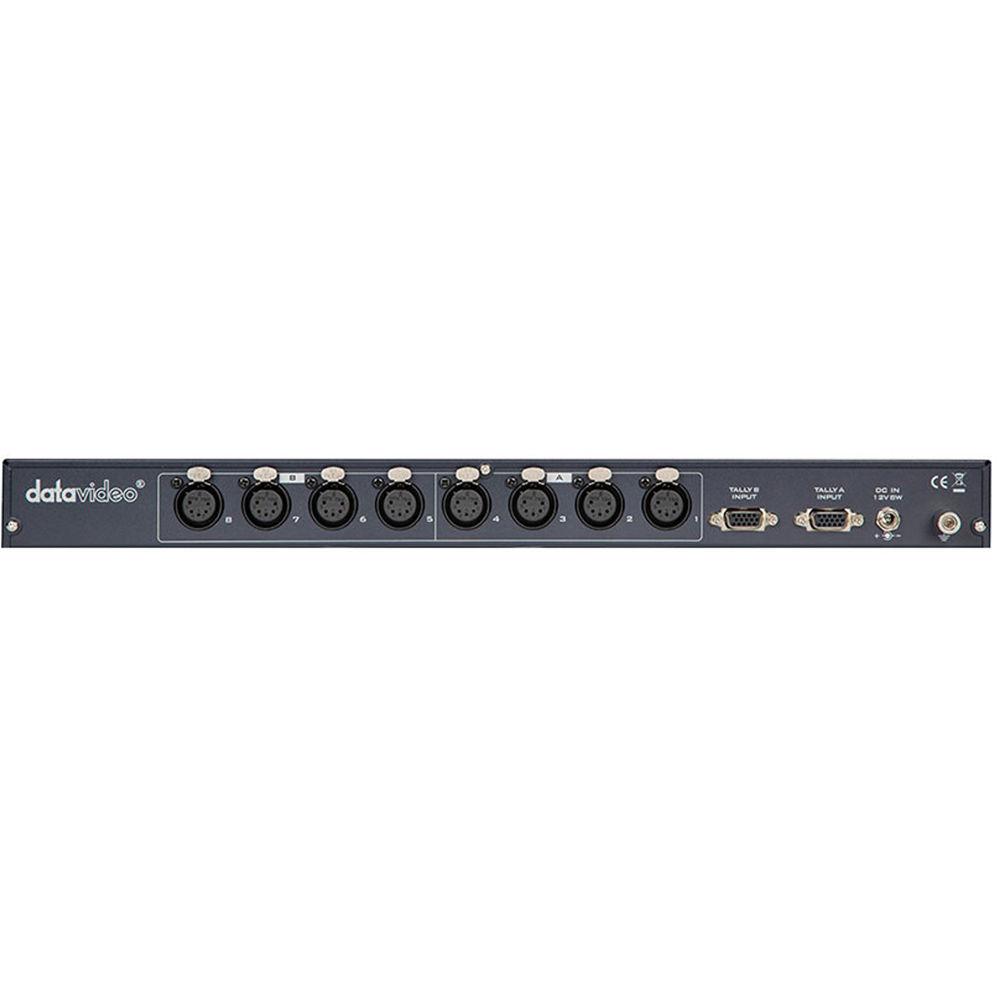

• ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.

  Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.
  • Supports up to 8 wired users
  • Uses your choice of headsets, from low-cost cell phone sets to high-quality professional units
  • Uses cables up to 984 ft to connect beltpacks
  UPC: 672255001684
• AD-100M Audio Delay Box with Microphone Input The Datavideo AD-100M Audio Delay Box allows you to sync an audio or mic signal to video. Its easy-to-use design features a menu/mode LCD and only a few controls such as an "Adjust" dial, and it's housed in a rugged, metal enclosure for use in the studio or in the field. It offers an audio delay time from 0 to 700 ms.
  Key Features
  • • Audio delay box with microphone input
    • 2 x XLR balanced audio input
    • 2 x RCA (L/R) unbalanced audio input
    • 1 x XLR mic input
    • 2 x XLR balanced audio output (mic mixed)
    • 2 x RCA (L/R) unbalanced audio output (mic mixed)
    • LCD display for menu and mode selection setting
    • Output volume attenuating from 0 to -60 dBu
    • Audio delay time from 0 to 700 ms
    • 1 KHz test tone output attenuating from 26 to -34 dB
    • 12 VDC power input
  UPC: 672255006825
• PD-2A 1RU 19" Rack Power Distribution Center The PD-2A 1RU 19” Rack Power Distribution Center from Datavideo provides steady power supply for studio equipment, such as the video switcher, monitors, recorders, and intercom system.

  The PD-2A power distribution center features auto-switchable inputs of 110/120VAC, a UPS interface, and 12VDC ports. In addition, it also features four 12V/3A terminals, two 12V/5A terminals, two 12V/10A terminals (shared), and XLR DC outputs. It adds reliability to studio equipment and consolidates power supplies and cabling.
  • Maximum rating 400 W
  • Power indicator and auto-recovering fuse protector for each output terminal
  • Sequential-Power On of each DC output terminal during power on stage by 1 second duration
  • Auto-switchable 110/120VAC or 12VDC UPS input source
  • Compliant safety
  • EMI and RoHS certification
  UPC: 672255008188

• SE-2850 Control Board

• AC Adapter

• Power Cord

• DB9P to DB9P Cable

• Dual Connector XLR Audio Cable (14")

• 2 x Spare Wipe-Button Caps

• 12 x Screws

• 2 x Rackmounts

• Limited 1-Year Warranty (Extendable to 3-Year with Registration)

• 320 GB HDD

2 x
• HDD25 2.5" Hard Disk Drive Enclosure

• 2 x Rack Mount Ears

• Power Adapter & Cable

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration within 30 Days of Purchase
  Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first)

• Limited 1-Year Warranty

• 1 U Mobile Tray Rackmount

• ITC-100 Base Station

• 4 x ITC-100SL Beltpacks

• 4 x MC-1 Headsets

• 4 x 5-Pin XLR to XLR Cables (65'/20m)

• 4 x TD-3 Camera Tally Lights

• 4 x 3.5 mm Jack to 3.5 mm Jack Cables

• XLR Gooseneck Microphone

• XLR Gooseneck Light

• Power Supply Unit

• Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)

• 12V Power Adapter

• Limited 1-Year Warranty

• Additional 2-Year Warranty with Registration within 30 Days

• AC Cord

• Limited 1-Year Warranty

Also Includes

• 8 RU Flight Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SE-2850 HD/SD 8-Channel Video Switcher

  Video Standards	HD, SD
  Video Format	3G/HD/SD input: 1080i: 60/59.94/50 1080p: 60/59.94/30/25 HD Output: 1080i: 60/59.94/50 SD Output: 576i: 50 Hz 480i: 59.94 Hz
  Video Processing	SDI: 4:2:2 HDMI: YUV 4:2:2 10-bit, RGB 4:4:4

  Input Routable / Crosspoint	12, repeatable
  Video Inputs	8x SDI, 2x HDMI
  Graphics Input	Maximum: 2 x HDMI
  Video Outputs	4 x SDI, assignable: PGM, PVW, AUX, Clean Out 2 x HDMI, assignable: PGM, Multi-View
  Down-Conversion	4 x SDI (channels 1-4)
  Multiview Outputs	2 x HDMI

  Audio Input	4 x XLR, balanced
  Audio Output	2 x XLR, balanced
  Embedded Audio	Input Maximum: 16 x channels Output Maximum: 4 x channels
  Audio Delay	Up to 8 frames (SDI-input audio only)

  Chroma Key	N/A
  Keyer/DSK	2 x DSK Support: Lumakey & Linear key (key/fill)
  PIP	2 x
  Logo Overlay	2 x or 1 x logo + 1 x clock
  Still Store	12 x
  Effects	FTB, Cut, 8 x wipes with border
  Transition Preview	PiP, DSK

  Sync / Reference In/Out	Built-in GenLock External sync supported with loop-through
  PC Remote Control	Ethernet (downloadable Windows software) RS-422

  Chassis	2 RU, rackmount mainframe
  Power	12 VDC, 48 W
  Dimensions (WxDxH)	Main Unit: 17 x 9.9 x 3.7" (432 x 251 x 93 mm) Control Unit: 17 x 12.3 x 2.8" (433 x 313 x 71 mm)
  Weight	Main Unit: 10.4 lb (4.7 kg) Control Unit: 5.5 lb (2.5 kg)

  Box Dimensions (LxWxH)	21.9 x 15.0 x 12.6"

• HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay

  Material of Construction	Painted aluminum
  Interface (Inputs/Outputs)	USB 2.0 eSata
  Internal Interface	SATA
  Drive Compatibility	HDD: Western digital, Fujitsu, Hitachi Compatible with SSD
  Power	5VDC
  Dimensions	6 x 5 x 1" (15.2 x 12.7 x 2.5 cm)
  Weight	1 lb (0.5 kg)

  Signal System	HD NTSC PAL
  Supported Video Formats	1080p 24/23.98 1080i 60/59.94/50 720p 60/59.94/50 NTSC PAL
  Recording Formats	HD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 SD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 Audio PCM, 24-bit, 8 channels, 48kHz
  Data Rates	HD 10 to 25Mb/s, 4:2:0 35 to 100Mb/s, 4:2:2 SD 8Mb/s, 4:2:0 15 to 50Mb/s, 4:2:2
  Inputs	Video: 1 x SD/HD-SDI Audio: 2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels) GPI 1 x mini-XLR Timecode 1 x BNC Black Burst/Sync 1 x BNC
  Outputs	Video: 1 x SD/HD-SDI 1 x SD/HD-SDI (loop through) 1 x HDMI Audio: 2 x Balanced stereo mimi-XLR (analog, stereo pair 2-channels) Timecode 1 x BNC Black Burst/Sync 1 x BNC
  Control Interface	RS 422, RS 232 9-pin DIN
  Recording Time	250GB Hard Drive 5 Mb/s: 111 hours 10 Mb/s: 55 hours 15 Mb/s: 37 hours 20 Mb/s: 27 hours 40 Mb/s: 15 hours 60 Mb/s: 9 hours 320GB Hard Drive 5 Mb/s: 142 hours 10 Mb/s: 70 hours 15 Mb/s: 47 hours 20 Mb/s: 35 hours 40 Mb/s: 19 hours 60 Mb/s: 12 hours 500GB Hard Drive 5 Mb/s: 220 hours 10 Mb/s: 111 hours 15 Mb/s: 74 hours 20 Mb/s: 55 hours 40 Mb/s: 27 hours 60 Mb/s: 18 hours
  File Format	MXF/OP1A
  File System Format	NTFS
  Recording Limit	99 bins 99 clips per bin
  Material of Construction	Painted aluminum
  Rack Height	2RU
  Power Requirements	12VDC
  Power Consumption	16W
  Dimension L x W x H	17.3 x 11.4 x 1.9" (44 x 29 x 4.9 cm)
  Weight	7 lbs. (3.17 kg)

  Box Dimensions (LxWxH)	21.4 x 14.6 x 6.7"

• 17.3" 3G-SDI Full HD Rackmount LCD Monitor

  Size	17.3" / 43.9 cm
  Resolution	1920 x 1080
  Viewing Angle	60°/60°/70°/70°
  Luminance	300 cd/m²
  Contrast	400:1
  Response Time	Not specified by the manufacturer
  Video Input/Output	2 x HDMI input (Ver. 1.3) 1 x BNC input (3 Gb/s HD/SD-SDI) 1 x BNC output (loop-through, 3 Gb/s HD/SD-SDI)
  Signal Format	1920 x 1080p: 60/59.94/50 1920 x 1080p: 30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 720 x 480i (NTSC), 720 x 576i (PAL)
  Timing	VESA Timing: 1680 x 1050 (16:10) 1360 x 768 (16:9) 1280 x 1024 (5:4) 1280 x 1024 (4:3) 1280 x 960 (4:3) 1280 x 768 (4:3) 1152 x 864 (4:3) 1024 x 768 (4:3) 800 x 600 (4:3)
  Audio Input	3G/HD/SD-SDI embedded audio HDMI embedded audio (Ver.1.3) 1 x Internal speaker 1 x 3.5 mm Headphone socket Note: Internal speaker circuit will automatically mute when headphones are connected
  Tally	1 x Tally port Bi-Color Tally Light: Live: Red Cued: Green
  USB	1 x USB (USB 2.0 FW auto upgrade)
  Power	12 VDC
  Power Consumption	16 W
  Operating Temperature	32 to 113°F / 0 to 45°C
  VESA Mounting	100 mm x 100 mm
  Storage Temperature	14 to 140°F / -10 to 60°C
  Dimensions	15.8 x 10.2" / 40.1 x 25.99 cm
  Weight	9.03 lb / 4.1 kg

  Box Dimensions (LxWxH)	26.0 x 23.4 x 6.8"

• ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets

  Frequency Response	550 Hz - 3.6 kHz <±3 dB
  Total Harmonic Distortion (THD)	<3%
  Signal to Noise Ratio	>50 dB
  Operating Range	Up to 660' (200 m) Between Base Station and Slave
  Connectors	1 x 12 V 1.5A Power Input 2 x 15-Pin Sub-D Tally Connectors 1 x 3.5mm Stereo Headphone/Mic Combo Jack 1 x 1/4" Stereo Headphone Jack 1 x 3-Pin XLR Light Socket 1 x XLR/TRS Combo Mic Input
  Speaker	2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms)
  Operating Temperature	41 to 104° (5 to 40°C)
  Dimensions	1 RU
  Weight	4.2 lbs (1.9 kg)

  Box Dimensions (LxWxH)	20.5 x 15.0 x 8.5"

• AD-100M Audio Delay Box with Microphone Input

  Audio Input	3 x XLR, 2 for line in, 1 for mic in (gain +20/40/60 dB) 2 (L/R) x RCA
  Audio Output	2 x XLR 2 (L/R) x Unbalanced RCA
  Display	SMT LCD
  Output Volume	Attenuating from 0 to -60 dBu
  Audio Delay	Up to 700 ms
  Chassis	Rack-mountable with optional RMK-1 rackmount kit
  Power	12 VDC, 18 W
  Dimension (L x W x H)	8.3 x 6.7 x 1.7" / 211 x 220 x 42 mm

  Box Dimensions (LxWxH)	11.05 x 10.45 x 5.2"

• PD-2A 1RU 19" Rack Power Distribution Center

  Input	AC Input Outlet: 1 x AC input AC Input Voltage: 100 to 240 VAC AC Input Current Rating: 100 to 240 VAC, maximum 6.3 A AC Frequency: 50 or 60 Hz DC Input: 1 x 12 VDC, supports non-regulated 12 VDC output DC Input: 400 W
  Output	DC Output: 12 V, ±5%, 4 x 3 A XLR DC female jack 12 V, ±5%, 2 x 5 A XLR DC female jack 12 V, ±5%, 2 x 10 A XLR DC female jack Two of the output ratings can combine to become one 12 V, ±5%, 10 A DC outputs
  Efficiency	Output: More than 80%
  Noise	DC Output: +5%, -3%
  Ambient Operating Temperature	32 to 104°F (0 to 40°C)
  Operating Humidity	5 to 90% RH, non-condensing
  Storage Temperature	-4 to 185°F (-20 to 85°C)
  Storage Humidity	5 to 90% RH, non-condensing
  Dimensions	17.3 x 8.4 x 0.1" (440.0 x 214.0 x 46.0 mm)
  Weight	10.8 lb (4.9 kg)

  Box Dimensions (LxWxH)	22.5 x 13.4 x 7.0"
