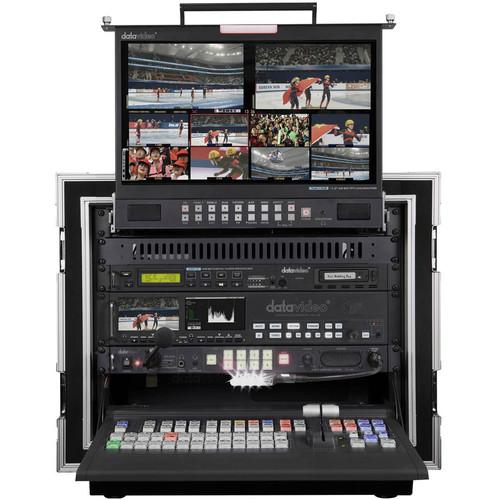

Product description The MS-2850B Mobile Studio from Datavideo includes the SE-2850 HD/SD 8-channel video switcher, HDR-70 HDD recorder, VSM-100 vectorscope/waveform monitor, TLM-170LM 17.3" 3G-SDI Full HD rackmount LCD monitor, ITC-100 8-user wired intercom system with four belt packs and headsets, AM-100 audio mixer, AD-100M audio delay box, PD-6 universal VAC to VDC camera power distributor, and an 8 RU flight case.
The 1 RU AM-100 audio mixer features six XLR inputs and two XLR outputs. Four studio-grade dynamic range microphone preamps provide ultra-wide 60 dB gain range, 130 dB dynamic range, 22 dBu line input handling, and less than 0.0007% distortion. - SE-2850 HD/SD 8-Channel Video Switcher The SE-2850 HD/SD 8-Channel Video Switcher from Datavideo is a mixed format switcher with 8 HD/SD-SDI inputs and four assignable SDI and two assignable HDMI outputs for routing any combination of HD and SD video.This switcher supports SDI/HDMI YUV 10-bit 4:2:2, and HDMI/RGB 4:4:4 color sampling for smoother color gradations. Housed in a 2 RU frame, the SE-2850 is ideal for use in both large broadcast systems or portable mini-racks for live productions. Routing is controlled via Ethernet using the included Windows software or via RS-422 control.For advanced audio control, the SE-2850 can be connected to an external mixer (not included). Additional switcher features include dual PiP, two downstream keyers, cross-point video and audio, two independent logo functions, and a built-in title overlay system. The SE-2850 includes four XLR audio inputs with each audio channel featuring de-embedding and audio delay.
Features - Supports eight HD or SD inputs with six video and audio cross-point options on four SDI outputs
- Dual user-positioned PiP, dual logo support, and dual downstream keyers (DSK) with Luma and alpha channel options
- Four XLR audio inputs with two output modes; audio delay for each de-embedded audio source
- Integrated title overlay system works with entry-level Datavideo CG systems
- Additional features including frame store for each channel, 17 wipe choices, and master and countdown clocks

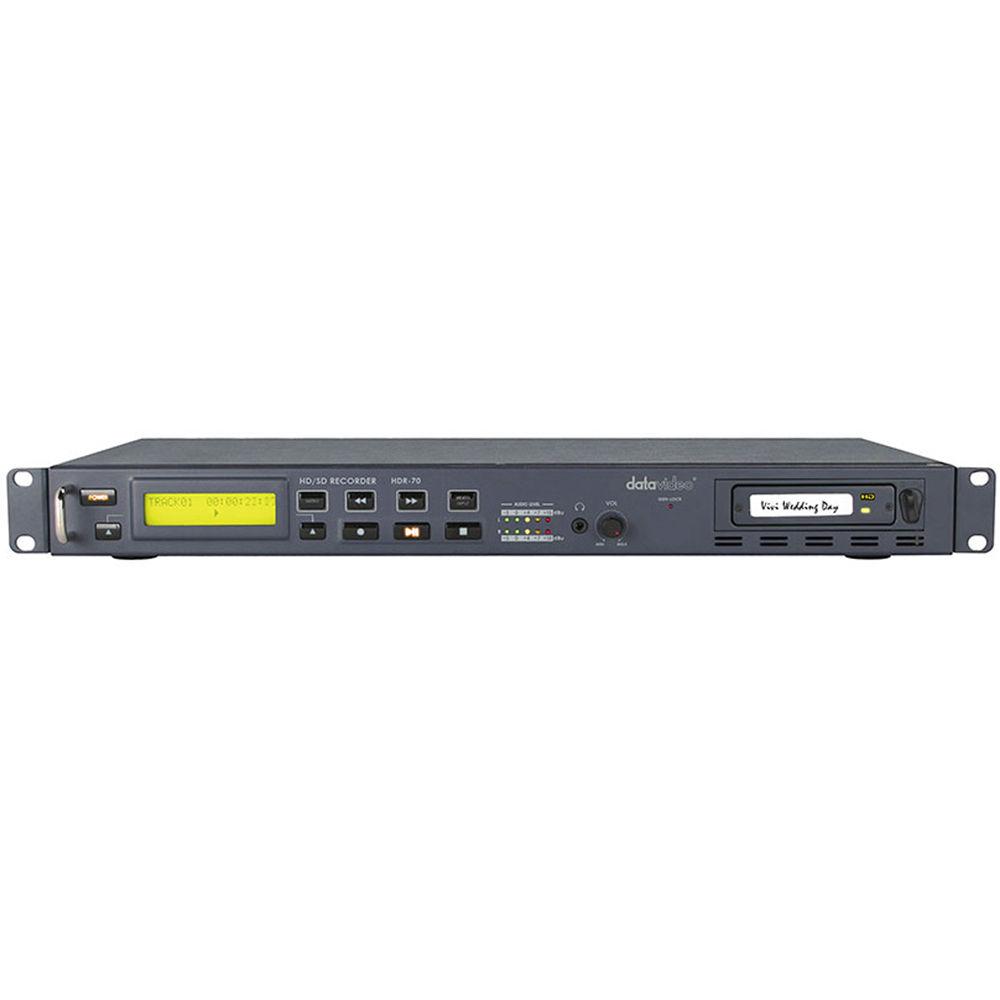

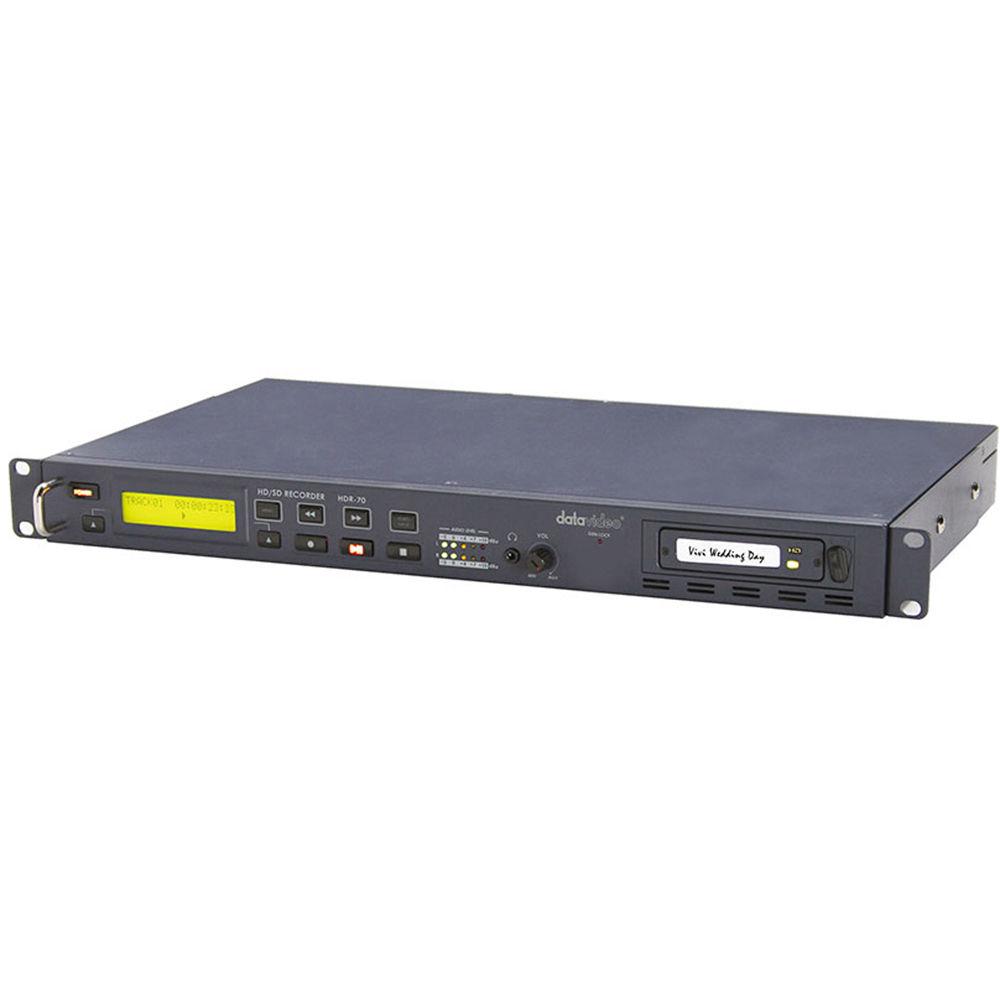

UPC: 672255007051 - HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay The DataVideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay is a rack mountable video recorder for studio control rooms or video production trucks. It records NTSC, PAL, and HD video signals and features an SD/HD-SDI input and two mini-XLR recording to 2.5" form factor HDD or SSDs in a removable drive caddy. The HDR-70 features selectable color sampling ratio and data rate settings. This compact unit features a small footprint and is made from painted aluminum for strength. The front panel buttons provide you local tape deck like control of the unit, with built-in led audio level meters. The HDR-70 features two XLR inputs and outputs for balanced audio.
The included drive caddy supports available drives (both HDD and SSD) up to 500GB, and once removed from the HDR-70 the enclosures can be connected directly to a computer via the built-in USB 2.0 or eSata interface for off loading or editing directly from the drive. The unit writes to the NTFS file format system, which makes the drive readable by both Mac and Windows systems and avoids the 4GB file size limitation of FAT32 systems. For remote control, the HDR-70 features a 9-pin connector that allows control by RS-232 or RS-422. The unit is powered by 12 volts DC, and the cable connector features a locking collar so the power cable can't be accidentally unplugged. HDR-70 Video Support - NTSC and PAL video and HD video including 1080p, 1080i and 720p
- Reference In/Out Black Burst and Tri-level sync
- Timecode input/outputs, and gen-lock input and pass-through
- SD/HD-SDI input, with SD/HD-SDI outputs with 8-channels of embedded audio
- The HDMI output uses a full sized connector and features 4 channels of embedded audio. There is also a nifty cable tie platform under the HDMI connector that you can use to secure the HDMI connector to the unit with available cable ties.
- The front panel features local control buttons and a built-in headphone jack with volume knob
Features - Timelapse recording feature
- Media files are made on the fly with no rendering required.
- In the event of power loss during recording, only the last two seconds of your recording are lost
- Removable rack mount ears (ships unattached)
- Removable rubber feet (ships attached)

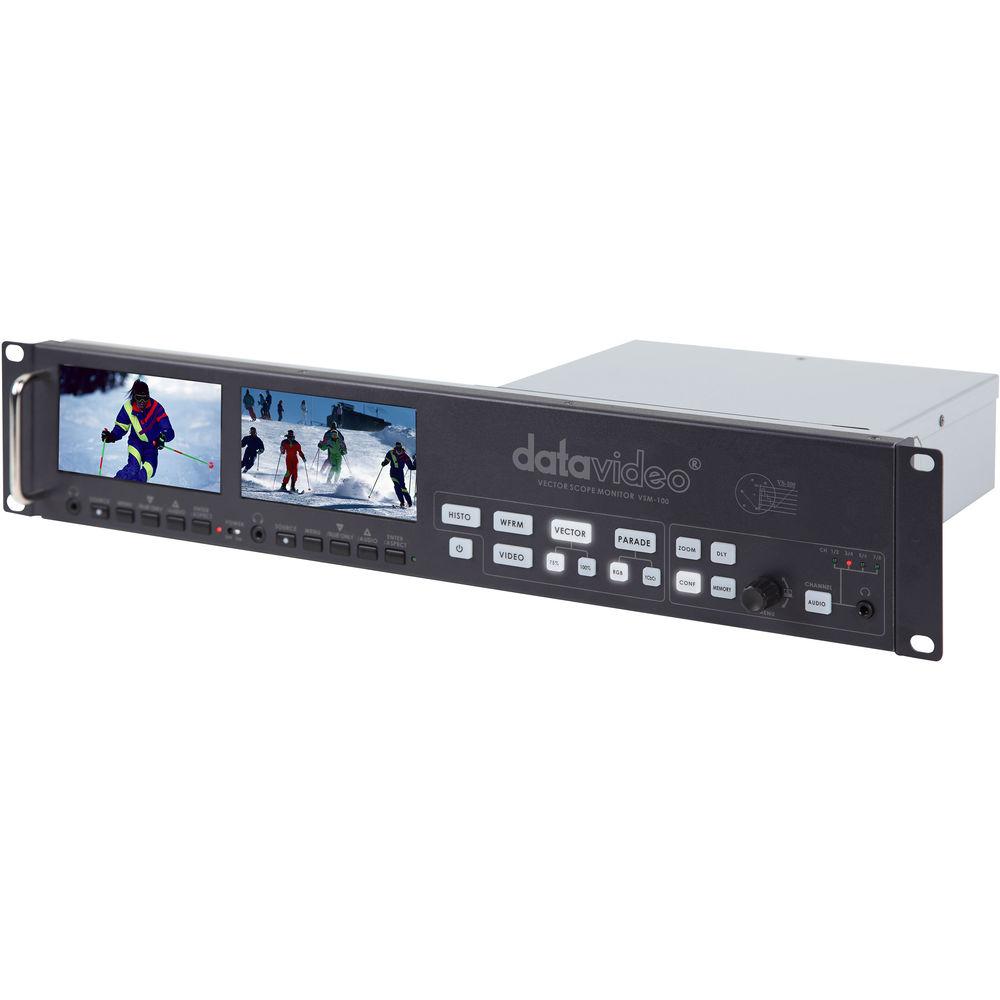

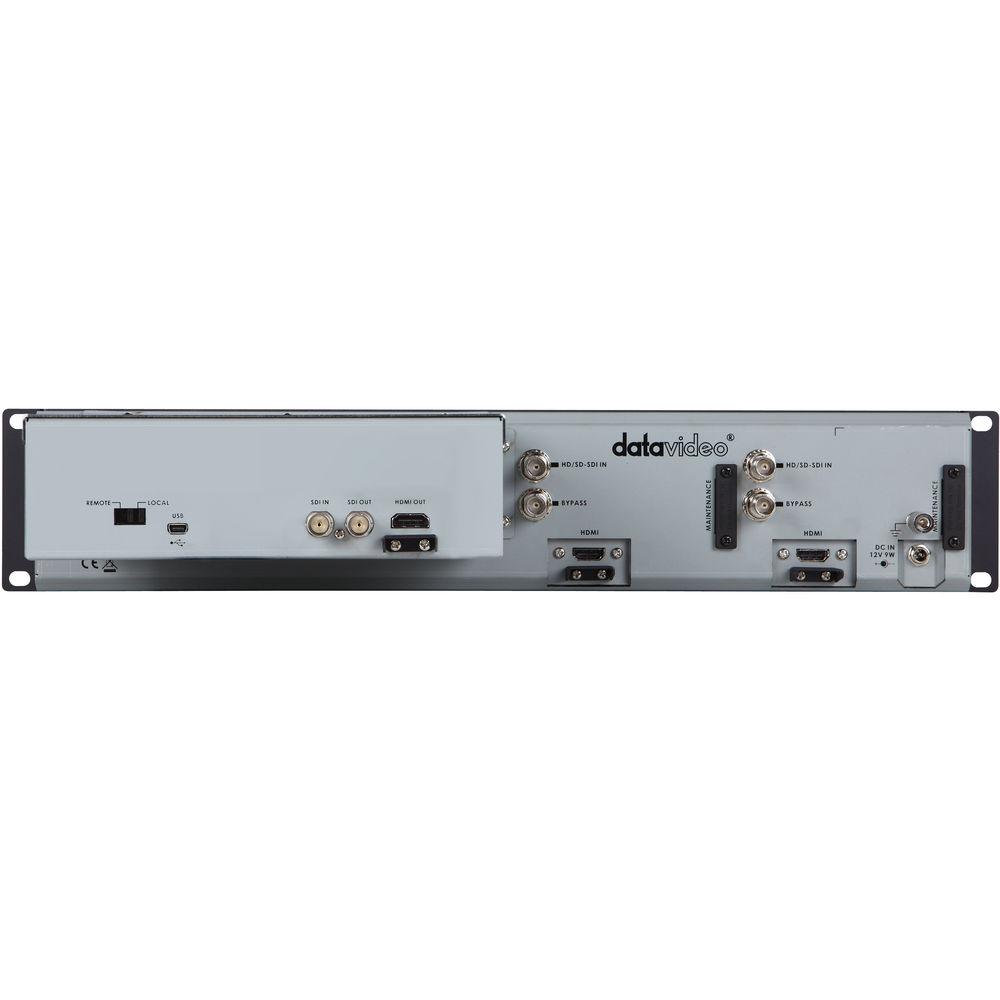

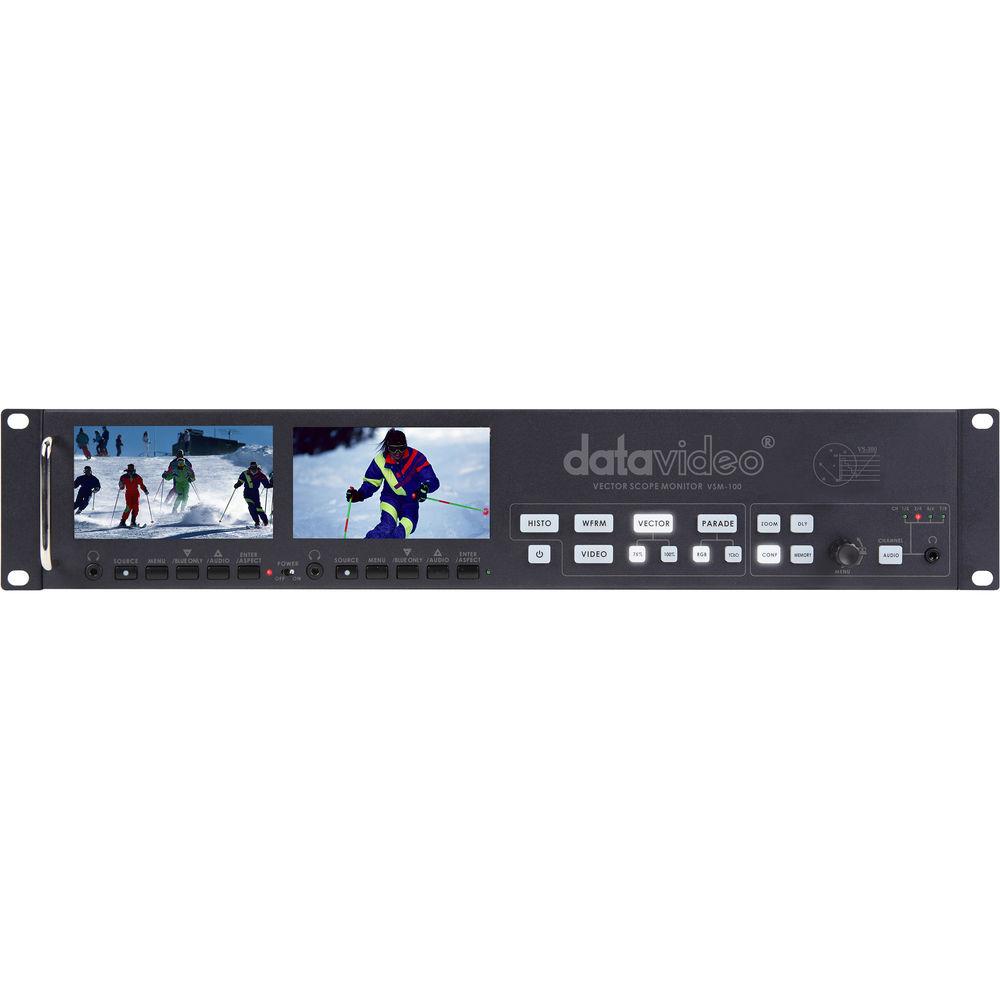

UPC: 672255004111 - VSM100 Vectorscope / Waveform Monitor with 2 Screens The Datavideo VSM100 Vectorscope Monitor with 2 Screens is a sophisticated system that allow users to easily ensure the stability of incoming video signals and recorded video quality from a connected recorder and cameras through two 4.3" monitors to display and monitor high-quality images. When equipped with sampling vector scope, it can accurately assist camera calibration, ensure precise B&W Balance calibration, support color saturation, and enable luminance adjustment.
Monitor - Each monitor has a HD-SDI video input with loop-through output
- Individual adjustments of Brightness, Contrast, Color Saturation, and Backlight Level for each monitor
- Front panel headphone jacks
- Support embedded audio on SDI & HDMI
- HD / SD-SDI, and HDMI Input
- 4:3 & 16:9 display mode switching / PAL & NTSC auto switching
Sampling Vector Scope - Rugged and compact single unit that requires only an HD-SDI or HDMI monitor
- Menu choice of Vectorscope, Histogram, Waveform, and Parade displays as well as clean Video Display output (SDI to HDMI conversion)
- SDI / HD-SDI loop through can provide clean pictures or video scope view
- Automatically detects and locks to NTSC, PAL, or HD signals
- Embedded SDI audio peak meter with selectable monitoring for 4 stereo pairs
- Switchable 4:3 / 16:9 video thumbnail when input signal is SD-SDI
- Headphone jack audio monitoring socket with menu-based volume control
- Save and Recall trace menu options for quick and easy overlay comparison of video traces
- Parade Display can be toggled between RGB and YCbCr
- Vector scope can be toggled between 75% and 100% graticules/bars
- Waveform detail can be zoomed 20%, 40%, 60%, and 100%; various parts of the waveform can then be viewed by changing the X Delay value
- Capture sampling by Field 1, Field 2, or Frame
- 12VDC operation makes the unit suitable for field or studio operation

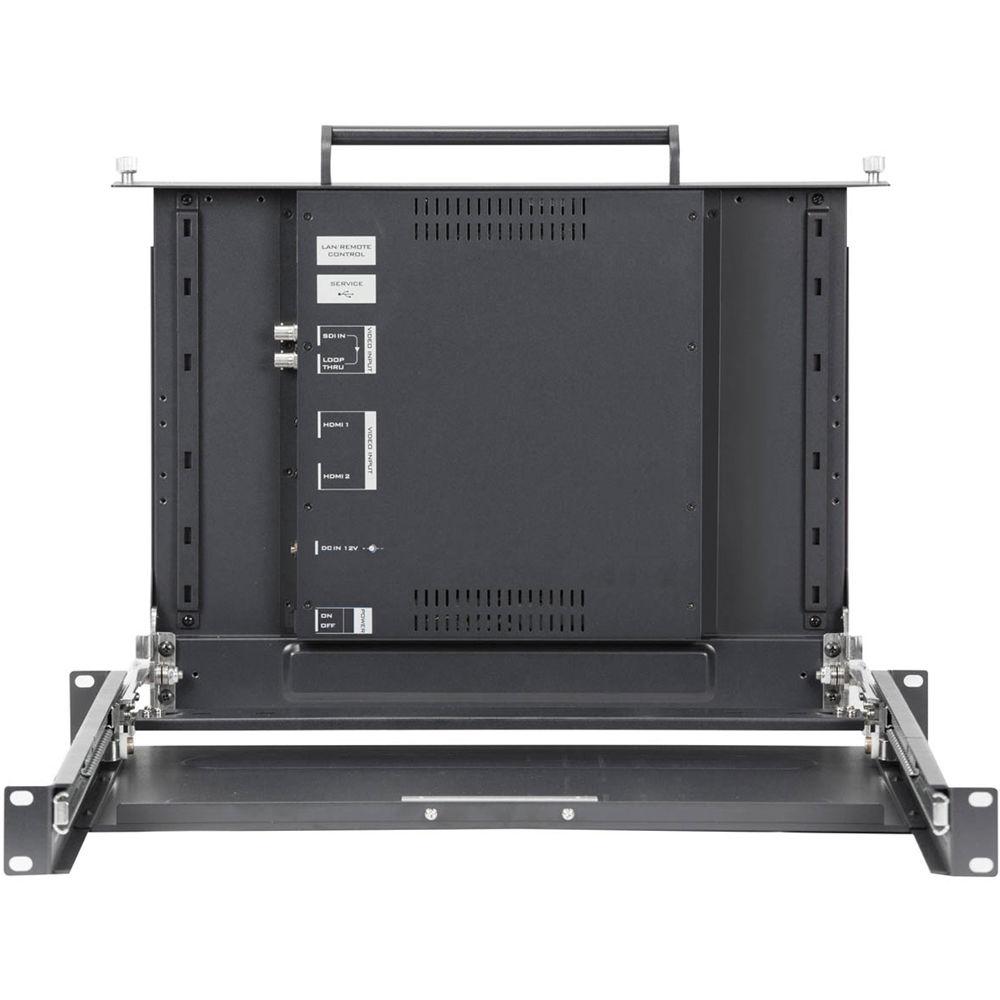

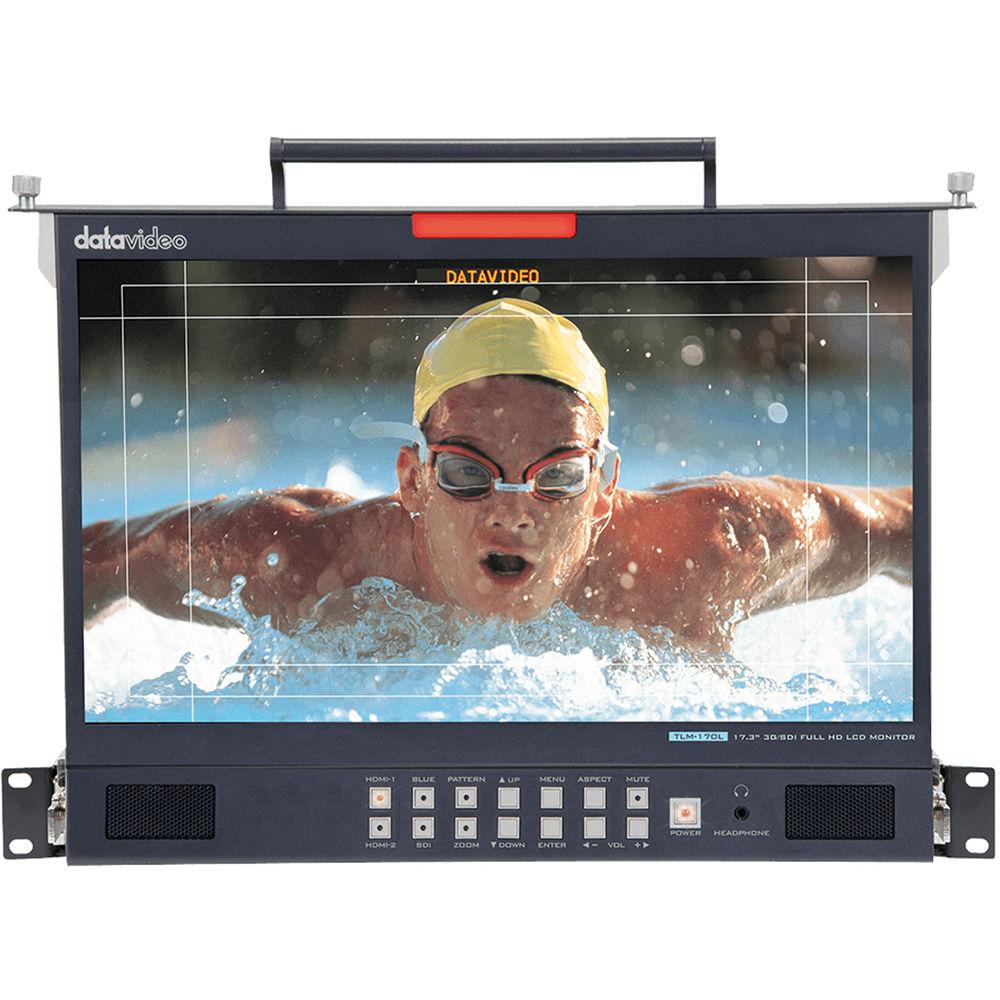

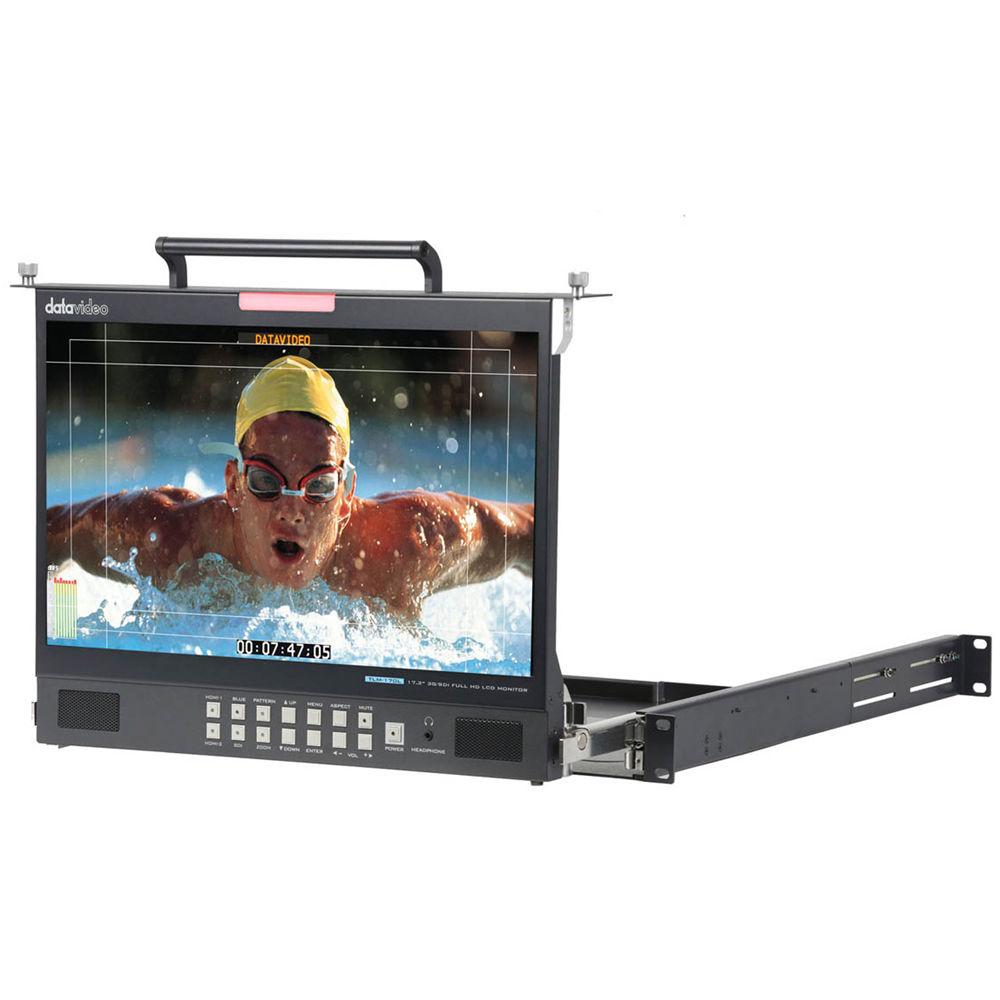

UPC: 672255004050 - 17.3" 3G-SDI Full HD Rackmount LCD Monitor The 17.3" 3G-SDI Full HD Rackmount LCD Monitor from Datavideo is suitable for applications in a live production gallery, 19" rack monitoring, OB Van, or a video editing suite. It comes with a 3G-SDI video input with loop-through output and two HDMI inputs. The monitor supports embedded audio on SDI and HDMI (version 1.3). The monitor offers viewing angles of 70°/70°/60°/60° (left, right, top, and bottom) and brightness rating of 300 cd/m². This unit has a native resolution of 1920 x 1080. The contrast ratio of 400:1 showcases the monitor's ability to handle light and dark images on-screen.
- Full HD (1920 x 1080p) LCD panel with Underscan and Overscan menu options
- 3G-SDI video input with loop-through output and two HDMI inputs
- Supports embedded audio on SDI and HDMI (Ver. 1.3)
- Front panel has a 3.5mm stereo headphone jack socket for discrete audio monitoring
- Front panel buttons allow quick and easy selection of source input as well as aspect ratio, blue only mode, pattern (Color Bars), menu, and audio controls
- Color temperature menu option has 3 modes (6500K, 9300K, 7500K, and user defined)
- OSD audio level peak meter for SDI and HDMI based digital audio inputs
- Individual adjustment of brightness, contrast, color saturation, and LED backlight level for each monitor
- On-screen overlays for frame marker 80%, 90%, 4:3 marker, Central Mark, and Cinema Zone Marker
- Bi-color tally light and 3.5mm jack tally input socket
- USB 2.0 port for easy update of firmware with a USB 2.0 pen drive
UPC: 672255007143 - ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.
Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks. - Supports up to 8 wired users
- Uses your choice of headsets, from low-cost cell phone sets to high-quality professional units
- Uses cables up to 984 ft to connect beltpacks
UPC: 672255001684 - AD-100M Audio Delay Box with Microphone Input The Datavideo AD-100M Audio Delay Box allows you to sync an audio or mic signal to video. Its easy-to-use design features a menu/mode LCD and only a few controls such as an "Adjust" dial, and it's housed in a rugged, metal enclosure for use in the studio or in the field. It offers an audio delay time from 0 to 700 ms.
- Key Features
-
- Audio delay box with microphone input
- 2 x XLR balanced audio input
- 2 x RCA (L/R) unbalanced audio input
- 1 x XLR mic input
- 2 x XLR balanced audio output (mic mixed)
- 2 x RCA (L/R) unbalanced audio output (mic mixed)
- LCD display for menu and mode selection setting
- Output volume attenuating from 0 to -60 dBu
- Audio delay time from 0 to 700 ms
- 1 KHz test tone output attenuating from 26 to -34 dB
- 12 VDC power input
UPC: 672255006825 - PD-6 Universal VAC to VDC Camera Power Distributor The PD-6 Universal VAC to VDC Camera Power Distributor from Datavideo is a power distribution center designed to fit a 1RU 19" rack mount. The PD-6 supplies steady and sequenced voltage for production kit whether on location or in a studio. This unit features eight outputs which can be configured individually at 48, 24, 14.4, or 12 VDC with a total power consumption of 360 W. You can use the CB-22H, CB-23H, DDC-4012H, and VP-605H accessories for the PD-6 along with this power distributor.
Please note that the non-H versions of these accessories are designed for the PD-3 and will not be compatible with the PD-6. - Automatically adjusts to work with 50 or 60Hz power supplies between 100-240 VAC
- 8 VDC outputs with a combined total power consumption of 360W
- Each VDC output can be switched to provide 12, 14.4, 24, or 48V
- Each VDC output features multi-colored LED confirming the chosen voltage by color
- Unit provides both VDC and VAC overload protection
In the Box Bundle Items SE-2850 HD/SD 8-Channel Video Switcher ayefdbqqtd - Dual Connector XLR Audio Cable (14")
- 2 x Spare Wipe-Button Caps
- Limited 1-Year Warranty (Extendable to 3-Year with Registration)
HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay 2 x - HDD25 2.5" Hard Disk Drive Enclosure
- Limited 1-Year Warranty, Extendable to 2-Years with Product Registration within 30 Days of Purchase
Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first) VSM100 Vectorscope / Waveform Monitor with 2 Screens 17.3" 3G-SDI Full HD Rackmount LCD Monitor - 1 U Mobile Tray Rackmount
ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets - 4 x 5-Pin XLR to XLR Cables (65'/20m)
- 4 x TD-3 Camera Tally Lights
- 4 x 3.5 mm Jack to 3.5 mm Jack Cables
- Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)
AD-100M Audio Delay Box with Microphone Input - Additional 2-Year Warranty with Registration within 30 Days
PD-6 Universal VAC to VDC Camera Power Distributor ayefdbqqtd - Limited 2-Year Warranty with Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase
- Limited 1-Year Standard Warranty without Product Registration

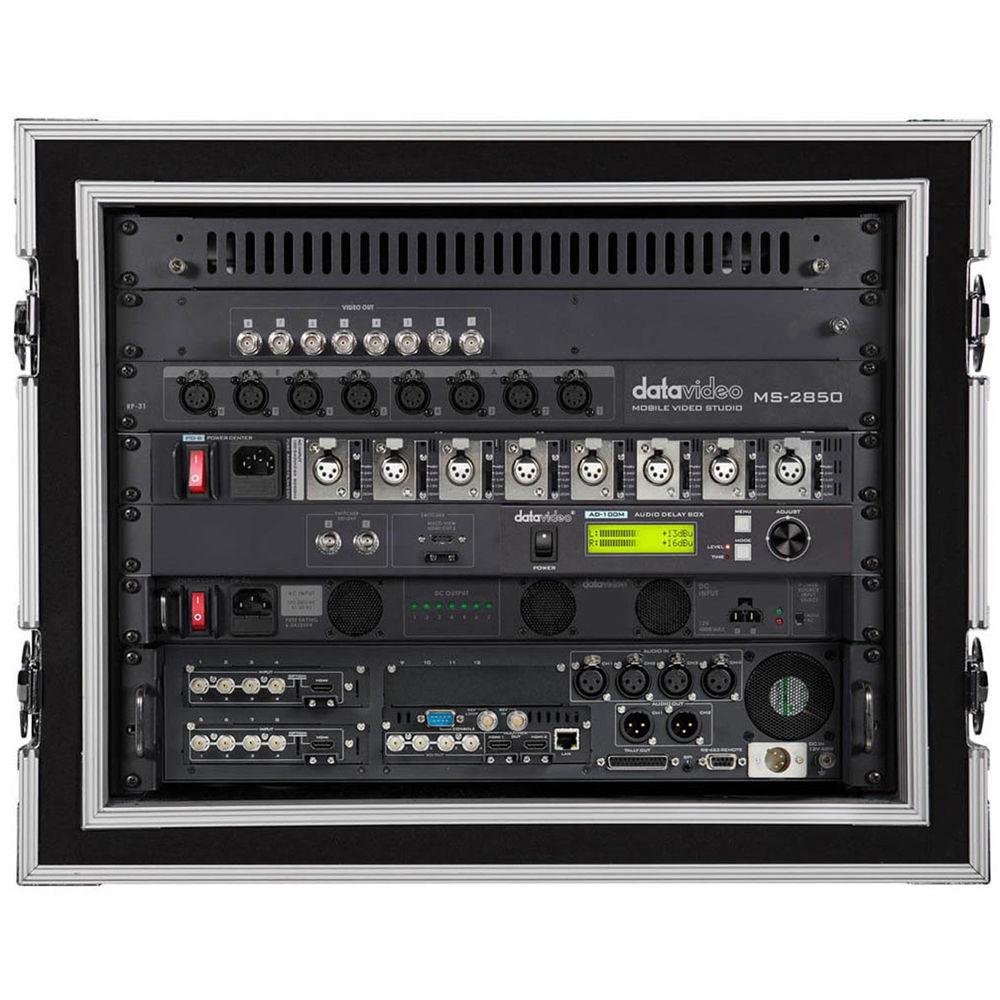

Also Includes - 8 RU Flight Case
- AM-100 Audio Mixer
- Limited 1-Year Warranty on Audio Mixer
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo MS-2850B Mobile Studio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SE-2850 HD/SD 8-Channel Video Switcher
| | | Video Standards | HD, SD | | Video Format | 3G/HD/SD input:
1080i: 60/59.94/50
1080p: 60/59.94/30/25
HD Output:
1080i: 60/59.94/50
SD Output:
576i: 50 Hz
480i: 59.94 Hz | | Video Processing | SDI: 4:2:2
HDMI: YUV 4:2:2 10-bit, RGB 4:4:4 | | | | Input Routable / Crosspoint | 12, repeatable | | Video Inputs | 8x SDI, 2x HDMI | | Graphics Input | Maximum: 2 x HDMI | | Video Outputs | 4 x SDI, assignable: PGM, PVW, AUX, Clean Out
2 x HDMI, assignable: PGM, Multi-View | | Down-Conversion | 4 x SDI (channels 1-4) | | Multiview Outputs | 2 x HDMI | | | | Audio Input | 4 x XLR, balanced | | Audio Output | 2 x XLR, balanced | | Embedded Audio | Input Maximum: 16 x channels
Output Maximum: 4 x channels | | Audio Delay | Up to 8 frames (SDI-input audio only) | | | | Chroma Key | N/A | | Keyer/DSK | 2 x DSK Support: Lumakey & Linear key (key/fill) | | PIP | 2 x | | Logo Overlay | 2 x or 1 x logo + 1 x clock | | Still Store | 12 x | | Effects | FTB, Cut, 8 x wipes with border | | Transition Preview | PiP, DSK | | | | Sync / Reference In/Out | Built-in GenLock
External sync supported with loop-through | | PC Remote Control | Ethernet (downloadable Windows software)
RS-422 | | | | Chassis | 2 RU, rackmount mainframe | | Power | 12 VDC, 48 W | | Dimensions (WxDxH) | Main Unit: 17 x 9.9 x 3.7" (432 x 251 x 93 mm)
Control Unit: 17 x 12.3 x 2.8" (433 x 313 x 71 mm) | | Weight | Main Unit: 10.4 lb (4.7 kg)
Control Unit: 5.5 lb (2.5 kg) | | | | Box Dimensions (LxWxH) | 21.9 x 15.0 x 12.6" | - HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay
| | | Material of Construction | Painted aluminum | | Interface (Inputs/Outputs) | USB 2.0
eSata | | Internal Interface | SATA | | Drive Compatibility | HDD: Western digital, Fujitsu, Hitachi
Compatible with SSD | | Power | 5VDC | | Dimensions | 6 x 5 x 1" (15.2 x 12.7 x 2.5 cm) | | Weight | 1 lb (0.5 kg) | | | | Signal System | HD
NTSC
PAL | | Supported Video Formats | 1080p 24/23.98
1080i 60/59.94/50
720p 60/59.94/50
NTSC
PAL | | Recording Formats | HD
Long GOP 4:2:2 or 4:2:0
i-frame: 8-bit 4:2:2
SD
Long GOP 4:2:2 or 4:2:0
i-frame: 8-bit 4:2:2
Audio
PCM, 24-bit, 8 channels, 48kHz | | Data Rates | HD
10 to 25Mb/s, 4:2:0
35 to 100Mb/s, 4:2:2
SD
8Mb/s, 4:2:0
15 to 50Mb/s, 4:2:2 | | Inputs | Video:
1 x SD/HD-SDI
Audio:
2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels)
GPI 1 x mini-XLR
Timecode
1 x BNC
Black Burst/Sync
1 x BNC | | Outputs | Video:
1 x SD/HD-SDI 1 x SD/HD-SDI (loop through)
1 x HDMI
Audio:
2 x Balanced stereo mimi-XLR (analog, stereo pair 2-channels)
Timecode
1 x BNC
Black Burst/Sync
1 x BNC | | Control Interface | RS 422, RS 232
9-pin DIN | | Recording Time | 250GB Hard Drive
5 Mb/s: 111 hours
10 Mb/s: 55 hours
15 Mb/s: 37 hours
20 Mb/s: 27 hours
40 Mb/s: 15 hours
60 Mb/s: 9 hours
320GB Hard Drive
5 Mb/s: 142 hours
10 Mb/s: 70 hours
15 Mb/s: 47 hours
20 Mb/s: 35 hours
40 Mb/s: 19 hours
60 Mb/s: 12 hours
500GB Hard Drive
5 Mb/s: 220 hours
10 Mb/s: 111 hours
15 Mb/s: 74 hours
20 Mb/s: 55 hours
40 Mb/s: 27 hours
60 Mb/s: 18 hours | | File Format | MXF/OP1A | | File System Format | NTFS | | Recording Limit | 99 bins
99 clips per bin | | Material of Construction | Painted aluminum | | Rack Height | 2RU | | Power Requirements | 12VDC | | Power Consumption | 16W | | Dimension L x W x H | 17.3 x 11.4 x 1.9" (44 x 29 x 4.9 cm) | | Weight | 7 lbs. (3.17 kg) | | | | Box Dimensions (LxWxH) | 21.4 x 14.6 x 6.7" | - VSM100 Vectorscope / Waveform Monitor with 2 Screens
| | | LCD Display | 4.3" (109.2 mm) TFT LCD x 2 | | Resolution | RGB: 480 x 272 | | Aspect Ratio | 4:3 and 16:9 selectable | | Brightness | 500 cd/m² | | Contrast Ratio | 300:1 | | Viewing Angle | Monitor Panel
Top: 50˚ / Bottom: 70˚
Left: 70˚ / Right: 70˚ 2U 19'' rack mount can support adjustable view angle (Tilt 45˚ viewing angle). | | Video Input | HD-SDI / SD-SDI / HDMI | | Supported Formats | HDMI RGB: 720 x 576i x 50 Hz, 720 x 480i x 60 Hz, 1280 x 720p x 50 Hz, 1280 x 720p x 60 Hz, 1920 x 1080i x 50 Hz, 1920 x 1080i x 60 Hz
SDI: 720 x 576i / 50 Hz, 720 x 480i / 60 Hz, 1280 x 720p / 60 Hz, 1280 x 720p / 50 Hz, 1920 x 1080i / 50 Hz, 1920 x 1080i / 60 Hz | | Video System | NTSC/PAL auto recognition | | | | Interface | 1 x SDI/HD-SDI input (HD-SDI SMPTE 292M 1.5 Gb/s, SD-SDI SMPTE 259M-C 270 Mb/s with Embedded Audio)
1 x SDI/HD-SDI Loop through output
1 x HDMI Output | | HD/SD-SDI | SMPTE 259M-C (270 Mb/s - 525/625 Component Video) and SMPTE 292M (1.485/1.001 Gb/s) Connector BNC (IEC 169-8)
Impedance: 75 Ω
Return Loss: HD > 10 dB (1.5 GHz); SD > 15 dB (270 MHz) Equalization: 656.1' (200.0 m) Belden 8281 cable at 270 Mb/s; 328.0' (100.0 m) (typical) of Belden 1694A at 1.485 Gb/s | | HDMI | Supports HDMI v1.1 | | Input Formats | HD-SDI: 1080i50 / 1080i59.97 / 1080i60 / 1080p30 / 720p29.97 / 720p30 / 720p50 / 720p59.97 / 720p60
SD-SDI: 576i / 480i | | Modes | Waveform monitor / Vectorscope / Parade / Histogram / Video input display / input in thumbnail format / 8-Channel audio meter | | Acquisition Modes | Single field / Whole frame | | Waveform Monitor and Vectorscopes | Time zoom / Delay / Non-volatile display storage and recall / Sampling Bandwidth
75% color bar scale / 100% color bar scale / Non-volatile display storage and recall | | Parade | Display format: RGB / YCbCr / Non-volatile display storage and recall | | Inputs | HD, SD-SDI / RS-232 (firmware upgrade) | | Outputs | HD, SD-SDI can be setup as input loop-through as well as Instrument output
HD, SD-HDMI External terminal must support 720p50, 720p60, and 720p59.5. | | Firmware Upgrade | Through USB | | | | Power Consumption | 12 V, 19 W | | Temperature | 41 to 122°F (5 to 50°C) | | Humidity | 10 to 90% (non condensing) | | Dimensions (W x H x D) | 19.0 x 3.4 x 8.7" (482.7 x 88.5 x 221.2 mm) | | | | Box Dimensions (LxWxH) | 21.6 x 11.4 x 7.8" | - 17.3" 3G-SDI Full HD Rackmount LCD Monitor
| Size | 17.3" / 43.9 cm | | Resolution | 1920 x 1080 | | Viewing Angle | 60°/60°/70°/70° | | Luminance | 300 cd/m² | | Contrast | 400:1 | | Response Time | Not specified by the manufacturer | | Video Input/Output | 2 x HDMI input (Ver. 1.3)
1 x BNC input (3 Gb/s HD/SD-SDI)
1 x BNC output (loop-through, 3 Gb/s HD/SD-SDI) | | Signal Format | 1920 x 1080p: 60/59.94/50
1920 x 1080p: 30/29.97/25/24/23.98
1920 x 1080i: 60/59.94/50
1280 x 720p: 60/59.94/50
720 x 480i (NTSC), 720 x 576i (PAL) | | Timing | VESA Timing: 1680 x 1050 (16:10)
1360 x 768 (16:9)
1280 x 1024 (5:4)
1280 x 1024 (4:3)
1280 x 960 (4:3)
1280 x 768 (4:3)
1152 x 864 (4:3)
1024 x 768 (4:3)
800 x 600 (4:3) | | Audio Input | 3G/HD/SD-SDI embedded audio
HDMI embedded audio (Ver.1.3)
1 x Internal speaker
1 x 3.5 mm Headphone socket
Note: Internal speaker circuit will automatically mute when headphones are connected | | Tally | 1 x Tally port
Bi-Color Tally Light: Live: Red
Cued: Green | | USB | 1 x USB (USB 2.0 FW auto upgrade) | | Power | 12 VDC | | Power Consumption | 16 W | | Operating Temperature | 32 to 113°F / 0 to 45°C | | VESA Mounting | 100 mm x 100 mm | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 15.8 x 10.2" / 40.1 x 25.99 cm | | Weight | 9.03 lb / 4.1 kg | | | | Box Dimensions (LxWxH) | 26.0 x 23.4 x 6.8" | - ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets
| Frequency Response | 550 Hz - 3.6 kHz <±3 dB | | Total Harmonic Distortion (THD) | <3% | | Signal to Noise Ratio | >50 dB | | Operating Range | Up to 660' (200 m) Between Base Station and Slave | | Connectors | 1 x 12 V 1.5A Power Input
2 x 15-Pin Sub-D Tally Connectors
1 x 3.5mm Stereo Headphone/Mic Combo Jack
1 x 1/4" Stereo Headphone Jack
1 x 3-Pin XLR Light Socket
1 x XLR/TRS Combo Mic Input | | Speaker | 2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms) | | Operating Temperature | 41 to 104° (5 to 40°C) | | Dimensions | 1 RU | | Weight | 4.2 lbs (1.9 kg) | | | | Box Dimensions (LxWxH) | 20.5 x 15.0 x 8.5" | - AD-100M Audio Delay Box with Microphone Input
| Audio Input | 3 x XLR, 2 for line in, 1 for mic in (gain +20/40/60 dB)
2 (L/R) x RCA | | Audio Output | 2 x XLR 2 (L/R) x Unbalanced RCA | | Display | SMT LCD | | Output Volume | Attenuating from 0 to -60 dBu | | Audio Delay | Up to 700 ms | | Chassis | Rack-mountable with optional RMK-1 rackmount kit | | Power | 12 VDC, 18 W | | Dimension (L x W x H) | 8.3 x 6.7 x 1.7" / 211 x 220 x 42 mm | | | | Box Dimensions (LxWxH) | 11.05 x 10.45 x 5.2" | - PD-6 Universal VAC to VDC Camera Power Distributor
| Compatibility | PD-6 accessories (CB-22H, CB-23H, DDC-4012H, and VP-605H) | | AC Input Voltage | 100 - 240 VAC | | Frequencies | 50 or 60 Hz | | Fuse Rating | 6.3 A / 250 VAC | | Efficiency | Up to 80% | | DC Output Voltage | 12, 14.4, 24, 48 VDC | | Voltage Tolerance | ±3% | | Rated Power | 4 channels for 30 W
4 channels for 60 W | | Overload | VDC: 105 - 150% rated output power
Protection type: recovery automatically after fault condition is removed
VAC: non-recovery fuse on the VAC input outlet | | Connectors | 1 x VAC input
8 x 4-pin XLR female VDC output | | Indicators and Controls | 8 x LED color indicator for each VDC output
1 x power on/off switch | | Storage Temperature / Humidity | -40 to 185° F (-40 to 85° C), 10 to 95% RH | | Operating Temperature / Humidity | 32 to 102° F (0 to 40° C), 10 to 90% (non condensing) | | Dimensions (L x W x H) | 17.3 x 9.3 x 1.8" (440 x 235 x 46 mm) | | Weight | 11.5 lb (5.2 kg) approximately | | | | Box Dimensions (LxWxH) | 22.3 x 13.2 x 6.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
The discussion is empty - enter the first post
Post a new topic / query / comment:
|
|
