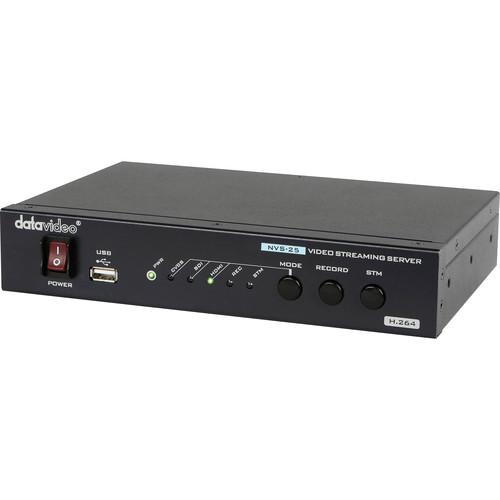

User Manual for Datavideo NVS-25 H.264 Video Streaming Server Click to enlarge the picture
Contents of the user manual for the Datavideo NVS-25 H.264 Video Streaming Server
- Product category: Signal Converters Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Signal Converters
 |
User manual for the Datavideo NVS-25 H.264 Video Streaming Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

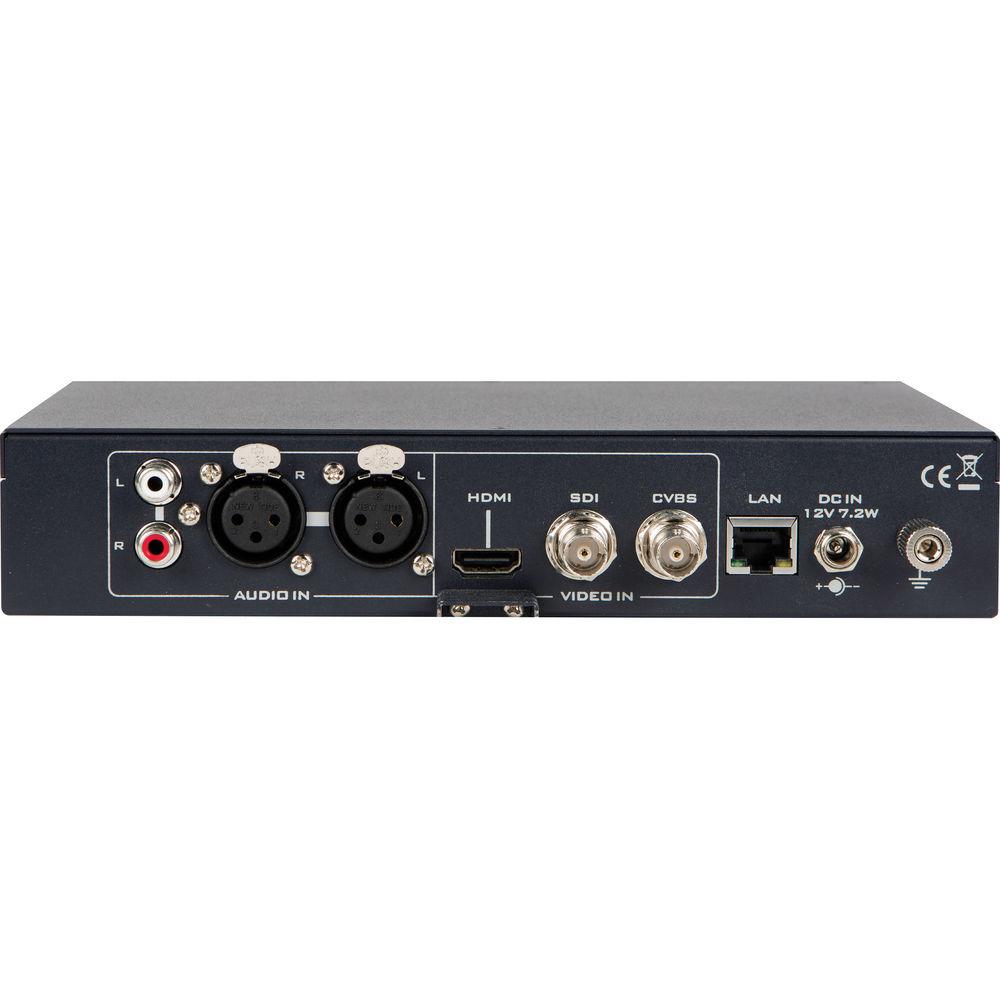

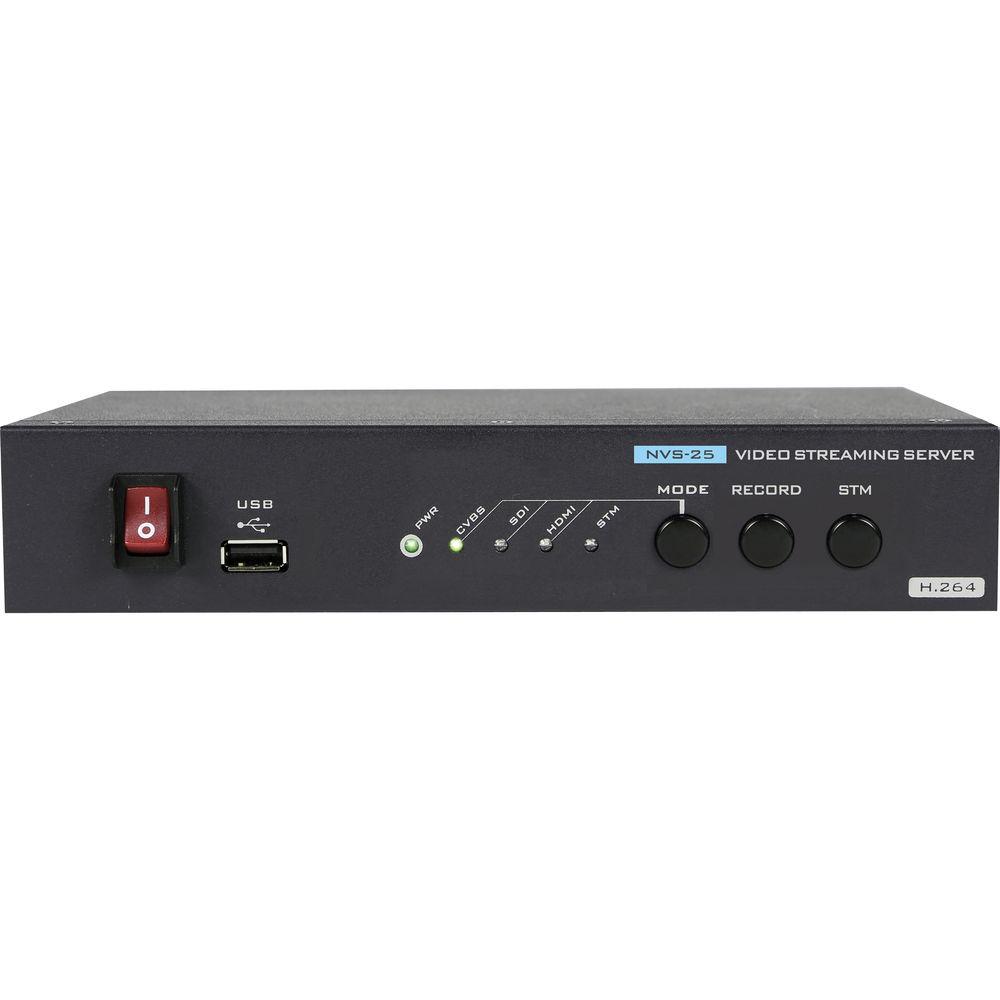

Product description Stream HD or SD video to the web with Datavideo's NVS-25 H.264 Video Streaming Server. The NVS-25 encodes incoming video to H.264 in real time and can send it to stream on the web while simultaneously recording to a USB drive. Having the recording is good for content creators who want their video to be available on-demand after the live stream is over. For ease of use the NVS-25 uses a simple web-based user interface (UI) that can be accessed from a standard web browser. The UI can configure the settings and also upgrade firmware from the web. The rear panel has the input section and the network output. The NVS-25 can accept video from SDI, HDMI, or Composite sources. Audio can be routed into the stream from embedded audio in SDI or HDMI feeds, or from dedicated XLR and RCA audio inputs. Scaling and deinterlacing can be accomplished on any video input. Processing is done pre-encoding for better quality video. The front panel contains the status LEDs, the power switch, and a USB port. The USB port can output encoded video to a hard drive or flash drive. Features - H.264
- High-quality HD / SD H.264 network streaming; H.264 / AVC video CODEC, up to High Profile Level 4.0
- Embedded or External Audio
- Audio inputs: select embedded or external audio source
- GOP Structure Support
- Supports 3 types of GOP structure: IBBP, IPPP and IBP
- Deinterlacing Support
- Supports de-interlace video streaming for progressive output
- Easy-to-Use Web User Interface
- Web UI for system configuration and FW upgrade
- Front Panel Button Control
- Front panel control for recording and streaming
- Video Scaler
- Flexible video scaler presets for streaming out
- USB Storage Support
- Attach USB storage device (Up to 1TB storage device)
UPC: 672255006795 In the Box Datavideo NVS-25 H.264 Video Streaming Server Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo NVS-25 H.264 Video Streaming Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo NVS-25 Specs | Video Inputs | 1 x HD/SD-SDI via BNC Connector
1 x CVBS (composite video) via BNC Connector
1 x HDMI | | Video Encoding | H.264 AVC video codec, up to high-profile level 4.0, configurable bit-rate up to 6 Mbps | | Supported Video Resolutions | 1820 x 1080p 50/59.94/60 (recorded at 25/30p)
1920 x 1080i 50/59.94/60
1280 x 720p 50/59.94/60
720 x 576i 50
720 x 480i 59.94 | | Audio Input | 2 x Channels SDI embedded audio
2 x Channels analog audio via 2 x XLR or 2 x RCA Connectors
2 x Channels HDMI embedded audio | | Audio Encoding | AAC-LC audio codec
Sample rate: 16-bit/48 kHz
Bit rate: up to 384 kbps | | Output | 1 x RJ-45 (10/100M Ethernet)
1 x USB 2.0 type A for file output to USB storage | | Storage | USB 2.0 mass storage
File system: FAT32/MP4 | | Network | DHCP Client
Streaming protocols: HLS/RTSP/RTMP (1 protocol at a time), supports up to 3 clients | | Control | Web UI for system configuration and control | | System Monitoring | LEDs for power, input status, REC status, and streaming status | | Power Input | 100 to 240 VAC | | Environmental | Operating temperature: 32 to 122°F / 0 to 50°C
Storage temperature: 14 to 140°F / -10 to 60°C | | | | Package Weight | 2.895 lb | | Box Dimensions (LxWxH) | 11.6 x 9.7 x 4.05" |
Rating54% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
