Product description The Datavideo CDN Kit includes the NVS-30 H.264 Video Streaming Server and DVS-200 Cloud Server Streaming Service to offer a comprehensive streaming solution.

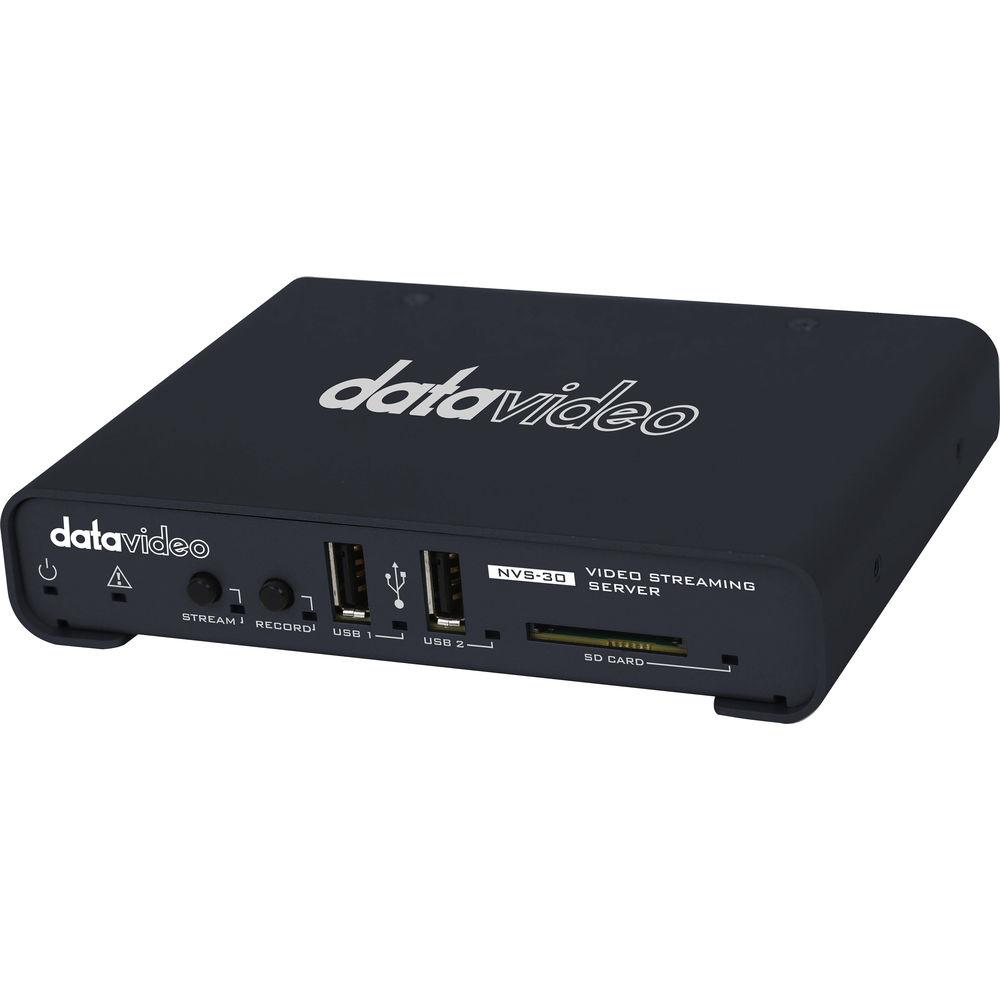

The NV-30 Streaming Server is designed for simultaneous encoded video streaming and high-quality video recording. It accepts any HDMI input source (such as camera or switcher) and streams the input video directly for broadcasting to YouTube, Facebook, and other live streaming platforms.
The NVS-30 generates an RTSP or RTMP-compliant H.264 encoded video stream. While streaming, you can record the video in MP4 or MOV file format on an SD card, USB thumb drive, or a network drive simultaneously. You can also use a web browser on the PC or mobile phones to control the device from a remote location.
The DVS-200 Streaming software allows a user to encode, transcode, record and deliver real-time videos to multiple devices. It comes as a software package or as a fully catered turnkey solution. It can send out streams to mobile phones, computer-based users, and on Facebook or YouTube in real time.
The DVS-200 can handle multiple ingestions at the same time, making it a multi-channel recorder as well. The recorded content can be saved on the local hard drive and can be viewed through VOD later. Your presentations and live events can be delivered directly from the source to the screens of your viewers. The hosted web player supports all mobile and desktop devices or you can also use the optional NVD-30 decoder's set to box mode for a complete IPTV solution. NVS-30 Streaming Server - Simultaneous live streaming and recording
- Streaming to YouTube, Facebook, and other live streaming platforms
- Transfer rates up to 20 Mb/s (streaming) and 30 Mb/s (recording)
- H.264 RTSP/RTMP-compliant streaming
- H.264 MP4 recording with 2-channel AAC audio
- Multi-Tap 10-bit scaler and de-interlacer
- Web UI for system configuration
- Start/Stop front panel push buttons

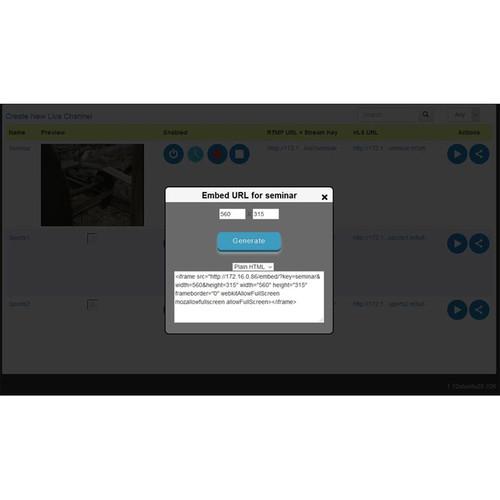

DVS-200 Streaming Service - Stream directly to devices with a white-labelled web player
- Stream to content delivery networks like YouTube Live, Facebook, and more
- Distribute streams to other instances of DVS-200 for global coverage

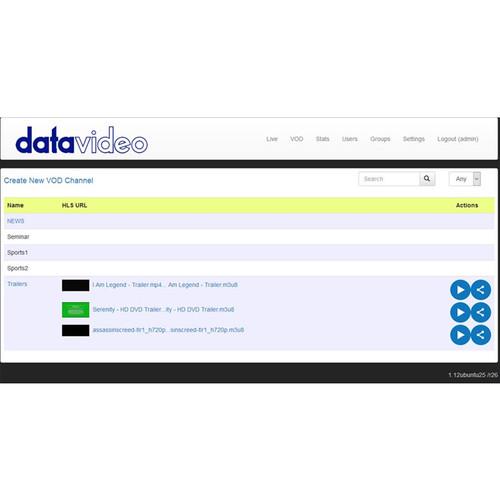

- Record streams in DVS-200 for later on-demand playback
- Run a multi-channel on-demand IPTV network
- Cater to a larger audience base with high-quality real-time transcoding options
In the Box Datavideo NVS-30 H.264 Video Streaming Server with DVS-200 Cloud Server Streaming Service NVS-30 H.264 Video Streaming Server Multi-Channel Streaming Server Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo NVS-30 H.264 Video Streaming Server with DVS-200 Cloud Server Streaming Service in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

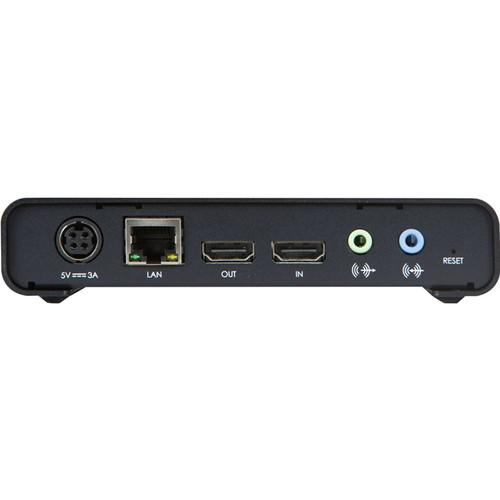

Technical parametersDatavideo NVS-30 Specs | | | HDMI Video Input | 1920 x 1080p at 60/59.94/50/30/29.97/25/24/23.98
1920 x 1080i at 29.97/25
1280 x 720p at 60/59.94/50 fps
Format is auto-detected | | HDMI Video Output | Preview output of video input signal
2-Frame delay from input to output | | Audio Input | Processes first two channels of audio embedded in HDMI input signal
Unbalanced analog stereo input via 3.5 mm jack
Line level | | Audio Output | Pass-through of all embedded audio channels in HDMI signal
Unbalanced analog stereo output via 3.5 mm jack (pass-through of input)
Line level | | | | Resolutions | Selectable encoding resolutions ranging from 128 x 128 to 1920 x 1080 | | Bit Rates | Record Only Mode: 100 kb/s to 30 Mb/s
Stream Only Mode: 100 kb/s to 20 Mb/s
Independent Stream and Record Mode: Recording: 100 kb/s to 30 Mb/s, Streaming: 100 kb/s to 10 Mb/s, Maximum combined total bitrate of 30 Mb/s
Note: Note that when both streaming and recording resolutions are above 1280 x 720, the encode parameters must be identical for both processes. Completely independent recording and streaming settings are available when either the streaming or the recording resolution is 1280 x 720 or below | | Frame Rates | Encode frame rates representing 1:1, 1/2, and 1/4 of the input frames rates are supported
Note: Maximum encode frame rate is 30 fps when encode resolution is 1920 x 1080 | | Encoding Profiles | Baseline, Main and High | | Encoding Controls | 2.0, 3.0, 3.1, 4.0, 4.1 level support
GOP size and structure
Average maximum/minimum data rate controls Deblocking Filter | | | | Standard | AAC-LC | | Sample Frequency | 32, 44.1, and 48 kHz when digitized from analog source | | Channels | 2-channel stereo (L/R) | | Bit Rates | Range from 32 kbps to 256 kbps | | | | Scaler | High-quality multi-tap 10-bit down scaler and de-interlacer
Available for both streaming and recording operations | | File Types | MP4 and MOV files with two channels of embedded AAC audio | | Recording | Recording Lengths:
Maximum file length of 300 minutes, irrespective of storage type used
File Segment: 1 to 300 minutes | | Network Interface | RJ45 providing 10/100/1000Base-T Ethernet with static or DHCP addressing | | Protocols | RTMP, RTSP/RTP
IPv4 support
Unicast and Multi Unicast (number of clients may vary from 3 to 10) | | Physical Interfaces | Independent streaming and recording Start/Stop control | | Storage | 2 x USB 2.0, Support for NTFS (3.1) and FAT32 file system
Note: The NVS-30 will support writing to USB 3.0 devices at USB 2.0 speeds
1 x SD card Slot
Supports SD and SDHC cards
Note: Only NTFS-formatted SDXC cards are supported (Class 10 highly recommended)
Network Mapped Drive
Support for writing to shared folders in computers found on a network using Windows Share protocols as well as NFS protocols (or Mac and Linux systems) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (L x D x H) | 5.6 x 4.3 x 1.22" (14.2 x 10.9 x 3.1 cm) excluding SD card
5.6 x 4.4 x 1.22" (14.2 x 11.2 x 3.1 cm) with SD card | | Weight | 0.66 lb (0.3 kg) without power supply |
