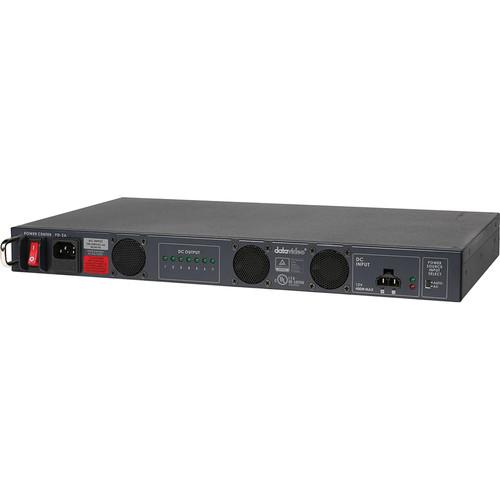

Product description The PD-2A 1RU 19” Rack Power Distribution Center from Datavideo provides steady power supply for studio equipment, such as the video switcher, monitors, recorders, and intercom system.
The PD-2A power distribution center features auto-switchable inputs of 110/120VAC, a UPS interface, and 12VDC ports. In addition, it also features four 12V/3A terminals, two 12V/5A terminals, two 12V/10A terminals (shared), and XLR DC outputs. It adds reliability to studio equipment and consolidates power supplies and cabling. - Power indicator and auto-recovering fuse protector for each output terminal
- Sequential-Power On of each DC output terminal during power on stage by 1 second duration
- Auto-switchable 110/120VAC or 12VDC UPS input source
- EMI and RoHS certification
UPC: 672255008188 In the Box Datavideo PD-2A 1RU 19" Rack Power Distribution Center AC Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo PD-2A 1RU 19" Rack Power Distribution Center in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo PD-2A Specs | Input | AC Input Outlet: 1 x AC input
AC Input Voltage: 100 to 240 VAC
AC Input Current Rating: 100 to 240 VAC, maximum 6.3 A
AC Frequency: 50 or 60 Hz
DC Input: 1 x 12 VDC, supports non-regulated 12 VDC output
DC Input: 400 W | | Output | DC Output: 12 V, ±5%, 4 x 3 A XLR DC female jack
12 V, ±5%, 2 x 5 A XLR DC female jack
12 V, ±5%, 2 x 10 A XLR DC female jack Two of the output ratings can combine to become one 12 V, ±5%, 10 A DC outputs | | Efficiency | Output: More than 80% | | Noise | DC Output: +5%, -3% | | Ambient Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Storage Humidity | 5 to 90% RH, non-condensing | | Dimensions | 17.3 x 8.4 x 0.1" (440.0 x 214.0 x 46.0 mm) | | Weight | 10.8 lb (4.9 kg) | | | | Package Weight | 12.95 lb | | Box Dimensions (LxWxH) | 22.5 x 13.4 x 7.0" |
