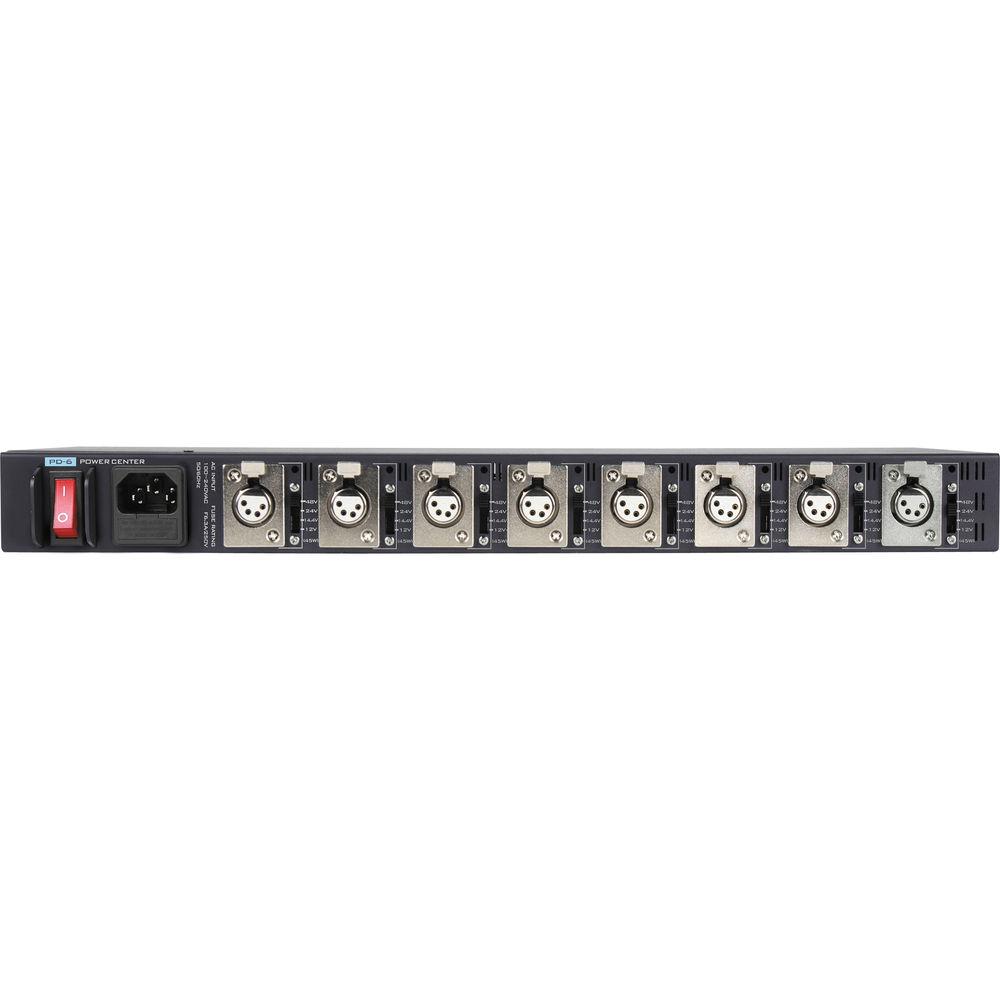

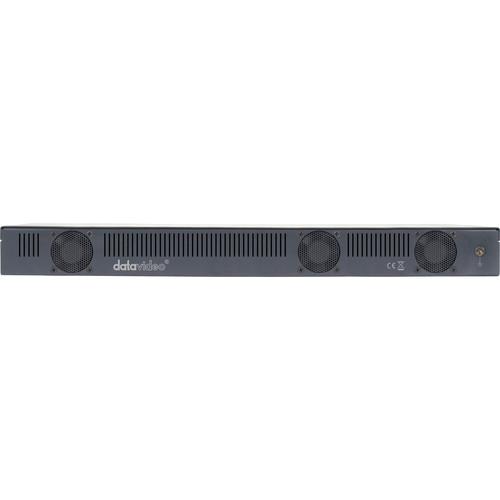

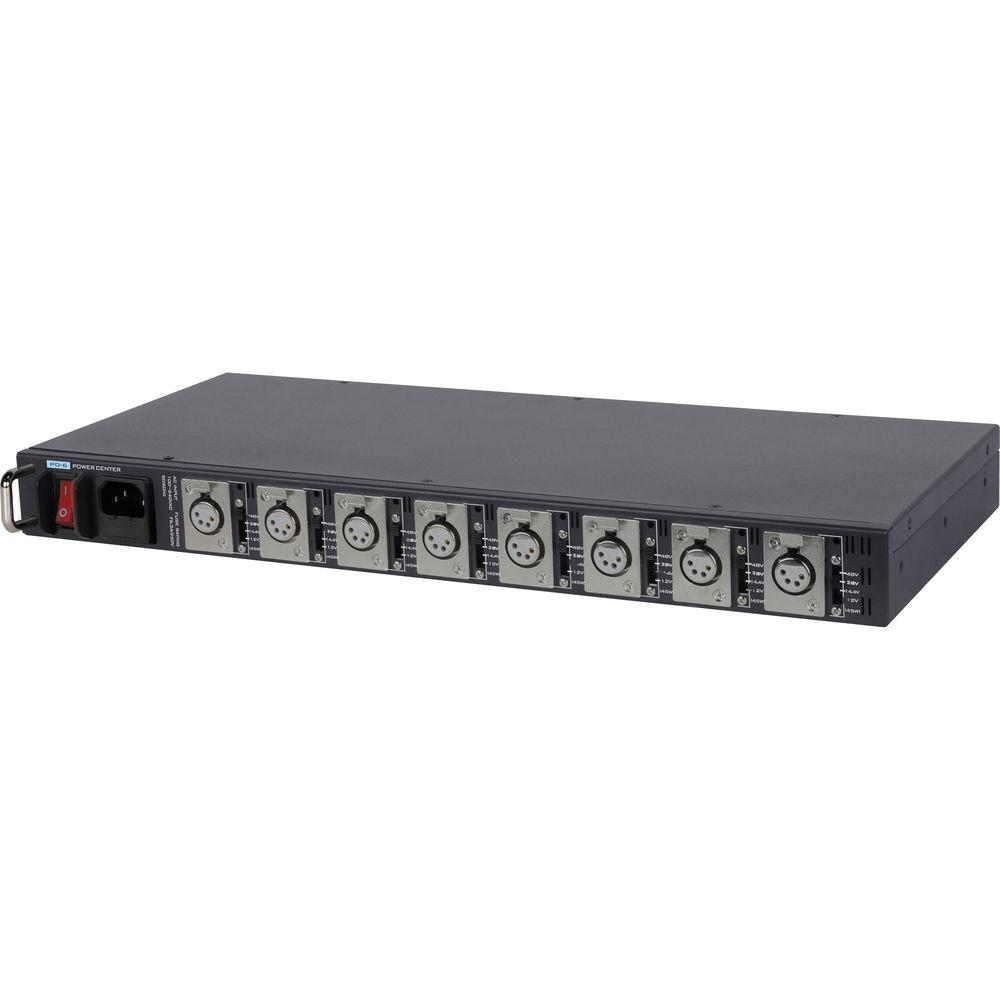

Product description The PD-6 Universal VAC to VDC Camera Power Distributor from Datavideo is a power distribution center designed to fit a 1RU 19" rack mount. The PD-6 supplies steady and sequenced voltage for production kit whether on location or in a studio. This unit features eight outputs which can be configured individually at 48, 24, 14.4, or 12 VDC with a total power consumption of 360 W. You can use the CB-22H, CB-23H, DDC-4012H, and VP-605H accessories for the PD-6 along with this power distributor.
Please note that the non-H versions of these accessories are designed for the PD-3 and will not be compatible with the PD-6. - Automatically adjusts to work with 50 or 60Hz power supplies between 100-240 VAC
- 8 VDC outputs with a combined total power consumption of 360W
- Each VDC output can be switched to provide 12, 14.4, 24, or 48V
- Each VDC output features multi-colored LED confirming the chosen voltage by color
- Unit provides both VDC and VAC overload protection
In the Box Datavideo PD-6 Universal VAC to VDC Camera Power Distributor Limited 2-Year Warranty with Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase Limited 1-Year Standard Warranty without Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo PD-6 Universal VAC to VDC Camera Power Distributor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo PD-6 Specs | Compatibility | PD-6 accessories (CB-22H, CB-23H, DDC-4012H, and VP-605H) | | AC Input Voltage | 100 - 240 VAC | | Frequencies | 50 or 60 Hz | | Fuse Rating | 6.3 A / 250 VAC | | Efficiency | Up to 80% | | DC Output Voltage | 12, 14.4, 24, 48 VDC | | Voltage Tolerance | ±3% | | Rated Power | 4 channels for 30 W
4 channels for 60 W | | Overload | VDC: 105 - 150% rated output power
Protection type: recovery automatically after fault condition is removed
VAC: non-recovery fuse on the VAC input outlet | | Connectors | 1 x VAC input
8 x 4-pin XLR female VDC output | | Indicators and Controls | 8 x LED color indicator for each VDC output
1 x power on/off switch | | Storage Temperature / Humidity | -40 to 185° F (-40 to 85° C), 10 to 95% RH | | Operating Temperature / Humidity | 32 to 102° F (0 to 40° C), 10 to 90% (non condensing) | | Dimensions (L x W x H) | 17.3 x 9.3 x 1.8" (440 x 235 x 46 mm) | | Weight | 11.5 lb (5.2 kg) approximately | | | | Package Weight | 13.6 lb | | Box Dimensions (LxWxH) | 22.3 x 13.2 x 6.9" |
