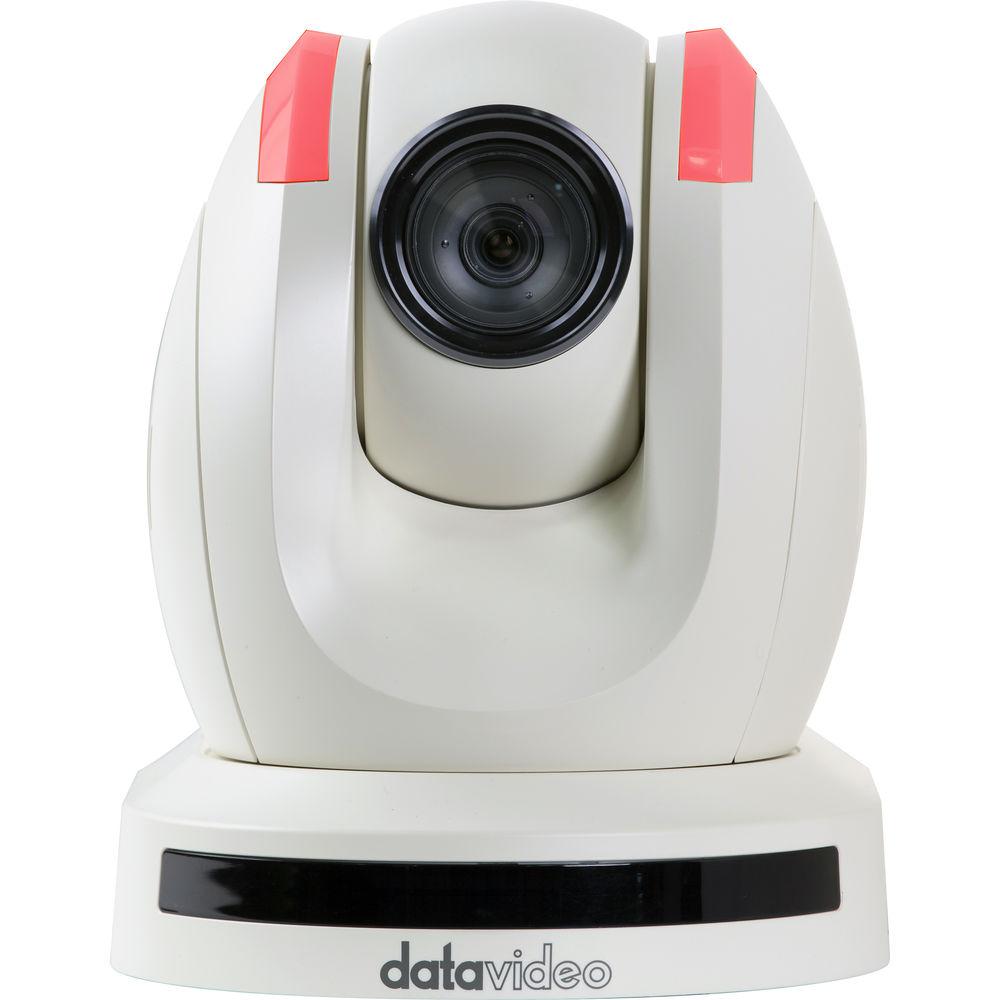

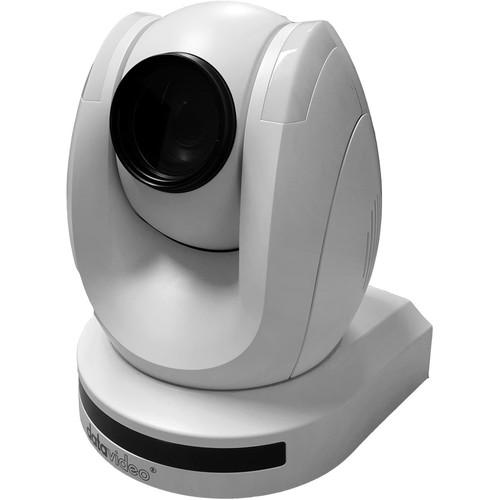

Product description The white PTC-150 HD/SD PTZ Video Camera from Datavideo captures HD video at up to 1920x1080p resolution, and features wide dynamic range with backlight compensation. It can be mounted on a wall, ceiling, floor, or tabletop, and includes an IR remote control.
The PTC-150 features motorized 30x optical zoom capability. Its image-mirror and image-rotation functions allow you to electronically adjust the image to help compensate for mounting limitations based on your location. There are 50 programmable position presets including pan, tilt, and zoom positions; these allow the camera to move quickly between predetermined camera positions using the remote, or an optional PTZ controller.
For multi-camera shoots, the built-in tally light can identify when the camera is active. The camera features a built-in IR cut filter in the image path for low-light shooting, and then returns for daytime shooting. Moreover, the PTC-150 supports real time position report on a per frame basis; this is helpful for virtual studio applications. The camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ-45 port. - Position coordinates report in real time per frame
- Dehazing technology allows foggy or hazy images to be clear and sharp
- Simultaneous HD-SDI, CVBS, and HDMI video output
- Supports DVIP control protocol (Firmware update required)
- Supports Sony VISCA protocol keyboard
- Digital Noise Reduction Function (DNR) reduces the noise and enables clearer image under low light conditions
UPC: 672255007013 In the Box Datavideo PTC-150 HD/SD PTZ Video Camera (White) IR Remote Controller Camera Mounting Bracket Table / Ceiling Mounting Bracket Mounting Screws 12 VDC Power Adapter and Cord Limited 1-Year Warranty; Extendable to 2 Years with Product Registration within 30 Days of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo PTC-150 HD SD PTZ Video Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

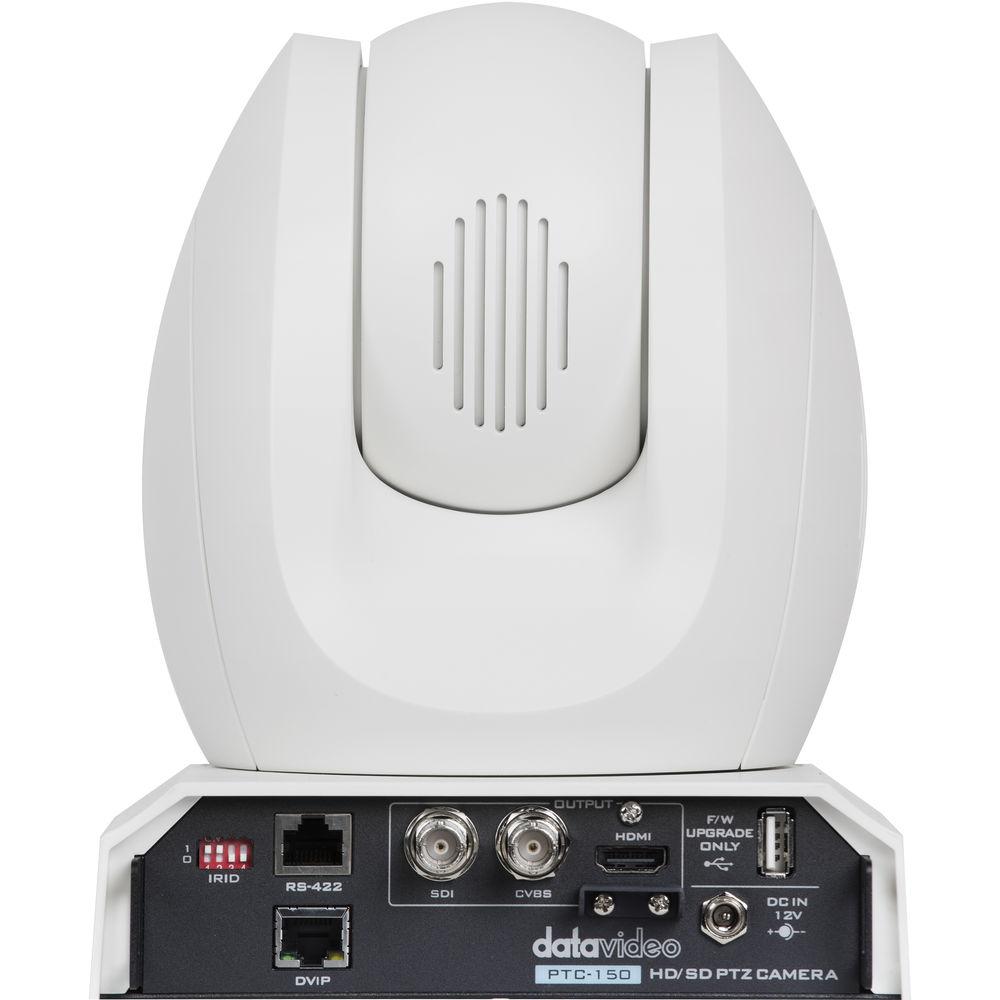

Technical parametersDatavideo PTC-150W Specs | | | Video Outputs | 1 x HD/SD-SDI
1 x CVBS
1 x HDMI (V1.3) | | Output Level | 1 V p-p, 75 ohms | | | | Ports | 1 x RJ-45, RS-422
1 x RJ-45, DVIP | | Protocol | VISCA / DVIP (selectable) | | Baud Rate | 38,400 bps (or more) | | F/W Upgrade | Via USB port on rear using USB dongle (not included) | | IR | 2 x IR receivers in front of the camera | | | | Image Pickup Element | 1/2.8" type progressive scan Sony CMOS sensor | | Effective Picture Elements | Approx. 2.14 MP | | Resolution | HD / FHD / SD (CVBS only) | | Supported Formats | HDMI & SDI: 1080/59.94p (4:1:1), 1080/59.94i, 1080/29.97p, 720/59.94p 1080/50p (4:1:1), 1080/50i, 1080/25p, 720/50p
CVBS: 480i/576i | | S/N Ratio | 50 dB | | Minimum Illumination | Color: 0.4 lx (f/1.6, 1/30 sec, 50 IRE, high gain)
Black / White : 0.03 lx (f/1.6, 1/30 sec, 50 IRE, high gain) | | Electric Shutter | 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000, 1/2000 sec | | Electronic Sensitivity UP | 0 - 128x | | Gamma | Off, AUTO, Smart-1, Smart-2, Smart-3 | | Iris Control | Auto / manual | | Digital Noise Reduction (DNR) | On / off | | On Screen Display | English | | White Balance | AWC / ATW / MWB (adjustable R and B signals) / outdoor / indoor / fluorescent | | AGC (Automatic Gain Control) | Gain Adjustment Table: Low1 / Low2 / Low / Mid1 / Mid / High1 / High / OFF | | Mirror | Of / horizontal / vertical / H+V | | Switches | Fog Correction: On / off
Backlight Compensation Function: On / Off
Camera Title (OSD): On / off, 16 alphanumeric characters (Camera ID: 16)
Color Bar: On / off (full bar) | | Focus Modes | Auto / manual / one-push / STOP-AF | | Day & Night | Auto / color / BW (using IR) | | | | Type | 30x optical zoom | | Focal Length | 4.3 to 94.6 mm, f/1.6 to f/4.7 | | Angle of View | Horizontal: 63.7° to 2.3° | | | | Pan Range | 270° | | Tilt Range | +90° to -20° | | Pan/Tilt Speed | Manual: 1 - 150°/sec
Swing: 1 - 150°/sec | | Initializing Time | 30 sec | | Preset | 50 positions | | Scan | 8 groups | | Camera ID | 1 - 7 | | Operating Noise | Tilt: ≤25 dB
Pan: ≤25 dB | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 20 - 90%, non-condensing | | Certifications | CE / FCC Class A | | Dimensions (W × H × D) | 6.8 x 7.4 x 8.6" (173 x 189 x 218 mm) | | Weight | 6.1 lb (2.8 kg) | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 13.4 x 12.2 x 10.9" |
