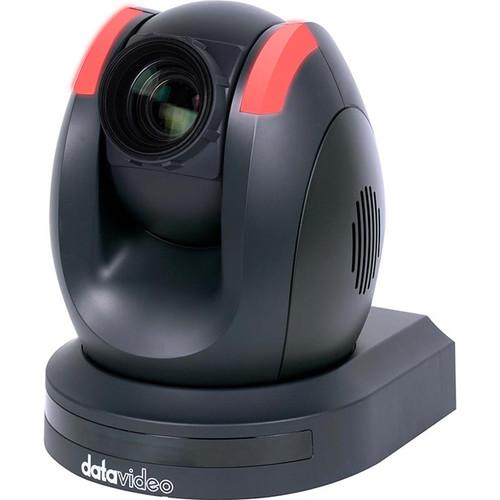

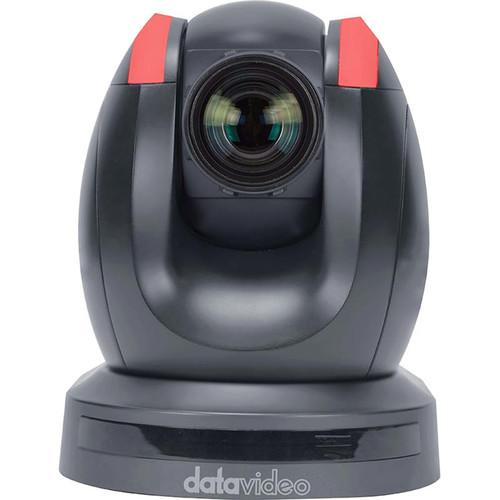

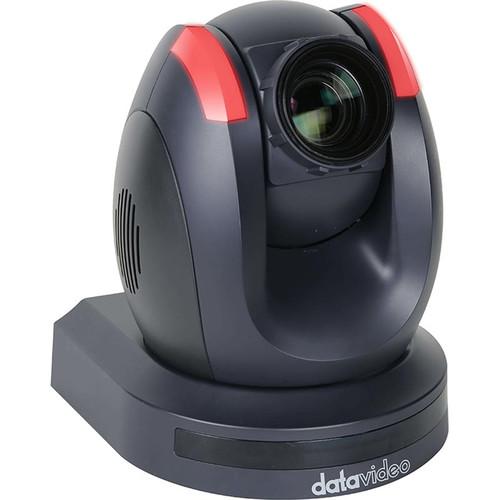

Product description The PTC-200 4K UHD PTZ Video Camera from Datavideo captures up to 4K (3840 x 2160 UHD) video at 2160p 29.97/25 resolution, and features wide dynamic range with backlight compensation. It also features a motorized 12x optical zoom capability, and its image mirror and image rotation functions allow you to electronically adjust the image and deliver a correctly oriented image. The 50 programmable presets including pan, tilt, and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote.
For multi-camera shoots, the built-in tally light can identify which camera is active. The camera features a built-in IR cut filter in the image path for low-light shooting, and then returns for daytime shooting. Moreover, PTC-200 supports real-time position report on a per frame basis; this will be helpful to virtual studio application. The camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit's RJ45 port. It can be mounted on a wall, ceiling, floor, or a tabletop. - 1/2.3" high-definition 8.93MP progressive CMOS sensor
- 12x optical zoom (f= 3.9 to 46.8mm)
- 4K: (3840 x 2160, UHD) 2160p/29.97, 2160p/25
HD: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p - DNR (Digital Noise Reduction) function to reduce the noise and enable clearer image under low light conditions
- Position coordinates report in real-time per frame

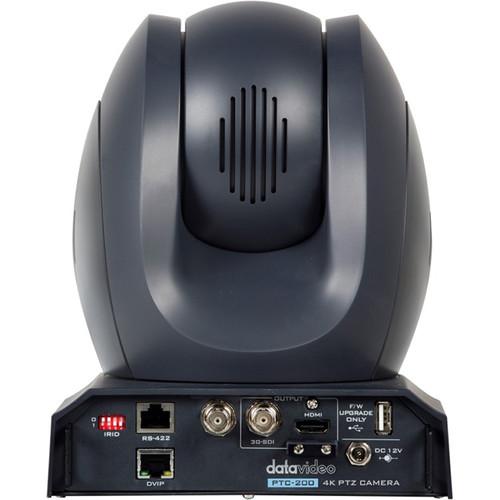

- Video Output: 3G-SDI + HDMI synchronously
- Tally LED design (IR controller / RS-422 / DVIP operation)
- Supports VISCA protocol keyboard
- Supports DVIP control protocol
UPC: 672255007396 In the Box Datavideo PTC-200 4K UHD PTZ Video Camera with 12X Optical Zoom 12 VDC Power Supply Limited 1-Year Warranty, Extended to 3 Years After Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo PTC-200 4K UHD PTZ Video Camera with 12X Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo PTC-200 Specs | Image Sensor | 1/2.3" type Exmor R CMOS | | Effective Picture Elements | Approximately 8.9MP | | Resolution | HD / FHD / UHD | | Signal System | 4K: 3840 x 2160, UHD 2160p 29.97/25
HD: 1080p 59.94/50, 1080i 59.94/50, 720p 59.94/50 | | Minimum Illumination | 50%, High-Sensitivity Mode: Color
0.75 lux (F1.8, AGC on, 1/30s)
50%, Normal Mode: Color
3 lux (F1.8, AGC on, 1/30s) | | Electric Shutter | 1/25 (1/30), 1/50 (1/60), 1/120 (1/100), 1/250, 1/500, 1/1000 seconds | | Iris Control | Auto / manual | | Digital Noise Reduction | 0 to 5 | | On-Screen Display | English | | White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-Push, Manual | | AGC (Automatic Gain Control) | Auto / manual (0 dB to 33 dB)
Maximum gain limit (9 dB to 33 dB) | | Mirror | Off / Horizontal / Vertical / H+V | | Camera Title (OSD) | On / Off | | Color Bar | On / Off (full bar) | | Focus Modes | Auto / manual | | Day & Night | Auto / color / B&W | | Pan / Tilt | Pan: 270°, Tilt: 90° to -12° | | Pan/Tilt Speed | Manual: 1 to 150°/seconds
Swing: 1 to 150°/seconds | | Initialization Time | 30 seconds | | Reports | Coordinate: P, T, Z (While panning, tilting, and zooming) by frame | | Lens Type | 12x optical zoom | | Focal Length | f = 3.9mm to 46.8mm
f/1.8 to 2.0 | | Horizontal Angle of View | Approximately 70.7° (wide end) / 6.4° (tele end) | | Video Output | 1 x HDMI (V1.4)
1 x 3G-SDI | | Protocol | VISCA / DVIP | | Remote Control | RS-422 & DVIP by RJ45 interface | | Firmware Updates | Via USB | | IR Control | 1 x IR Controller | | Noise Mic | Moving Noise while Tilt ≤25 dB
Moving Noise while Pan ≤25 dB | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Operating Humidity | 10 to 80% (no condensation) | | Certifications | CE / FCC Class A | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 10.25 lb | | Box Dimensions (LxWxH) | 13.6 x 12.0 x 11.3" |
