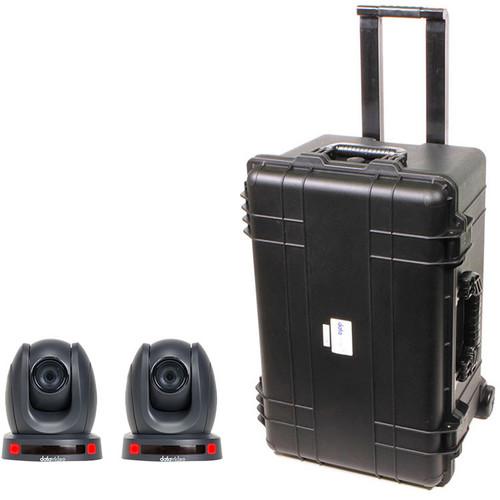

User Manual for Datavideo PTZ Camera Kit with Two PTC-140T Cameras and an HC-800 Case Click to enlarge the picture
Contents of the user manual for the Datavideo PTZ Camera Kit with Two
- Product category: PTZ Cameras Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo PTZ Cameras
|
User manual for the Datavideo PTZ Camera Kit with Two contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description This datavideo PTZ Camera Kit with Two PTC-140T Cameras and an HC-800 Case Enables you to set up a mini studio virtually anywhere you have a Network switch that supports HDBaseT and PoE. The two PTZ cameras can each be individually controlled via Ethernet, IR, or RS-232 protocols. When streaming over the built-in Ethernet connector, you can easily connect to RTSP as well as RTMP compatible systems.
Each camera in this versatile system supports 255 preset positions, enabling you to quickly adjust the camera's position within a 340° pan and 120° tilt range. The included trunk-style hard case protects your equipment during transport and storage and the built-in gasket helps to keep dust out. Built-in wheels and a retractable handle provide for comfort and ease, while moving your gear. - HDBaseT PTZ Camera with 20x Optical Zoom This datavideo HDBaseT PTZ Camera with 20x Optical Zoom can be controlled and powered over a single Cat 6 Ethernet cable up to 300' away from the network port, minimizing your cabling and expanding your mounting positions. The camera supports frame rates and resolutions as high as 1080p60 as well as 1080i60 and 720p60, and it features a 1/2.8" CMOS sensor with 2.07 MP resolution. The built-in zoom lens features an optical zoom range of 20x, and you can zoom in further with the 10x digital zoom.
With 255 programmable preset positions, you can set the camera to rapidly move to between positions using the IP, RS-232, or IR control. The camera compresses using either or both the H.264 and H.265, as its on-board encoder is capable of encoding two streams at the same time. You can stream live using RTSP or RTMP protocols. The camera supports external audio via a 3.5mm stereo port, and you can mount the camera via the 1/4"-20 threaded mounting hole. -
- 20x Optical Zoom, 10x Digital Zoom
- Advanced noise reduction
- Audio input interface
- H.264/H.265 video compression for streaming
- Multiple Network Protocols: RTSP, RTMP protocols and support, easy to link to a streaming media server
- Compatible with HS-1500T and HS-1600T HDBaseT Portable Video Studios, and it's remote-controllable by RMC-300 and RMC-180 PTZ Camera Controllers
-
- Gamma Control: Off/Normal
- Iris Control: Auto/Manual
- Digital Noise Reduction
- On-Screen Display (OSD): English, Simplified Chinese
- White Balance: Auto / Manual / One Push / 3000K / 4000K /5000K / 6500K
- AGC/Gain Control: Auto/Manual
- Mirror/Flip Image: yes
- Focus Mode: Auto/Manual
- Panning/Tilting Range: Pan 340°, Tilt +90° to -30°
- Panning/Tilting Speed: Pan 0.1~60°/sec, Tilt 0.1~30°/sec
- Preset: 255 Positions
- Maximum Aperture: F1.6 to F3.5
- Image Compensation: backlight compensation
UPC: 672255008232 - Wheeled Trolley-Style Water-Resistant Case (XXL) The XXL Wheeled Trolley-Style Water-Resistant Case from Datavideo is a heavy-duty trunk-style equipment case. Use it to transport and store video, audio, or photo equipment and accessories. This trunk-shaped, hard-shell case is water-, dust-, and crush-resistant. Integrated padlock inserts and rubber seals provide additional security.This case's interior includes one foam piece in the lid and three foam fittings in the main compartment. Wheel the case along using the retractable handle or grasp it using the large, hinged top handle.
Features - Trunk-style wheeled case with a foam interior, a retractable handle, and a hinged top handle
- Water-, dust-, and crush-resistant hard case with rubber seals and padlock inserts
UPC: 672255006061 In the Box Bundle Items 2 x HDBaseT PTZ Camera with 20x Optical Zoom dreusuqbudttffbxfvcwadxadautfvyftcra - Limited 1-Year Warranty, Extendable to 2 Years with Product Registration
Wheeled Trolley-Style Water-Resistant Case (XXL) - Limited 1-Year Warranty (2-Year Extension with Registration)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo PTZ Camera Kit with Two PTC-140T Cameras and an HC-800 Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HDBaseT PTZ Camera with 20x Optical Zoom
| | | Image Sensor | 1-Chip 1/2.8" CMOS Sensor | | Sensor Resolution | 1920 x 1080 (2.07 MP) | | Signal-to-Noise Ratio | 55 dB | | Minimum Illumination | 0.5 lux | | White Balance Range | 3000 to 6500K | | | | Max Digital Zoom | 10x | | Flip / Mirror Support | Image Flip, Mirror (Vertical) | | | | Optical Zoom Ratio | 20x | | Focal Length | 5.2 to 98mm | | Field of View | Horizontal: 54.7 to 3.3
