User Manual for Datavideo RMC-230 Iris Shutter Control Box for MCU-100 200 Multi Camera Controllers Click to enlarge the picture
Contents of the user manual for the Datavideo RMC-230 Iris Shutter Control Box
- Product category: RCPs & MCPs Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo RCPs & MCPs
|
User manual for the Datavideo RMC-230 Iris Shutter Control Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

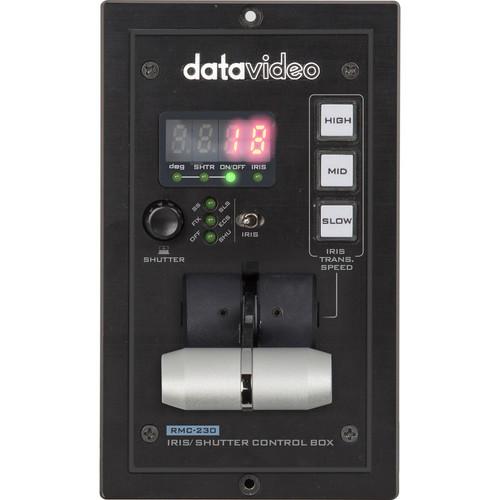

Product description The RMC-230 Control Box from Datavideo provides camera iris and shutter controls of the MCU-100 or MCU-200 multi camera controller. It acts as an interface connected between an MCU unit and the cameras. One end of the RMC-230 is connected to the camera via AD-1S and another end of the RMC-230 is connected to the MCU units, which are cost effective remote controllers designed specifically for remote control of Sony video cameras and camcorders. However, the RMC-230 can also be used as a standalone device for just controlling the camera iris and shutter. - Two RJ-45 ports allow connections of one end of RMC-230 to AD-1 and another end of RMC-230 to MCU-100 unit
- Two PWR ports with one providing power connection and another one allowing cascade of multiple RMC-230 units
- Control of shutter adjustment
- Control of iris adjustment
- Iris and shutter level display
UPC: 672255006801 In the Box Datavideo RMC-230 Iris/Shutter Control Box for MCU-100/200 Multi Camera Controllers Power Supply Ethernet Cable DC to DC Plug Cable Limited 1-Year Warranty, Extendable to 2-Years with Product Registration within 30 Days of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo RMC-230 Iris Shutter Control Box for MCU-100 200 Multi Camera Controllers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo RMC-230 Specs | Compatibility | Sony cameras | | Connectors | 1 x RJ45, Ad-1
1 x RJ45, MCU
1 x USB, firmware upgrade port
1 x DC power, cascade output
1 x DC IN 12V, power input | | Controls | 3 x button, high, mid, and slow
1 x switch, iris
1 x knob, shutter
1 x T-bar, iris value | | Indicators | 3 x LED, shutter modes
4 x LED, iris/shutter status
1 x 7-segment display screen | | Power | 12 VDC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Dimensions | 5.9 x 3.5 x 3.8" (15.0 x 9.0 x 9.8 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 10.1 x 5.7 x 5.1" |
