User Manual for Datavideo SDI Audio De-Embedding Box Click to enlarge the picture
Contents of the user manual for the Datavideo SDI Audio De-Embedding Box
- Product category: Embedders & De-Embedders Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Embedders & De-Embedders
 |
User manual for the Datavideo SDI Audio De-Embedding Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

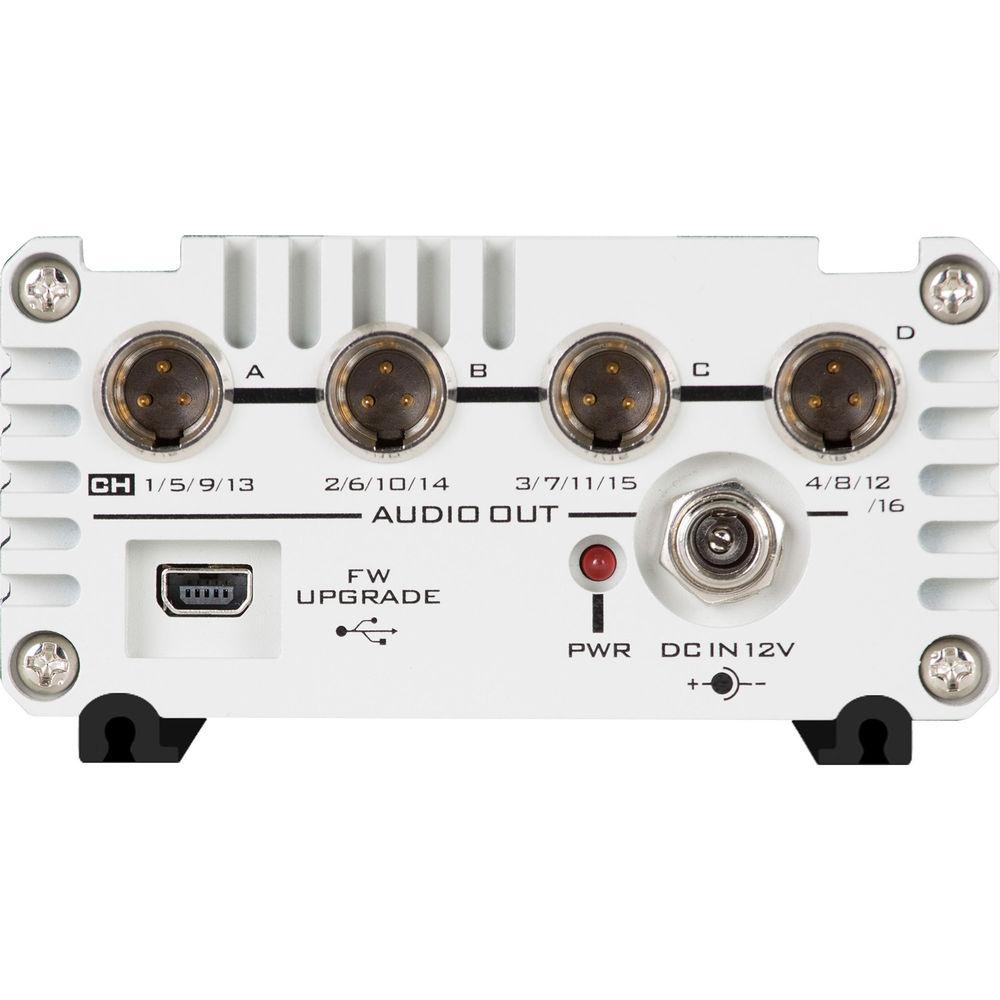

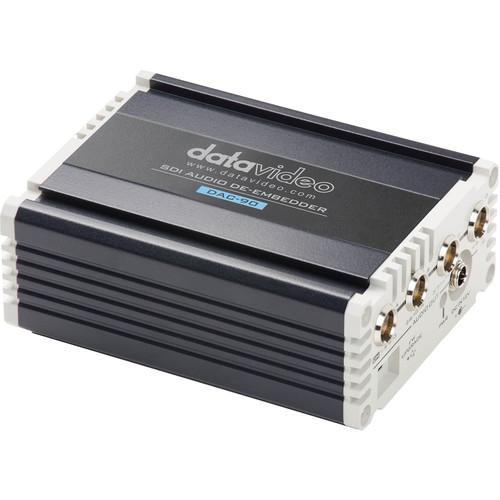

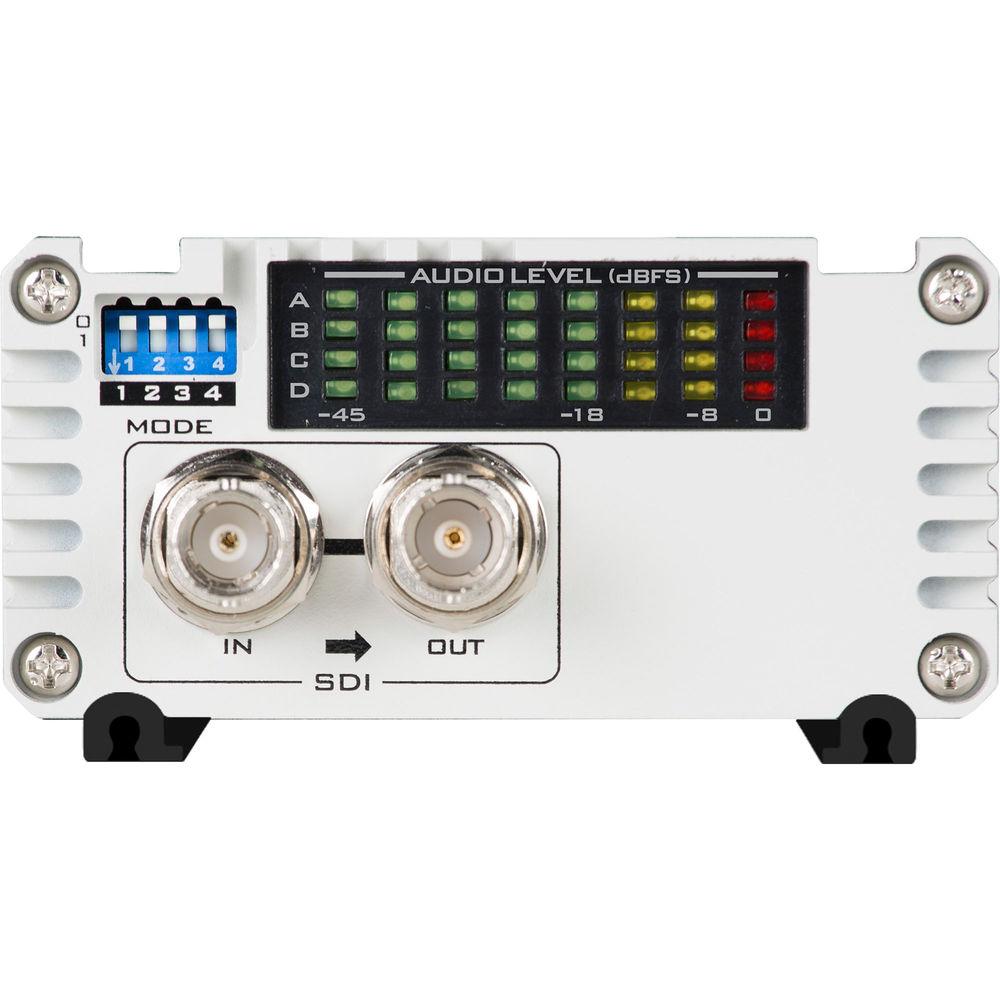

Product description The SDI Audio De-Embedding Box from Datavideo allows the user to de-embed 16 analog audio signals (four at a time) from the SDI video signal. It features 3G/HD/SD-SDI to support up to 1080p60 video format and automatically detects and switches between different formats. In addition, 4 mini XLR audio connectors are provided to output analog audio to audio devices such as monitors, recorders, switchers, and audio mixers. SMPTE and EBU settings are available on the audio box and assignments of the de-embedded audio signal are set using the built-in DIP switches. -
- Audio de-embedding from SDI signal
- Automatic detection of 3G, HD, and SD signals
- 4 analog Mini XLR audio outputs
- Assignable de-embedded audio signals
- Audio level indicator display
- Switchable SMPTE and EBU audio levels
- Control via DIP switches
UPC: 672255004197 In the Box Datavideo SDI Audio De-Embedding Box Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SDI Audio De-Embedding Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo DAC-90 Specs | | | SDI Video Input | 3G/HD/SD SDI x 1 | | SDI Video Output | 3G/HD/SD SDI x 1 (Re-clocked Loop through) | | Analog Audio Output | Mini XLR (Balanced) x 4 | | Audio Indicators | Power LED x 1 Audio Level LED: 4 rows | | Updates and Configuration | Mini-USB x 1 | | | | SDI Format Support | SD:
NTSC 525/29.97 and PAL 625/25
HD: 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 23.98/24/25/29.97/30/50/59.94/60 | | SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M-AB ITU-R BT.656, ITU-R BT.1120-6 | | SDI Video Rates | SDI video connections are switchable between standard definition and high definition | | SDI Video Sampling | 4:2:2 / 4:4:4 | | SDI Audio Sampling | 24-bit (SD 20-bit), 48 kHz | | SDI Color Precision | 4:2:2 / 4:4:4 (8/10/12-bit) | | SDI Color Space | YUV, RGB | | SDI Auto Switching | Automatically detects SD, HD, 3G | | Audio Level | SMPTE and EBU switchable | | | | Settings Control | DIP Switch | | Power Supply | 12 VDC | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 10 to 90% (noncondensing) | | Certification | CE, FCC | | Dimensions (W x H x L) | 3.3 x 0.2 x 4.4" (8.5 x 4.5 x 11 cm) | | Weight | 0.81 lb (0.37 kg) | | | | Package Weight | 1.57 lb | | Box Dimensions (LxWxH) | 8.25 x 6.0 x 3.1" |
