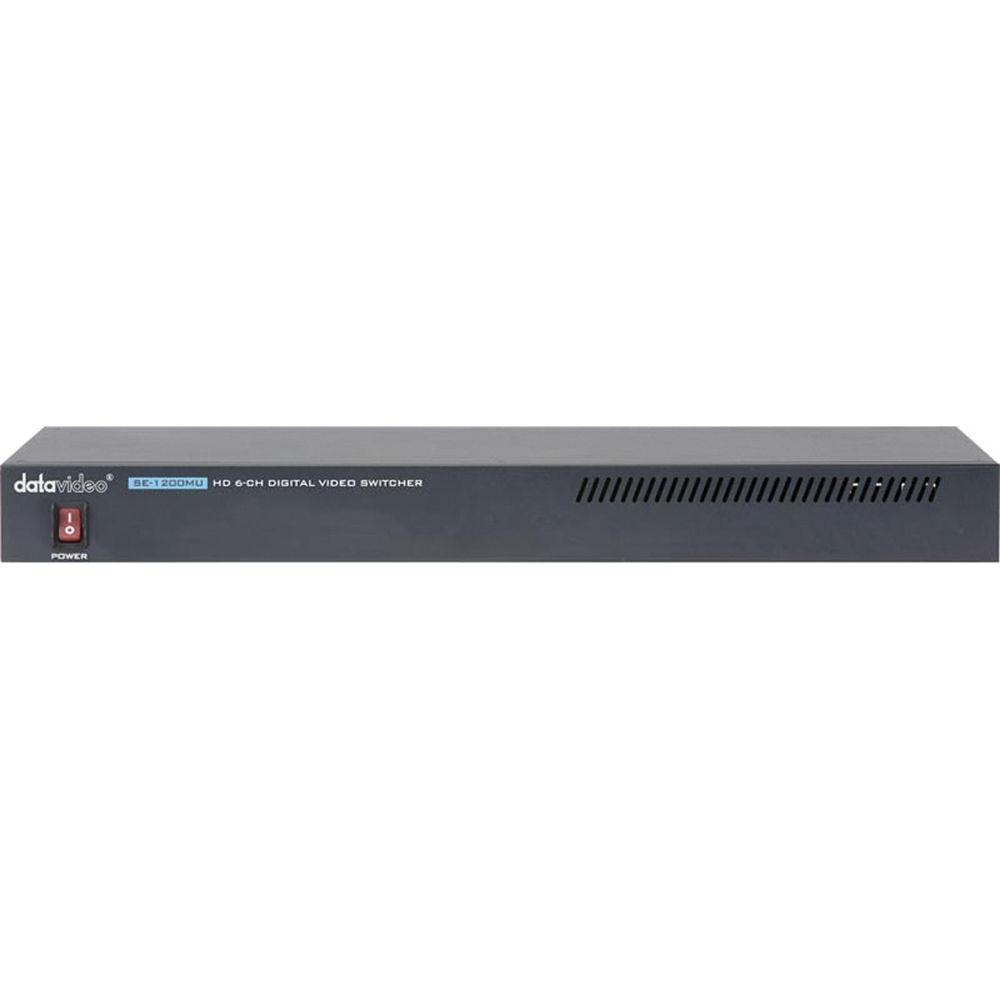

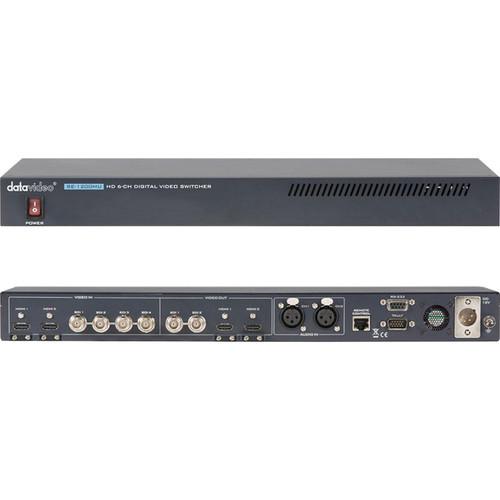

Product description At only 1RU in height, the Datavideo SE-1200MU 6 Input HD Digital Video Switcher is a small, portable, computer controlled switcher. Designed to be controlled using the front panel buttons, RS-422, or via a computer. An optional monitor is required to view your output. The unit supports 1080i and 720p video via 4 HD-SDI inputs and 2 HDMI inputs, with the HDMI inputs supporting computer signals.

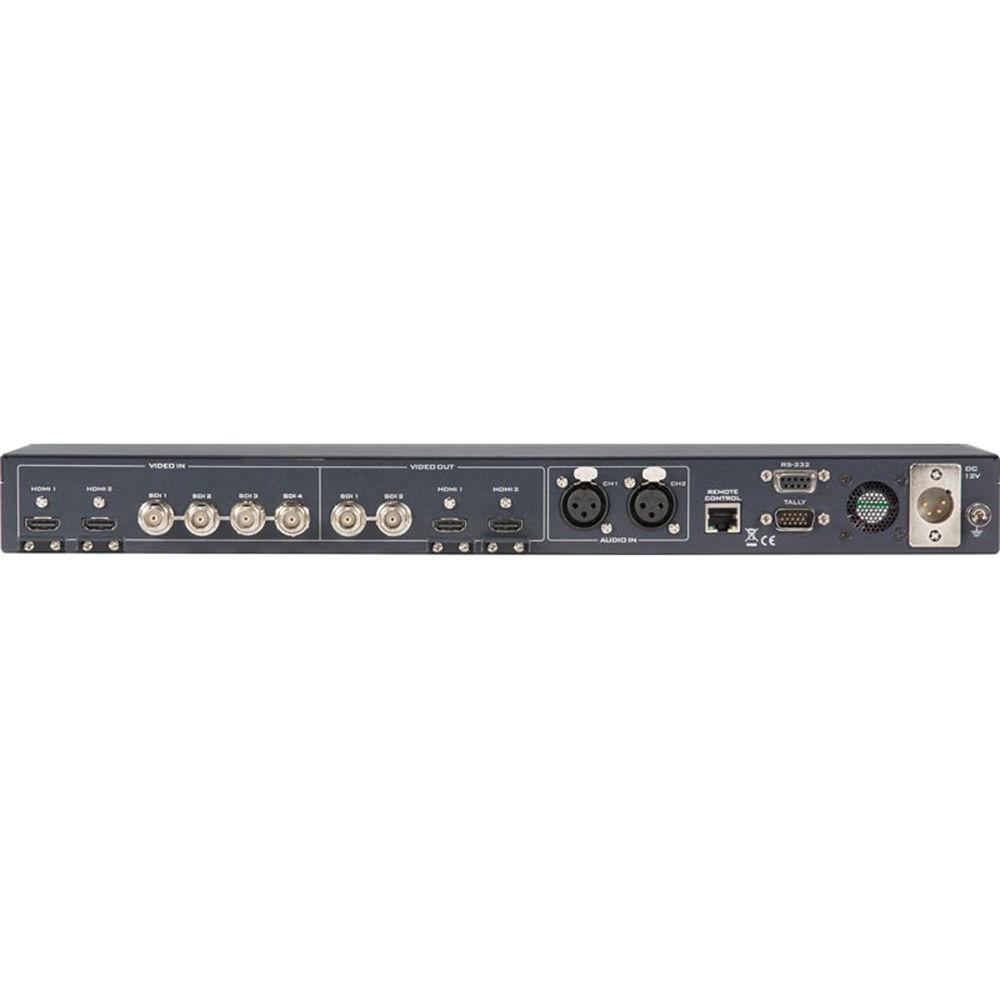

The SE-1200MU has 2 HD-SDI outputs and 2 assignable HDMI multi-view outputs. In terms of audio, there are 2 XLR mono inputs (1 stereo pair) and the switcher supports audio embedding of analog audio. The switcher supports Luma and linear keying with 2 downstream keyers, and has built-in effects including fade to black, straight cut, and 32 wipes with border. The internal frame synchronizer allows you to use consumer cameras with HDMI output and computers as input sources while making straight cuts without having the image jump, or requiring a fade to black. As you would expect with a switcher, this unit supports Tally indication on the multi-view output. -
- 6-Input high definition switcher
- 1RU rackmountable processing unit
- 4x HD-SDI and 2x HDMI inputs
- Re-configurable inputs
- 2x HD-SDI outputs
- 2x Assignable HDMI outputs for dual multi-view screens
- 32 Wipe effects with border options

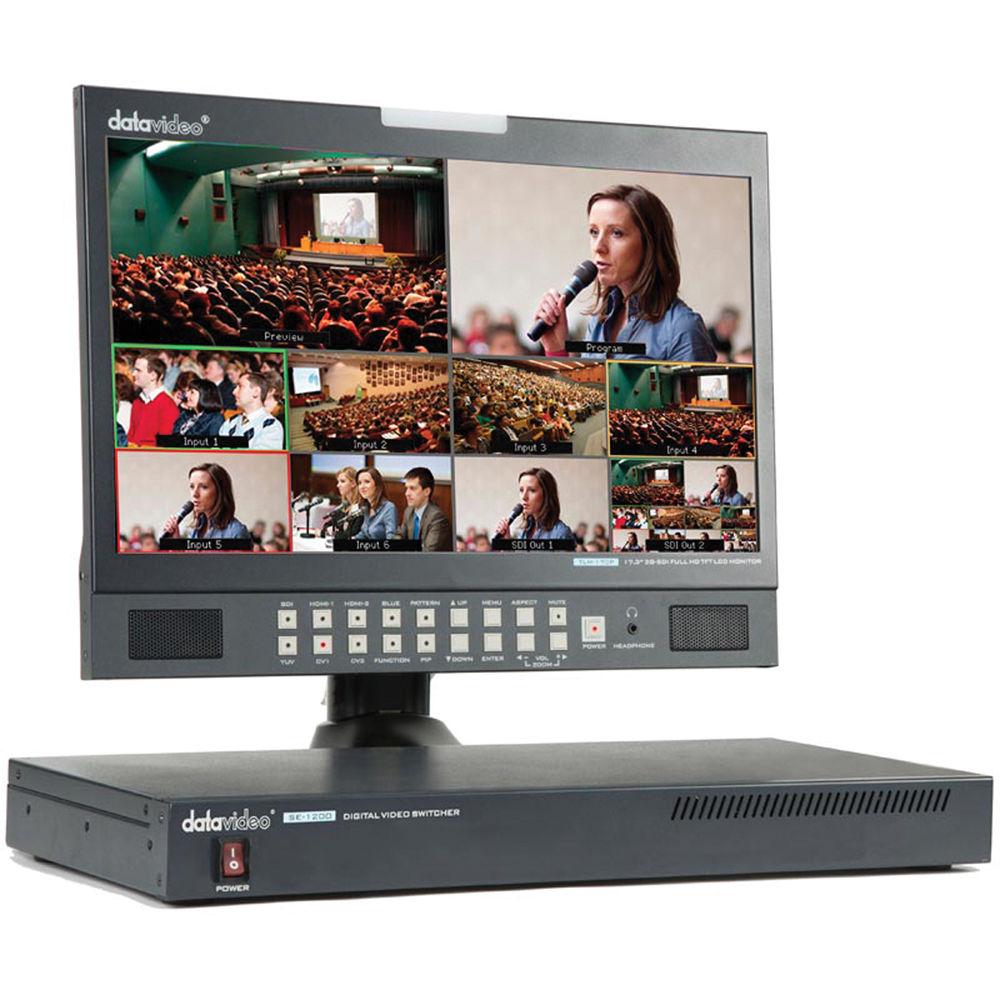

- Multi-view output
- Cross point assignment

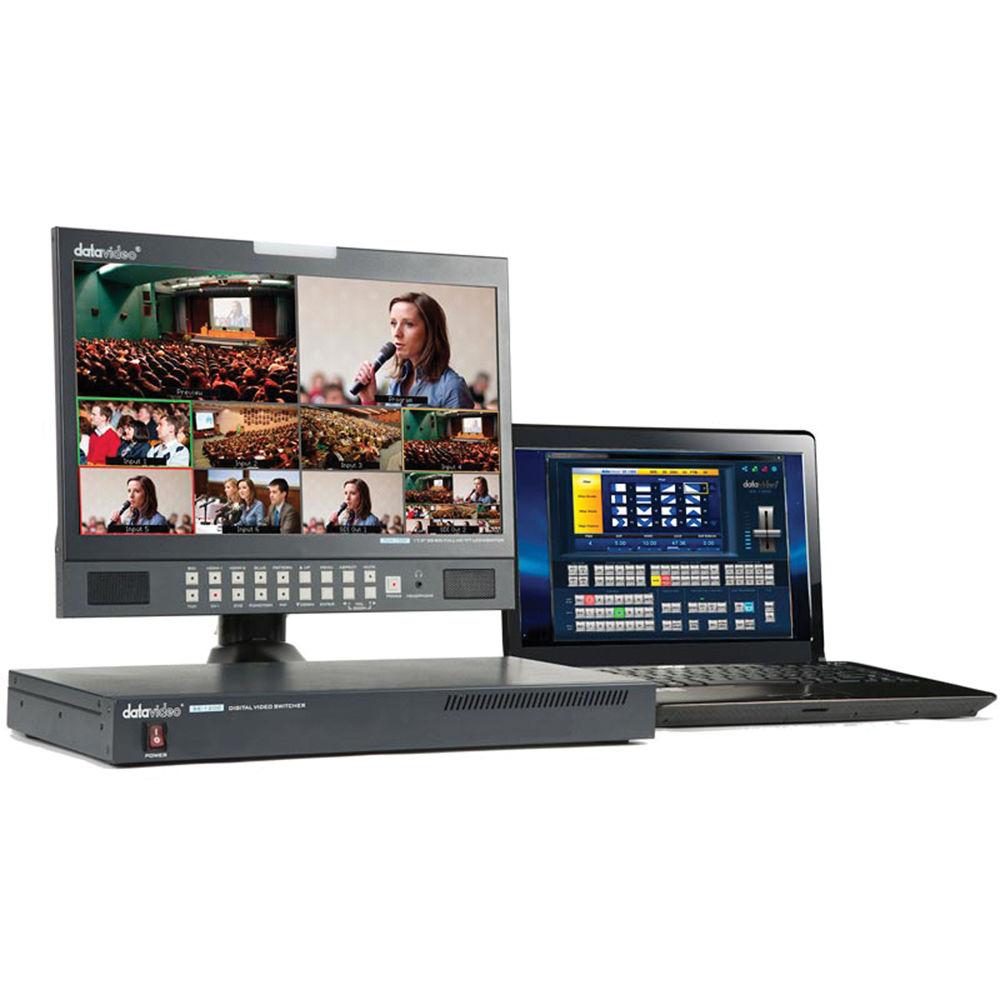

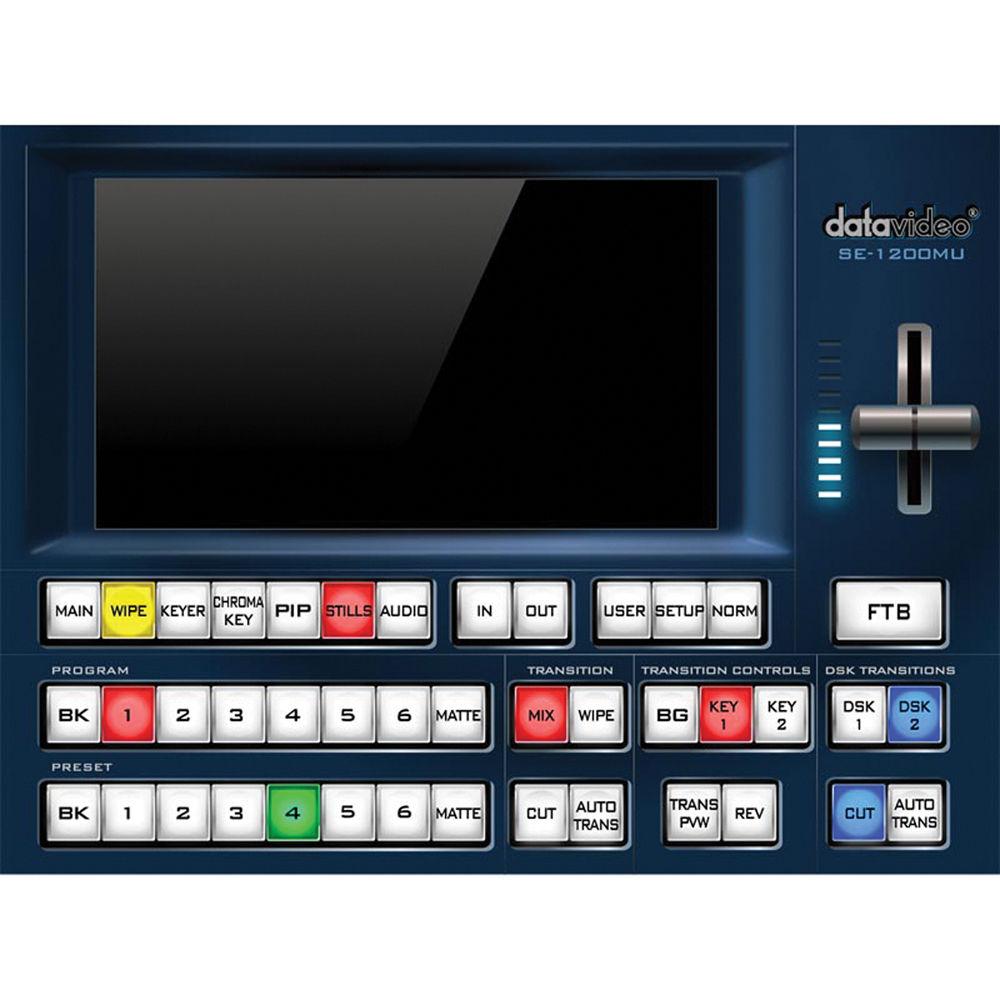

- PC remote control
- Tally output
- 12 VDC operation voltage
UPC: 672255006665 In the Box Datavideo SE-1200MU 6 Input HD Digital Video Switcher 12 VDC Power Adapter and Cord Limited 1-Year Warranty (2 Years with Product Registration) Quick start Guide PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-1200MU 6 Input HD Digital Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo SE-1200MU Specs | Channels | 6 | | Video Inputs | 4 x HD-SDI
2 x HDMI | | Video Outputs | 4 x HD-SDI
2 x HDMI (Multi-View PVW) | | Supported Input Resolutions | 1080i 50/59.94/60
720p 50/59.94/60 | | Audio Inputs | 2 x XLR (1 stereo pair) | | Audio Outputs | SDI embedded | | Embedded Audio | Supported | | Tally Output | 1 x D-sub 15-pin, dual color | | Control | RS-422
Ethernet (PC control with free Windows software) | | Power | 12 VDC, 30 W
| | Power Adapter | 100 to 240 VAC | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 21.3 x 14.6 x 6.7" |
