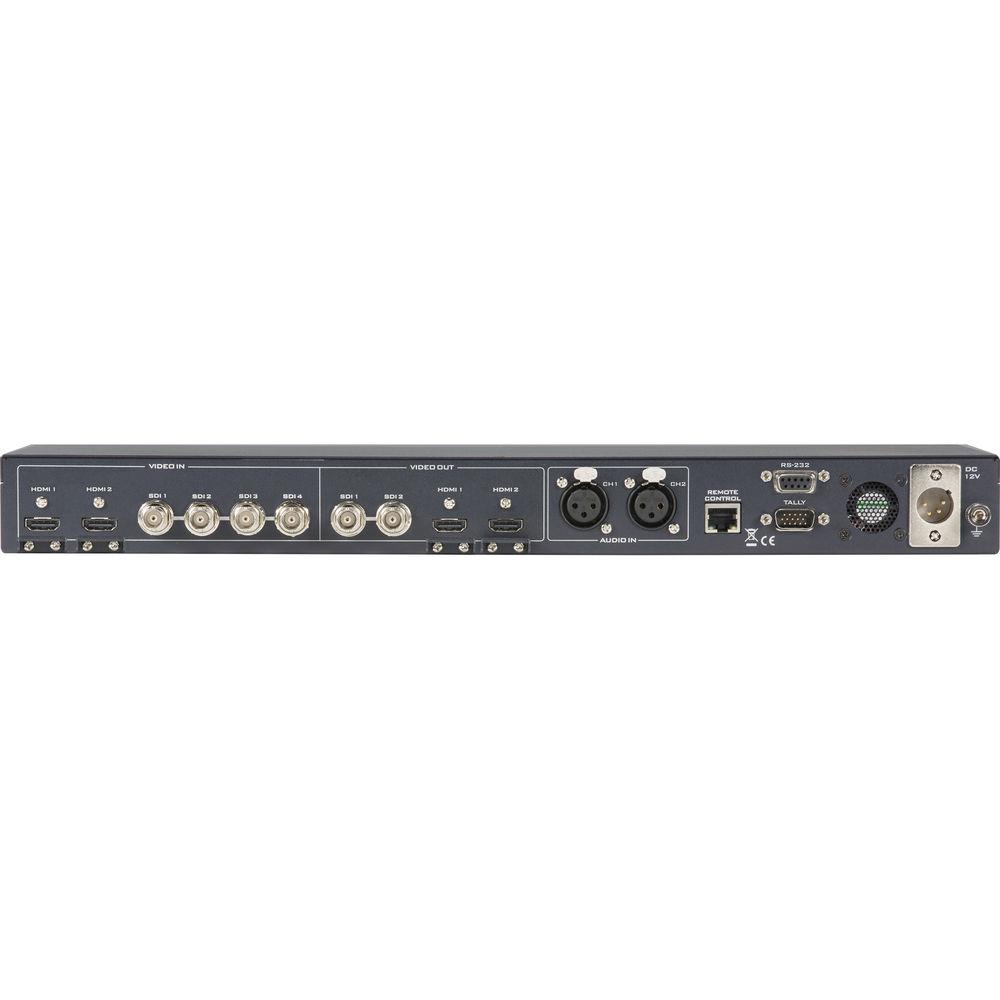

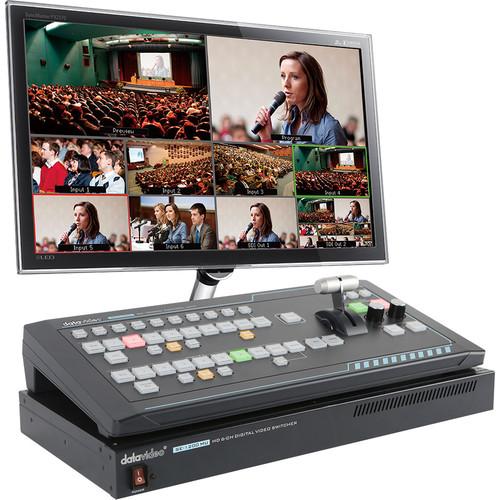

Product description The Datavideo SE-1200 Bundle is comprised of the SE-1200MU 6-Input HD Video Switcher plus the RMC-260 Controller. The two components of this bundle enable you to control multiple video sources and outputs by using an ergonomically-designed switcher. Employed in lieu of computer-based control, the RMC-260 Controller brings the solidity of a tactile interface to your use of the SE-1200MU 6-Input Switcher. The controller features clearly-labeled, LED-lit buttons and knobs, XPT (cross-point assignment), a sloped interface, and a T-bar lever. The SE-1200MU 6-Input Switcher features four HD-SDI and two HDMI inputs, two HD-SDI outputs, two assignable HDMI multi-view outputs, and chroma and luma key functions.The compact SE-1200MU switcher can be rack-mounted (1 RU), or it can fit neatly under the RMC-260 Controller in situations where space is limited. Note: A monitor (required to view your output) is not included in the bundle. - SE-1200MU 6 Input HD Digital Video Switcher At only 1RU in height, the Datavideo SE-1200MU 6 Input HD Digital Video Switcher is a small, portable, computer controlled switcher. Designed to be controlled using the front panel buttons, RS-422, or via a computer. An optional monitor is required to view your output. The unit supports 1080i and 720p video via 4 HD-SDI inputs and 2 HDMI inputs, with the HDMI inputs supporting computer signals.
The SE-1200MU has 2 HD-SDI outputs and 2 assignable HDMI multi-view outputs. In terms of audio, there are 2 XLR mono inputs (1 stereo pair) and the switcher supports audio embedding of analog audio. The switcher supports Luma and linear keying with 2 downstream keyers, and has built-in effects including fade to black, straight cut, and 32 wipes with border. The internal frame synchronizer allows you to use consumer cameras with HDMI output and computers as input sources while making straight cuts without having the image jump, or requiring a fade to black. As you would expect with a switcher, this unit supports Tally indication on the multi-view output. -
- 6-Input high definition switcher
- 1RU rackmountable processing unit
- 4x HD-SDI and 2x HDMI inputs
- Re-configurable inputs
- 2x HD-SDI outputs
- 2x Assignable HDMI outputs for dual multi-view screens
- 32 Wipe effects with border options
- Multi-view output
- Cross point assignment
- PC remote control
- Tally output
- 12 VDC operation voltage

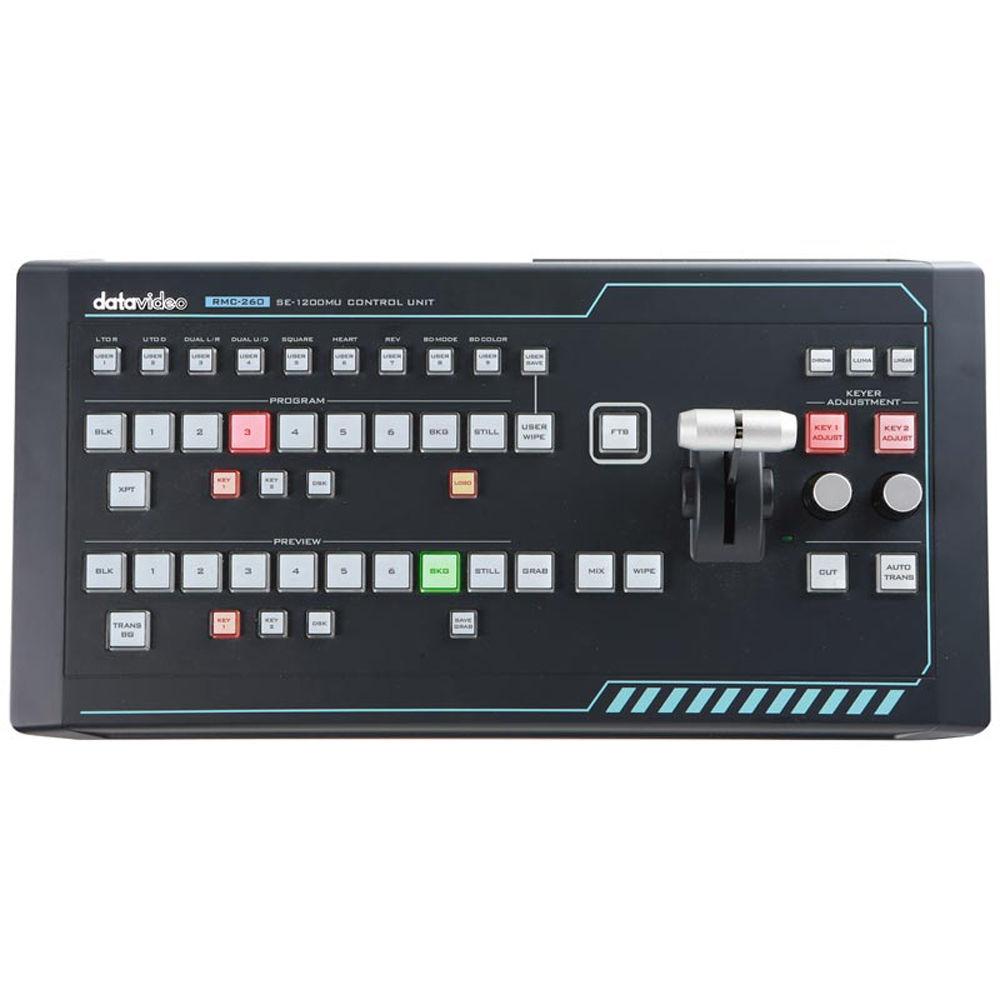

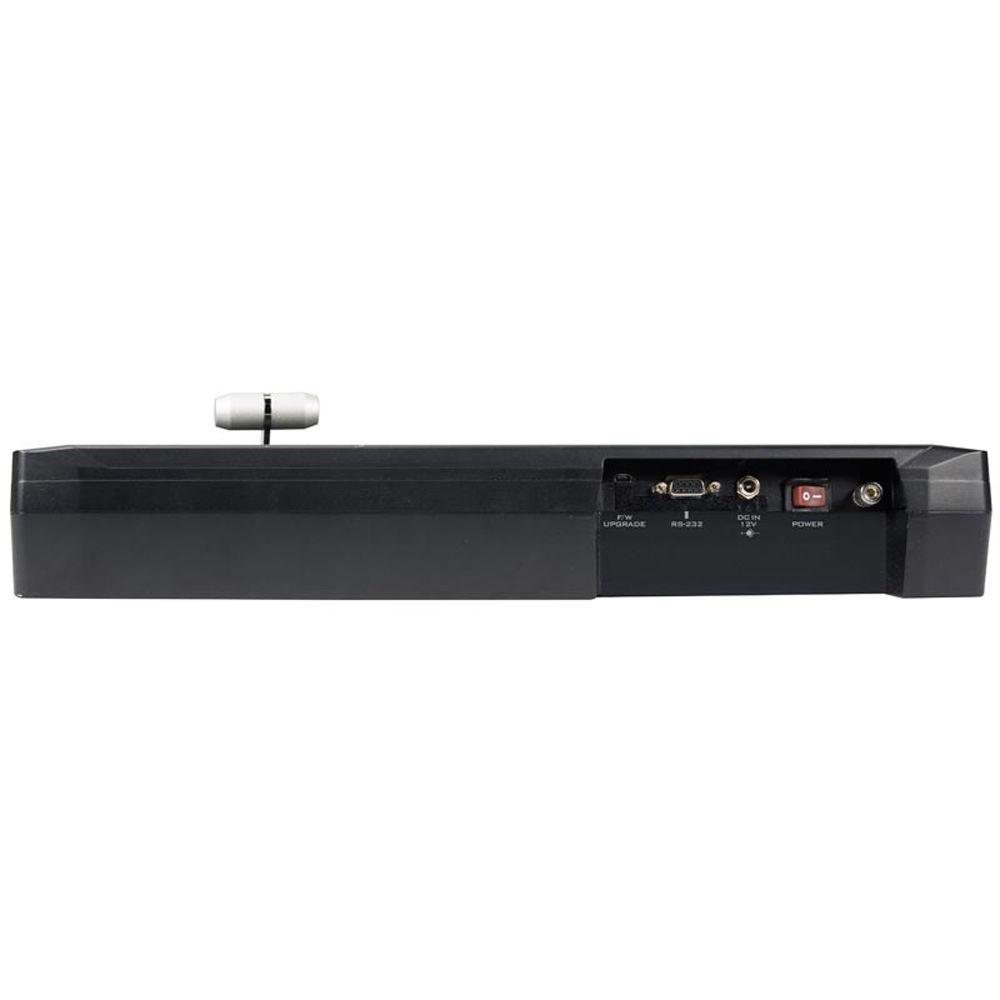

UPC: 672255006665 - RMC-260 Remote Control for SE-1200MU Digital Video Switcher The RMC-260 Remote Control from Datavideo is used for controlling the SE-1200MU Digital Video Switcher (switcher not included) via an RS-232 interface. With hard keys for the main switcher functions and on-screen menu controls for quick and easy adjustment of parameters in the field, the RMC-260 is designed for effortless switching. The RMC-260 can be used with or without the PC Control Software, although the software must be used for upgrades and for import/export of user memory settings, stills, and clips.
- Support for keyers enable and quick function assignment
- Allows you to save user behaviour using the user memory keys for quick access
- Two keyers with two corresponding knobs for assignment of keyer 1/2 sources
- XPT (cross-point assignment)
- Take button to switch between PVW and PGM views
- FTB button fades the PGM view to a black screen
- Still Grab function for capturing instantaneous video image
- RS-232 interface for communication between RMC-260 and SE-1200MU
UPC: 672255007006 In the Box Bundle Items SE-1200MU 6 Input HD Digital Video Switcher zzbrzaudux - 12 VDC Power Adapter and Cord
- Limited 1-Year Warranty (2 Years with Product Registration)
RMC-260 Remote Control for SE-1200MU Digital Video Switcher - Limited 1-Year Warranty, Additional Year If Registered within 30 Days of Purchase
Also Includes - Limited 1-Year Warranty (2-Year with Product Registration)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-1200MU 6-Input Switcher and RMC-260 Controller Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SE-1200MU 6 Input HD Digital Video Switcher
| Channels | 6 | | Video Inputs | 4 x HD-SDI
2 x HDMI | | Video Outputs | 4 x HD-SDI
2 x HDMI (Multi-View PVW) | | Supported Input Resolutions | 1080i 50/59.94/60
720p 50/59.94/60 | | Audio Inputs | 2 x XLR (1 stereo pair) | | Audio Outputs | SDI embedded | | Embedded Audio | Supported | | Tally Output | 1 x D-sub 15-pin, dual color | | Control | RS-422
Ethernet (PC control with free Windows software) | | Power | 12 VDC, 30 W
| | Power Adapter | 100 to 240 VAC | | | | Box Dimensions (LxWxH) | 21.3 x 14.6 x 6.7" | - RMC-260 Remote Control for SE-1200MU Digital Video Switcher
| Communication Interface | RS-232 | | Baud Rate | 19200 ODD | | Firmware Updates | Via USB | | Certification | CE, FCC | | Power Supply | Input: 100 to 240 VAC Switching adapter
Output: 12 VDC | | Power Consumption | 5 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Humidity | 10 to 90% (Non-condensing) | | Dimensions | 16.9 x 8.5 x 2.7" / 43.0 x 21.7 x 6.9 cm | | Weight | 2.8 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 21.6 x 11.4 x 8.9" |
