Product description

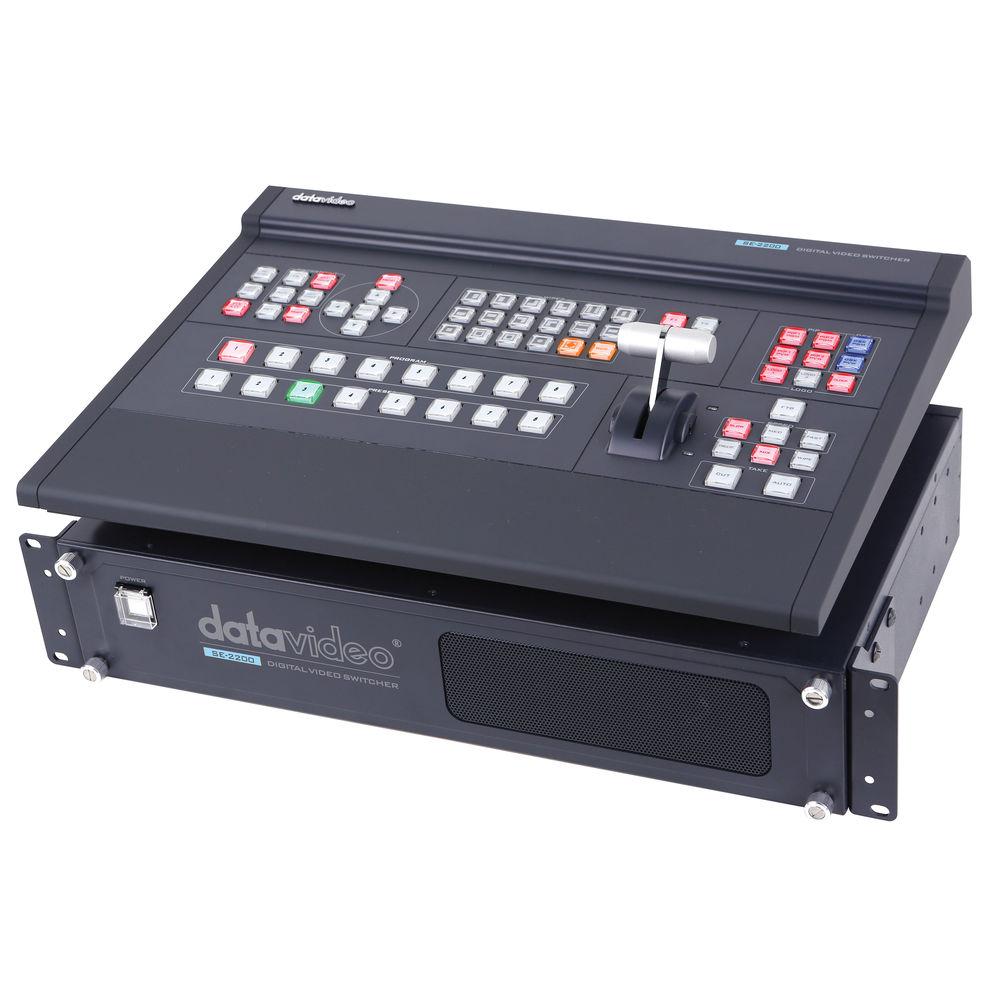

• SE-2200 Video Switcher with HD-SDI and HDMI Inputs The Datavideo SE-2200 HD-SDI and HDMI Video Switcher is a 6-input switcher consisting of control panel and separate rack-mountable processing unit. It accepts resolutions up to 1080i60 from a combination of six HD-SDI and two HDMI inputs. The HDMI inputs work with DVI computer signals, while the SDI inputs are useful for long capable runs and connecting professional video equipment. All of the inputs are re-assignable.

  The SE-2200 has six assignable HD-SDI outputs and two HDMI multi-view outputs. The SDI outputs can be Program, Program with Logo, Program with Logo and Titles, or Preview. Dual Picture-in-Picture support lets you display up to two other video sources in smaller screens over the main program output. In terms of audio, there are four XLR mono inputs (two stereo pairs) and two XLR mono outputs (one stereo pair). The switcher also supports audio embedding to the HD-SDI outputs.

  A built-in TC-200 Character Generator lets one of the HDMI inputs be used to accept video from a computer with Datavideo's CG-200 software installed for title creation. You can also bring in graphics from presentaion software, such as PowerPoint, and take advantage of the switcher's Luma key feature. Additional professional features include 16 wipe transitions with border options, on-screen clock and countdown display, tally support, and RS-232 or RS-422 control. A 12VDC power adapter and cord come included.
  • • 6-Input multi-definition switcher
    • Control panel with separate, rackmountable processing unit
    • 4x HD-SDI and 2x HD-SDI or HDMI inputs
    • Re-configurable inputs
    • 6x Assignable HD-SDI outputs
    • 2x HDMI outputs for dual multi-view screens
    • 16 Wipe effects with border options
    • On-screen clock
    • Countdown counter
    • Dual Picture-in-Picture
    • Built-in TC-200 Title Creator (Use with a laptop and CG-200 software to create titles)
    • Cross point assignment
    • PC remote control
    • Tally output (compatible with ITC-100 with optional cable)
    • 12VDC operation voltage
  UPC: 672255005354

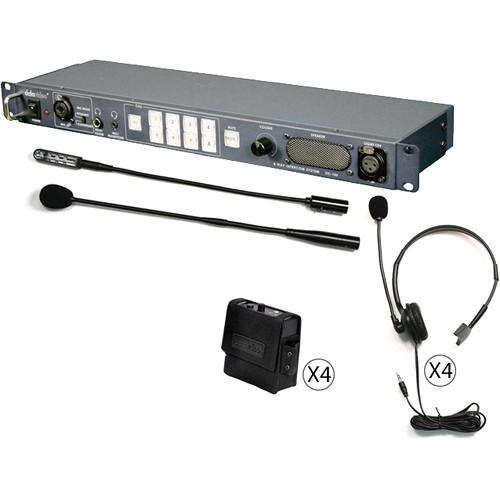

• ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.

  Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.
  • Supports up to 8 wired users
  • Uses your choice of headsets, from low-cost cell phone sets to high-quality professional units
  • Uses cables up to 984 ft to connect beltpacks
  UPC: 672255001684

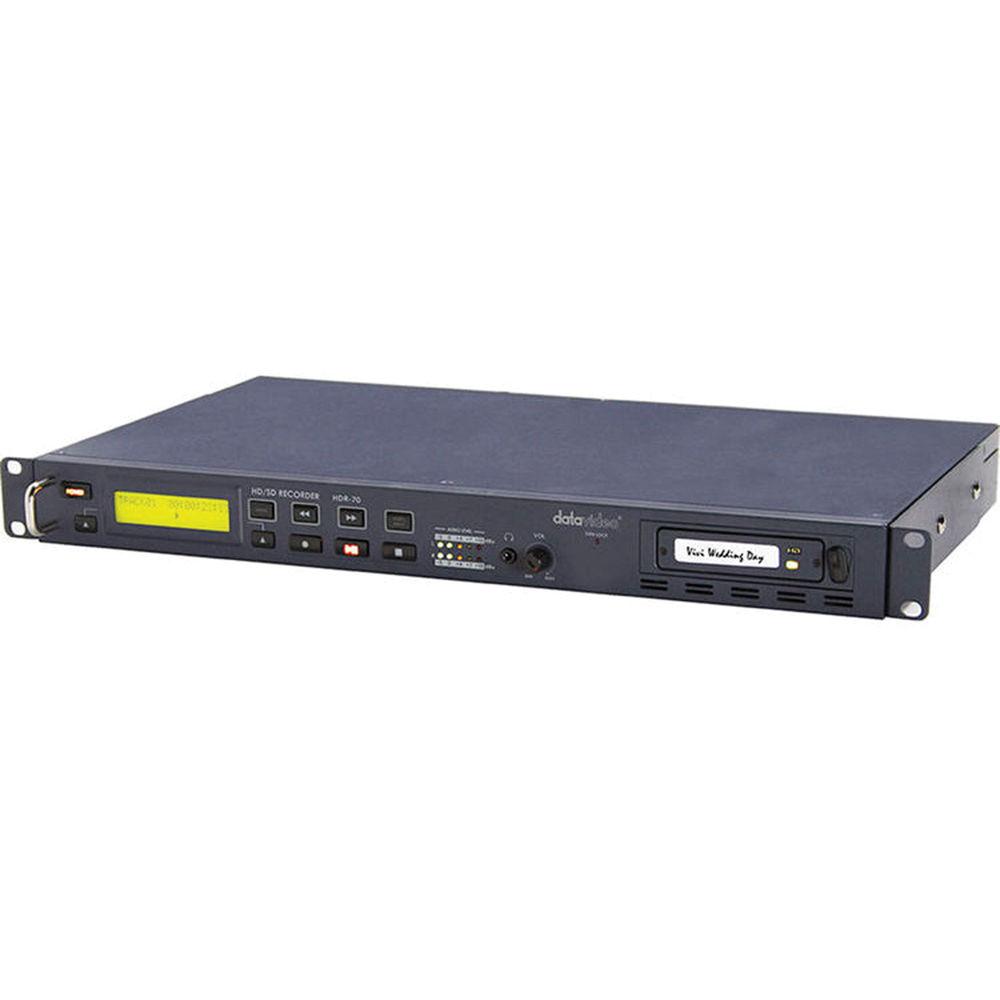

• HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay The DataVideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay is a rack mountable video recorder for studio control rooms or video production trucks. It records NTSC, PAL, and HD video signals and features an SD/HD-SDI input and two mini-XLR recording to 2.5" form factor HDD or SSDs in a removable drive caddy. The HDR-70 features selectable color sampling ratio and data rate settings. This compact unit features a small footprint and is made from painted aluminum for strength. The front panel buttons provide you local tape deck like control of the unit, with built-in led audio level meters. The HDR-70 features two XLR inputs and outputs for balanced audio.

  The included drive caddy supports available drives (both HDD and SSD) up to 500GB, and once removed from the HDR-70 the enclosures can be connected directly to a computer via the built-in USB 2.0 or eSata interface for off loading or editing directly from the drive. The unit writes to the NTFS file format system, which makes the drive readable by both Mac and Windows systems and avoids the 4GB file size limitation of FAT32 systems. For remote control, the HDR-70 features a 9-pin connector that allows control by RS-232 or RS-422. The unit is powered by 12 volts DC, and the cable connector features a locking collar so the power cable can't be accidentally unplugged.

  HDR-70 Video Support

  • NTSC and PAL video and HD video including 1080p, 1080i and 720p
  • Reference In/Out Black Burst and Tri-level sync
  • Timecode input/outputs, and gen-lock input and pass-through
  • SD/HD-SDI input, with SD/HD-SDI outputs with 8-channels of embedded audio
  • The HDMI output uses a full sized connector and features 4 channels of embedded audio. There is also a nifty cable tie platform under the HDMI connector that you can use to secure the HDMI connector to the unit with available cable ties.
  • The front panel features local control buttons and a built-in headphone jack with volume knob

  Features

  • LCD menu screen
  • Lockable drive bay.
  • Timelapse recording feature
  • Power on record/play
  • Media files are made on the fly with no rendering required.
  • In the event of power loss during recording, only the last two seconds of your recording are lost
  • Removable rack mount ears (ships unattached)
  • Removable rubber feet (ships attached)
  UPC: 672255004111

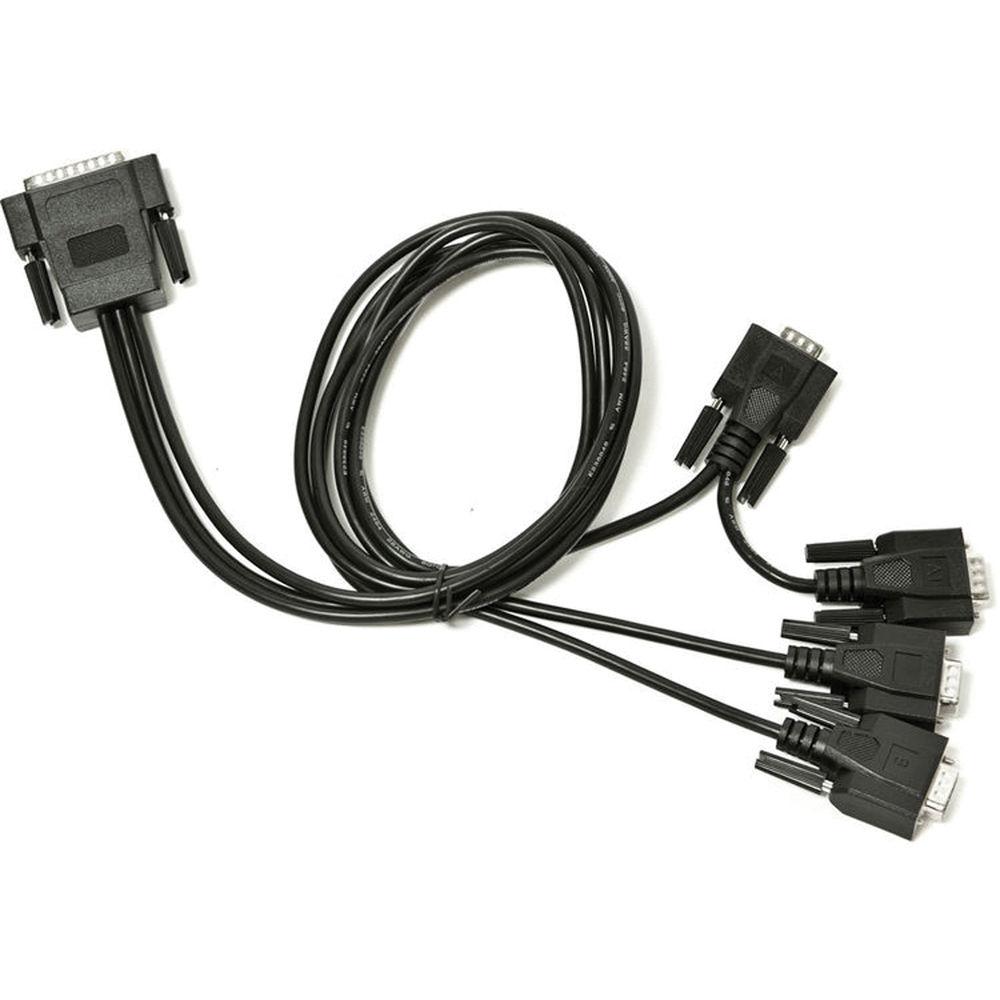

• CB-28 Tally Cable for SE-2800 Switcher & ITC-100 Intercom/Tally System (41") The 41" CB-28 Tally Cable from Datavideo is designed to connect the ITC-100 Intercom System to the SE-2800 Switcher. UPC: 672255003688

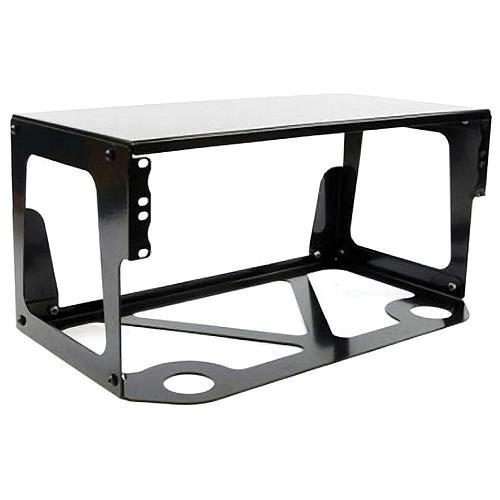

• RKM-2000 Holder for SE-2000 The Datavideo RKM-2000 Holder for SE-2000 serves as a convenient platform for placing the monitor and it can also house a 1RU x 19" device like the HDR-50 recorder. The ITC-100 intercom can be mounted in the RKM2000 holder. Designed for small, live production venues, the SE-2000 switcher kit can be conveniently mounted into the holder without the need for an additional platform or stand. With the RKM-2000 holder, operating the SE-2000 is fast because every control is easily accessible on the work surface.
  • Accepts a 1RU x 19" device
  • Provides a convenient platform for the monitor
  • Can house HDR-50 of the SE-2000 HDR kit
  • Can house ITC-100 intercom of the SE-2000 ITC video switcher kit
  UPC: 672255002636

• SE-2200 Processor

• SE-2200 Control Panel

• 12VDC Power Adapter and Cord

• Limited 1-Year Warranty (2 Years with Product Registration)

• ITC-100 Base Station

• 4 x ITC-100SL Beltpacks

• 4 x MC-1 Headsets

• 4 x 5-Pin XLR to XLR Cables (65'/20m)

• 4 x TD-3 Camera Tally Lights

• 4 x 3.5 mm Jack to 3.5 mm Jack Cables

• XLR Gooseneck Microphone

• XLR Gooseneck Light

• Power Supply Unit

• Limited 1-Year Warranty (Limited 3-Year Warranty with Online Registration)

• 320 GB HDD

2 x
• HDD25 2.5" Hard Disk Drive Enclosure

• 2 x Rack Mount Ears

• Power Adapter & Cable

• Limited 1-Year Warranty, Extendable to 2-Years with Product Registration within 30 Days of Purchase
  Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first)

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SE-2200 Video Switcher with HD-SDI and HDMI Inputs

  Channels	6
  Video Inputs	4 x HD-SDI 2 x HD-SDI or HDMI (selectable)
  Video Outputs	6 x HD-SDI (assignable) 2 x HDMI (Multi-View PVW)
  Supported Input Resolutions	1080i 50/59.94/60 720p 50/59.94/60
  Audio Inputs	4 x XLR (2 stereo pair)
  Audio Outputs	2 x XLR (1 stereo pair)
  Embedded Audio	Supported
  Tally Output	1 x DB25
  Control	RS-232, RS-422
  Power	12 VDC, 5 A, 48 W
  Power Adapter	100 to 240 VAC
  Dimensions (W x H x D)	Processor: 19.0 x 3.5 x 11.9" (48.2 x 8.8 x 30.2 cm) Control Panel: 27.54 x 5.67 x 17.19" (69.94 x 14.39 x 43.66 cm)
  Weight	Processor: 19.84 lb Control Panel: 10 lb

  Box Dimensions (LxWxH)	21.7 x 15.1 x 12.7"

• ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets

  Frequency Response	550 Hz - 3.6 kHz <±3 dB
  Total Harmonic Distortion (THD)	<3%
  Signal to Noise Ratio	>50 dB
  Operating Range	Up to 660' (200 m) Between Base Station and Slave
  Connectors	1 x 12 V 1.5A Power Input 2 x 15-Pin Sub-D Tally Connectors 1 x 3.5mm Stereo Headphone/Mic Combo Jack 1 x 1/4" Stereo Headphone Jack 1 x 3-Pin XLR Light Socket 1 x XLR/TRS Combo Mic Input
  Speaker	2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms)
  Operating Temperature	41 to 104° (5 to 40°C)
  Dimensions	1 RU
  Weight	4.2 lbs (1.9 kg)

  Box Dimensions (LxWxH)	20.5 x 15.0 x 8.5"

• HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay

  Material of Construction	Painted aluminum
  Interface (Inputs/Outputs)	USB 2.0 eSata
  Internal Interface	SATA
  Drive Compatibility	HDD: Western digital, Fujitsu, Hitachi Compatible with SSD
  Power	5VDC
  Dimensions	6 x 5 x 1" (15.2 x 12.7 x 2.5 cm)
  Weight	1 lb (0.5 kg)

  Signal System	HD NTSC PAL
  Supported Video Formats	1080p 24/23.98 1080i 60/59.94/50 720p 60/59.94/50 NTSC PAL
  Recording Formats	HD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 SD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 Audio PCM, 24-bit, 8 channels, 48kHz
  Data Rates	HD 10 to 25Mb/s, 4:2:0 35 to 100Mb/s, 4:2:2 SD 8Mb/s, 4:2:0 15 to 50Mb/s, 4:2:2
  Inputs	Video: 1 x SD/HD-SDI Audio: 2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels) GPI 1 x mini-XLR Timecode 1 x BNC Black Burst/Sync 1 x BNC
  Outputs	Video: 1 x SD/HD-SDI 1 x SD/HD-SDI (loop through) 1 x HDMI Audio: 2 x Balanced stereo mimi-XLR (analog, stereo pair 2-channels) Timecode 1 x BNC Black Burst/Sync 1 x BNC
  Control Interface	RS 422, RS 232 9-pin DIN
  Recording Time	250GB Hard Drive 5 Mb/s: 111 hours 10 Mb/s: 55 hours 15 Mb/s: 37 hours 20 Mb/s: 27 hours 40 Mb/s: 15 hours 60 Mb/s: 9 hours 320GB Hard Drive 5 Mb/s: 142 hours 10 Mb/s: 70 hours 15 Mb/s: 47 hours 20 Mb/s: 35 hours 40 Mb/s: 19 hours 60 Mb/s: 12 hours 500GB Hard Drive 5 Mb/s: 220 hours 10 Mb/s: 111 hours 15 Mb/s: 74 hours 20 Mb/s: 55 hours 40 Mb/s: 27 hours 60 Mb/s: 18 hours
  File Format	MXF/OP1A
  File System Format	NTFS
  Recording Limit	99 bins 99 clips per bin
  Material of Construction	Painted aluminum
  Rack Height	2RU
  Power Requirements	12VDC
  Power Consumption	16W
  Dimension L x W x H	17.3 x 11.4 x 1.9" (44 x 29 x 4.9 cm)
  Weight	7 lbs. (3.17 kg)

  Box Dimensions (LxWxH)	21.4 x 14.6 x 6.7"

• CB-28 Tally Cable for SE-2800 Switcher & ITC-100 Intercom/Tally System (41")

  Length	41.0" (104.14 cm)
  Connector Type	25-pin DIN to 15-pin DIN

  Box Dimensions (LxWxH)	6.2 x 4.6 x 1.8"

• RKM-2000 Holder for SE-2000

  Box Dimensions (LxWxH)	20.9 x 12.8 x 5.4"
