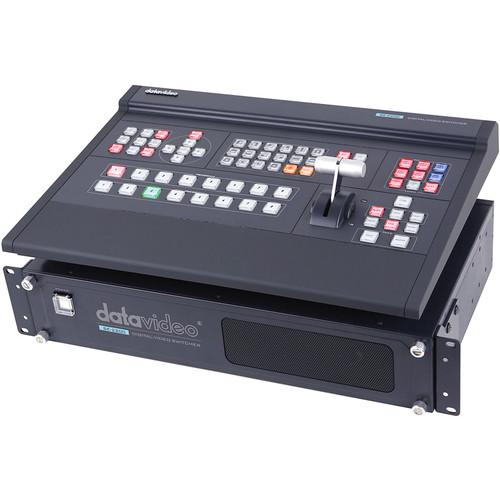

Product description The Datavideo SE-2200 HD-SDI and HDMI Video Switcher is a 6-input switcher consisting of control panel and separate rack-mountable processing unit. It accepts resolutions up to 1080i60 from a combination of six HD-SDI and two HDMI inputs. The HDMI inputs work with DVI computer signals, while the SDI inputs are useful for long capable runs and connecting professional video equipment. All of the inputs are re-assignable.
The SE-2200 has six assignable HD-SDI outputs and two HDMI multi-view outputs. The SDI outputs can be Program, Program with Logo, Program with Logo and Titles, or Preview. Dual Picture-in-Picture support lets you display up to two other video sources in smaller screens over the main program output. In terms of audio, there are four XLR mono inputs (two stereo pairs) and two XLR mono outputs (one stereo pair). The switcher also supports audio embedding to the HD-SDI outputs.
A built-in TC-200 Character Generator lets one of the HDMI inputs be used to accept video from a computer with Datavideo's CG-200 software installed for title creation. You can also bring in graphics from presentaion software, such as PowerPoint, and take advantage of the switcher's Luma key feature. Additional professional features include 16 wipe transitions with border options, on-screen clock and countdown display, tally support, and RS-232 or RS-422 control. A 12VDC power adapter and cord come included. -
- 6-Input multi-definition switcher
- Control panel with separate, rackmountable processing unit
- 4x HD-SDI and 2x HD-SDI or HDMI inputs
- Re-configurable inputs
- 6x Assignable HD-SDI outputs
- 2x HDMI outputs for dual multi-view screens
- 16 Wipe effects with border options
- On-screen clock
- Countdown counter
- Dual Picture-in-Picture
- Built-in TC-200 Title Creator (Use with a laptop and CG-200 software to create titles)
- Cross point assignment
- PC remote control
- Tally output (compatible with ITC-100 with optional cable)
- 12VDC operation voltage
UPC: 672255005354 In the Box Datavideo SE-2200 Video Switcher with HD-SDI and HDMI Inputs SE-2200 Processor SE-2200 Control Panel 12VDC Power Adapter and Cord Limited 1-Year Warranty (2 Years with Product Registration) Quick start Guide PDF 5.1mbxxfzqzaxwcfrsbfdxwqxtdzsefacz Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-2200 Video Switcher with HD-SDI and HDMI Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo SE-2200 Specs | Channels | 6 | | Video Inputs | 4 x HD-SDI
2 x HD-SDI or HDMI (selectable) | | Video Outputs | 6 x HD-SDI (assignable)
2 x HDMI (Multi-View PVW) | | Supported Input Resolutions | 1080i 50/59.94/60
720p 50/59.94/60 | | Audio Inputs | 4 x XLR (2 stereo pair) | | Audio Outputs | 2 x XLR (1 stereo pair) | | Embedded Audio | Supported | | Tally Output | 1 x DB25 | | Control | RS-232, RS-422 | | Power | 12 VDC, 5 A, 48 W
| | Power Adapter | 100 to 240 VAC | | Dimensions (W x H x D) | Processor: 19.0 x 3.5 x 11.9" (48.2 x 8.8 x 30.2 cm)
Control Panel: 27.54 x 5.67 x 17.19" (69.94 x 14.39 x 43.66 cm) | | Weight | Processor: 19.84 lb
Control Panel: 10 lb | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 21.7 x 15.1 x 12.7" |
