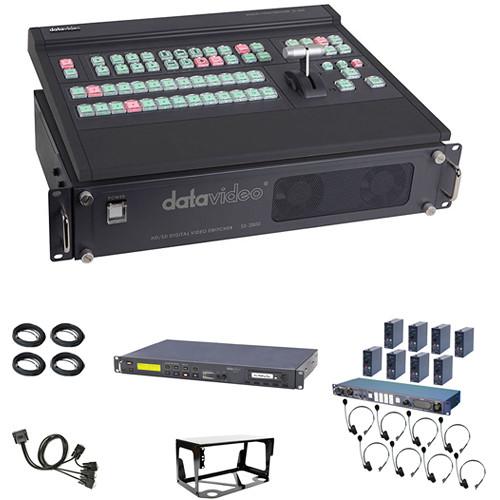

Datavideo SE-2800 Studio Switcher Kit

User Manual for Datavideo SE-2800 Studio Switcher Kit

• Product category: Production Switchers Datavideo
• Brand: Datavideo
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Datavideo Production Switchers

Product description

• Datavideo SE-2800 Video Switcher with up to 8 SDI, HDMI, or CV Inputs The Datavideo SE-2800 Video Switcher is a multi-definition switcher designed for event requiring up to 8 SD or HD input sources. This switcher is able to accept 8 total inputs in varying combinations of Interlaced SD/HD-SDI, HDMI, and CV sources. Input configurations are selectable via the internal menu.
  Video Inputs (Menu Selectable)
  • 8x HD/SD-SDI or
    6x HD/SD-SDI + 2x HDMI or
    4x HD/SD-SDI + 4x CV or
    4x HD/SD-SDI + 2x CV + 2x HDMI or
    2x HD/SD-SDI + 4x CV + 2x HDMI

    *Upgradable with 4 additional BNC ports to support 12 total inputs
  UPC: 672255003961
• Datavideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay The DataVideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay is a rack mountable video recorder for studio control rooms or video production trucks. It records NTSC, PAL, and HD video signals and features an SD/HD-SDI input and two mini-XLR recording to 2.5" form factor HDD or SSDs in a removable drive caddy. The HDR-70 features selectable color sampling ratio and data rate settings. This compact unit features a small footprint and is made from painted aluminum for strength. The front panel buttons provide you local tape deck like control of the unit, with built-in led audio level meters. The HDR-70 features two XLR inputs and outputs for balanced audio.

  The included drive caddy supports available drives (both HDD and SSD) up to 500GB, and once removed from the HDR-70 the enclosures can be connected directly to a computer via the built-in USB 2.0 or eSata interface for off loading or editing directly from the drive. The unit writes to the NTFS file format system, which makes the drive readable by both Mac and Windows systems and avoids the 4GB file size limitation of FAT32 systems. For remote control, the HDR-70 features a 9-pin connector that allows control by RS-232 or RS-422. The unit is powered by 12 volts DC, and the cable connector features a locking collar so the power cable can't be accidentally unplugged.

  HDR-70 Video Support

  • NTSC and PAL video and HD video including 1080p, 1080i and 720p
  • Reference In/Out Black Burst and Tri-level sync
  • Timecode input/outputs, and gen-lock input and pass-through
  • SD/HD-SDI input, with SD/HD-SDI outputs with 8-channels of embedded audio
  • The HDMI output uses a full sized connector and features 4 channels of embedded audio. There is also a nifty cable tie platform under the HDMI connector that you can use to secure the HDMI connector to the unit with available cable ties.
  • The front panel features local control buttons and a built-in headphone jack with volume knob

  Features

  • LCD menu screen
  • Lockable drive bay.
  • Timelapse recording feature
  • Power on record/play
  • Media files are made on the fly with no rendering required.
  • In the event of power loss during recording, only the last two seconds of your recording are lost
  • Removable rack mount ears (ships unattached)
  • Removable rubber feet (ships attached)
  UPC: 672255004111
• Datavideo ITC-100 8-User Wired Intercom System with 8 Beltpacks & 8 Headsets The ITC-100 8-User Wired Intercom System with 8 Beltbacks & 8 Headsets from Datavideo is a practical eight remote-user and base station intercom system with tally lights. Up to 8 users can be connected to the ITC-100 via wired beltpacks. Eight beltpacks, eight headsets, eight 65' XLR cables, and eight tally lights are all included. Beltpacks are connected to the base station by 5-pin 65' (20m) 5-pin XLR cables, which may be extended up to 650' (200m). The base station features call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.

  For use with Datavideo SE-500, HS-500, SE-600, SE-2000, SE-2800, and SE-3000, optional adapter cables are necessary.
  • • 8-Channels
    • Operator package for up to 8 users; includes beltpack, headset, 65' XLR cable, and tally lights
    • Built-in speaker
    • 21V light socket
    • Gooseneck microphone and LED light
    • Locking power connectors
  UPC: 672255003176
• Datavideo CB-28 Tally Cable for SE-2800 Switcher & ITC-100 Intercom/Tally System (41") The 41" CB-28 Tally Cable from Datavideo is designed to connect the ITC-100 Intercom System to the SE-2800 Switcher. UPC: 672255003688
• 4 x Datavideo CASDI50 50 ft. Male to Male BNC Cable The Datavideo CASDI50 50 ft. Male to Male BNC Cable is a Belden BNC cable designed for use with standard definition and high definition SDI equipment. UPC: 672255002018
• Datavideo RKM-2000 Holder for SE-2000 The Datavideo RKM-2000 Holder for SE-2000 serves as a convenient platform for placing the monitor and it can also house a 1RU x 19" device like the HDR-50 recorder. The ITC-100 intercom can be mounted in the RKM2000 holder. Designed for small, live production venues, the SE-2000 switcher kit can be conveniently mounted into the holder without the need for an additional platform or stand. With the RKM-2000 holder, operating the SE-2000 is fast because every control is easily accessible on the work surface.
  • Accepts a 1RU x 19" device
  • Provides a convenient platform for the monitor
  • Can house HDR-50 of the SE-2000 HDR kit
  • Can house ITC-100 intercom of the SE-2000 ITC video switcher kit
  UPC: 672255002636

• SE-2800 Video Switcher with up to 8 SDI, HDMI, or CV Inputs dtrbzuqrdxwceyzxcfzcetzx
• SE-2800 Control Panel
• Power Adapter and Cable
• Instruction Manual
• 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase
• 1-Year Standard Warranty without Product Registration

• HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay

• ITC-100 8-User Wired Intercom System with 8 Beltpacks & 8 Headsets

• CB-28 Tally Cable for SE-2800 Switcher & ITC-100 Intercom/Tally System (41")

• 4 x CASDI50 50 ft. Male to Male BNC Cable

• RKM-2000 Holder for SE-2000

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Datavideo SE-2800 Video Switcher with up to 8 SDI, HDMI, or CV Inputs

  Connections	Video Inputs (Menu Selectable): 8x HD/SD-SDI or 6x HD/SD-SDI + 2x HDMI or 4x HD/SD-SDI + 4x CV or 4x HD/SD-SDI + 2x CV + 2x HDMI or 2x HD/SD-SDI + 4x CV + 2x HDMI Video Outputs: 2x HDMI (Multi-Preview) 3x SD/HD-SDI Audio Inputs : 4x Analog Balanced XLR Audio Outputs : 2x Analog Balanced XLR (Audio connections support embedded audio to SD/HD-SDI)
  Resolutions	Accepted Resolutions: 1080i 50/60 576i 50 480i 59.94/60
  Control	1x RS-422
  Tally	15-pin D-Sub

  Box Dimensions (LxWxH)	22.0 x 15.0 x 12.5"

• Datavideo HDR-70 HDD Recorder for SD/HD-SDI with Removable Drive Bay

  Material of Construction	Painted aluminum
  Interface (Inputs/Outputs)	USB 2.0 eSata
  Internal Interface	SATA
  Drive Compatibility	HDD: Western digital, Fujitsu, Hitachi Compatible with SSD
  Power	5VDC
  Dimensions	6 x 5 x 1" (15.2 x 12.7 x 2.5 cm)
  Weight	1 lb (0.5 kg)

  Signal System	HD NTSC PAL
  Supported Video Formats	1080p 24/23.98 1080i 60/59.94/50 720p 60/59.94/50 NTSC PAL
  Recording Formats	HD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 SD Long GOP 4:2:2 or 4:2:0 i-frame: 8-bit 4:2:2 Audio PCM, 24-bit, 8 channels, 48kHz
  Data Rates	HD 10 to 25Mb/s, 4:2:0 35 to 100Mb/s, 4:2:2 SD 8Mb/s, 4:2:0 15 to 50Mb/s, 4:2:2
  Inputs	Video: 1 x SD/HD-SDI Audio: 2 x Balanced stereo mini-XLR (analog, stereo pair 2-channels) GPI 1 x mini-XLR Timecode 1 x BNC Black Burst/Sync 1 x BNC
  Outputs	Video: 1 x SD/HD-SDI 1 x SD/HD-SDI (loop through) 1 x HDMI Audio: 2 x Balanced stereo mimi-XLR (analog, stereo pair 2-channels) Timecode 1 x BNC Black Burst/Sync 1 x BNC
  Control Interface	RS 422, RS 232 9-pin DIN
  Recording Time	250GB Hard Drive 5 Mb/s: 111 hours 10 Mb/s: 55 hours 15 Mb/s: 37 hours 20 Mb/s: 27 hours 40 Mb/s: 15 hours 60 Mb/s: 9 hours 320GB Hard Drive 5 Mb/s: 142 hours 10 Mb/s: 70 hours 15 Mb/s: 47 hours 20 Mb/s: 35 hours 40 Mb/s: 19 hours 60 Mb/s: 12 hours 500GB Hard Drive 5 Mb/s: 220 hours 10 Mb/s: 111 hours 15 Mb/s: 74 hours 20 Mb/s: 55 hours 40 Mb/s: 27 hours 60 Mb/s: 18 hours
  File Format	MXF/OP1A
  File System Format	NTFS
  Recording Limit	99 bins 99 clips per bin
  Material of Construction	Painted aluminum
  Rack Height	2RU
  Power Requirements	12VDC
  Power Consumption	16W
  Dimension L x W x H	17.3 x 11.4 x 1.9" (44 x 29 x 4.9 cm)
  Weight	7 lbs. (3.17 kg)

  Box Dimensions (LxWxH)	21.4 x 14.6 x 6.7"

• Datavideo ITC-100 8-User Wired Intercom System with 8 Beltpacks & 8 Headsets

  Tally	2 x 15-Pin Sub D Tally Connectors
  Mic / Headset	1 x 3.5mm Stereo Headphone/Mic Combo Jack Headset impedance: 8 to 600 ohms, 100 mW (minimum)
  Light Socket	1 x 3-Pin XLR Light power consumption: 12 V, 100 mW (maximum)
  Microphone	1 x XLR/TRS Combo Mic Input Socket switchable condenser / dynamic input Microphone level: -67 dB
  Frequency Response	550 Hz to 3.6 kHz, < ±3dB
  Total Harmonic Distortion (THD)	< 3%
  Signal to Noise Ratio	> 50 dB
  Audio Level	-15 dB
  Impedance	51 Kohm
  Built-in Speaker	3 W, 32 Ohm
  Operating Temperature	41 to 113°F (5 to 45°C)
  Power	12 VDC, 1.0 A, 110/220 VAC
  Rack Unit Space	1RU
  Dimensions (L x W x H)	5.0 x 19.0 x 1.5" (12.7 x 48.3 x 3.8 cm)
  Weight	4 lb (1.81 kg)

  Input	1 x XLR, 5-pin
  Mic / Headset	1 x 3.5mm headphone/microphone stereo jack Headset impedance: 8 to 600 ohms, 100 mW (minimum) Microphone level: -67 dB 1 x 2.5mm stereo jack for Motorola mobile phone type headset/microphone
  TALLY Output	1 x 3.5mm jack
  Tally LED Indicator	Bi-color LED
  Operating Range	200 m, between Base Station and Beltpack
  Operating Temperature	41 to 113°F (5 to 45°C)
  Dimensions	4.5 x 3.75 x 1.4" (11.4 x 9.7 x 3.5 cm)

  Box Dimensions (LxWxH)	20.9 x 17.6 x 15.9"

• Datavideo CB-28 Tally Cable for SE-2800 Switcher & ITC-100 Intercom/Tally System (41")

  Length	41.0" (104.14 cm)
  Connector Type	25-pin DIN to 15-pin DIN

  Box Dimensions (LxWxH)	6.2 x 4.6 x 1.8"

• 4 x Datavideo CASDI50 50 ft. Male to Male BNC Cable

  Cable Length	50' / 15 m
  Coaxial Type	RG-59

  Box Dimensions (LxWxH)	9.5 x 6.0 x 1.1"

• Datavideo RKM-2000 Holder for SE-2000

  Box Dimensions (LxWxH)	20.9 x 12.8 x 5.4"
