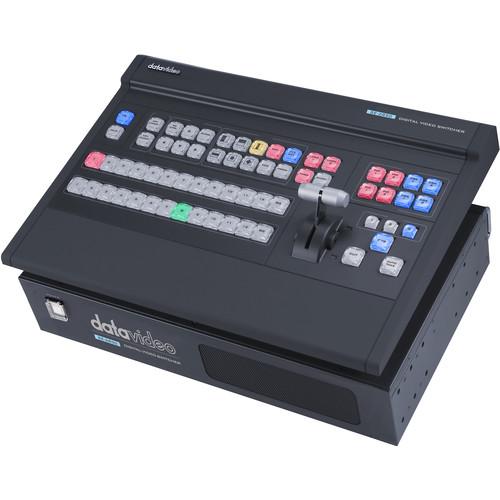

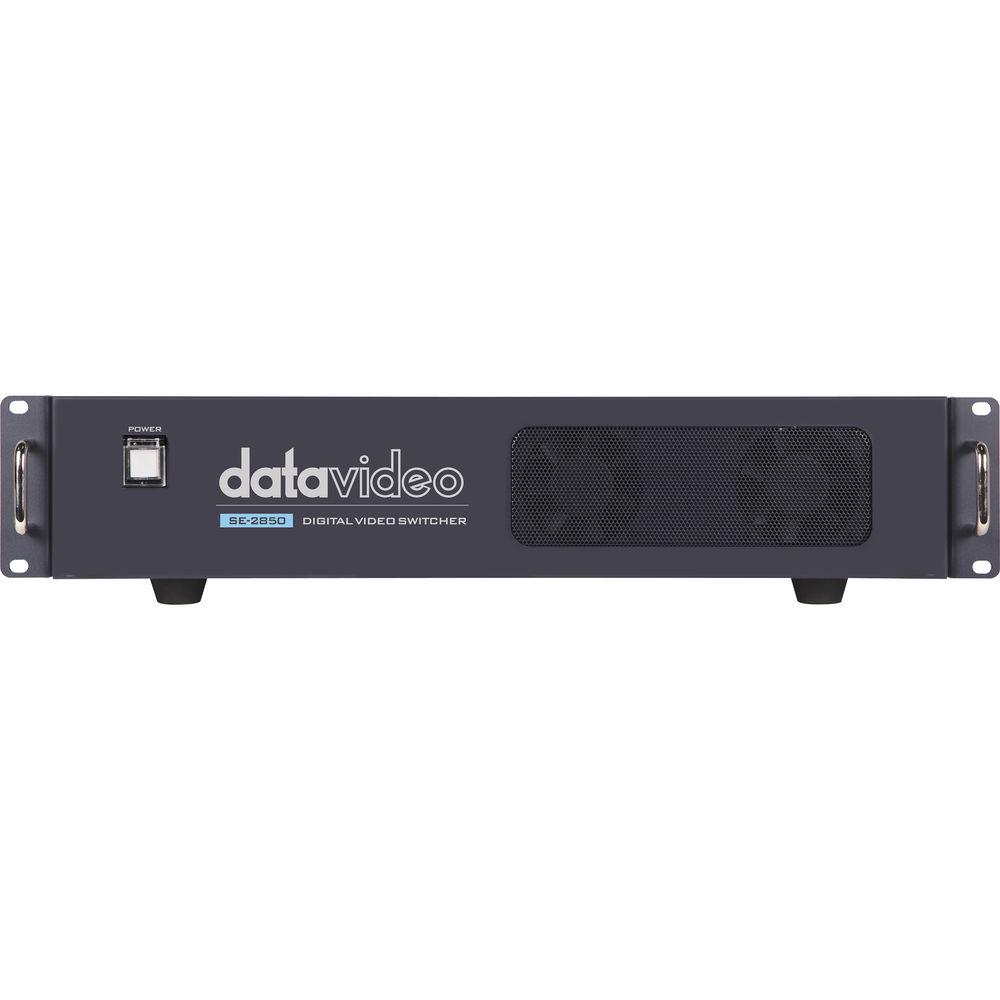

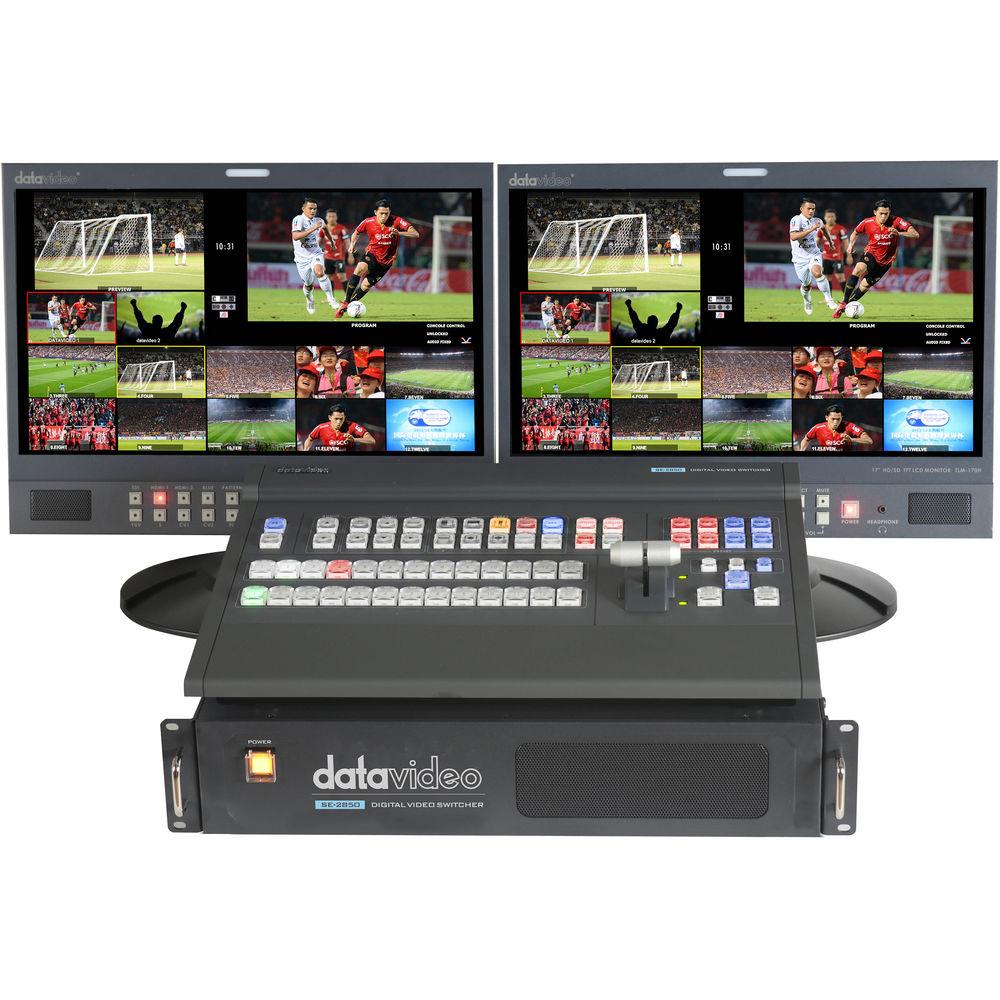

Product description The SE-2850 HD/SD 8-Channel Video Switcher from Datavideo is a mixed format switcher with 8 HD/SD-SDI inputs and four assignable SDI and two assignable HDMI outputs for routing any combination of HD and SD video.This switcher supports SDI/HDMI YUV 10-bit 4:2:2, and HDMI/RGB 4:4:4 color sampling for smoother color gradations. Housed in a 2 RU frame, the SE-2850 is ideal for use in both large broadcast systems or portable mini-racks for live productions. Routing is controlled via Ethernet using the included Windows software or via RS-422 control.For advanced audio control, the SE-2850 can be connected to an external mixer (not included). Additional switcher features include dual PiP, two downstream keyers, cross-point video and audio, two independent logo functions, and a built-in title overlay system. The SE-2850 includes four XLR audio inputs with each audio channel featuring de-embedding and audio delay. Features - Supports eight HD or SD inputs with six video and audio cross-point options on four SDI outputs
- Dual user-positioned PiP, dual logo support, and dual downstream keyers (DSK) with Luma and alpha channel options
- Four XLR audio inputs with two output modes; audio delay for each de-embedded audio source
- Integrated title overlay system works with entry-level Datavideo CG systems
- Additional features including frame store for each channel, 17 wipe choices, and master and countdown clocks
UPC: 672255007051 In the Box Datavideo SE-2850 HD/SD 8-Channel Video Switcher SE-2850 Control Board AC Adapter Power Cord DB9P to DB9P Cable Dual Connector XLR Audio Cable (14") 2 x Spare Wipe-Button Caps 12 x Screws 2 x Rackmounts Limited 1-Year Warranty (Extendable to 3-Year with Registration) User Manual PDF 4.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-2850 HD SD 8-Channel Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo SE2850-8 Specs | | | Video Standards | HD, SD | | Video Format | 3G/HD/SD input:
1080i: 60/59.94/50
1080p: 60/59.94/30/25
HD Output:
1080i: 60/59.94/50
SD Output:
576i: 50 Hz
480i: 59.94 Hz | | Video Processing | SDI: 4:2:2

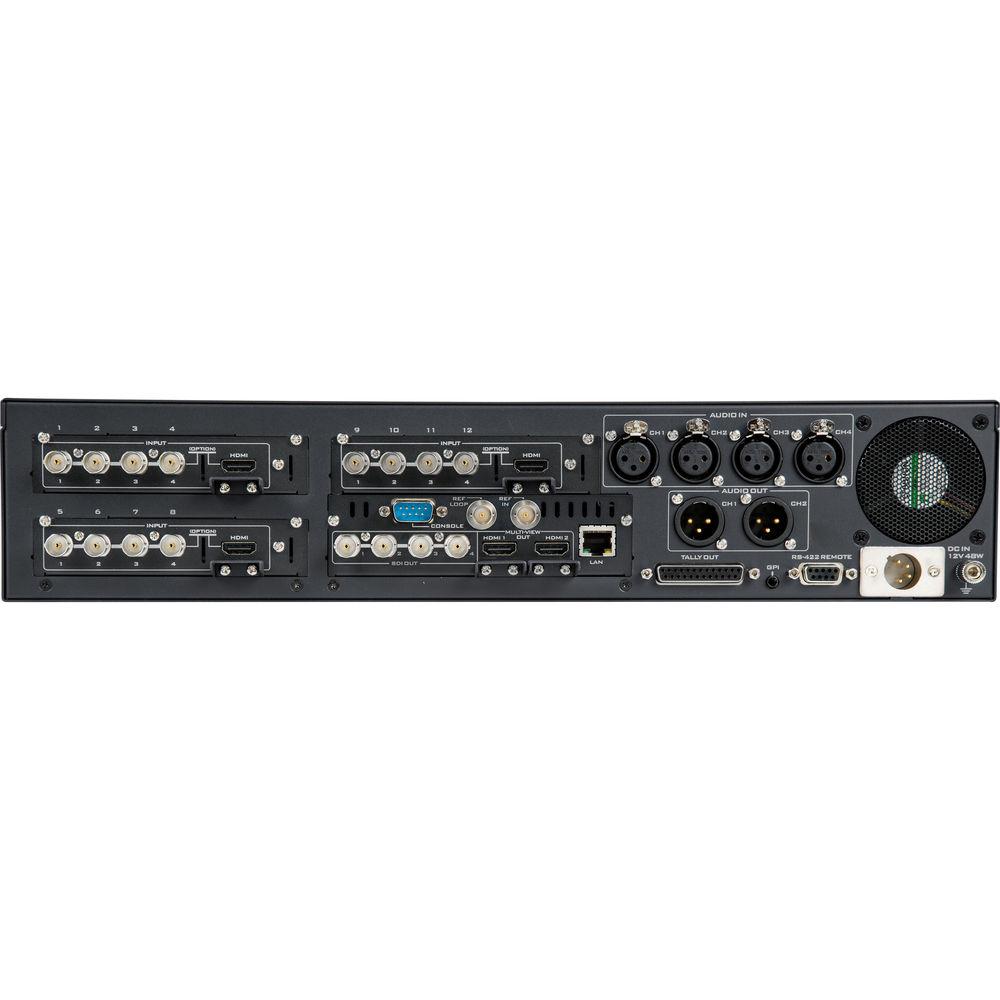

HDMI: YUV 4:2:2 10-bit, RGB 4:4:4 | | | | Input Routable / Crosspoint | 12, repeatable | | Video Inputs | 8x SDI, 2x HDMI | | Graphics Input | Maximum: 2 x HDMI | | Video Outputs | 4 x SDI, assignable: PGM, PVW, AUX, Clean Out
2 x HDMI, assignable: PGM, Multi-View | | Down-Conversion | 4 x SDI (channels 1-4) | | Multiview Outputs | 2 x HDMI | | | | Audio Input | 4 x XLR, balanced | | Audio Output | 2 x XLR, balanced | | Embedded Audio | Input Maximum: 16 x channels
Output Maximum: 4 x channels | | Audio Delay | Up to 8 frames (SDI-input audio only) | | | | Chroma Key | N/A | | Keyer/DSK | 2 x DSK Support: Lumakey & Linear key (key/fill) | | PIP | 2 x | | Logo Overlay | 2 x or 1 x logo + 1 x clock | | Still Store | 12 x | | Effects | FTB, Cut, 8 x wipes with border | | Transition Preview | PiP, DSK | | | | Sync / Reference In/Out | Built-in GenLock
External sync supported with loop-through | | PC Remote Control | Ethernet (downloadable Windows software)
RS-422 | | | | Chassis | 2 RU, rackmount mainframe | | Power | 12 VDC, 48 W | | Dimensions (WxDxH) | Main Unit: 17 x 9.9 x 3.7" (432 x 251 x 93 mm)
Control Unit: 17 x 12.3 x 2.8" (433 x 313 x 71 mm) | | Weight | Main Unit: 10.4 lb (4.7 kg)
Control Unit: 5.5 lb (2.5 kg) | | | | Package Weight | 22.65 lb | | Box Dimensions (LxWxH) | 21.9 x 15.0 x 12.6" |
