User Manual for Datavideo SE-500 4-Channel Analog SD Video Switcher Click to enlarge the picture
Contents of the user manual for the Datavideo SE-500 4-Channel Analog SD Video
- Product category: Production Switchers Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Switchers
 |
User manual for the Datavideo SE-500 4-Channel Analog SD Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

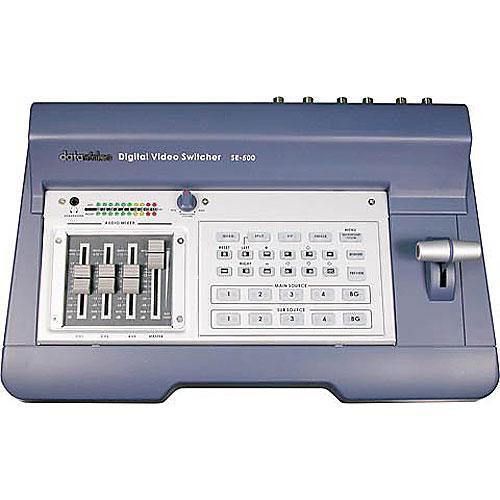

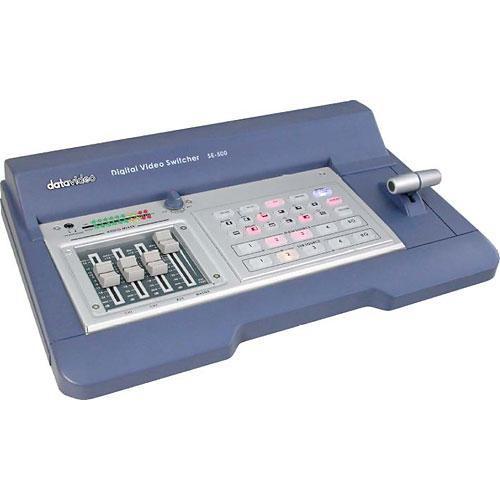

Product description Compact and lightweight, the Datavideo SE-500 4-Channel Analog SD Video Switcher features composite and S-Video inputs and outputs for switching live events at houses of worship, conventions, educational institutions, small studios, and other venues. The four inputs can accept composite signals via BNC connectors and S-Video via mini-DIN connectors. Two program output sections each have composite and S-Video options as well. For previewing all four video feeds, an onboard multiplexer sends all four outputs to a single monitor over a composite video feed. Using both the S-Video and composite outputs, a single high-quality component video stream can be sent to a compatible DVD or memory recorder. Digital sources can also be connected to the SE-500 using separately available converter boxes.
Up to four channels of audio can be input via one set of stereo RCA connectors and two unbalanced 1/4" jacks. Using the onboard faders and audio meters, the sound can be mixed and properly balanced to fit your program. Balanced audio sources will require a separately available impedance switching device in order to ensure proper operation.
Once set up, use the T-bar and illuminated selection buttons to switch and apply effects to your video signals. Some built-in transitions include dissolves, fades, and wipes. The SE-500 can also be controlled via RS-232 (DIN-15 connector) and MIDI. Essential effects such as picture-in-picture (PiP), color processing, and split-screen are also integrated into the SE-500. To keep things simple, all inputs are internally synced by a 4-channel 4:2:2 time base corrector (TBC), so no genlock or external syncing is required for achieving smooth transitions. UPC: 672255001554 In the Box Datavideo SE-500 4-Channel Analog SD Video Switcher AC Adapter S-Video Cable 2 x BNC to RCA Connector Limited 1-Year Warranty User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-500 4-Channel Analog SD Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

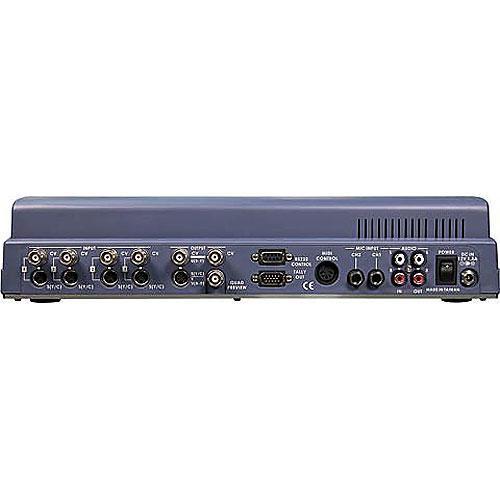

Technical parametersDatavideo SE-500 Specs | Video System | NTSC 525 | | Inputs | 4 x BNC composite video
4 x 4-pin S-video
1 x RCA unbalanced stereo audio
2 x 1/4" / 0.6 cm microphone | | Outputs | 3 x BNC composite video (1 output can be used as component when joined with Y/C via included breakout cable)
1 x 4-pin S-video
1 x RCA unbalanced stereo audio
1 x Headphone
1 x 15-pin tally | | Other Ports | 1 x MIDI control
1 x 9-pin RS-232 control | | Time Base Correction | Full-frame, quad-channel synchronization, 4:2:2, 13.5 MHz | | Video Bandwidth | Component: 5.2 MHz
S-Video (Y/C): 5.0 MHz
Composite: 4.5 MHz
DG, DP ±3%, 3° | | Signal-to-Noise Ratio | Video >50 dB
Audio >65 dB | | Audio | Frequency Response: 20 Hz to 20 kHz ±3 dB
THD: <0.1% | | Power Input | 12 VDC, 1.5 A (11 W) | | Dimensions | 15.75 x 10.5 x 3.25" / 400 x 265 x 83 mm | | Weight | 5.5 lb / 2.2 kg | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 18.1 x 16.1 x 6.8" |
