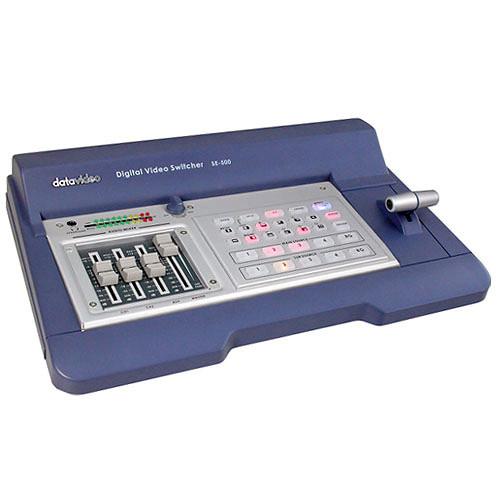

Product description The SE-500P PAL Live Production Switcher from Datavideo is a PAL four-input video mixer offering composite and Y/C functionality. This device features multiple effects, microphone inputs, and a quad-split monitor output. - Picture-in-Picture
- Picture-in-Picture transitions can be positioned in various parts of the frame.
- Quad-Split Monitoring
- The monitor output has a quad-split function so the user can preview all the inputs on one monitor.
- Component Output
- With the supplied breakout cable, the composite and Y/C outputs can be adapted to a three-wire component output.
- Tally Output
- Tally output is offered on a DB-15 connector.
- Audio
- One auxiliary input is offered with two mic inputs; slide controls for mixing is offered for each input.
- MIDI
- The MIDI connections operate with other equipment to create programs synchronizing audio and video for presentation applications.
- PAL System
- Utilizes the PAL video standard for television.
In the Box Datavideo SE-500P PAL Live Production Switcher 3 x BNC Cables 2 x Y/C S-Video Cables Component Breakout Cable Stereo RCA Cable AC Power Adapter Limited 1-Year Warranty, Extended to 2-Year with Product Registration within 30 Days of Purchase User Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-500P PAL Live Production Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo SE-500 Specs | Video System | PAL 625 | | Inputs | 4 x BNC composite video
4 x 4-pin S-Video
1 x RCA unbalanced stereo audio
2 x 1/4" / 0.6 cm microphone | | Outputs | 2 x BNC composite video (1 output can be used as component when joined with Y/C via included breakout cable)
1 x 4-pin S-Video
1 x BNC preview (sub sources or effect)
1 x RCA unbalanced stereo audio | | Other Ports | 1 x MIDI input/output | | Power Requirements | 12 VDC on universal power adapter | | Dimensions (WxHxD) | 15.8 x 10.5 x 3.3" (40.0 x 26.5 x 8.3 cm) | | Weight | 13.8 lbs / 5.5 kg | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 18.1 x 16.2 x 6.9" |
