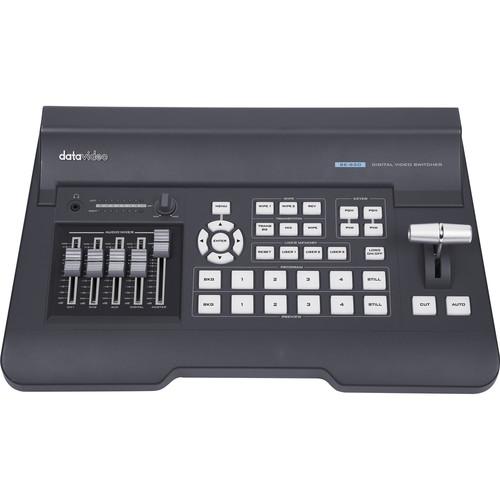

User Manual for Datavideo SE-650 HD 4-Channel Digital Video Switcher Click to enlarge the picture
Contents of the user manual for the Datavideo SE-650 HD 4-Channel Digital Video
- Product category: Production Switchers Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Switchers
|
User manual for the Datavideo SE-650 HD 4-Channel Digital Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description Combining a four-channel HD video switcher and a 6-channel audio mixer, the Datavideo SE-650 is an all-in-one solution for live video production. Video and embedded audio can be imported using two HD-SDI and two HDMI inputs; audio can also be brought in through analog inputs. Multiple video outputs enable you to send video to multiple locations. The output section is configurable, so you can choose which output is your multiview, and which are your program outputs. Having multiple program outputs means that you can have one output recorded separately, and one output sent to a streaming server for live broadcast online.Use the control surface to switch angles in real time, apply effects, transitions, and fades to facilitate professional production value. Additional connections for expanding your I/O options include 1/4" microphone inputs and analog RCA audio, Ethernet, tally, and USB for firmware updates. - Any Input can be used as a frame (stills) store
- Assignable outputs: Program (with DSK), Clean Program (without DSK), Clean Preview (without DSK), Multiview
- Flexible mix effects processor with one upstream keyer, supporting chroma key, and linear/luma key
- One upstream PiP, supporting chroma key and luma key
- Wipe generator: 32 wipe patterns including shapes with border and softness control
- Full mix effects preview function
- XPT (Cross Point Assignment)
UPC: 672255007181 In the Box Datavideo SE-650 HD 4-Channel Digital Video Switcher Power Supply Limited 1-Year Warranty, Extendable to 2-Year If Registered within 30 Days User Manual PDF 4.2mbfeasqcvbfvdqeuffa Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-650 HD 4-Channel Digital Video Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo SE-650 Specs | Inputs | 2 x BNC HD-SDI
2 x HDMI Type A
1 x RCA stereo analog audio
2 x 1/4" TRS microphone | | Outputs | 1 x BNC HD-SDI
2 x HDMI Type A
1 x RCA stereo analog audio | | Other Ports | 1 x 15-pin tally
1 x USB (firmware upgrades)
1 x RJ-45 Ethernet | | Power Supply | 12 VDC | | Dimensions | 15.7 x 2.8 x 10.4" / 40 x 7.2 x 26.4 cm | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 7.0" |
