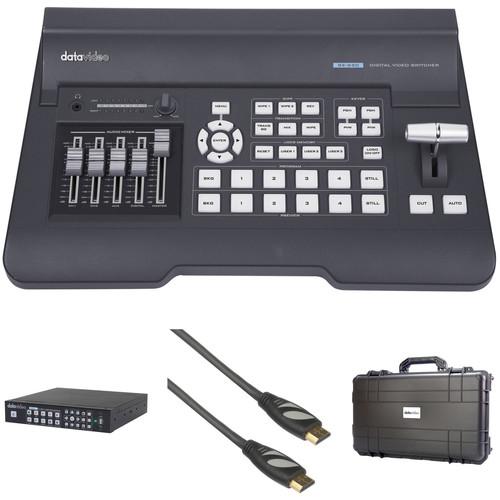

User Manual for Datavideo SE-650 Switch & Record Go Kit Click to enlarge the picture
Contents of the user manual for the Datavideo SE-650 Switch & Record Go
- Product category: Production Switchers Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Switchers
|
User manual for the Datavideo SE-650 Switch & Record Go contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description This B&H Kit packages the Datavideo SE-650 4-Channel Video Switcher with a standalone H.264 recorder/player, HDMI cable with Ethernet, and wheeled water-resistant case, providing a complete HD video/audio switching and recording solution. - Datavideo SE-650 HD 4-Channel Digital Video Switcher Combining a four-channel HD video switcher and a 6-channel audio mixer, the Datavideo SE-650 is an all-in-one solution for live video production. Video and embedded audio can be imported using two HD-SDI and two HDMI inputs; audio can also be brought in through analog inputs. Multiple video outputs enable you to send video to multiple locations. The output section is configurable, so you can choose which output is your multiview, and which are your program outputs. Having multiple program outputs means that you can have one output recorded separately, and one output sent to a streaming server for live broadcast online.Use the control surface to switch angles in real time, apply effects, transitions, and fades to facilitate professional production value. Additional connections for expanding your I/O options include 1/4" microphone inputs and analog RCA audio, Ethernet, tally, and USB for firmware updates.
- Any Input can be used as a frame (stills) store
- Assignable outputs: Program (with DSK), Clean Program (without DSK), Clean Preview (without DSK), Multiview
- Flexible mix effects processor with one upstream keyer, supporting chroma key, and linear/luma key
- One upstream PiP, supporting chroma key and luma key
- Wipe generator: 32 wipe patterns including shapes with border and softness control
- Full mix effects preview function
- XPT (Cross Point Assignment)
UPC: 672255007181 - Datavideo HDR-1 Standalone H.264 Recorder and Player Record and playback HD videos in the ubiquitous H.264 format without a PC using the Datavideo HDR-1 Standalone H.264 Recorder and Player. To get started, plug in an NTFS-formatted USB flash drive, and the HDR-1 will automatically set itself up to record or playback video to/from the drive. Whether your productions have HD or SD equipment, the HDR-1 can handle it. Resolutions of up to 1080p at 30fps are supported for recording, and bit-rates of up to 20 Mbps ensure that the recordings retain detail. Once your video is recorded, you can remove the flash drive and distribute the video, or move it to a hard drive for archiving, sharing directly to the web (no transcoding required for most hosting services), or editing later. Basic editing maneuvers, such as cutting unwanted segments can be made inside the HDR-1. If someone is actively operating the HDR-1, the pause button can temporarily stop the recording during a break in the event while keeping the recording in a single file, removing extra post-event editing steps. Existing H.264 videos can be loaded onto a flash drive for playback on the HDR-1. Connect an HDMI display and use the front-panel controls or software control via RS-232 to navigate files and control playback. RS-232 and GPI can also control recording start/stop with separately available hardware as part of a larger A/V setup.
- Capture HD video up to 1080p30
- Records and plays back standard MP4 files (H.264+AAC)
- Standard USB flash drives for recording media
- Does not require a PC for operation
- 3-20 Mbps bit-rate options (resolution dependent)
- Basic integrated editing functionality
- Supports 3D video formats
UPC: 672255007150 - Pearstone HDA-106 High-Speed HDMI Cable with Ethernet (Black, 6') The High-Speed HDMI Cable with Ethernet from Pearstone is a high-performance cable ideal for HDTV, DVD/Blu-ray players, and cable and satellite boxes. This cable supports ultra-fast speeds, Audio Return Channel, 3D content, and UHD 4K (2160p) resolution. HDMI Ethernet Channel consolidates video, audio, and data streams into a single HDMI cable.
- Ideal for HDTV, DVD/Blu-ray disc players, and cable and satellite boxes
- 24kt gold-plated connectors for cleaner transmission and corrosion resistance
- Supports Audio Return Channel for sharing an audio signal between compatible devices
- Supports 3D and 4K resolution with compatible devices
UPC: 847628031340 - Datavideo Wheeled Trolley-Style Water-Resistant Case (XL) The XL Wheeled Trolley-Style Water-Resistant Case from Datavideo is a heavy-duty trunk-style equipment case. Use it to transport and store video, audio, or photo equipment and accessories. This trunk-shaped, hard-shell case is water-, dust-, and crush-resistant. Integrated padlock inserts and rubber seals provide additional security.This case's interior includes one foam piece in the lid and three foam fittings in the main compartment. Wheel the case along using the retractable handle or grasp it using the large, hinged top handle.
Features - Trunk-style wheeled case with a foam interior, a retractable handle, and a hinged top handle
- Water-, dust-, and crush-resistant hard case with rubber seals and padlock inserts
UPC: 672255006092 In the Box - SE-650 HD 4-Channel Digital Video Switcher ezszczuacacqbuzywewrwqaeazvr
- Power Supply
- Limited 1-Year Warranty, Extendable to 2-Year If Registered within 30 Days
- HDR-1 Standalone H.264 Recorder and Player
- Pearstone - HDA-106 High-Speed HDMI Cable with Ethernet (Black, 6')
- Wheeled Trolley-Style Water-Resistant Case (XL) ezszczuacacqbuzywewrwqaeazvr
Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo SE-650 Switch & Record Go Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Datavideo SE-650 HD 4-Channel Digital Video Switcher
| Inputs | 2 x BNC HD-SDI
2 x HDMI Type A
1 x RCA stereo analog audio
2 x 1/4" TRS microphone | | Outputs | 1 x BNC HD-SDI
2 x HDMI Type A
1 x RCA stereo analog audio | | Other Ports | 1 x 15-pin tally
1 x USB (firmware upgrades)
1 x RJ-45 Ethernet | | Power Supply | 12 VDC | | Dimensions | 15.7 x 2.8 x 10.4" / 40 x 7.2 x 26.4 cm | | | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 7.0" | - Datavideo HDR-1 Standalone H.264 Recorder and Player
| Inputs | 1 x HDMI Type-A, v1.4b | | Outputs | 1 x HDMI Type-A, v1.4b | | Other I/O | 1 x USB Type-A (storage) | | Resolution Support | 1080p, 1080i, 720p, 576p, 480p, NTSC, PAL | | Control | 1 x 9-pin RS-232
1 x 3.5 mm GPI | | Power Supply | 12 VDC | | Dimensions | 8.7 x 1.7 x 8.3" / 220 x 42 x 211 mm (without ports) | | | | Box Dimensions (LxWxH) | 11.15 x 10.35 x 5.25" | - Pearstone HDA-106 High-Speed HDMI Cable with Ethernet (Black, 6')
| Connector 1 | HDMI Type-A Male | | Connector 2 | HDMI Type-A Male | | Cable Length | 6' / 1.8 m | | Maximum Resolution Support | 4096 x 2160 | | 3D Support | Yes | | Ethernet Channel | Yes | | Connector Plating | Gold | | | | Box Dimensions (LxWxH) | 7.5 x 5.827 x 0.394" | - Datavideo Wheeled Trolley-Style Water-Resistant Case (XL)
| Material | Polypropylene plastic | | Type of Closure | Hinged clasps
Integrated padlock inserts | | Carrying/Transport Options | Retractable trolley handle
Large hinged top handle
Built-in wheels | | Exterior Dimensions | 22.0 x 14.0 x 8.9" / 56.0 x 35.5 x 22.5 cm | | Interior Dimensions | 21.3 x 11.5 x 6.9" / 54.0 x 29.2 x 17.5 cm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 22.5 x 15.1 x 12.3" |
