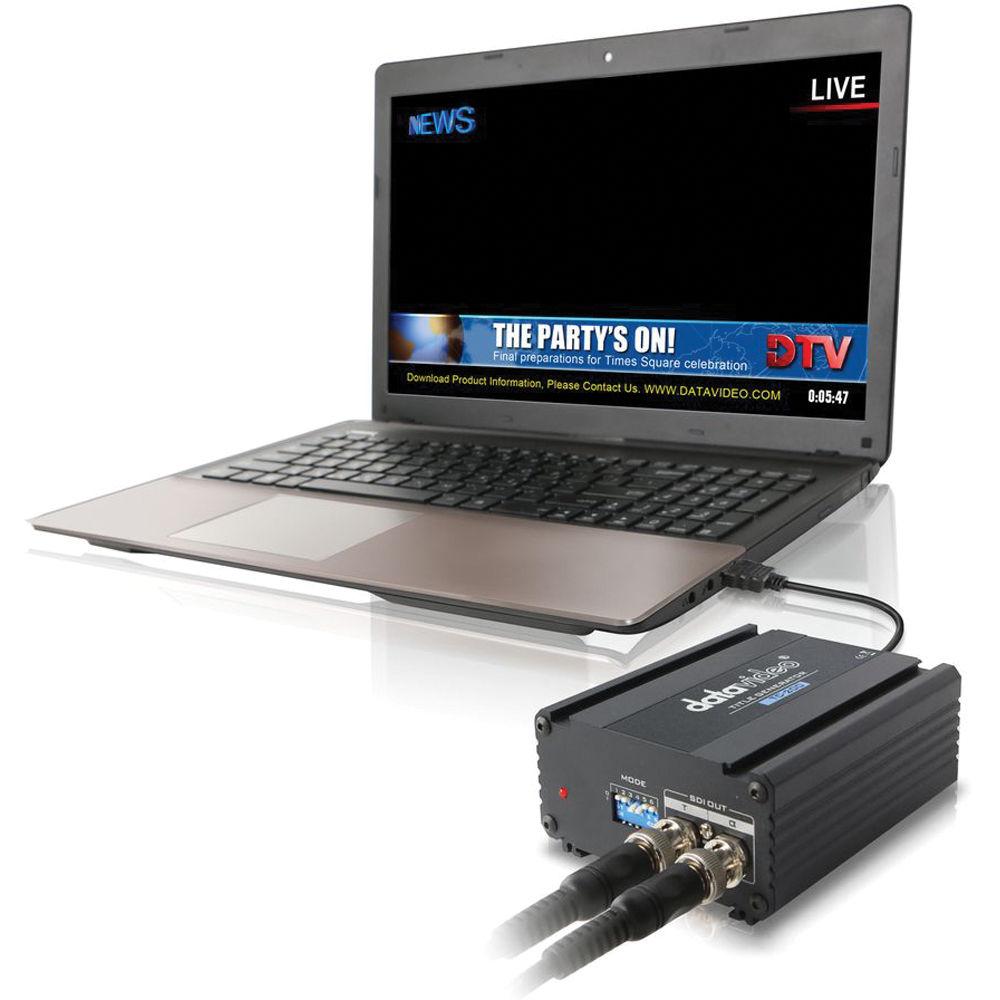

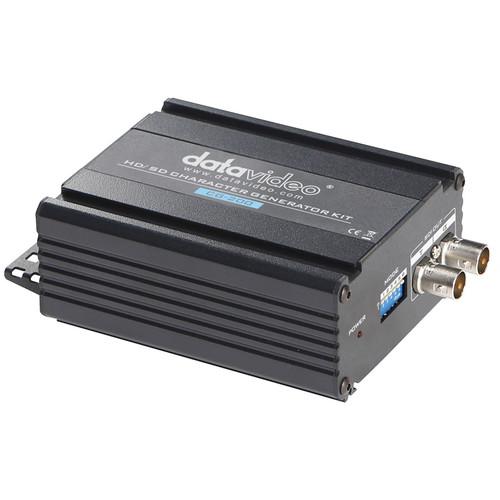

Product description The Datavideo TC-200 & CG-200 HD/SD Character Generator Kit combines the TC-200 Overlay Box with the CG-200 CG software into an on-screen graphics and titling solution that requires minimal PC processing power. Using a standard laptop, you can create and deliver striking on-screen graphics and titles in real-time, ideal for mobile broadcasting and live video presentations. All your laptop requires, beyond common standard specs, is an HDMI input.

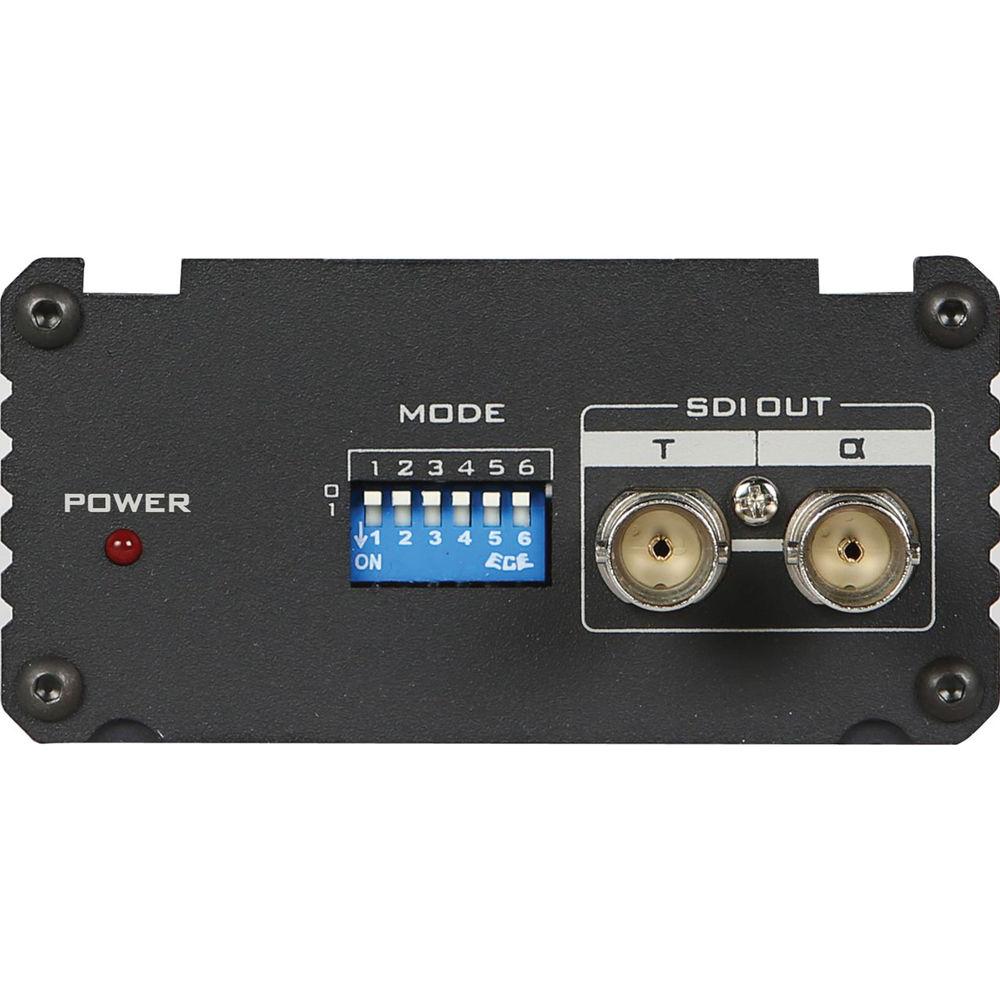

The TC-200 offers an SDI input supporting Overlay mode and two SDI outputs supporting DSK (down-stream keyer) Fill and Key signals, allowing you to forego the use of an SDI adapter installed into your computer, and in turn allowing you to use a laptop on-the-go. This kit supports vision mixers with and without a DSK. In cases without a DSK, the TC-200 Overlay Box's Title Overlay mode substitutes for the lack of it.
The TC-200 works on 7-15V of operating voltage. It supports 7.2V and 14.4V DV batteries using an optional Datavideo MB-4 Battery Adapter (required). - Key Features
-
- Live Title Generator
- No additional PCI card required
- Supports SDI overlay function or DSK function via HDMI
- Support HD/SD SDI input and output in Overlay mode
- Supports 1080i60/59.94/50, 720p60/59.94/50, 576i50, and 480i59.94
- Title editing on laptop
- Compatible with Windows 7/8 and supports all Windows fonts
- Multi-language support
- Supports animations including JPG, TAG, GIF, BMP, PNG
- Supports scrolling
- Title editing patterns include Slide and Reveal
- Easy logo setups
- User definable clock display
- TC-200 Overlay Box features a 7-15V working voltage and can be used with 7.2V and 14.4V batteries (an optional Datavideo MB-4 battery adapter is required)
- DSK Mode
- The TC-200 and CG-200 can be used with a vision mixer equipped with a DSK (down-stream keyer). In such a setup, they can be set up as the key source or fill source. Any vision mixer with a DSK is supported, such as the Datavideo SE-2800 and SE-3000.
- Overlay Mode
- When no DSK is being used, the Title Overlay mode substitutes for the lack of it. Using the TC-200 Overlay Box, the HDMI output from a laptop is embedded with the SDI output from a camcorder, VTR, or vision mixer.
- Text & Animation Tool
- This tool allows you to edit color, size, transparency, board, location, and alignment.
- Scrolling Function
- Puts all the contents you need in text frame. Scrolling speeds can be preset.
- UNICODE
- The CG-200 software adapts UNICODE and supports all fonts in Windows.
- Overlay Function
- The TC-200 combines CG from the laptop's HDMI port with the SDI video signal and overlays graphics in real-time.
- Text File Loading
- The CG-200 software is capable of directly importing text files.
UPC: 672255004357 In the Box Datavideo TC-200 & CG-200 HD/SD Character Generator Kit Power Supply for TC-200 Installation Disc for CG-200 User Manual 1-Year Limited Warranty 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TC-200 & CG-200 HD SD Character Generator Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

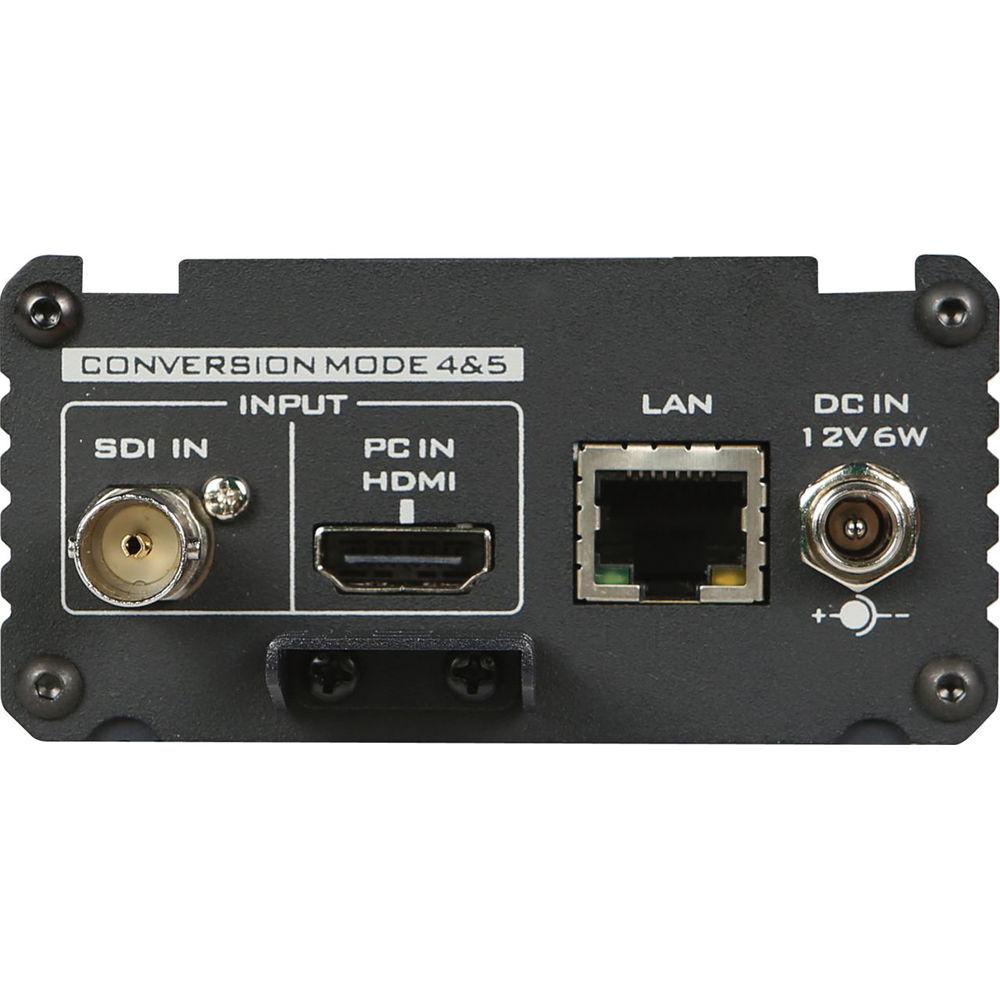

Technical parametersDatavideo TC-200 Specs | Text Sources | Frame text, clock, text file, CSV file | | File Format | JPG, PNG, BMP, TGA, GIF, GIF | | Animation Formats | GIF | | Input / Output | 1x HDMI input
1x HD-SDI input
2x HD-SDI outputs
1x LAN port | | Input Formats | 1920 x 1080i / 60 Hz
1920 x 1080i / 59.94 Hz
1920 x 1080i / 50 Hz
1280 x 720p / 60 Hz
1280 x 720p / 59.94 Hz
1280 x 720p / 50 Hz
720 x 576i / 50 Hz

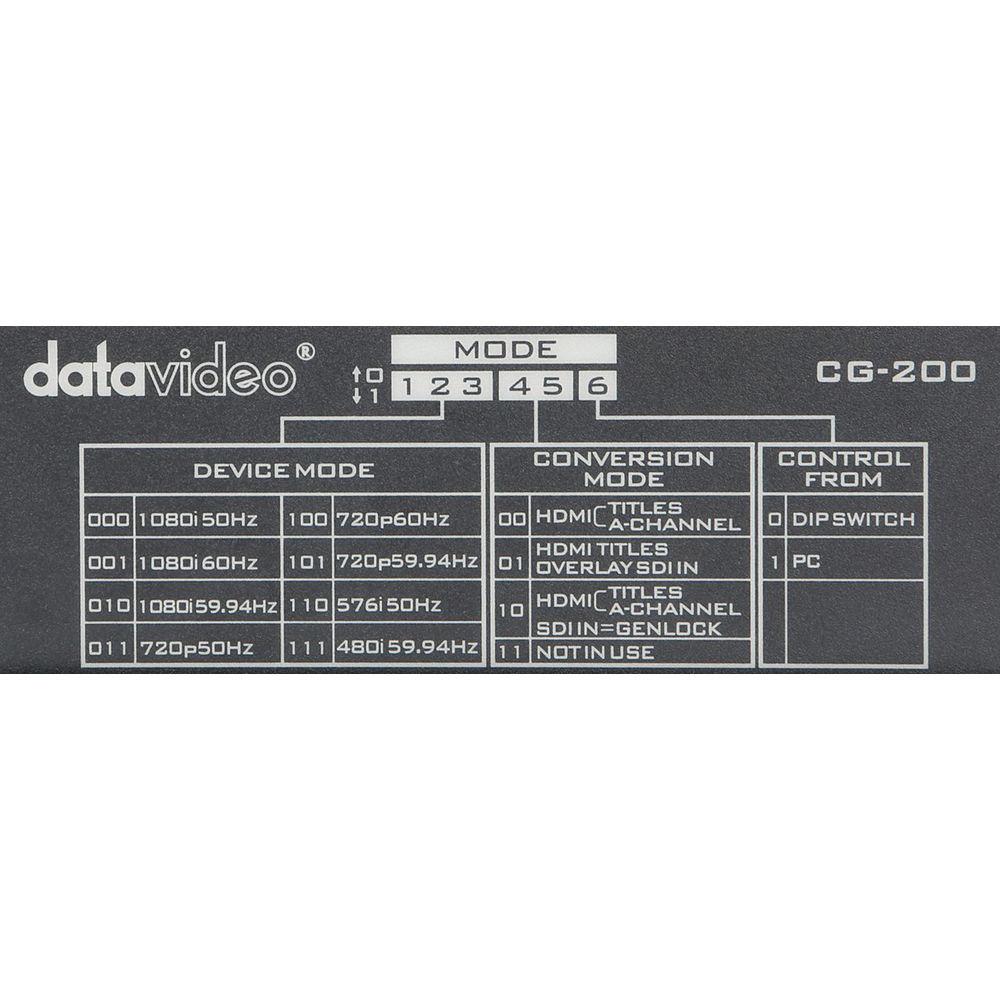

720 x 480i / 59.94 Hz | | Input Modes | CG Overlay:
HDMI input is CG; SDI input is Live Video
Genlock Mode:
HDMI input is CG; SDI input is Reference Signal
Reference with Internal Signal:
HDMI input is CG; SDI input isn't in use | | Conversion Modes | HDMI signal is split into titles and alpha channel
HDMI signal is split into titles and alpha channel with Genlock
HDMI titles overlay over the input SDI signal | | Control | Dip switch; PC | | Voltage Range | 7-15 VDC (most of battery is 7.2V, 12V & 14.4V so will need to cover it) | | Firmware Upgrade | Ethernet | | System Requirements | Windows 7, 8 operating system; 3 GHz processor; 2 GB RAM | | | | Package Weight | 1.215 lb | | Box Dimensions (LxWxH) | 8.25 x 6.0 x 3.05" |
