User Manual for Datavideo TLM-170 Tabletop Monitor Click to enlarge the picture
Contents of the user manual for the Datavideo TLM-170 Tabletop Monitor
- Product category: Production Monitors Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Monitors
 |
User manual for the Datavideo TLM-170 Tabletop Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

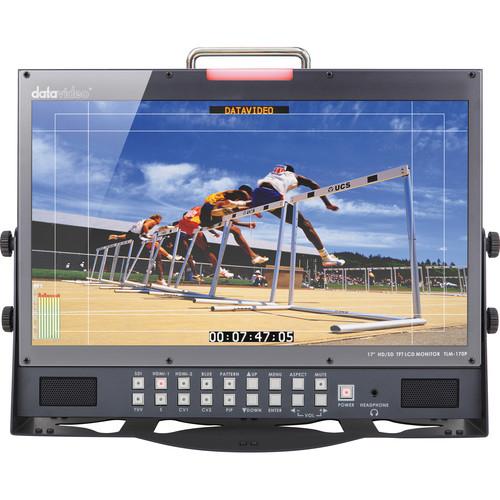

Product description The Datavideo TLM-170 Tabletop Video Monitor is a 17.3" video monitor that delivers full HD 1080p resolution from various inputs, including 3G-SDI. The monitor is designed for a range of formats and standards, as well as 24/7 operation. The TLM-170 front panel buttons allow quick and easy selection of source input and features like PIP, aspect ratio, blue only, pattern (color bars), menu, and audio controls. Input HD/SD sources via the rear panel SDI, HDMI, component (Y, Pb, Pr), and composite connections as well as monitoring RCA phone or embedded SDI/HDMI audio.
The TLM-170 monitor has an on-screen display (OSD) menu which allows control and set up of brightness, contrast, saturation, hue, sharpness, color temperature, and picture in picture. It also has an RJ-45 TCP/IP connector to allow remote set up of the monitor using a Windows/Mac based web browser. The menus can also be used to display onscreen overlays for frame marker, 4:3 marker, 16:9 marker, cinema zone marker, center point, embedded SDI timecode, and monitor title. The monitor can be operated from AC or 12V DC power, making it flexible for use in a wide array of situations. UPC: 672255004012 In the Box Datavideo TLM-170 Tabletop Monitor Desktop Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM-170 Tabletop Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

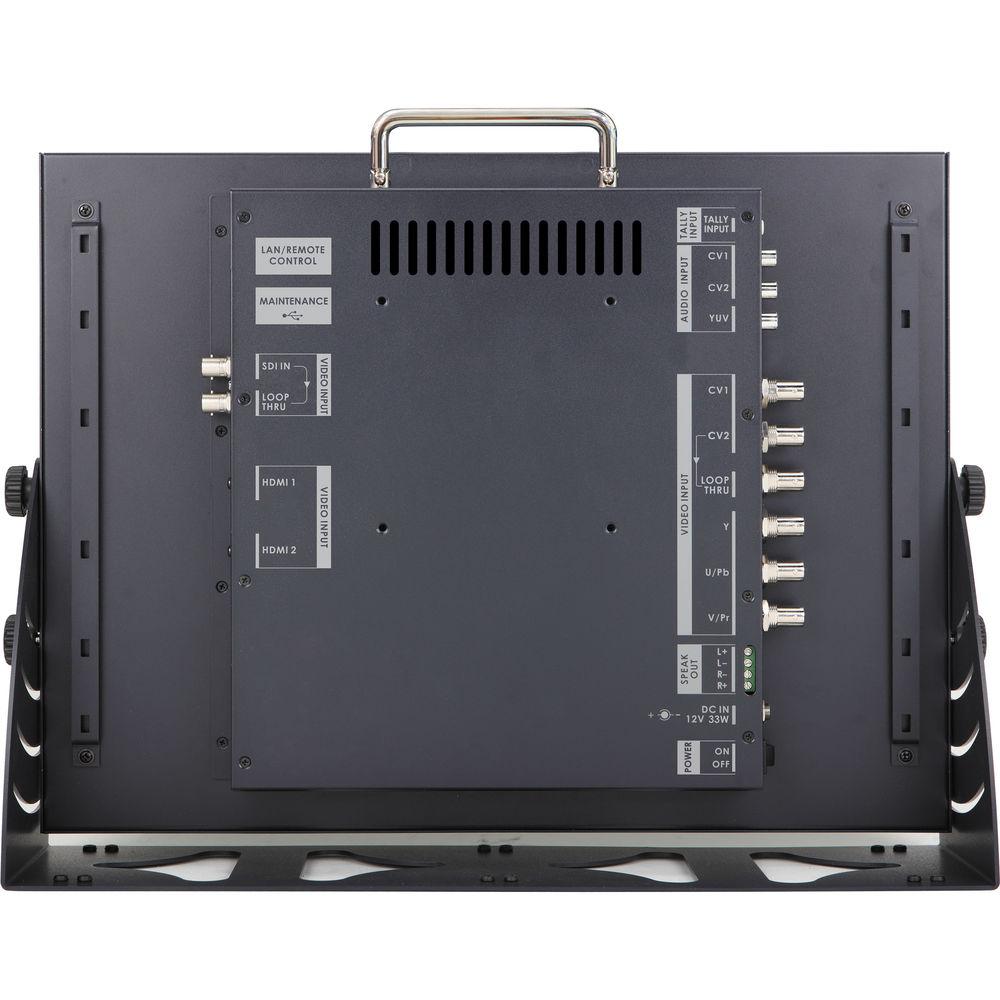

Technical parametersDatavideo TLM-170P Specs | Chassis | Tabletop | | Signal System | NTSC/PAL auto-detecting | | Processing | 10-bit | | Screen Size | 17.3" | | Resolution | 1920 x 1080 | | Supported Input Resolutions | 720 x 480i (NTSC)
720 x 576i (PAL)
1280 x 720p (50/59.94/60 Hz)
1080i (50/59.94/60 Hz)
1080p (23.98/24/25/30/50/59.95/60 Hz) | | Aspect Ratio | 16:9, 4:3 switching | | Display Colors | Not specified by manufacturer | | Viewing Angle | Top: 60°
Bottom, left, right: 80° | | Brightness | 400 cd | | Contrast | 600 | | Response Time | Not specified by manufacturer | | Tally | Live (red) / Cued (amber) | | Audio | Built-in stereo speakers | | Inputs | 2 x HDMI
2 x 3G/HD/SD-SDI
1 x Component YUV
2 x Composite video
4 x Mono RCA audio | | External Sync (Loop Thru) | 1 x 3G/HD/SD-SDI
2 x Composite video | | Maintenance | 1 x USB 2.0 auto firmware upgrade | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Power Requirements | 12 VDC | | Power Consumption | ~30 W | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | 13.2 lbs (6.0 kg) | | | | Package Weight | 17.25 lb | | Box Dimensions (LxWxH) | 20.9 x 17.3 x 10.1" |
