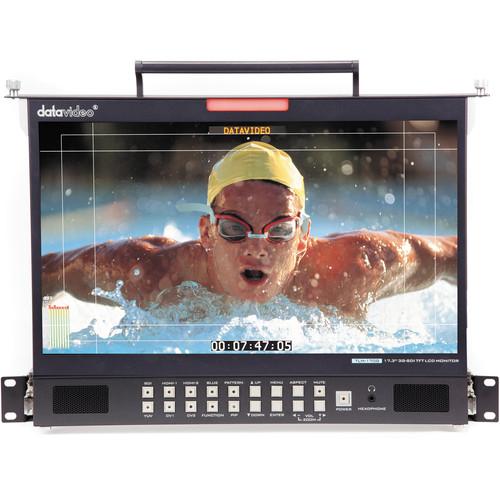

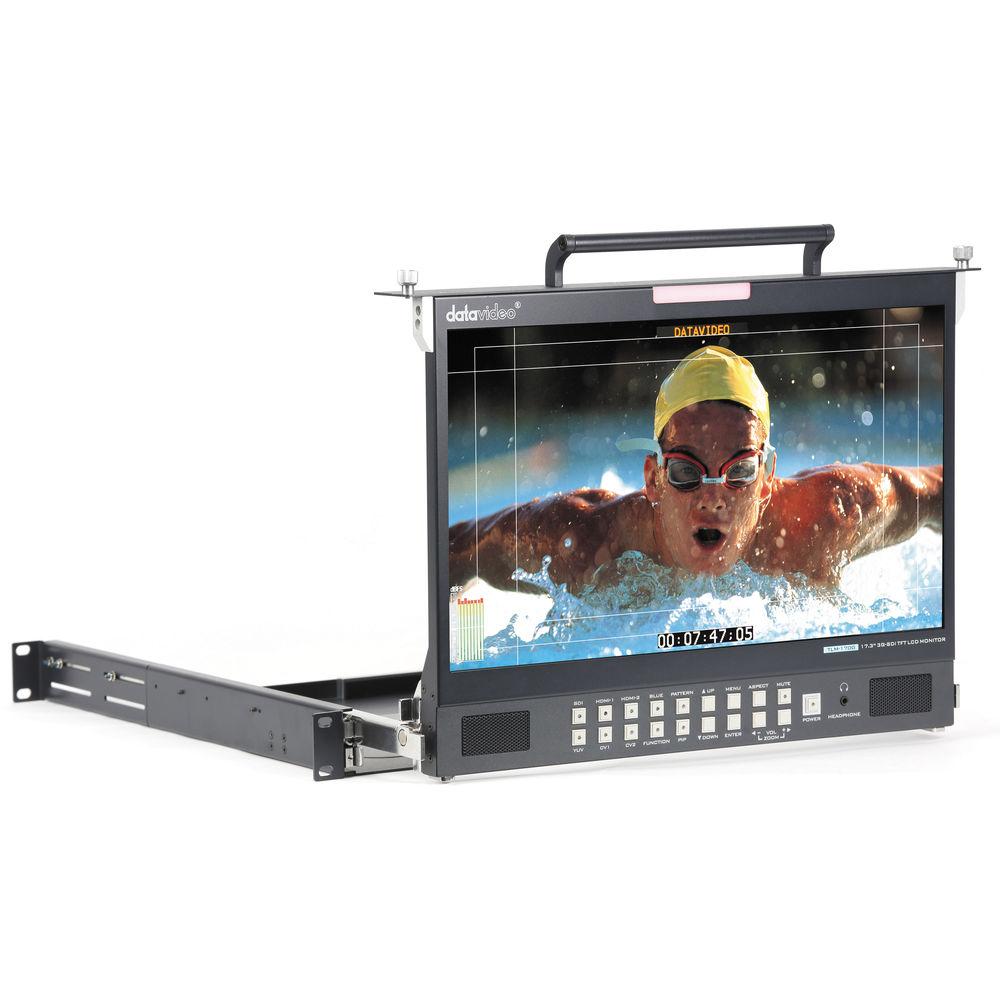

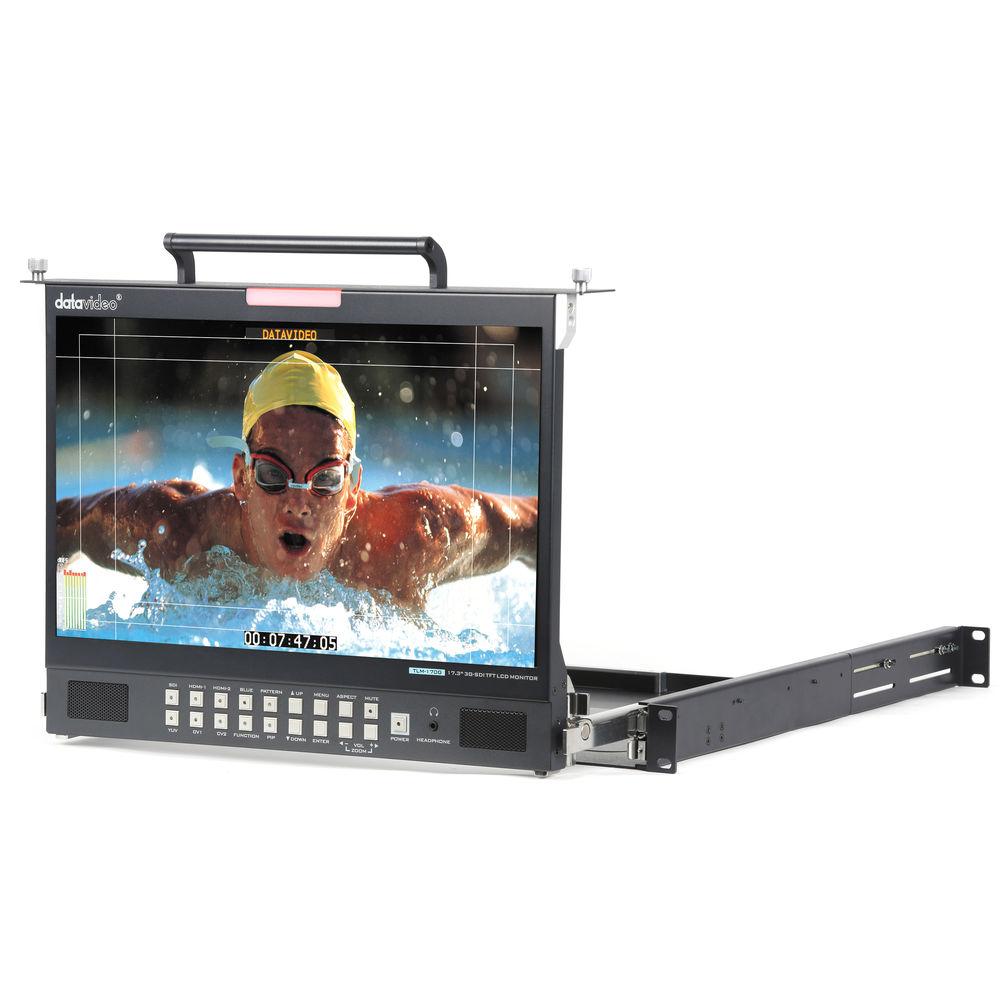

User Manual for Datavideo TLM-170GM 17.3" 3G-SDI & HDMI TFT LCD Monitor - 1RU Foldable Rackmount Tray Unit Click to enlarge the picture
Contents of the user manual for the Datavideo TLM-170GM 17.3" 3G-SDI & HDMI
- Product category: Production Monitors Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo Production Monitors
 |
User manual for the Datavideo TLM-170GM 17.3" 3G-SDI & HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

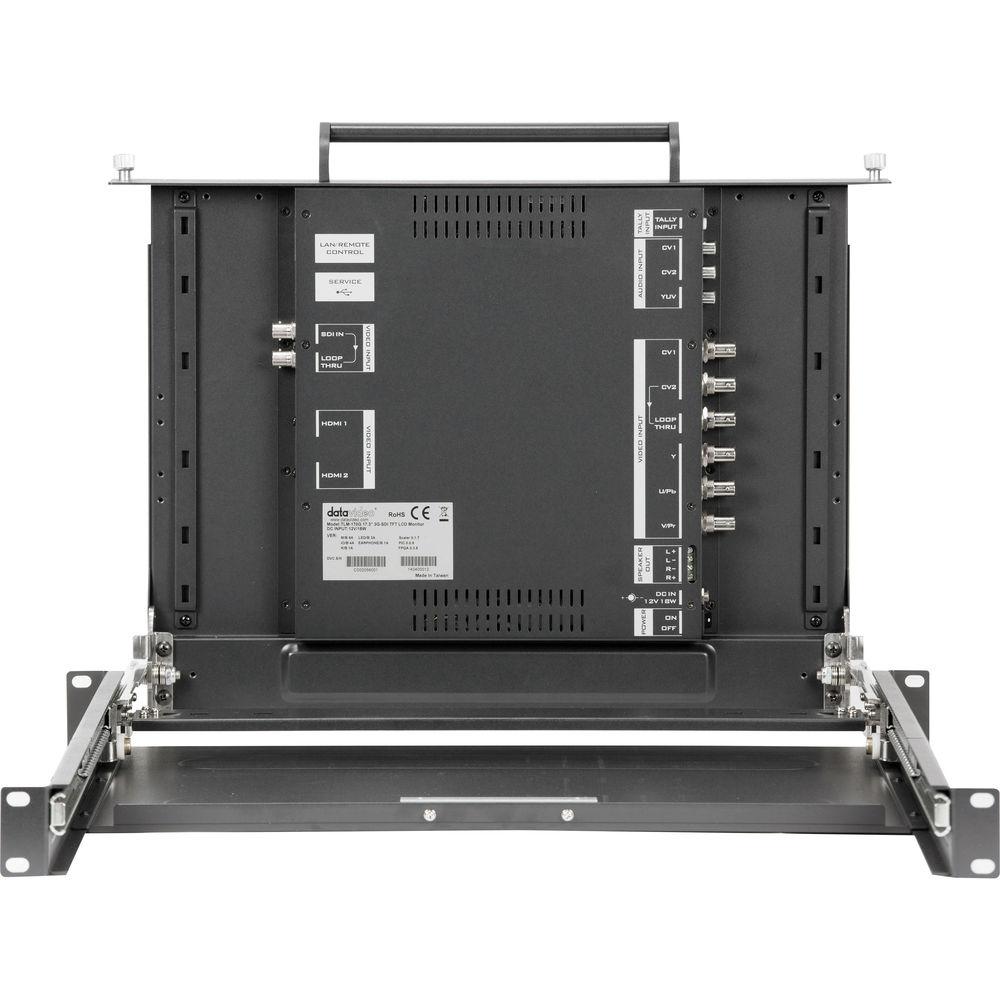

Product description The Datavideo TLM-170GM 17.3" 3G-SDI & HDMI TFT LCD Monitor - 1RU Foldable Rackmount Tray Unit lets you confidently monitor your video live in the field, in the studio, or back in editing suite. It features a resolution of 1600 x 900, supports formats up to 1080p60, and has a variety of inputs to fit in your existing workflow. Inputs include 3G/HD/SD-SDI, HDMI, component, and composite video, as well as RCA analog audio. SDI and HDMI embedded audio is supported. To send your video signals to additional devices, SDI and composite loop through outputs are provided.
The monitor has an on-screen menu, which allows for control and set up of brightness, contrast, saturation, hue, sharpness, color temperature, and picture-in-picture. The menus can also be used to display onscreen overlays including frame markers, center point, and embedded SDI time code and monitor title. Menu navigation and control buttons are located on the front panel. The device can also be controlled by your PC via an Ethernet connection. Additional features include a tally input and bi-color indicator lights, and a USB 2.0 port for firmware updates. -
- 17.3" TFT LCD monitor
- 1600 x 900 resolution
- 3G/HD/SD-SDI, HDMI, component, and composite video inputs
- SDI and composite loop through outputs
- Analog audio inputs
- Supports SDI and HDMI embedded audio
- Audio Indicator:
SDI: 8 CH
HDMI: 2 CH
CV/YUV: 2CH - Speaker cable output connections (L-, L+, R-, R+) for audio monitoring
- Headphone jack and built-in speakers
- Tally input and indicator lights
- On-screen menu
- Display overlays: Frame makers, center point, audio level meters, and time code
- Picture-in-Picture
- Pixel Zoom up to 8x
- Under scan / Over scan
- LAN remote control over Ethernet cable
UPC: 672255004449 In the Box Datavideo TLM-170GM 17.3" 3G-SDI & HDMI TFT LCD Monitor - 1RU Foldable Rackmount Tray Unit 1RU Rackmount Pull-Out Shelf Power Supply Limited 1-Year Warranty (Extended to 2-Year with Product Registration within 30 Days of Purchase) Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM-170GM 17.3" 3G-SDI & HDMI TFT LCD Monitor - 1RU Foldable Rackmount Tray Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-170GM Specs | Signal System | NTSC, PAL | | Screen Size | 17.3" TFT LCD | | Resolution | 1600 x 900 | | Brightness | 220 cd/m² | | Contrast Ratio | 650:1 | | Viewing Angle | Top: 20°
Bottom: 45°
Left: 45°
Right: 45° | | White Balance | 6500K, 9300K, Custom | | Video Inputs | 2 x HDMI (Ver. 1.3)
1 x 3G/HD/SD-SDI, BNC
1 x Component (3x BNC connectors)
2 x Composite, BNC | | Video Loop Output | 1 x HD/SD-SDI
1 x Composite | | SDI Formats Supported | SMPTE 425M A/B
1080p (60/59.94/50/30/25/24)
1080i (60/59.94/50)
SMPTE 296M
1080p (60/59.94/50)
SMPTE 125M
480i (59.94)
ITU-R BT.656
576i (50) | | Audio Input | Mono audio inputs that correspond to the analog video inputs (RCA connectors):
2 x Composite
1 x YUV | | Audio Output | Speaker cable output connections (L-, L+, R-, R+), Max. 5V p - p (2 W)
1 x 3.5 mm headphone jack
Built-in speakers | | Tally Input | 1 x 3.5 mm | | Tally Indicators | Live (Red)
Cued (Amber) | | Remote Control | Yes | | USB | 1 x USB 2.0 | | Network | 1 x LAN remote control, RJ-45 | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Humidity | Less than 90% | | Power Requirements | 12 VDC 5.0 A, 110/220 VAC | | Power Consumption | 15 W | | Dimensions (WxHxD) | 19.0 x 13.3 x 2.0" (48.3 x 33.8 x 5.1 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 20.65 lb | | Box Dimensions (LxWxH) | 26.0 x 23.5 x 6.5" |
