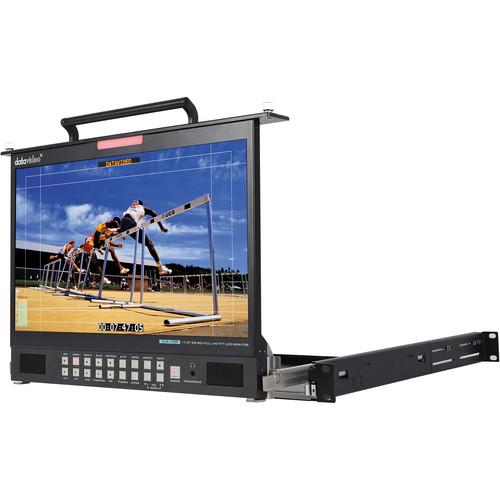

Product description The Datavideo TLM-170M 1RU Rack Pull-Out Video Monitor is a 17.3" video monitor that delivers full HD 1080p resolution from various inputs, including 3G-SDI. The monitor is designed for a range of formats and standards, as well as 24/7 operation. The TLM-170M front panel buttons allow quick and easy selection of source input and features like PIP, aspect ratio, blue only, pattern (color bars), menu, and audio controls. Input HD/SD sources via the rear panel SDI, HDMI, component (Y, Pb, Pr), and composite connections as well as monitoring RCA phone or embedded SDI/HDMI audio.
The TLM-170M monitor has an on-screen display (OSD) menu which allows control and set up of brightness, contrast, saturation, hue, sharpness, color temperature, and picture in picture. It also has an RJ-45 TCP/IP connector to allow remote set up of the monitor using a Windows/Mac based web browser. The menus can also be used to display onscreen overlays for frame marker, 4:3 marker, 16:9 marker, cinema zone marker, center point, embedded SDI timecode, and monitor title. The monitor can be operated from AC or 12V DC power, making it flexible for use in a wide array of situations. UPC: 672255004432 In the Box Datavideo TLM-170M 1RU Rack Pull-Out Monitor 1RU Movable Rack Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM-170M 1RU Rack Pull-Out Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-170PM Specs | Chassis | 1RU rack pull-out | | Signal System | NTSC/PAL auto-detecting | | Processing | 10-bit | | Screen Size | 17.3" | | Resolution | 1920 x 1080 | | Supported Input Resolutions | 720 x 480i (NTSC)
720 x 576i (PAL)
1280 x 720p (50/59.94/60 Hz)
1080i (50/59.94/60 Hz)
1080p (23.98/24/25/30/50/59.95/60 Hz) | | Aspect Ratio | 16:9, 4:3 switching | | Display Colors | Not specified by manufacturer | | Viewing Angle | Top: 60°
Bottom, left, right: 80° | | Brightness | 400 cd | | Contrast | 600 | | Response Time | Not specified by manufacturer | | Tally | Live (red) / Cued (amber) | | Audio | Built-in stereo speakers | | Inputs | 2 x HDMI
2 x 3G/HD/SD-SDI
1 x Component YUV
2 x Composite video
4 x Mono RCA audio | | External Sync (Loop Thru) | 1 x 3G/HD/SD-SDI
2 x Composite video | | Maintenance | 1 x USB 2.0 auto firmware upgrade | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Power Requirements | 12 VDC | | Power Consumption | ~30 W | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 25.5 x 23.5 x 6.8" |
