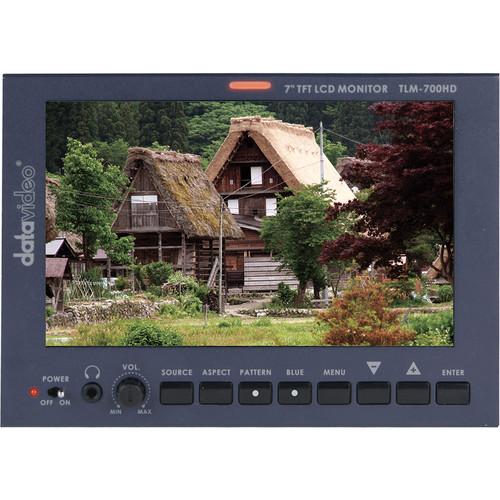

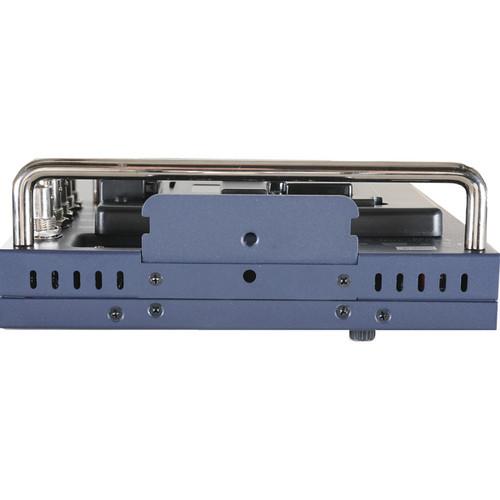

Product description The Datavideo TLM-700HD 7" LCD Monitor with Anton Battery Mount is a 7" HD monitor with a rugged design that is suitable for outdoor use in the field or in a studio. In addition to offering NTSC/PAL support, the monitor offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m² and produces high-quality images at a resolution of 800 x 480. A wide viewing angle ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.
Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios. The Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun. With the time code mode, you can view the time code on the screen. In addition, the unit supports VITC (vertical interval time code) type of time code. The featured dual color tally system indicates different program statuses.
Equipped with an integrated color bar, the TLM-700HD LCD monitor offers precise and accurate screen calibration. Multi-language OSD (on-screen display) offers an intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only).
The TLM-700HD LCD monitor supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video input, thereby offering all-round connectivity. - 7" HD monitor with a rugged design that is suitable for outdoor use in the field or in a studio
- Supports NTSC/PAL support
- Produces high-quality images at a resolution of 800 x 480
- Offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m²
- A wide viewing angle ensures that you can view images clearly from any corner of the room or when the display is mounted at a height
- Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios
- Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun
- Time code mode allows you to view the time code on the screen
- Supports VITC (vertical interval time code) type of time code
- Featured dual color tally system indicates different program statuses
- Enables precise and accurate screen calibration with an integrated color bar
- Multi-language OSD (on-screen display) offers intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only)
- Supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video Input, thereby offering all-round connectivity
- Features Flip/Mirror effect
- Includes SDI/HDMI audio and safe area indicators
- Supports NTSC/PAL auto switching
UPC: 672255005576 In the Box Datavideo TLM-700HD 7" LCD Monitor with Anton Battery Mount Sunshield Switching Adapter DC 12V/1.5A Instruction Manual 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase 1-Year Standard Warranty without Product Registration User Manual PDF 699.7kbdyxwccwwawavffaasccwbt Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM-700HD 7" LCD Monitor with Anton Battery Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

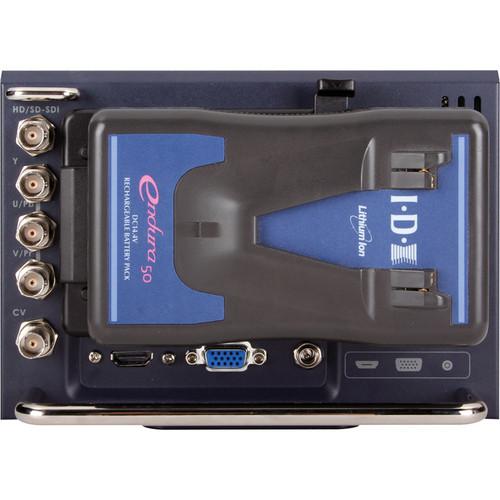

Technical parametersDatavideo TLM-700HD Specs | Size | 7" 16:9 Wide Screen Panel | | Resolution | 800 x 480 | | Viewing Angle | (V)+60/-40°, (H)+60/-60° | | Interface | 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
1x Component Y.U.V Sony Betacam Spec
1x CV input
1x HDMI input
1x D-Sub 15 Pin Plug (Tally Light Signal) | | Operating Temperature | 32 to 102°F (0 to 40°C) | | Humidity | 10 to 90% (non-condensing) | | Firmware | SVN 1.6 | | Dimensions | 7.3 x 5.19 x 2.8" (187 x 132 x 72 mm) | | Weight | 2.6lb (1.2kg) | | Power | DC 12V / 1.5A | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 11.0 x 9.5 x 4.2" |
