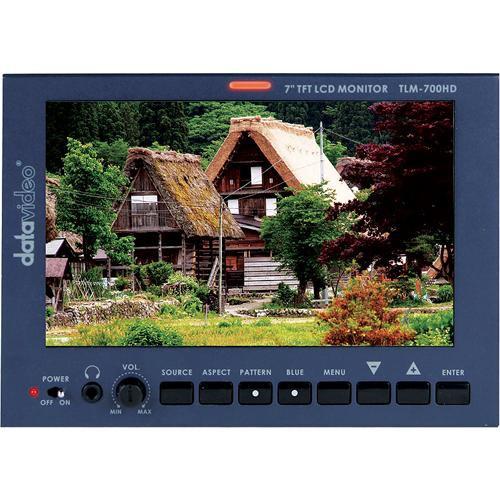

User Manual for Datavideo TLM-700HD 7" SD HD LCD Monitor with V-Mount Battery Adapter Click to enlarge the picture
Contents of the user manual for the Datavideo TLM-700HD 7" SD HD LCD
- Product category: On Camera Monitors Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo On Camera Monitors
|
User manual for the Datavideo TLM-700HD 7" SD HD LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description The TLM-700HD 7" SD/HD LCD Monitor with V-Mount Battery Adapter from Datavideo is equally well suited for use in the field or studio. This unit automatically switches between PAL and NTSC standards, and can be powered with 12VDC or AC power. It also features a standard V-mount that allows you to use a universal battery from a variety of manufacturers. - This monitor offers a 7" 16:9 LCD widescreen panel
- Viewing angles: vertical +60°/-40° horizontal +/-60°
- Supported inputs: HD/SD-SDI, YUV, CV, and HDMI
- Other features include: internal color bars, blue-only function, safe-area indicator, and VITC time-code display
- An audio indicator is included for SDI and HDMI signals
- The monitor offers a dual-color tally-light indicator
- Adjustable parameters include: brightness, contrast, color, and tint
- NTSC and PAL are supported with an auto-switching feature
- Aspect ratio is selectable: 16:9 or 4:3
UPC: 672255001912 In the Box Datavideo TLM-700HD 7" SD/HD LCD Monitor with V-Mount Battery Adapter 12VDC Power Supply 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase 1-Year Standard Warranty without Product Registration User Manual PDF 699.7kbexabztwavecrxzdexcfqwdbbdw Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM-700HD 7" SD HD LCD Monitor with V-Mount Battery Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-700HD Specs | Display | 7" | | Inputs | HD/SD-SDI: BNC (x1 Input)
Component: BNCx3 (x1 Input)
Composite: BNC (x1 Input)
HDMI: HDMI (x1 Input)
Tally: 15-pin DSub (x1 Input) | | Resolution | 800 x 480 | | Aspect Ratio | 16:9
4:3 | | Standard | NTSC/PAL | | Power | 12VAC or DC
V-mount with universal battery | | Dimensions (HxWxD) | 5 x 7.3 x 1.5" (184 x 127 x 38mm) | | Weight | 2 lbs (0.9kg) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 11.3 x 9.7 x 4.5" |
