User Manual for Datavideo TLM-700HD-S1 7" LCD Monitor with Sony Battery Mount Click to enlarge the picture
Contents of the user manual for the Datavideo TLM-700HD-S1 7" LCD Monitor with
- Product category: On Camera Monitors Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo On Camera Monitors
|
User manual for the Datavideo TLM-700HD-S1 7" LCD Monitor with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|

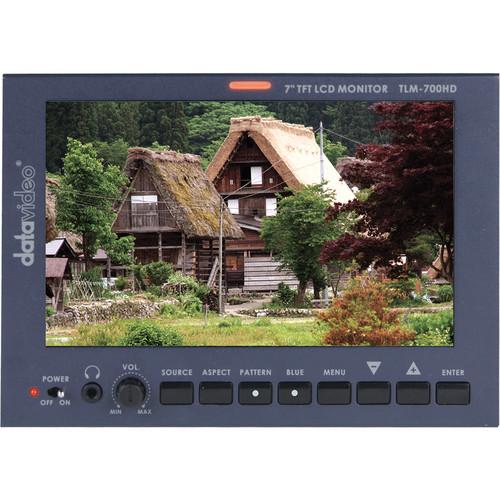

Product description The Datavideo TLM-700HD-S1 7" LCD Monitor with Sony Battery Mount comes with a 7” wide screen TFT panel, NTSC/PAL support, and LED life of 20,000 hours, and produces high-quality images at a resolution of 800 x 480. It offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m². A wide viewing angle of 60/-40° (V) x ±60° (H) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.
Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios. The Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun. With the time code mode, you can view the time code on the screen. In addition, the unit supports VITC (vertical interval time code) type of time code. Featured dual color tally system indicates different program statuses.
Equipped with an integrated color bar, the TLM-700HD-S1 LCD monitor enables precise and accurate screen calibration. Multi-language OSD (On-screen Display) offers intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only).
The TLM-700HD-S1 LCD monitor supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video input, thereby offering all-round connectivity. With a rugged metal design, the LCD monitor is suitable for HD/SD applications such as outdoors in field and production studios.
The Sony battery mount (S-7000U) Z5 includes a rear cover, adapter plate, and boost board. It is compatible with Sony BP-U60 and BP-U30 DV batteries. In addition, the battery mount features open end DC wires in the rear to connect with the equipment. - Features a 7" wide screen TFT panel, NTSC/PAL support, and LED life of 20,000 hours
- Produces high-quality images at a resolution of 800 x 480
- Offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m²
- A wide viewing angle of 60/-40° (V) x ±60° (H) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height
- Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios
- Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun
- Time code mode allows you to view the time code on the screen
- Supports VITC (vertical interval time code) type of time code
- Featured dual color tally system indicates different program statuses
- Enables precise and accurate screen calibration with an integrated color bar
- Multi-language OSD (On-screen Display) offers intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only)
- Supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video Input, thereby offering all-round connectivity
- Suitable for HD/SD applications such as outdoors in field and production studios
- Features Flip/Mirror effect
- Features SDI/HDMI audio indicator and safe area indicator
- Supports NTSC/PAL auto Switching
- Features audio level indicators
- Includes a rear cover, adapter plate, and boost board
- Compatible with Sony BP-U60 and BP-U30 DV batteries
- Features open end DC wires in the rear to connect with the equipment
In the Box Datavideo TLM-700HD-S1 7" LCD Monitor with Sony Battery Mount Sunshield Switching Adapter DC 12V/1.5A Instruction Manual 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase 1-Year Standard Warranty without Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM-700HD-S1 7" LCD Monitor with Sony Battery Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-700HD Specs | Interface | 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
1x Component Y.U.V Sony Betacam Spec
1x CV input
1x HDMI input
1x D-Sub 15 Pin Plug (Tally Light Signal) | | Resolution | 800 x 480 | | Contrast Ratio | 500:1 | | Brightness | 300 cd/m² | | Viewing Angle | 60/-40° (V) x ±60° (H) | | Operating Temperature | 32 to 102°F (0 to 40°C) | | Humidity | 10 to 90% (non-condensing) | | Firmware | SVN 1.6 | | Dimensions | 7.36 x 5.19 x 2.83" (187 x 132 x 72 mm) | | Weight | 2.64lb (1.2kg) | | Power | DC 12V/1.5A | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 11.4 x 9.6 x 4.5" |
