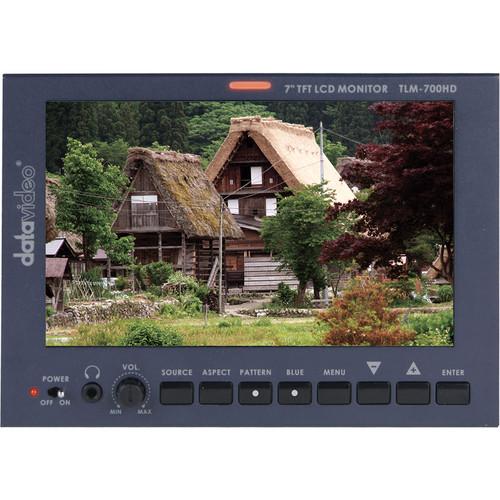

Product description The Datavideo TLM-700HD-S2 7" LCD Monitor with S7000F Sony Battery Mount features a 7” wide screen TFT panel, NTSC/PAL support, and LED life of 20,000 hours, and produces high-quality images at a resolution of 800x480. It offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m². A wide viewing angle of 60/-40° (V) x ±60° (H) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height.
Featured ratio settings allow for switching between 16:9, 4:3, and 15:9 aspect ratios. The Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun. With the time code mode, you can view the time code on the screen. In addition, the unit supports VITC (vertical interval time code) type of time code. Featured dual color tally system indicates different program statuses.
Equipped with an integrated color bar, the TLM-700HD-S2 LCD monitor enables precise and accurate screen calibration. Multi-language OSD (On-screen Display) offers intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only).
The TLM-700HD-S2 LCD monitor supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video input, thereby offering all-round connectivity. With a rugged metal design, the LCD monitor is suitable for HD/SD applications such as outdoors in field and production studios.
The S7000F Sony battery mount is compatible with SWIT S-8972, S-8970, S-8770, and Sony BP-U60/BP-U30 DV batteries. In addition, the battery mount features open end DC wires in the back to connect with the equipment. - Features a 7" wide screen TFT panel, NTSC/PAL support, and LED life of 20,000 hours
- Produces high-quality images at a resolution of 800 x 480
- Offers a contrast ratio of 500:1 and a brightness rating of 300 cd/m²
- A wide viewing angle of 60/-40° (V) x ±60° (H) ensures that you can view images clearly from any corner of the room or when the display is mounted at a height
- Ratio settings - allow for switching between 16:9, 4:3, and 15:9 aspect ratios
- Blue only feature switches off red and green scan guns to produce an image made only from a blue scan gun
- Time code mode allows you to view the time code on the screen
- Supports VITC (vertical interval time code) type of time code
- Featured dual color tally system indicates different program statuses
- Enables precise and accurate screen calibration with an integrated color bar
- Multi-language OSD (On-screen Display) offers intuitive and convenient interface for adjusting settings such as contrast, brightness, color, and tint (NTSC only)
- Supports connections such as HD (high definition), SD-SDI (serial digital interface), HD/SD YUV, and HDMI/Composite Video Input, thereby offering all-round connectivity
- Suitable for HD/SD applications such as outdoors in field and production studios
- Features SDI/HDMI audio indicator and safe area indicator
- Supports NTSC/PAL auto Switching
- Features audio level indicators
- Compatible with SWIT S-8972, S-8970, S-8770, and Sony BP-U60/BP-U30 DV batteries
- Features open end DC wires in the back to connect with the equipment
In the Box Datavideo TLM-700HD-S2 7" LCD Monitor with S7000F Sony Battery Mount Sunshield Switching Adapter DC 12V/1.5A Instruction Manual 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase 1-Year Standard Warranty without Product Registration User Manual PDF 699.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM-700HD-S2 7" LCD Monitor with S7000F Sony Battery Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-700HD Specs | Interface | 1x HD/SD-SDI input (SMPTE 272M-C 1.5Gbps, 270Mbps with Embedded Audio)
1x Component Y.U.V Sony Betacam Spec
1x CV input
1x HDMI input
1x D-Sub 15 Pin Plug (Tally Light Signal) | | Resolution | 800x480 | | Contrast Ratio | 500:1 | | Brightness | 300 cd/m² | | Viewing Angle | 60/-40° (V) x ±60° (H) | | Operating Temperature | 32 to 102°F (0 to 40°C) | | Humidity | 10 to 90% (non-condensing) | | Firmware | SVN 1.6 | | Dimensions | 7.36 x 5.19 x 2.83" (187 x 132 x 72 mm) | | Weight | 2.64lb (1.2kg) | | Power | DC 12V / 1.5A | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 11.3 x 9.6 x 4.6" |
