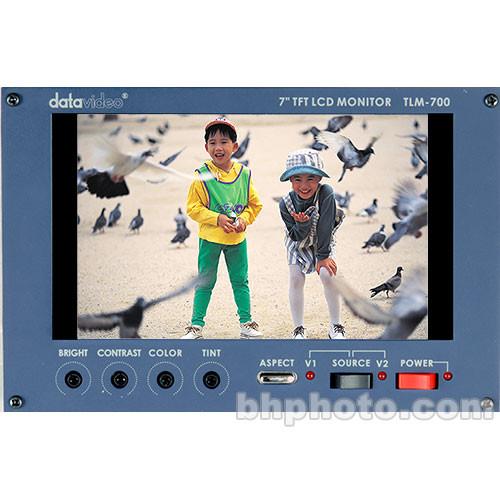

User Manual for Datavideo TLM700 7" LCD Monitor Click to enlarge the picture
Contents of the user manual for the Datavideo TLM700 7" LCD Monitor
- Product category: On Camera Monitors Datavideo
- Brand: Datavideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Datavideo On Camera Monitors
|
User manual for the Datavideo TLM700 7" LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Datavideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Datavideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Datavideo product will considerably shorten its lifespan!
|
Product description The Datavideo TLM-700 7" LCD Monitor is an external color monitor, used with portable cameras rack systems where enhanced monitoring is necessary. The unit comes fully equipped with an added sunshade, making it a perfect solution for both the field and the studio. Features such as NSTC/PAL auto-detection and 16:9/4:3 make the TLM-700 an amazing monitor for the price. - Automatic NTSC or PAL Recognition
- The TLM-700 accepts both NTSC and PAL standard signals. Conveniently, the monitor automatically detects which standard it is being fed without having to push a button, flip a switch or access a menu option.
- Multiple Inputs
- The TLM-700 can handle two video signals. Switching between couldn't be easier with a convenient toggle switch located right below the LCD.
- Picture Adjustments
- The TLM-700 has front panel picture adjustments for color, contrast, tint, and brightness for added control. The control dials are recessed to avoid unintended manipulation.
UPC: 672255001677 In the Box Datavideo TLM700 7" LCD Monitor BNC to BNC 1.2m Carrying Case AC/DC Switching Adapter Removable Sunshade Instruction Manual 2-Year Warranty Against Defects in Material and Workmanship per Product Registration within 30 Days of Purchase 1-Year Standard Warranty without Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Datavideo TLM700 7" LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDatavideo TLM-700 Specs Application | Video monitoring | LCD Size | 7" diagonal | Video System | NTSC and PAL, Auto-Switching Function | Picture Elements | 1440 X 234 16:9/4:3 Switchable | Inputs | 2x Composite on BNC | Picture Controls | Color Contrast Color Tint (NTSC Only) 16:9/4:3 | Remote Control | None | Power Requirements | 12 VDC | Power Consumption | Not Specified By Manufacturer | Dimensions (WxHxD) | 5 x 7.26 x 1.5" 12.7 x 18.44 x 3.81 cm | Weight | 1.5 lbs. 0.8 kg | | Package Weight | 3.1 lb | Box Dimensions (LxWxH) | 10.2 x 8.8 x 3.2" |
